ASRock A520M-HVS AMD A520 AM4 2x DDR4 DIMM M.2 VGA HDMI mATX

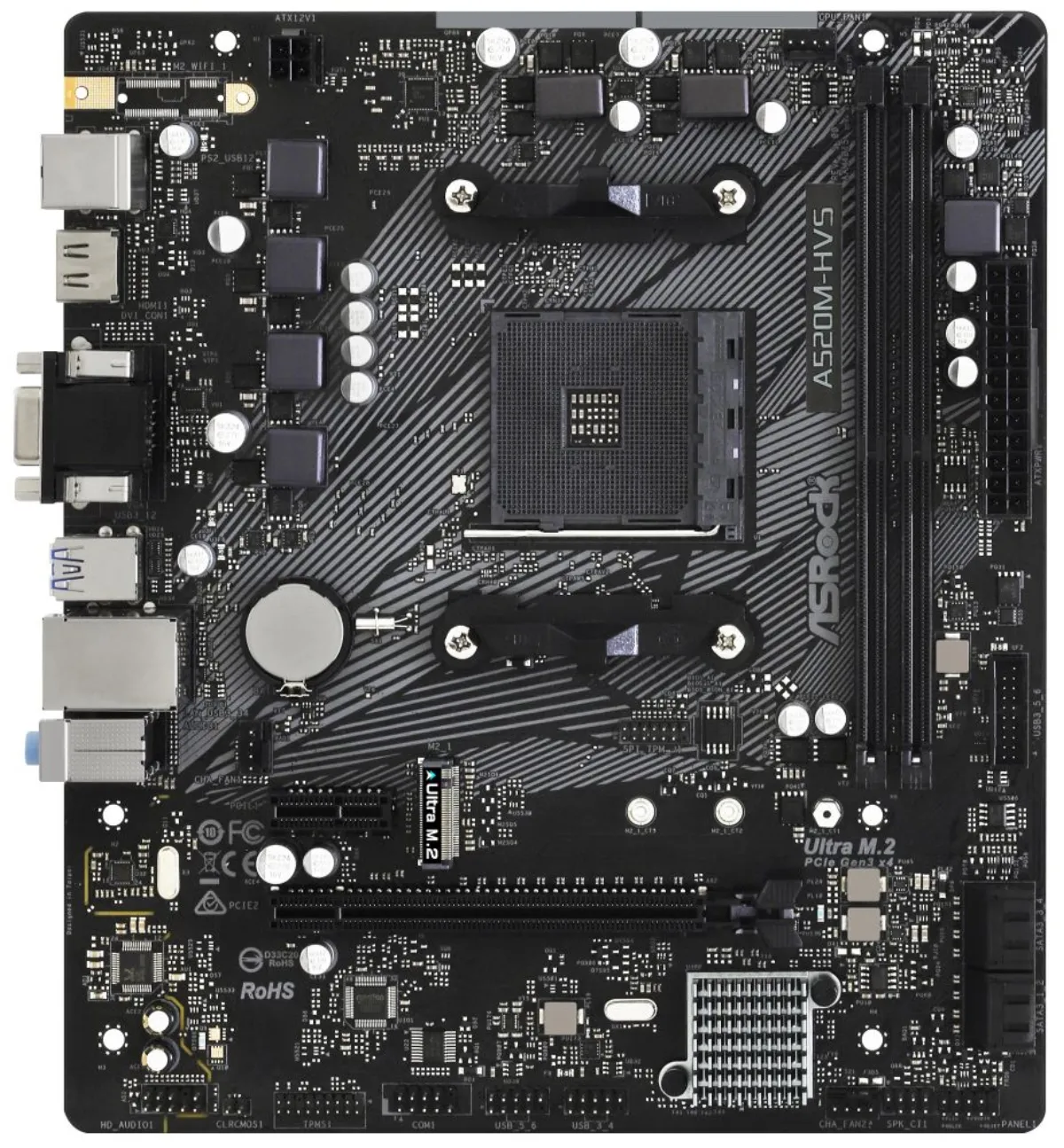

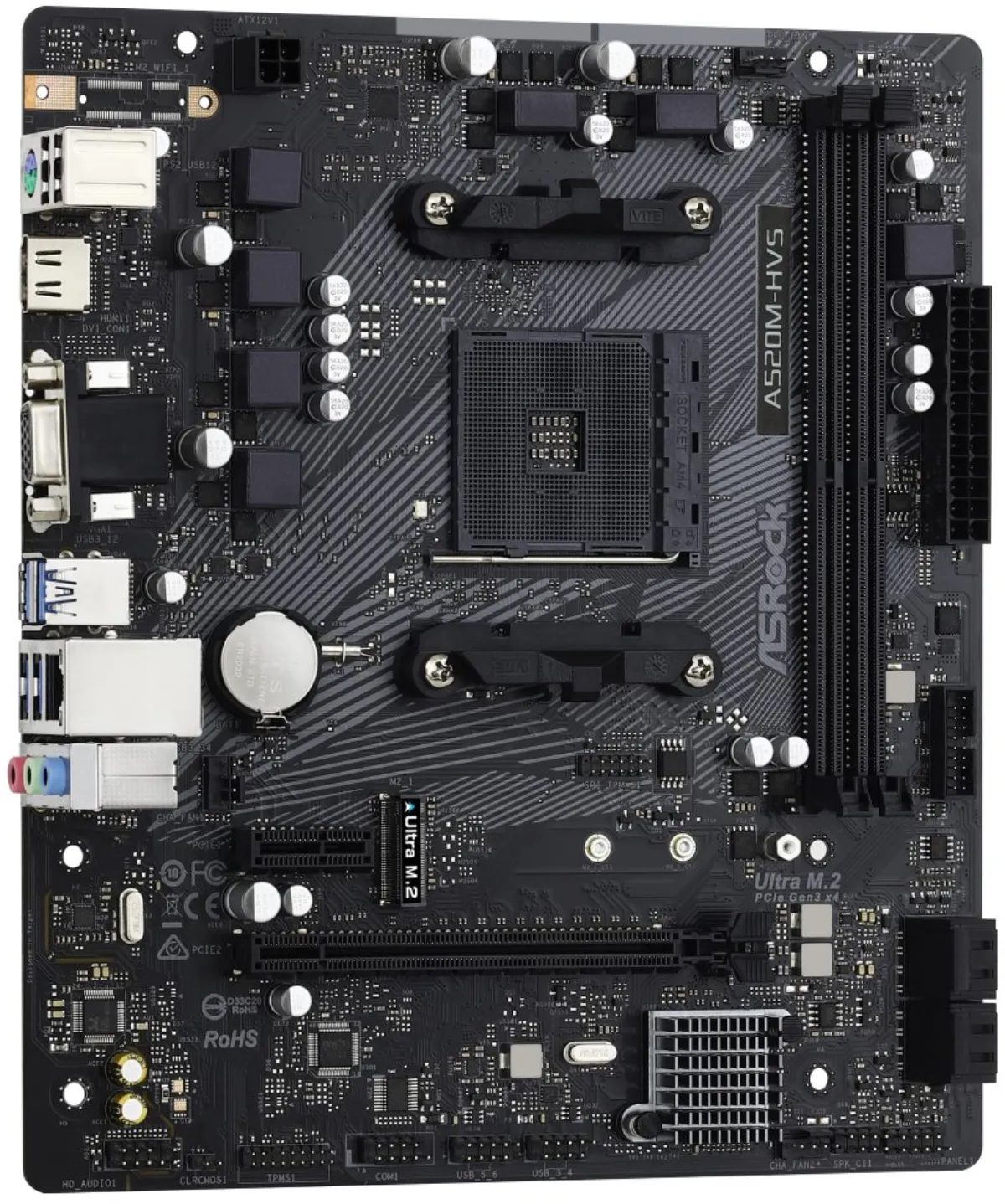

ASRock A520M-HVS

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 3 processors. generation/ AMD Ryzen series 3000 and 4000 (socket AM4)

Chipset

• AMD A520

Memory

• 2 x DDR4 memory slot, support up to 64 GB
• Dual channel memory architecture
• Ryzen (Matisse) CPU supports DDR4 4600+ (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 ( OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• Ryzen (Renoir) CPU supports DDR4 4733+ (OC)/ 4666 (OC)/ 4600 (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 ( OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• ECC and non-ECC support, unbuffered
• Intel Extreme Memory Profile (XMP) support

Slots

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Graphic Design

• 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
• 1 x VGA port, supporting a maximum resolution of 1920 x 1200 at 60 Hz

Repository

• 4 x SATA 6Gb/s ports
• RAID 0, RAID 1 and RAID 10 support
• 1 x Ultra M.2 slot, M Key, for drives type 2242/2260/2280 (SATA and PCIe 3.0 x4 mode)

USB

• 6 x USB 3.2 Gen1 (USB 3.0) (4 ports on the rear panel, 2 ports available via internal USB connectors)
• 6 x USB 2.0 (2 ports on the rear panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC887 Codec
• 7.1 channel High Definition Audio

HIND

• 1 x Realtek RTL8111H Gigabit LAN Controller

Internal Connectors

• 4 x SATA 6Gb/s connector
• 1 x M.2 slot, M Key
• 1 x SPI TPM connector
• 1 x serial port connector
• 1 x speaker connector and cabinet opening detection
• 1 x 4-pin CPU fan connector
• 2 x 4-pin case fan connector
• 1 x 24-pin ATX main power connector
• 1 x 4-pin 12V power connector
• 1 x front panel audio jack
• 2 x USB 2.0 connector (supports 4 x USB 2.0 port)
• 1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)

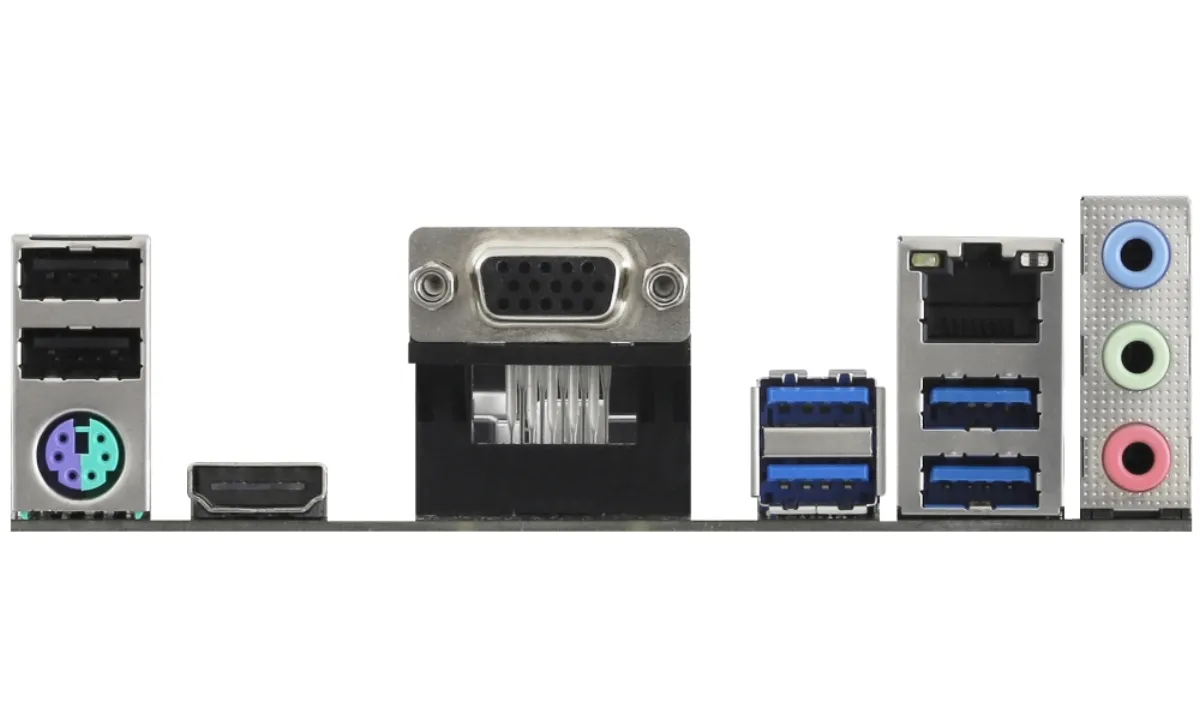

Rear Panel Ports

• 1 x PS/2 keyboard and mouse combo port
• 1 x VGA
• 1 x HDMI
• 2 x USB 2.0
• 4 x USB 3.2 Gen1 (USB 3.0)
• 1 x RJ-45
• 3 x audio jack

Dimensions

• 23 x 20.1 cm
• Micro ATX format
