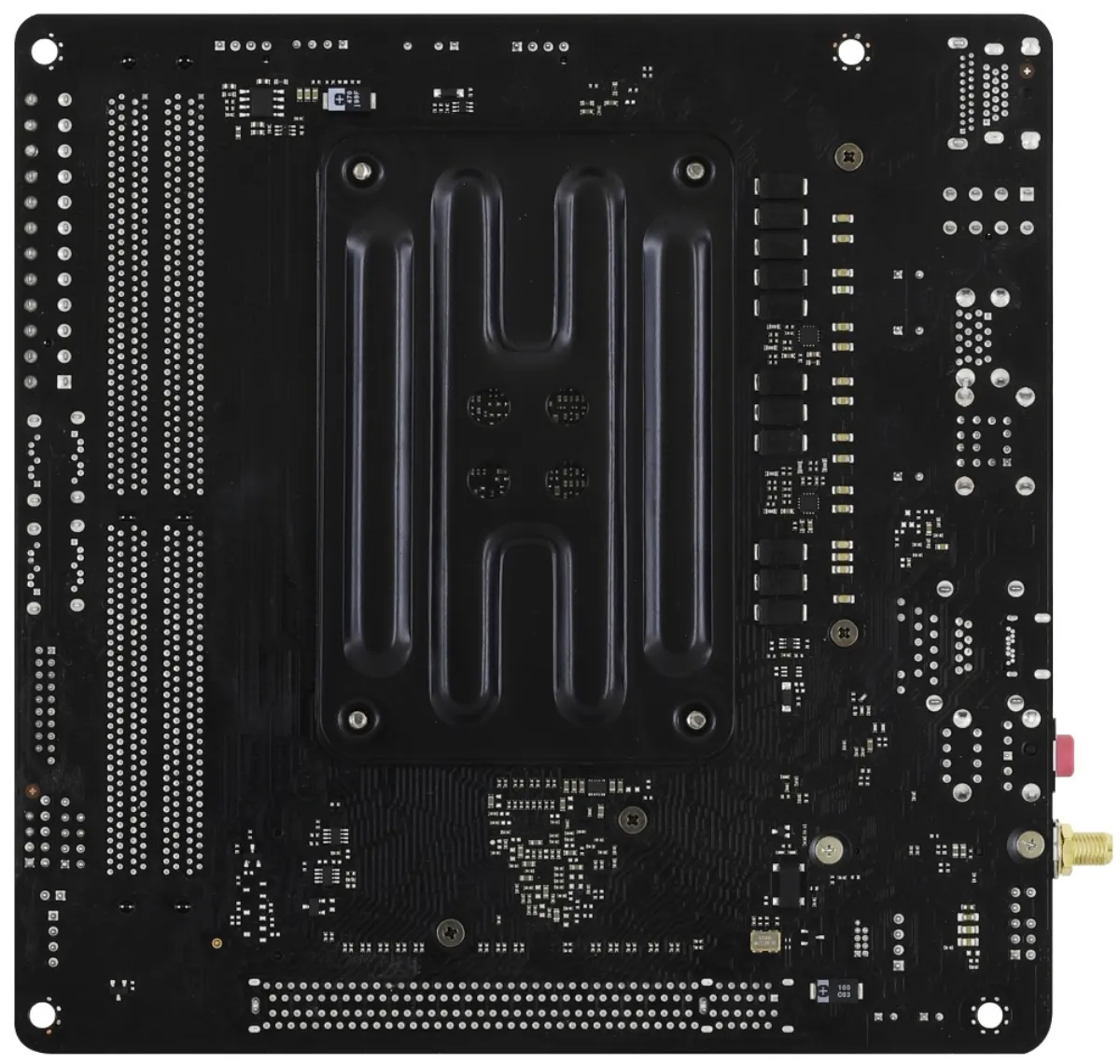

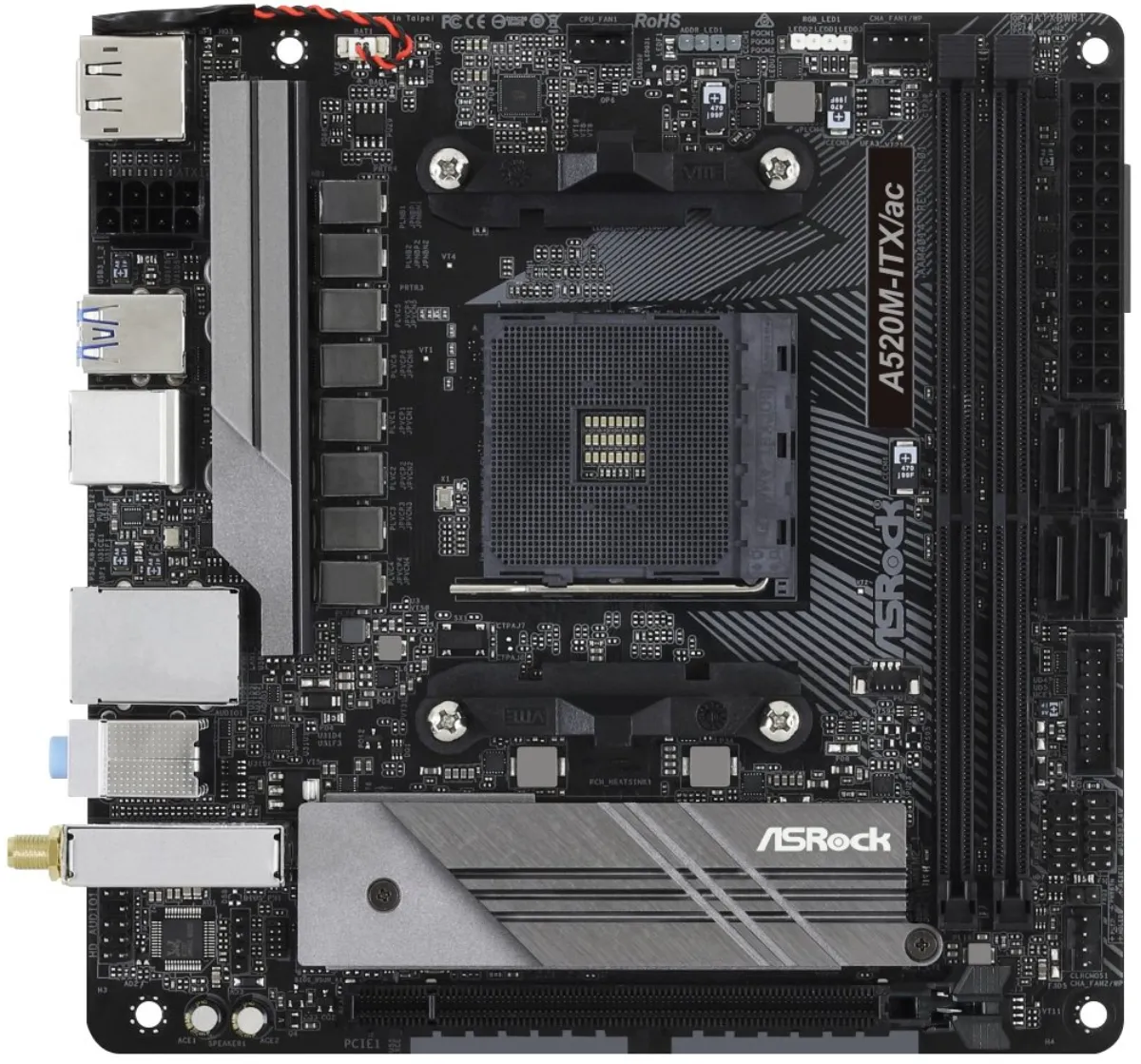

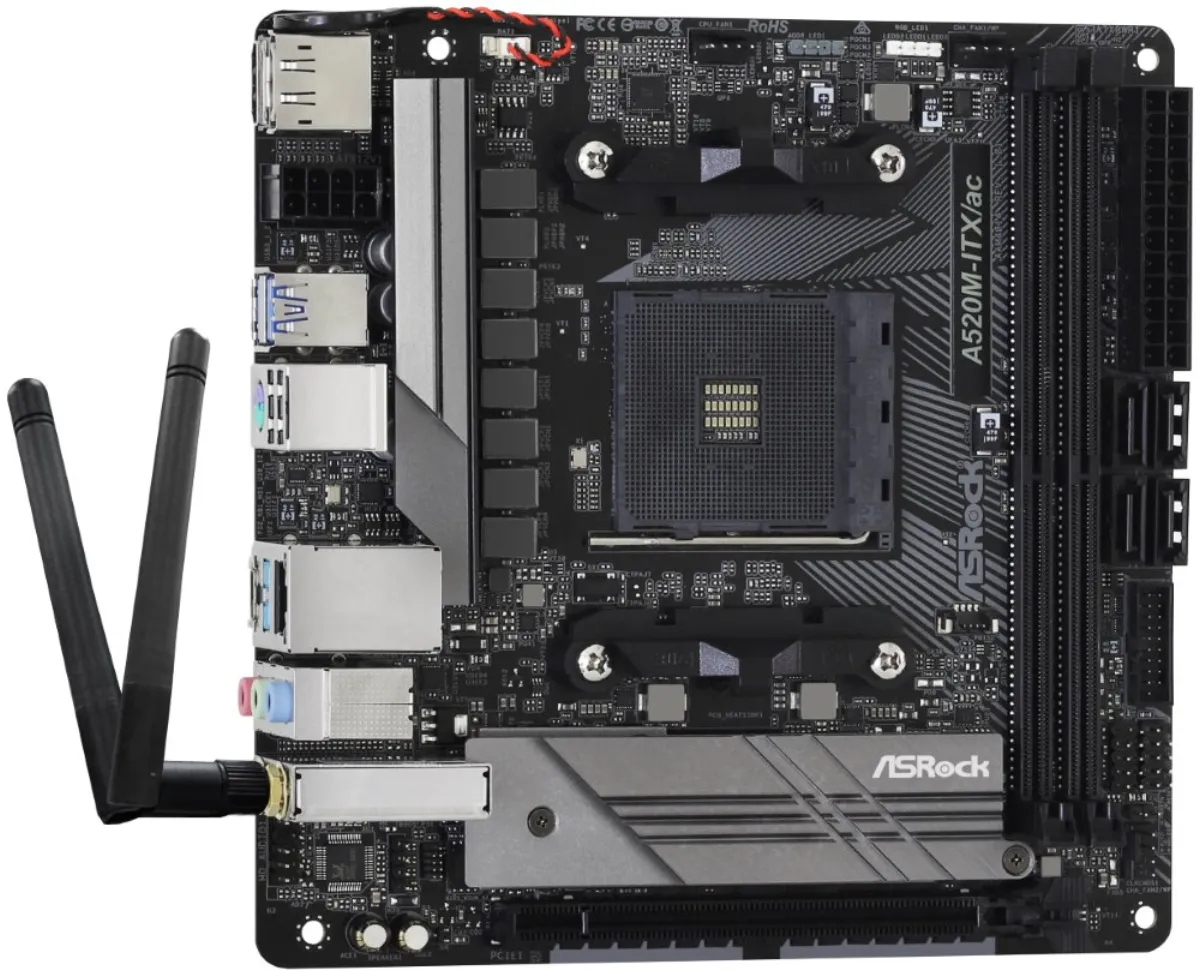

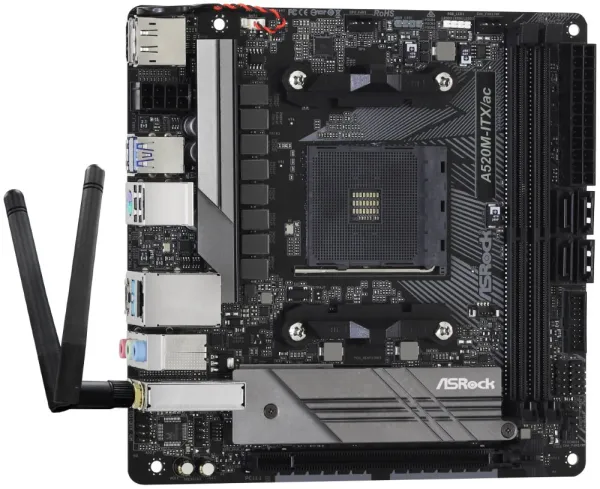

ASRock A520M-ITX AC AMD A520 AM4 2x DDR4 DIMM DP HDMI USB-C WiFi Mini-ITX

ASRock A520M-ITX/ac

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen G-series 3000, 4000 and 5000 series processors (socket AM4)
• Does not support Ryzen 5 3400G and Ryzen 3 3200G processors

Chipset

• AMD A520

Memory

• 2 x DDR4 memory slot, support up to 64 GB
• Dual channel memory architecture
• Ryzen (Matisse) CPU supports DDR4 4600+ (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 ( OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• Ryzen (Renoir) CPU supports DDR4 4733+ (OC)/ 4666 (OC)/ 4600 (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 ( OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• ECC and non-ECC support, unbuffered
• Intel Extreme Memory Profile (XMP) support

Slots

• 1 x PCIe 3.0 x16 slot

Graphic Design

• 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 at 120 Hz

Repository

• 4 x SATA 6Gb/s ports
• Support RAID 0, RAID 1 and RAID 10, NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 slot, M Key, for type 2280 drives (SATA and PCIe 3.0 x4 mode)

USB

• 1 x USB 3.2 Gen1 Type C port on the back panel
• 5 x USB 3.2 Gen1 (USB 3.0) (3 ports on the rear panel, 2 ports available via internal USB connectors)
• 4 x USB 2.0 (2 ports on the rear panel, 2 ports available via internal USB connectors)

Audio

• Realtek ALC887 Codec
• 7.1 channel High Definition Audio

HIND

• 1 x Realtek RTL8111H Gigabit LAN Controller

WLAN/ Bluetooth

• Intel Wi-Fi 802.11a/b/g/n/ac
• Dual Band (2.4 GHz, 5 GHz)
• Data transfer speed up to 433 Mbps
• Bluetooth 4.2

Internal Connectors

• 4 x SATA 6Gb/s connector
• 1 x M.2 slot, M Key
• 1 x RGB LED strip connector
• 1 x addressable LED strip connector
• 1 x 4-pin CPU fan connector
• 2 x 4-pin case fan/water cooling pump connector
• 1 x 24-pin ATX main power connector
• 1 x 8-pin 12V power connector
• 1 x front panel audio jack
• 1 x USB 2.0 connector (supports 2 x USB 2.0 port)
• 1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)

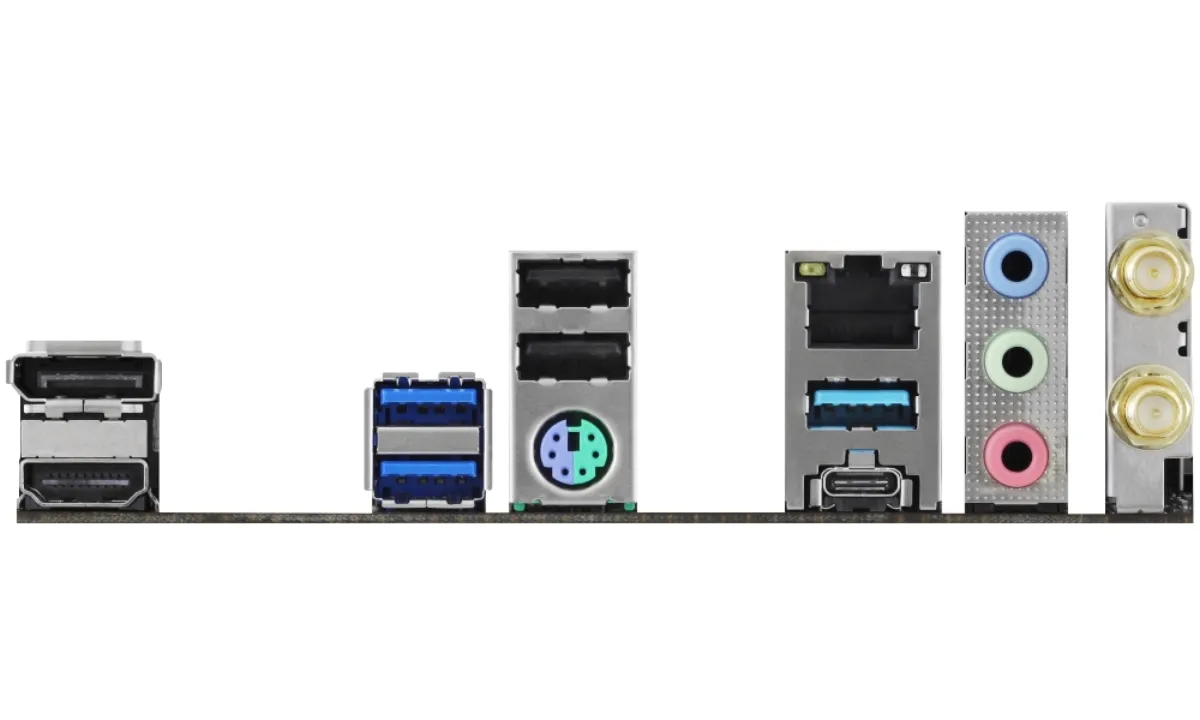

Rear Panel Ports

• 2 x Wi-Fi antenna connector
• 1 x PS/2 keyboard and mouse combo port
• 1 x HDMI
• 1 x DisplayPort
• 2 x USB 2.0
• 3 x USB 3.2 Gen1 (USB 3.0)
• 1 x USB 3.2 Gen1 Type C
• 1 x RJ-45
• 3 x audio jack

Dimensions

• 17 x 17 cm
• Mini ITX format
