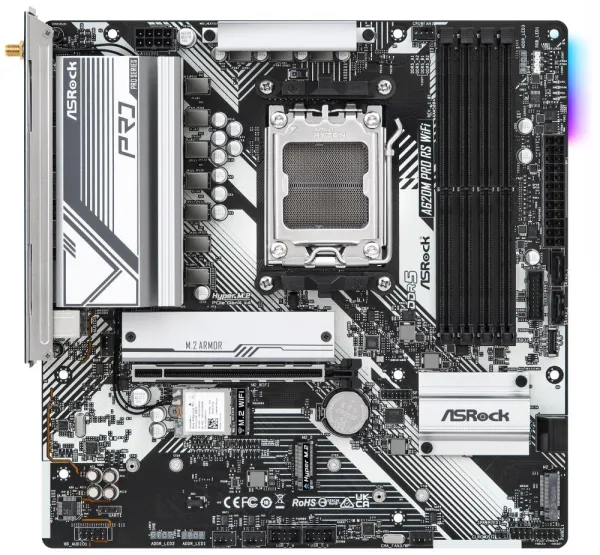

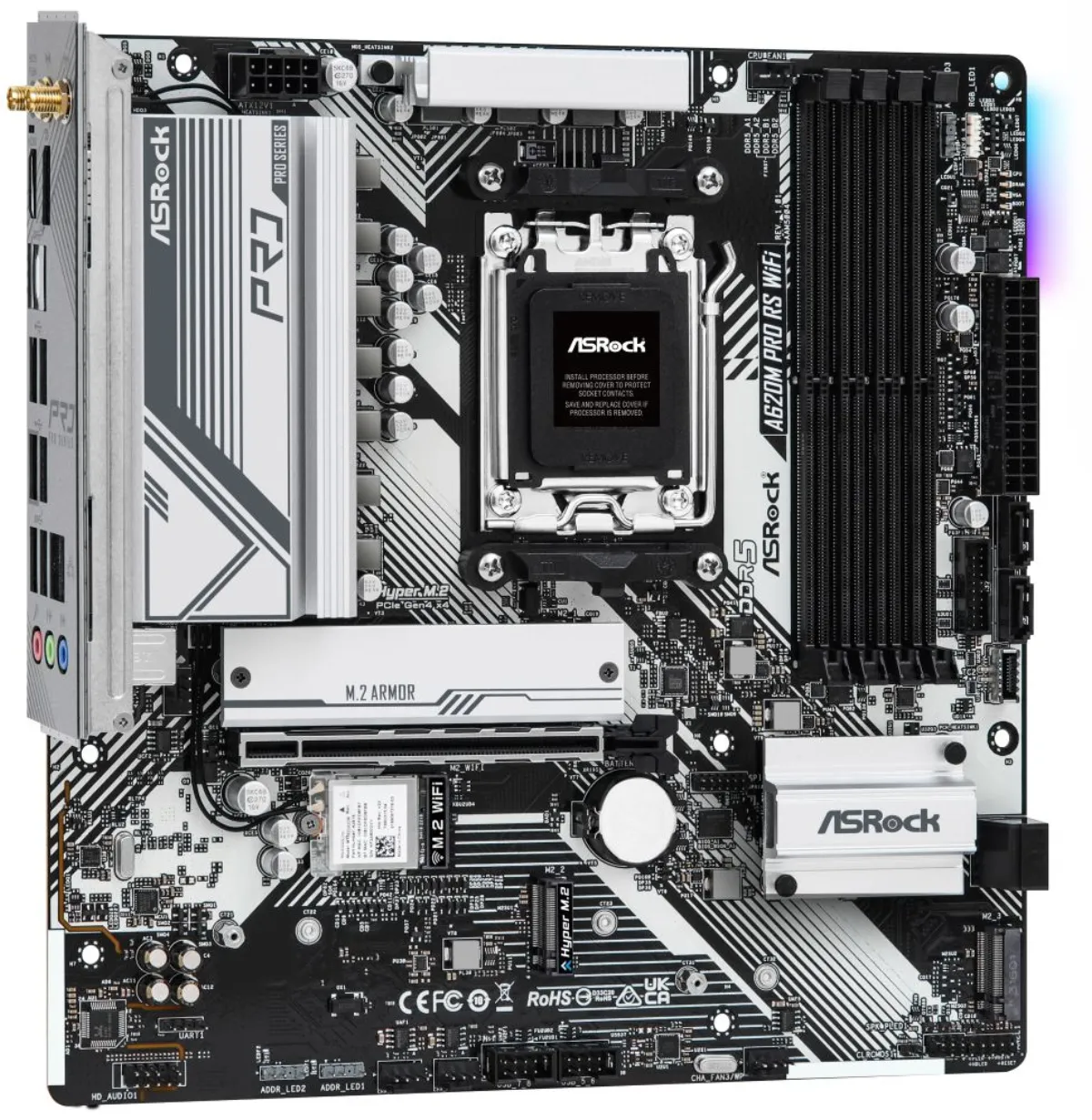

ASRock A620M Pro RS WiFi AMD A620 AM5 4x DDR5 DIMM 3x M.2 HDMI DP USB-C WiFi mATX

ASRock A620M Pro RS WiFi

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000 series processors (socket AM5)

Chipset

• AMD A620

Memory

• 4x DDR5 memory slot, support up to 128 GB
• DDR5 support up to 6000+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Support for AMD EXtended Profiles for Overclocking (EXPO)
• Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 4.0 x16 slot

Graphic Design

• 1× HDMI 2.1 port, supporting a maximum resolution of 4K at 120 Hz
• 1× DisplayPort 1.4 port, supporting a maximum resolution of 4K at 120 Hz

Repository

• 2× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for 2260/2280 type units (PCIe 3.0 x2 mode)
• 4x SATA 6 Gb/s port
• RAID 0, RAID 1 and RAID 10 support for SATA and M.2 NVMe drives

USB

• 2× USB-C 3.2 Gen1 (USB 3.0) port (1 port on the back panel, 1 port available via the internal USB connector)
• 5× USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports available via the internal USB connector)
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

HIND

• 1× Realtek 8111H Gigabit LAN controller

WLAN/ Bluetooth

• Wi-Fi 6E module
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band 2x2 (2.4 GHz, 5 GHz) + 6 GHz
• MU-MIMO support
• Bluetooth 5.2

Internal Connectors

• 1x TPM SPI connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/water cooling fan connector
• 3x 4pin case fan/water cooling fan connector
• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen1 (USB 3.0) front panel connector
• 4x SATA 6 Gb/s connector
• 2x Hyper M.2 slot, M Key
• 1× M.2 slot, M Key

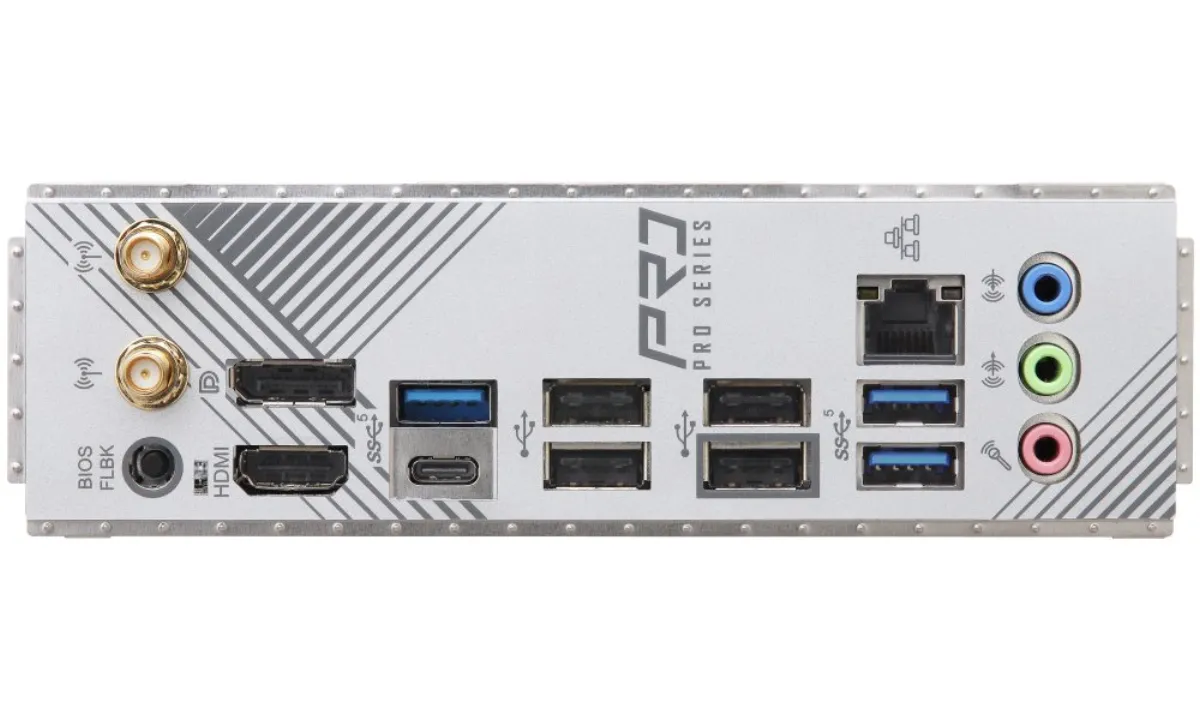

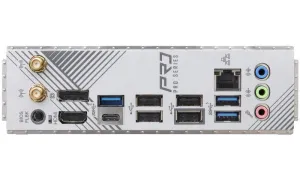

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x DisplayPort
• 1× USB-C 3.2 Gen1 (USB 3.0)
• 3x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 1× BIOS Flashback button
• 3x audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
