ASRock B550 PG RIPTIDE AM4 4x DDR4 DIMM HDMI 2x M.2 ATX

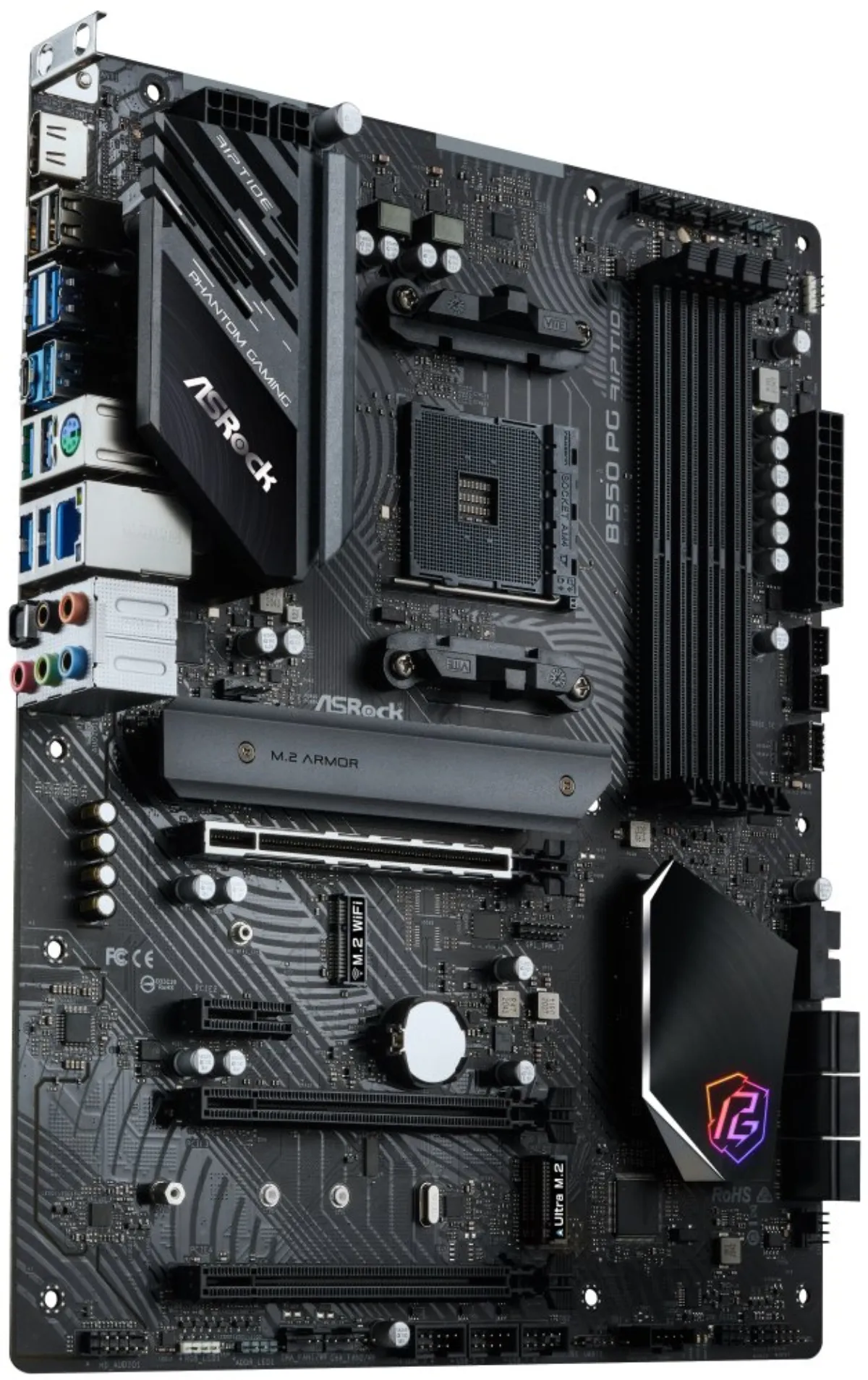

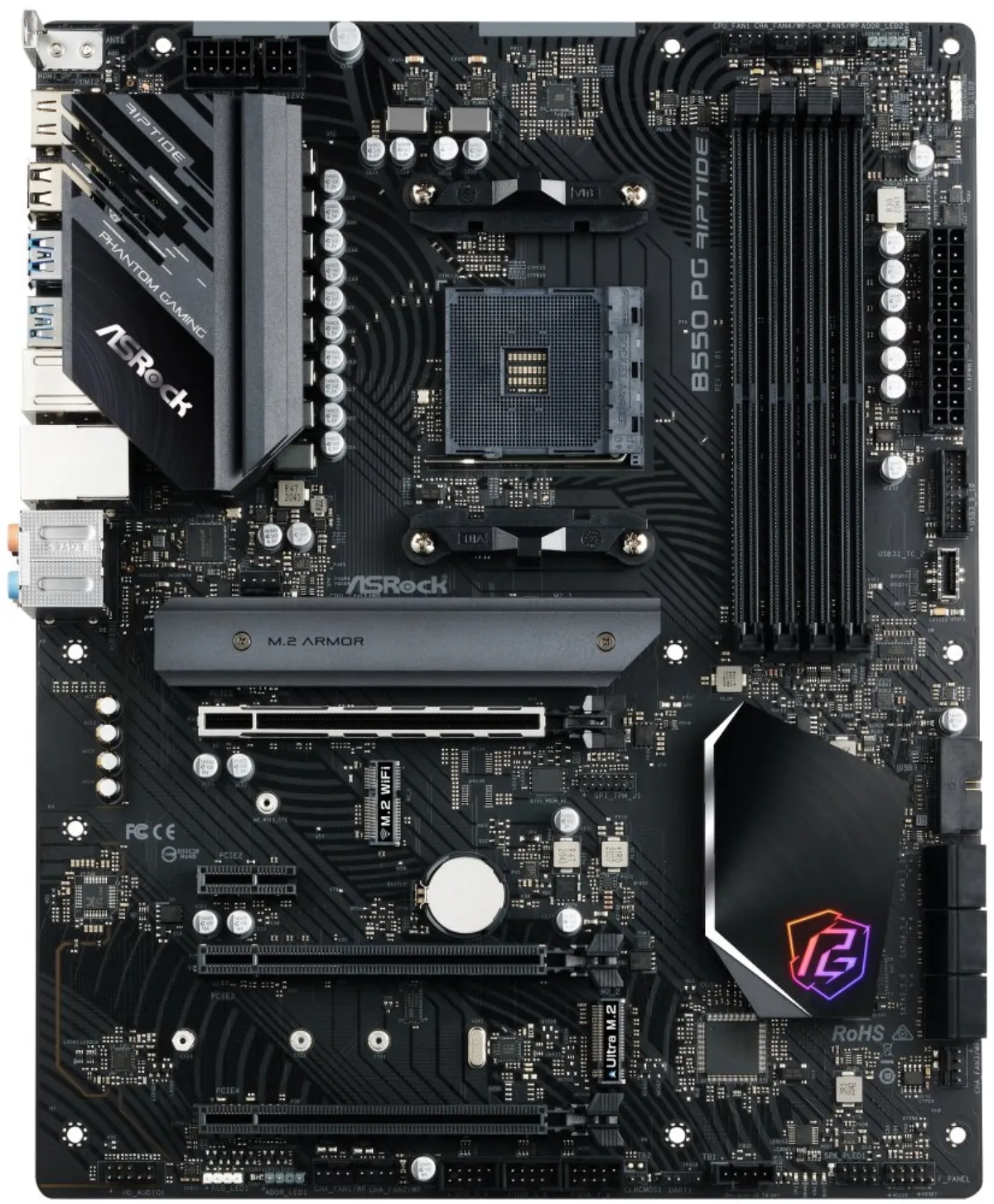

ASRock B550 PG Riptide

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 3 processors. and higher generations (socket AM4)
• Does not support AMD Athlon processors

Chipset

• AMD B550

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Dual channel memory architecture
• Support DDR4 4933+ (OC), 4733 (OC)/ 4666 (OC)/ 4600 (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• Ryzen CPU (Picasso) supports DDR4 3600+ (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• ECC and non-ECC support, unbuffered Ryzen CPU (Picasso) only supports non-ECC, no buffer (ECC supported only on PRO versions)
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 3.0 x16 slot
• Ryzen CPUs (Vermeer and Matisse) support PCIe 4.0
• Ryzen CPU (Picasso) supports x8 mode
• 1x PCIe 3.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x16 slot (supports x1 mode)
• 1x PCIe 3.0 x1 slot

Graphics

• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz

Multi-GPU

• AMD Quad CrossFireX and CrossFireX support

Storage

• 6x SATA 6Gb/s port
• 1x Hyper M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 3.0 x4 mode)
• Ryzen CPUs (Vermeer and Matisse) support PCIe 4.0 x4 mode
• 1x Ultra M.2 slot, M Key, for 2260/2280/22110 type units (SATA and PCIe 3.0 x4 mode)
• RAID 0, RAID 1 and RAID 10 support for SATA drives
• RAID 0 and RAID 1 support for PCIe drives

USB

• 1x USB 3.2 Gen2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 1x USB 3.2 Gen2 (USB 3.1) port on the back panel
• 10x USB 3.2 Gen1 (USB 3.0) port (6 ports on the back panel, 4 ports available via internal USB connectors)
• 8x USB 2.0 ports (2 ports on the back panel, 6 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• S/PDIF output support

LAN

• 1x Killer E3100G 2.5Gigabit LAN controller

Internal connectors

• 6x SATA 6Gb/s connector
• 1x Hyper M.2 slot, M Key
• 1x Ultra M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi module (not included)
• 1x SPI TPM connector
• 1x speaker connector and Power LED
• 2x RGB LED strip connector
• 2x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/water cooling pump connector
• 5x 4-pin housing fan/ water cooling pump connector
• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x 4-pin 12V power connector
• 1x front panel audio connector
• 1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC card)
• 3x USB 2.0 connector (supports 6x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2 type C front panel connector

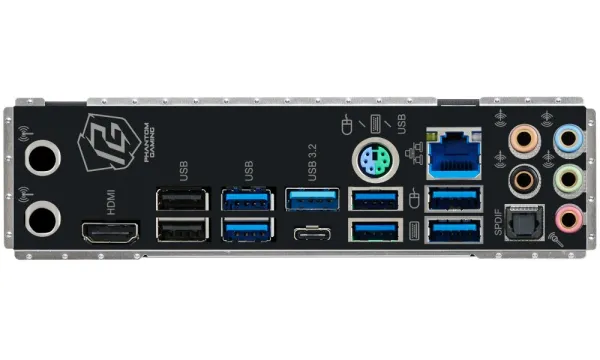

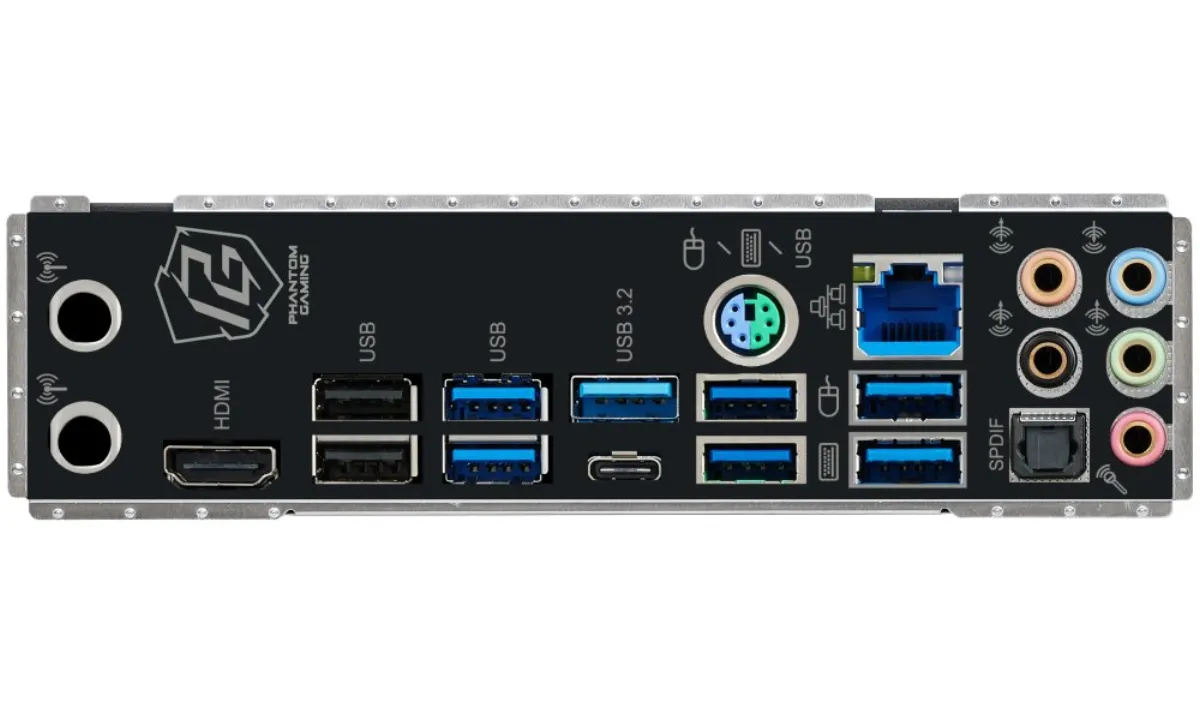

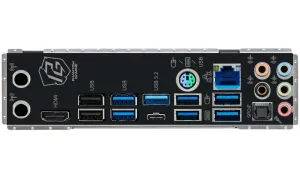

Rear panel ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1x optical S/PDIF output
• 1x USB 3.2 Gen2 (USB 3.1)
• 1x USB 3.2 Gen2 (USB 3.1) type C
• 6x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 5x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
