ASRock B650 PG Lightning AMD B650 AM5 4x DDR5 DIMM 3x M.2 HDMI USB-C ATX

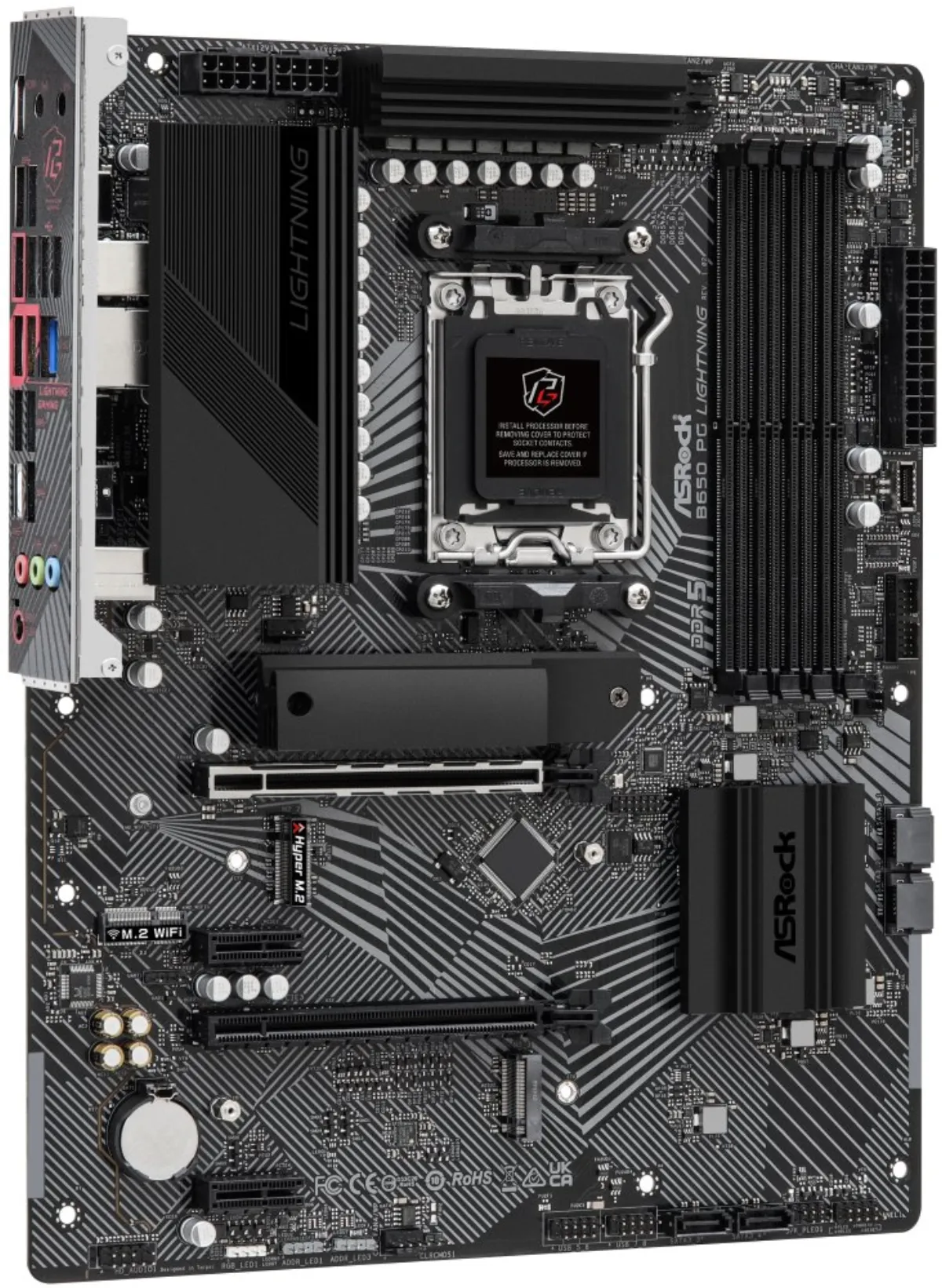

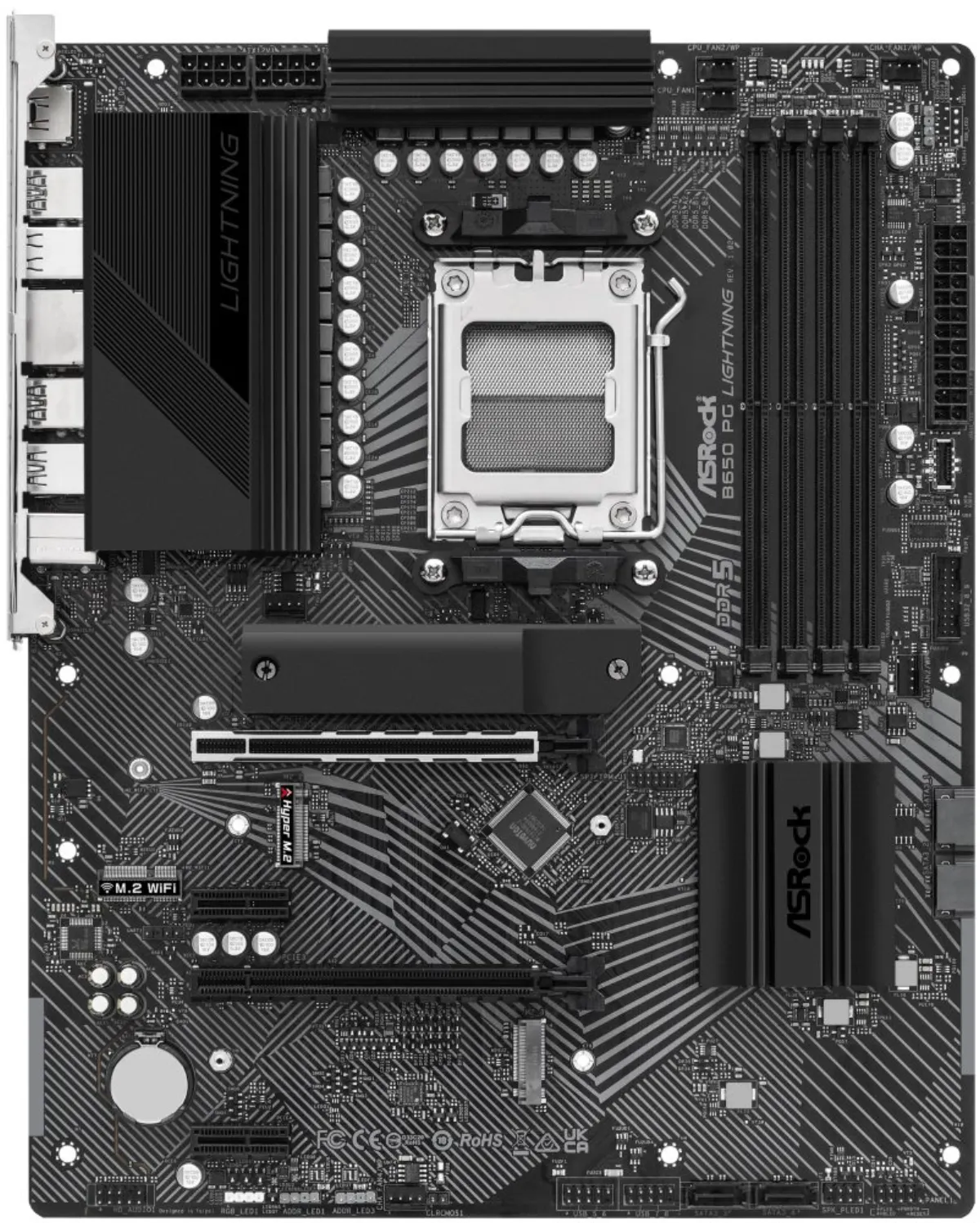

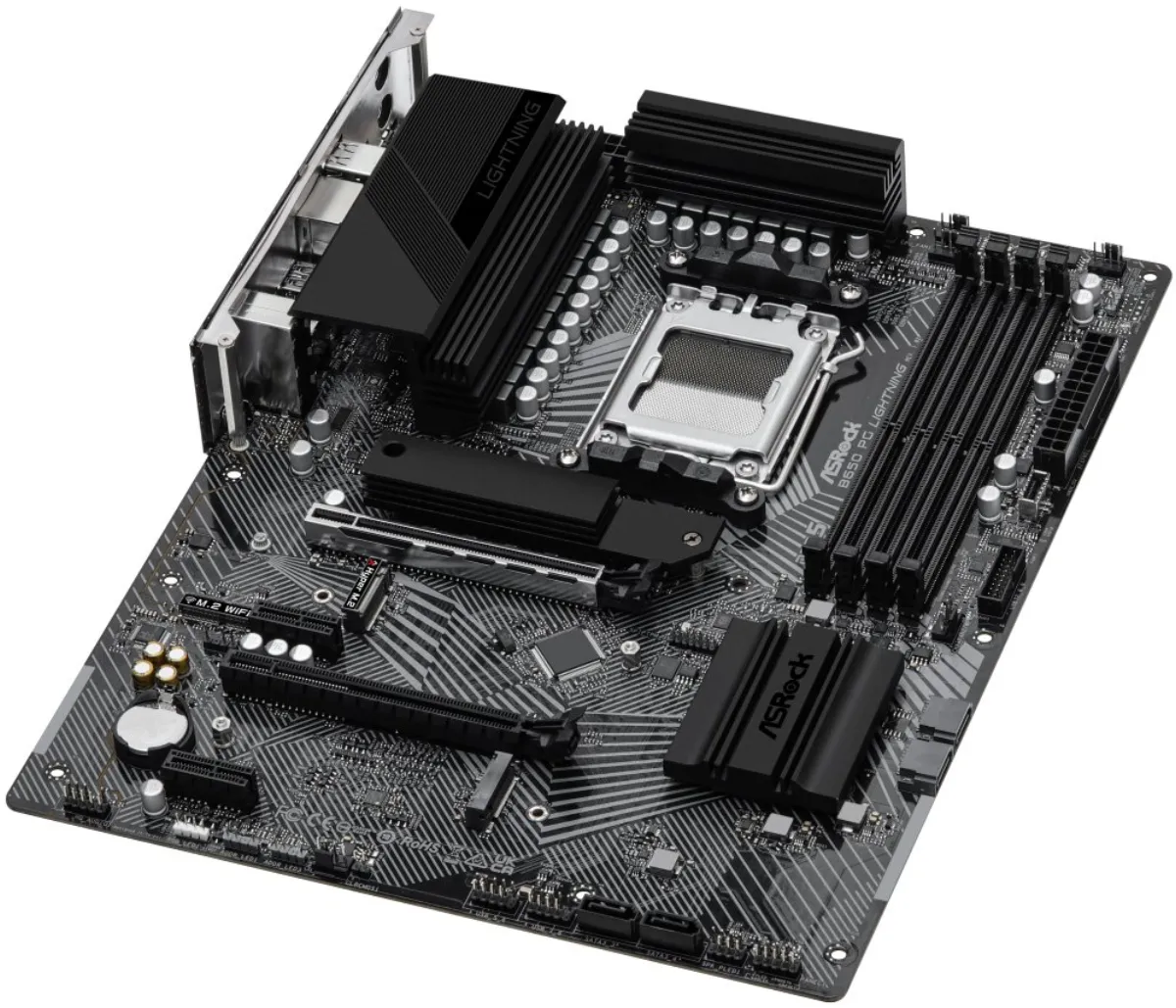

ASRock B650 PG Lightning

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000 series processors (socket AM5)

Chipset

• AMD B650

Memory

• 4x DDR5 memory slot, support up to 128 GB
• DDR5 support up to 6400+ (OC) MHz
• Dual channel memory architecture
• ECC/non-ECC support, unbuffered
• Support for AMD EXtended Profiles for Overclocking (EXPO)
• Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x2 mode)
• 2x PCIe 4.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 120 Hz

Repository

• 1x Blazing M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for type 2280 units (PCIe 4.0 x2 mode)
• 4x SATA 6Gb/s port
• Support ASRock U.2 Kit
• RAID 0, RAID 1 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 9x USB 3.2 Gen1 (USB 3.0) port (7 ports on the back panel, 2 ports available via internal USB connector)
• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic audio

HIND

• 1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal Connectors

• 1x SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/CPU water cooling fan connector
• 4x 4-pin case fan/CPU water cooling fan connector
• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2 Type C front panel connector
• 1x M.2 slot, E key for Wi-Fi module (not included)

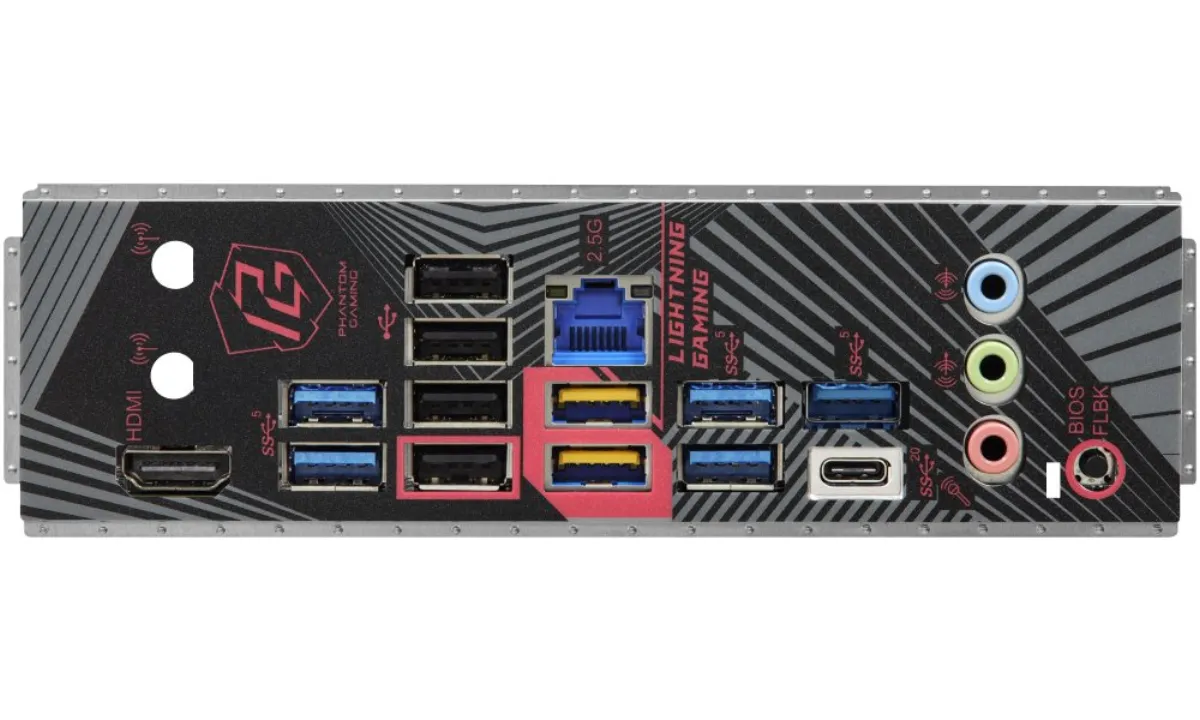

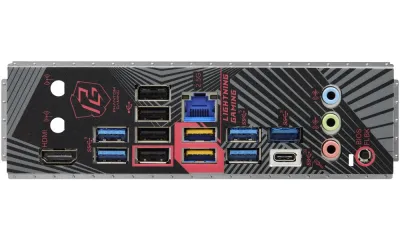

Rear Panel Ports

• 1x HDMI
• 1x USB 3.2 Gen2x2 Type C
• 7x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 1x BIOS Flashback button
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
