ASRock B760M-H2 M.2 Intel B760 LGA1700 2x DDR5 2x M.2 HDMI mATX
ASRock | B760M-H2/M.2 | 4710483944215
On stock 11 pcs.
Price of goods is 96.11 €.
Weight of goods is 0.805 Kg.
Actual in cart 0 pcs.

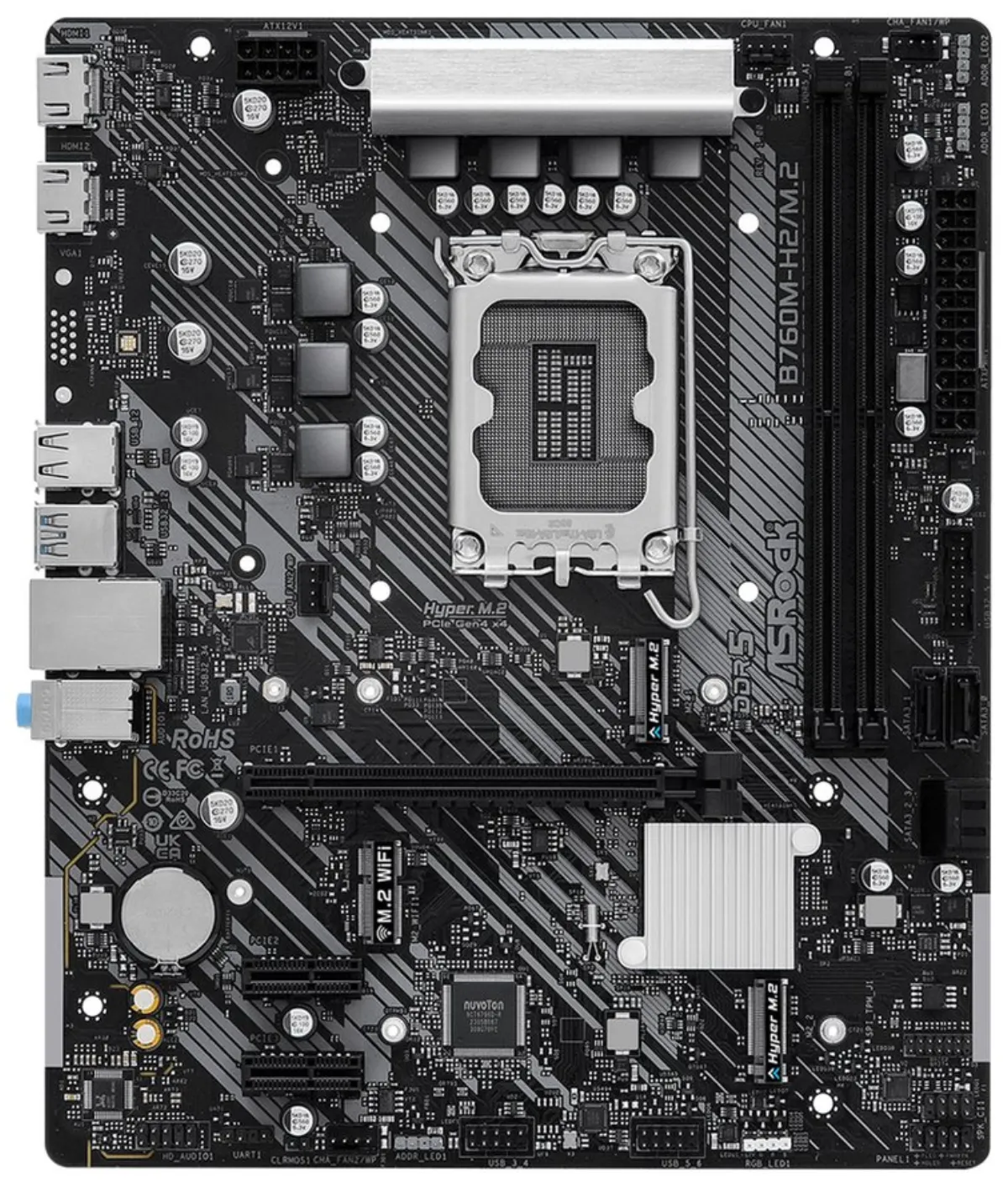

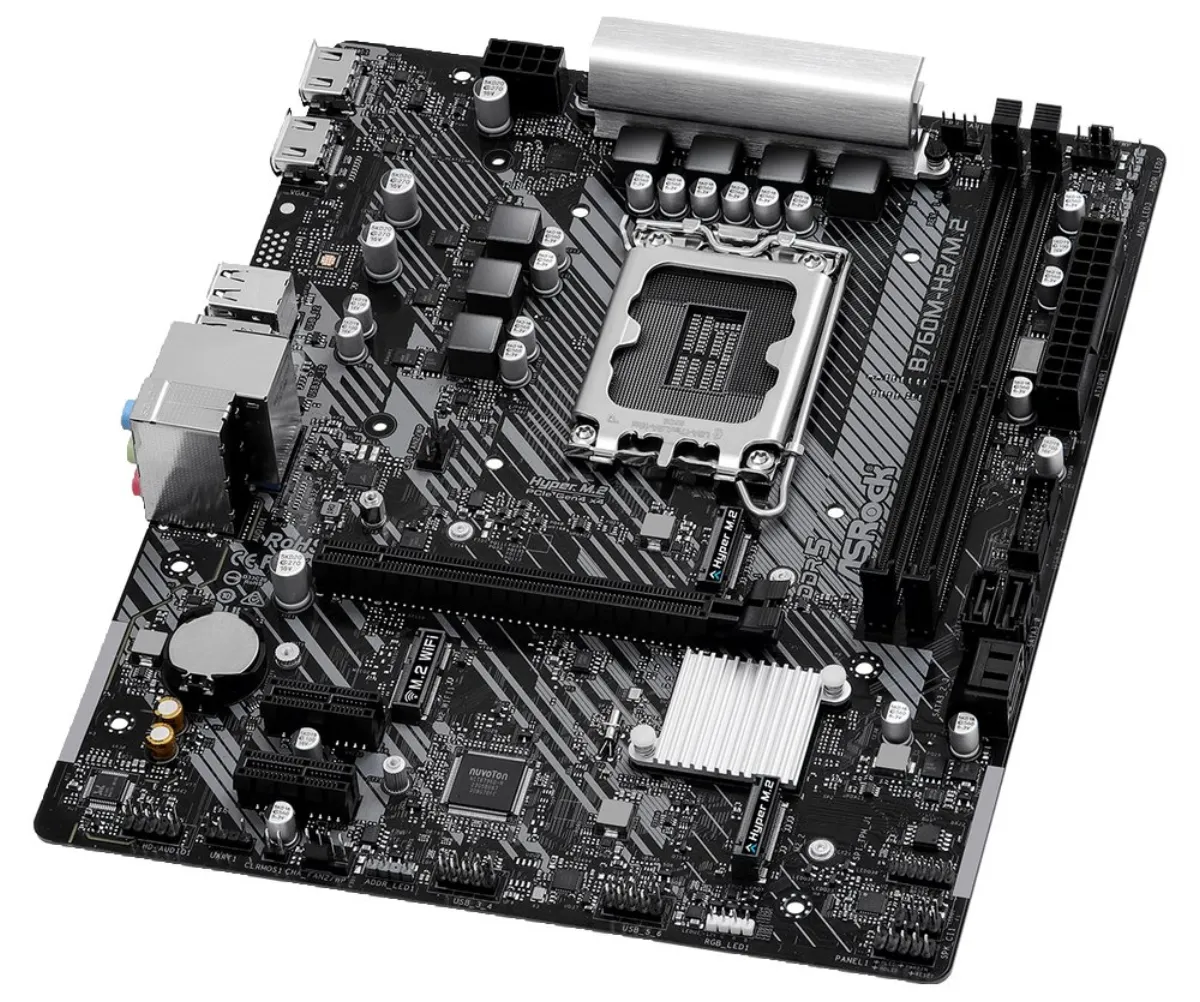

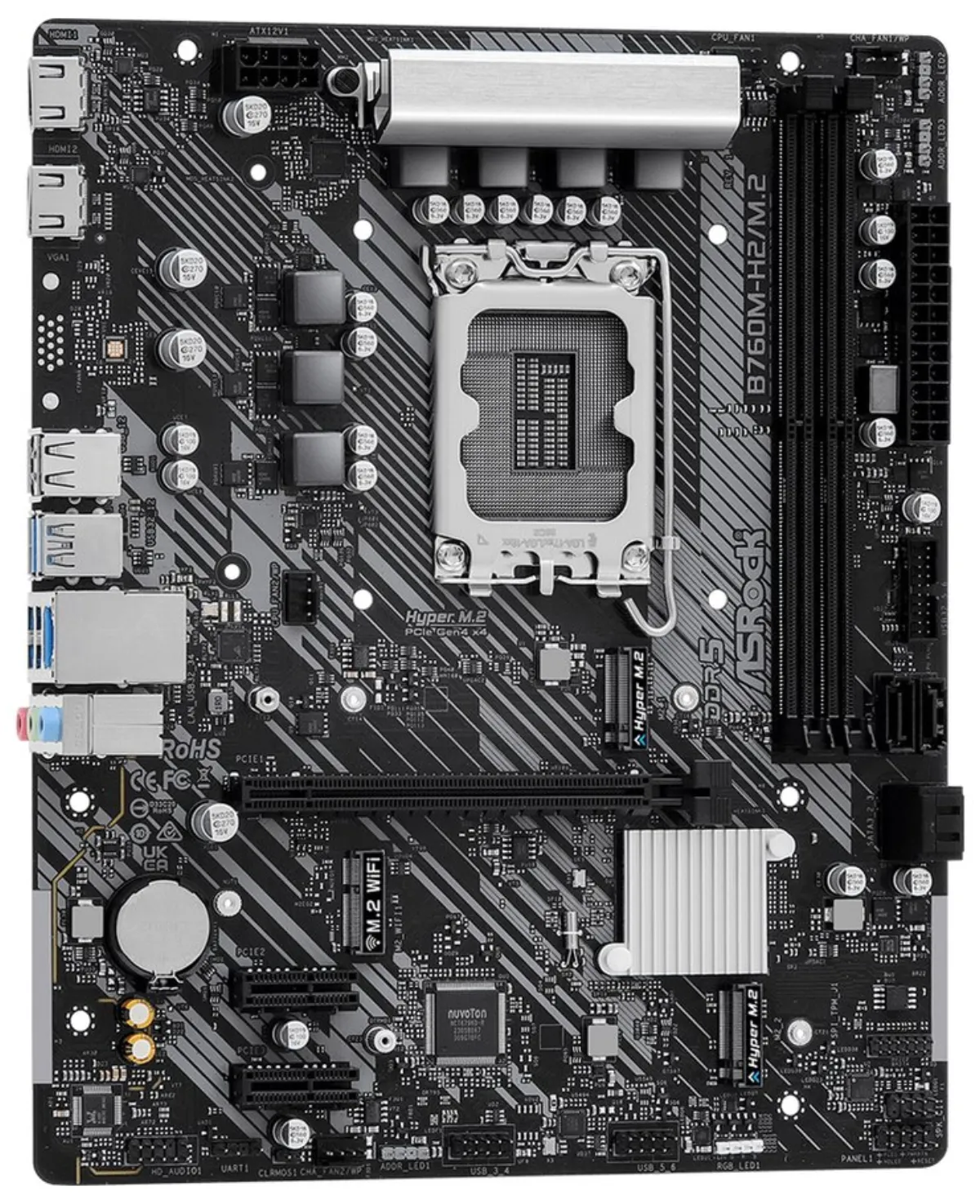

ASRock B760M-H2/M.2
The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.
CPU
- Support for processors 12., 13. and 14 generation Intel Core/ Pentium/ Celeron (socket LGA1700)
Chipset
- Intel B760
Memory
- 2x DDR5 memory slot, support up to 96 GB
- Support DDR5 up to 7200+ (OC) MHz
- Dual channel memory architecture
- Non-ECC support, no buffering
- Intel Extreme Memory Profile (XMP) 3.0 support
Slots
- 1x PCIe 4.0 x16 slot
- 2x PCIe 3.0 x1 slot
Graphic Design
- 2x HDMI 2.1 port, supporting max. 4K resolution at 60 Hz
Storage
- 1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
- 1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
- 4x SATA 6 Gb/s port
- Intel Volume Management Device (VMD) support
- RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
USB
- 6× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
- 6× USB 2.0 port (2 ports on the back panel, 4 ports available via internal USB connectors)
Audio
- Realtek ALC897 Codec
- 7.1 channel High Definition Audio
LAN
- 1× Dragon RTL8125BG 2.5 GbE LAN controller
Internal connectors
- 1× SPI TPM connector
- 1x speaker connector and cabinet opening detection
- 1x RGB LED strip connector
- 3x addressable RGB LED strip connector
- 1× 4pin CPU fan connector
- 1× 4pin CPU fan/ water cooling fan connector
- 2x 4pin case fan/water cooling fan connector
- 1× 24pin ATX main power connector
- 1× 8pin 12V power connector
- 1x front panel audio connector
- 2x USB 2.0 connector (supports 4x USB 2.0 port)
- 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
- 4x SATA 6 Gb/s connector
- 2x Hyper M.2 slot, M Key
- 1× M.2 slot, E key for Wi-Fi module (not included)

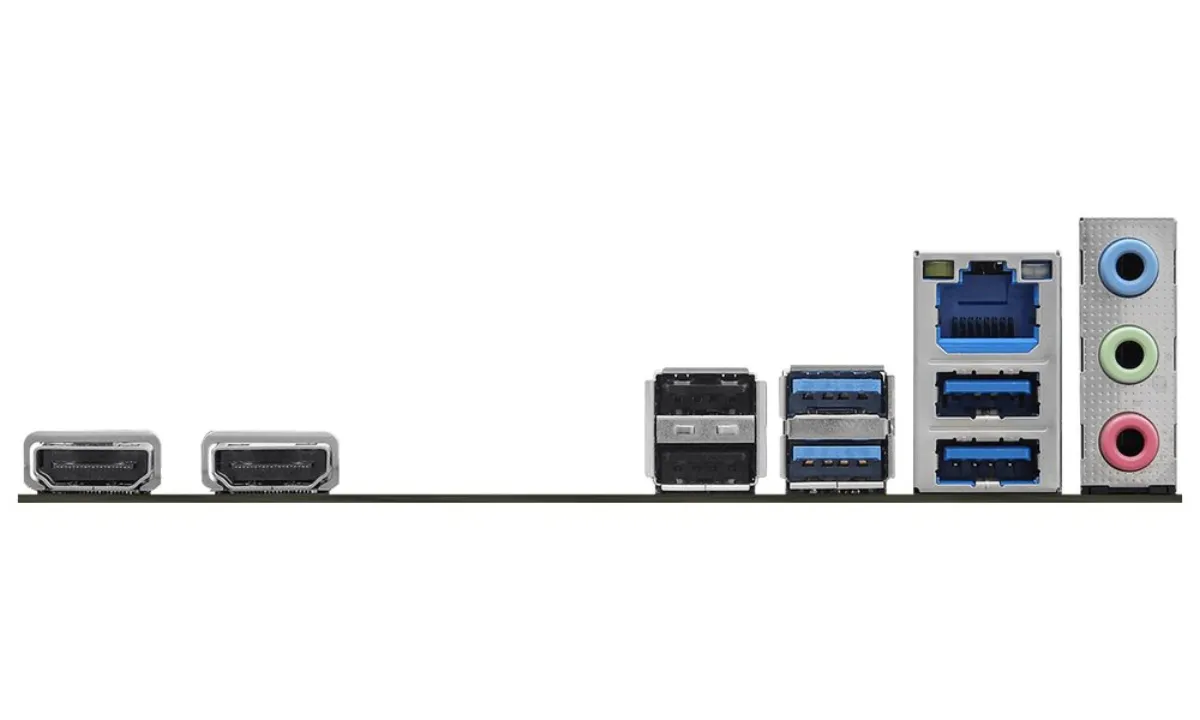

Rear panel ports
- 2x Wi-Fi antenna connector
- 2x HDMI
- 4x USB 3.2 Gen1 (USB 3.0)
- 2x USB 2.0
- 1x RJ-45
- 3x audio jack
Dimensions
- 24.4 x 20.1 cm
- Micro ATX format
| Name | Value | |
|---|---|---|
| Dimension [mm] | 244 × 201 mm | |
| Analog audio input/output count | 3 | |
| Wi-fi | No | |
| Gigabit LAN | Yes | |
| Max. RAM size [GB] | 96 | |
| M.2 port count | 2 | |
| M.2 port for expansion cards | Yes | |
| PCI Express X16 count | 1 | |
| SATA III count | 4 | |
| Motherboard format | mATX | |
| USB 3.0 count | 4 | |
| Chipset | Intel B760 | |
| Type of RAM | DDR5 | |
| TDP [W] | 150 | |
| Processor socket | 1700 | |
