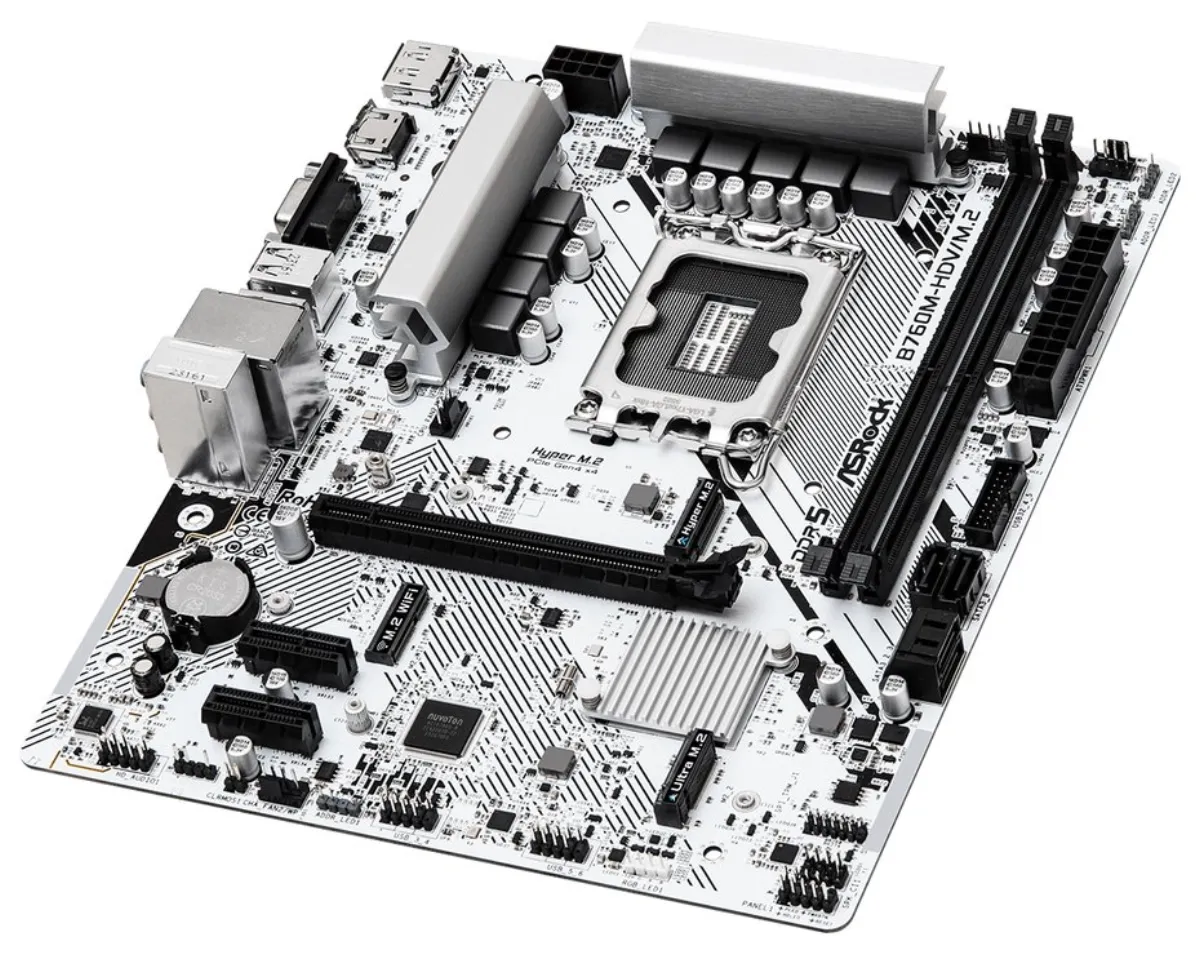

ASRock B760M-HDV/M.2

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12., 13. and 14 generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 2x DDR5 memory slot, support up to 96 GB
• Support DDR5 up to 7200+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 4.0 x16 slot
• 2x PCIe 3.0 x1 slot

Graphic Design

• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
• 1x VGA port, supporting maximum Full HD resolution at 60 Hz

Storage

• 1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 1× Ultra M.2 slot, M Key, for 2280 type units (PCIe 3.0 x4 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• Intel Volume Management Device (VMD) support

USB

• 1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel
• 5× USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports available via the internal USB connector)
• 6× USB 2.0 port (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Dragon RTL8125BG 2.5Gigabit LAN controller

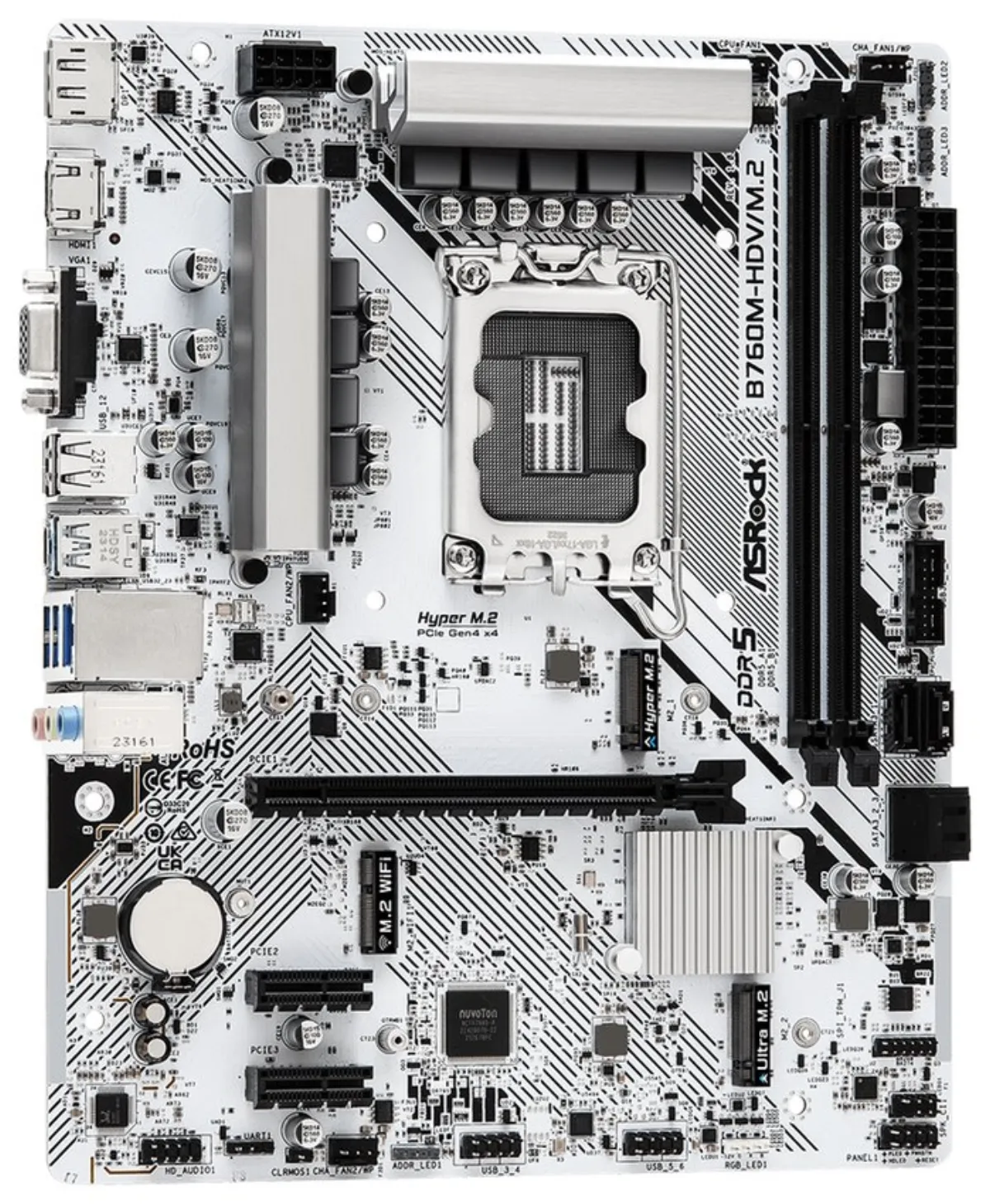

Internal connectors

• 1× SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/ water cooling fan connector
• 2x 4pin case fan/water cooling fan connector
• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× M.2 slot, E key for Wi-Fi module (not included)

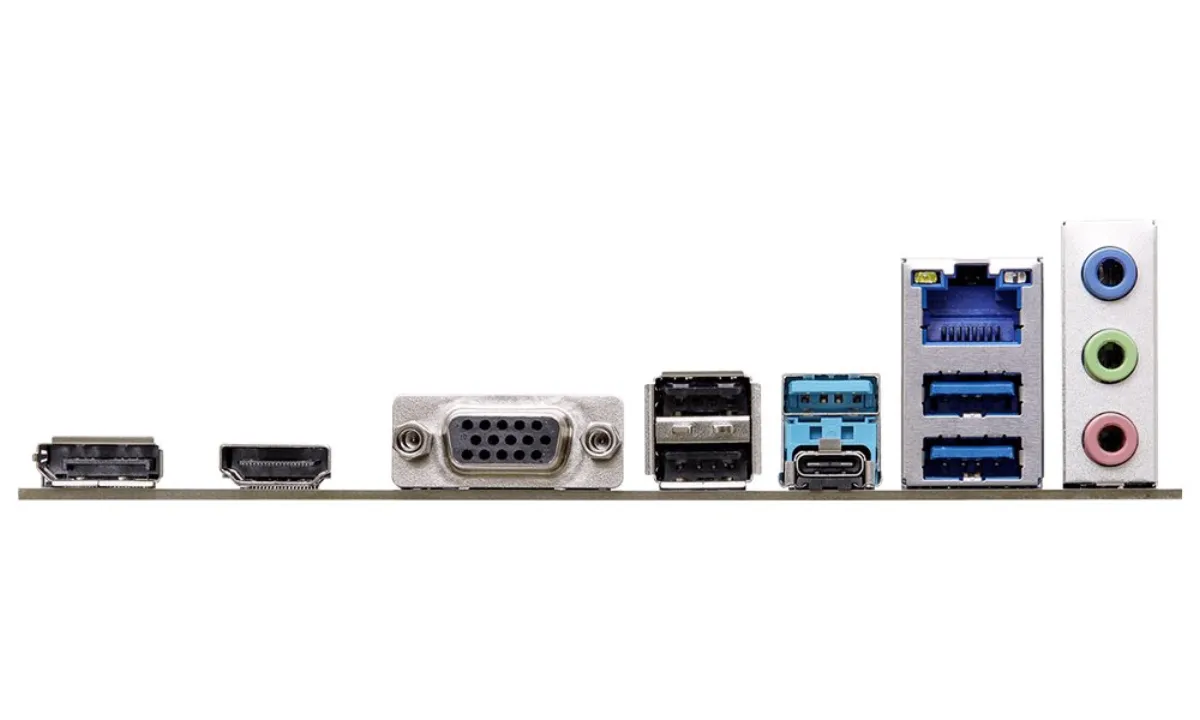

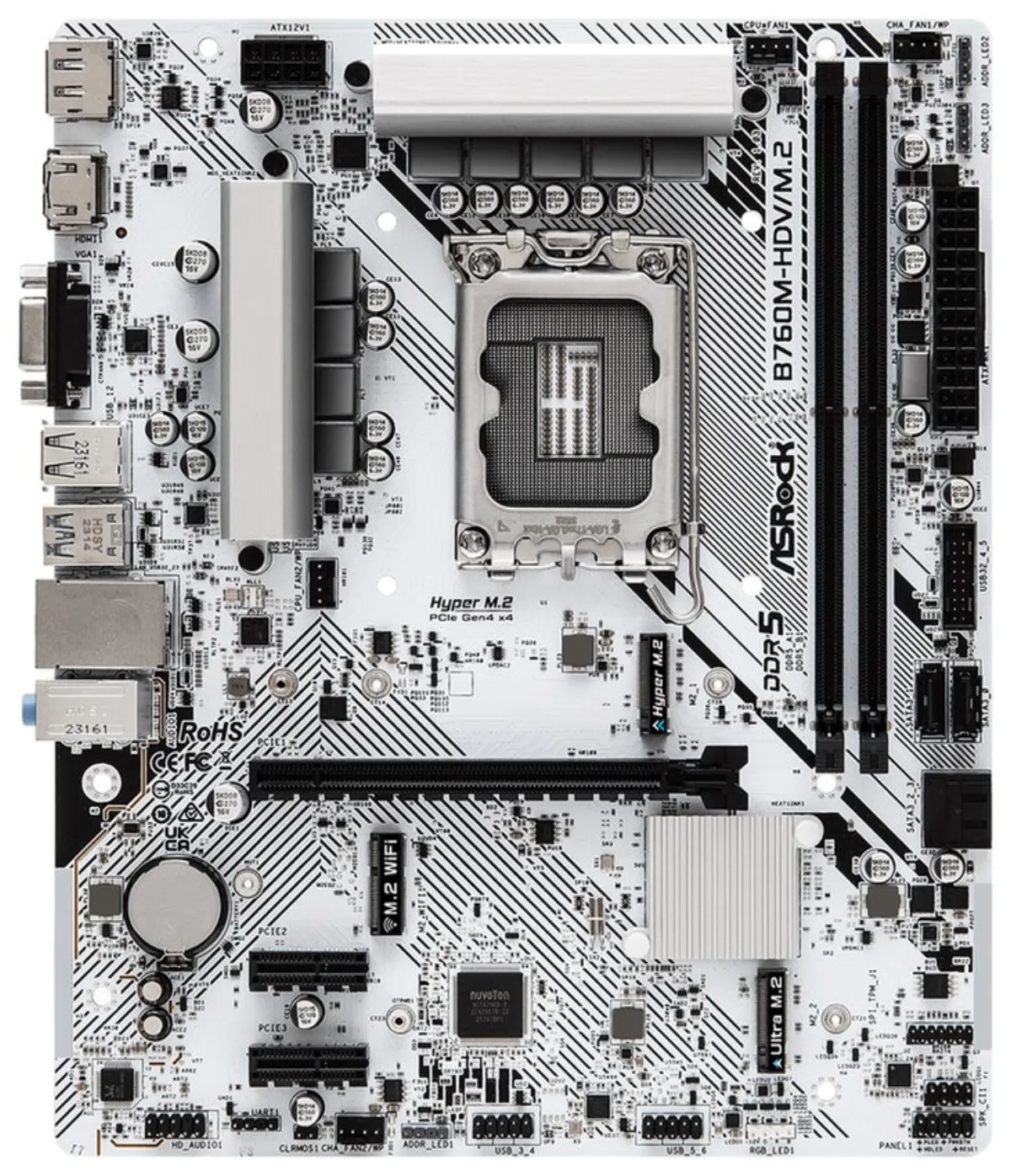

Rear panel ports

• 1x HDMI
• 1x DisplayPort
• 1x VGA
• 1× USB-C 3.2 Gen1 (USB 3.0)
• 3x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 24.4 x 20.1 cm
• Micro ATX format
