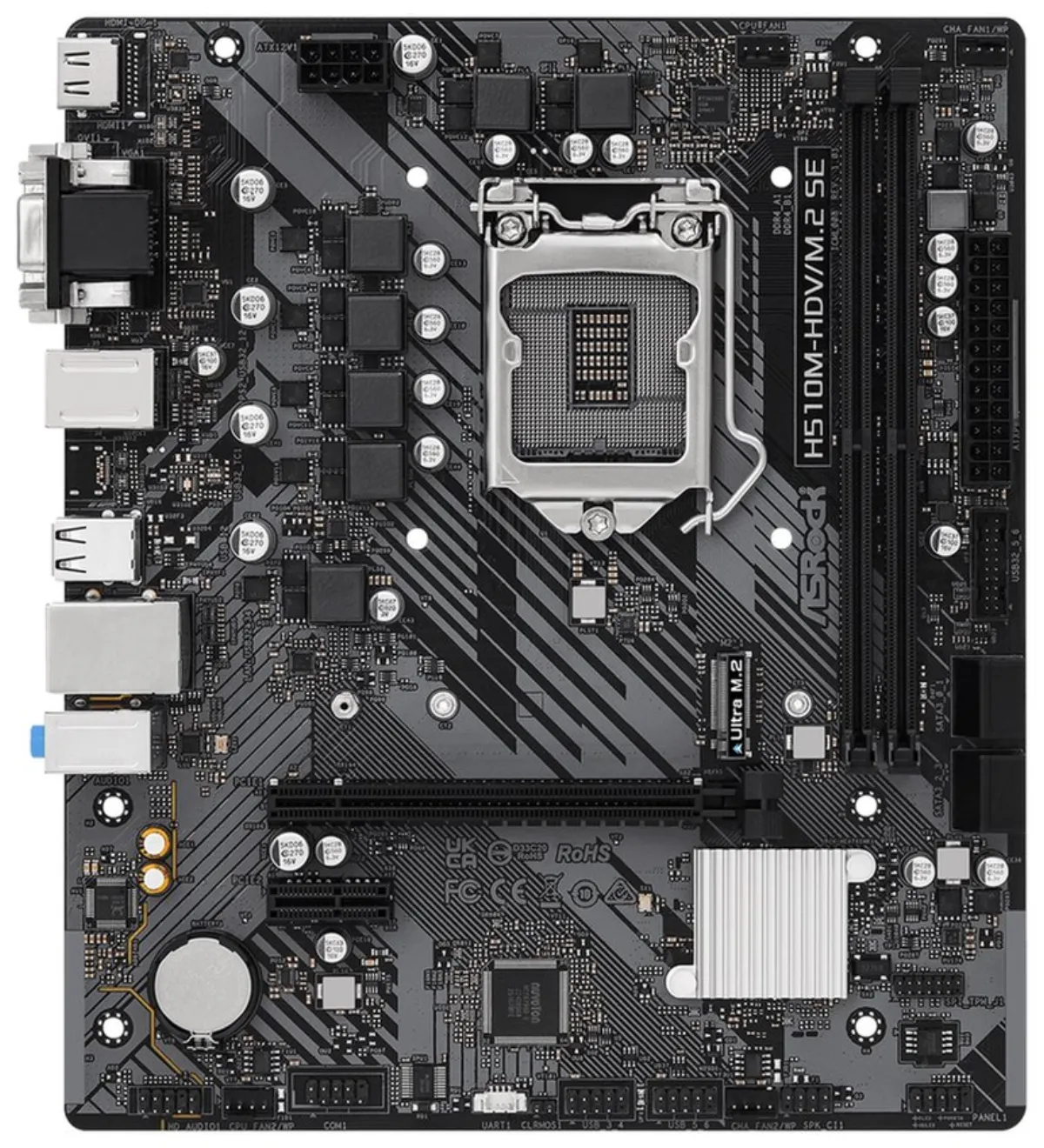

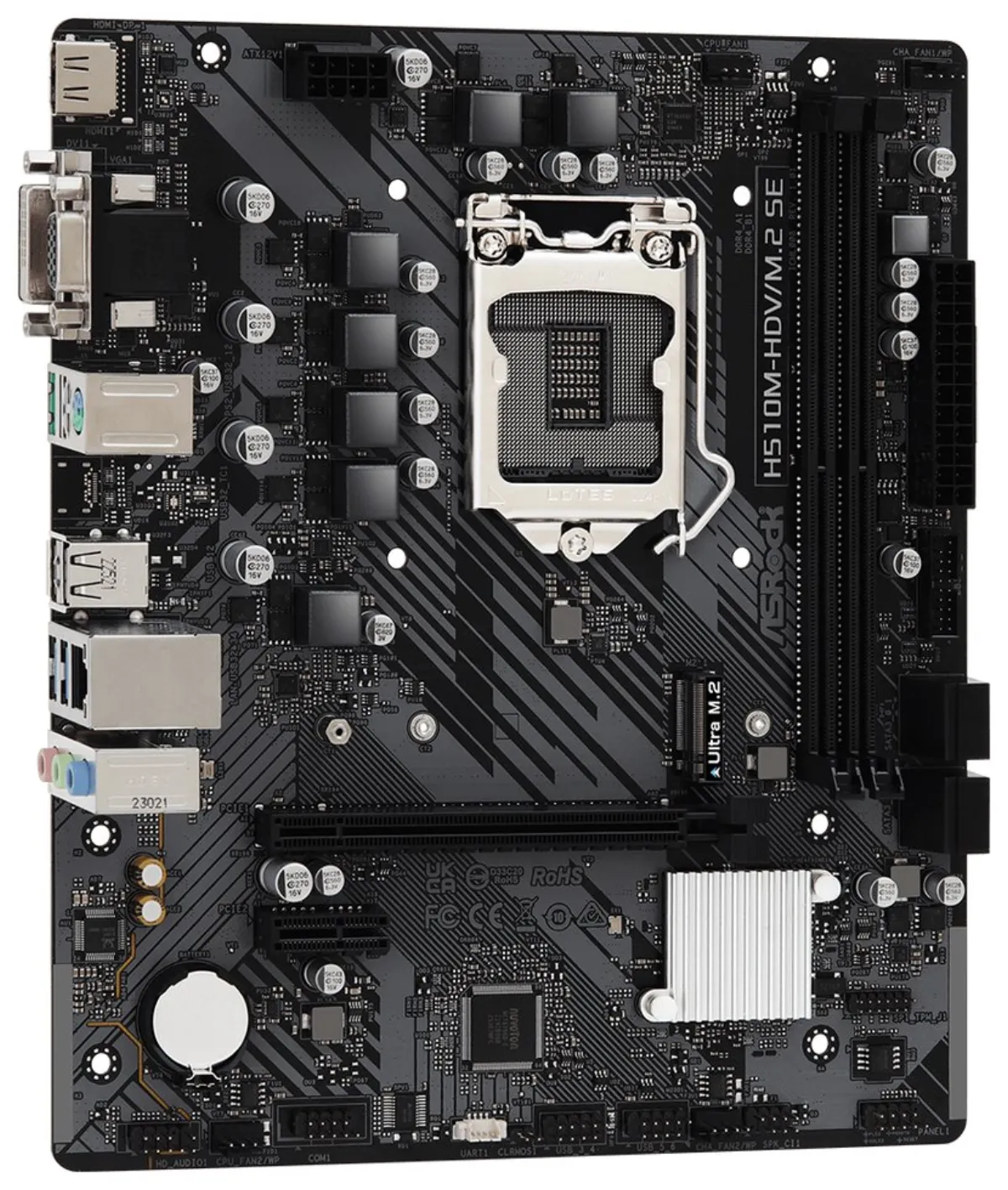

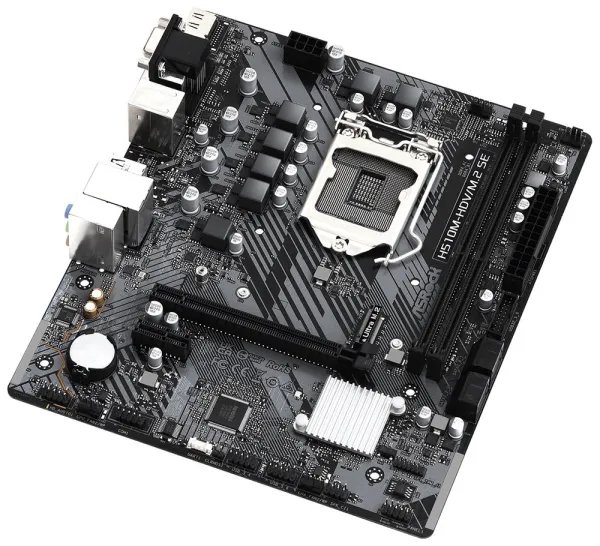

ASRock H510M-HDV/M.2 SE

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for 10 processors. and 11 generation Intel Core/ Pentium/ Celeron (socket LGA1200)

Chipset

• Intel H470

Memory

• 2x DDR4 memory slot, support up to 64 GB
• Support DDR4 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC memory support (non-ECC mode)
• Intel Extreme Memory Profile (XMP) 2.0 support

Slots

• 1x PCIe 4.0 x16 slot
• Intel 10 CPU. gene. supports PCIe 3.0
• 1x PCIe 3.0 x1

Graphic Design

• 1× HDMI 2.0 port, supporting a maximum resolution of 4K at 60 Hz
• Intel 10 CPU. gene. supports HDMI 1.4 with a maximum resolution of 4K at 30 Hz
• 1× DVI-D port, supporting a maximum resolution of 1920 × 1200 at 60 Hz
• 1x VGA port, supporting a maximum resolution of 1920 × 1200 at 60 Hz

Storage

• 4x SATA 6Gb/s port
• 1× Ultra M.2 slot, M Key, for 2260/2280 type units (PCIe 3.0 x4 and SATA mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 6× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 6× USB 2.0 port (2 ports on the back panel, 4 ports available via the internal USB connector)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Realtek RTL8111H Gigabit LAN controller

Internal connectors

• 1x serial port connector
• 1× SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/water cooling pump connector
• 2× 4pin connector of the case fan/water cooling pump
• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)

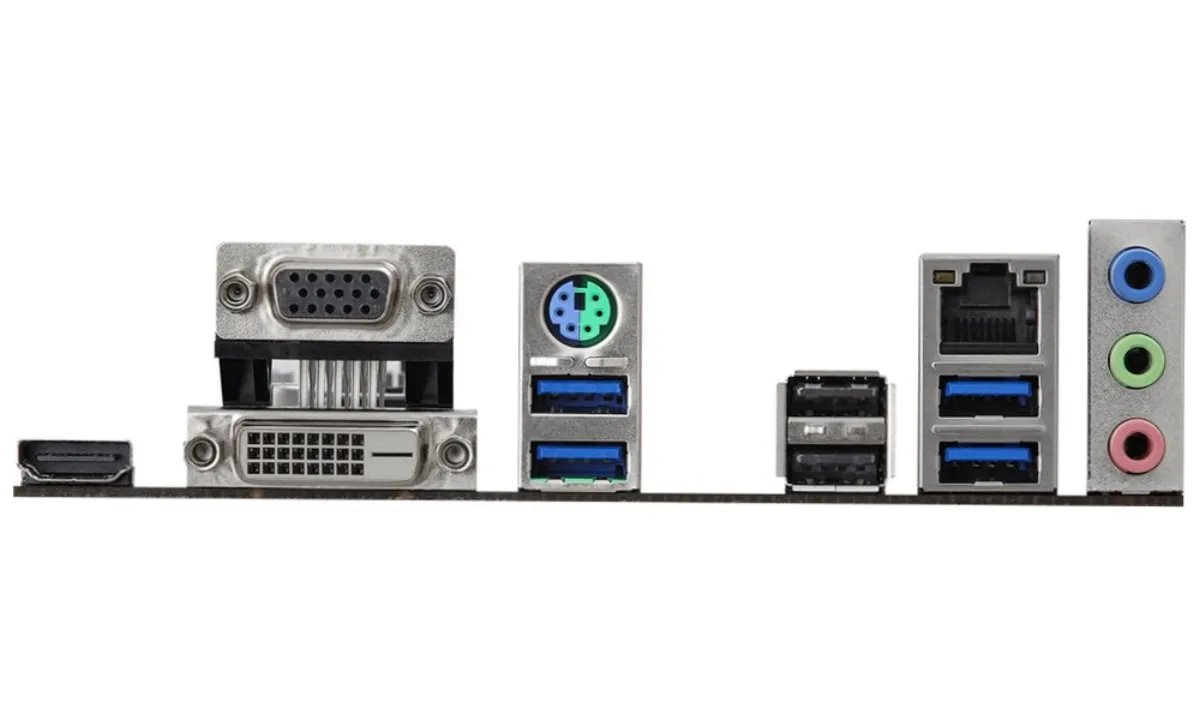

Rear panel ports

• 1× PS/2 keyboard and mouse combo port
• 1x VGA
• 1x DVI-D
• 1x HDMI
• 4x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 23.1 x 19.8 cm
• Micro ATX format
