ASRock X870 Pro RS AMD X870 AM5 4x DDR5 DIMM 3x M.2 HDMI USB-C WiFi ATX

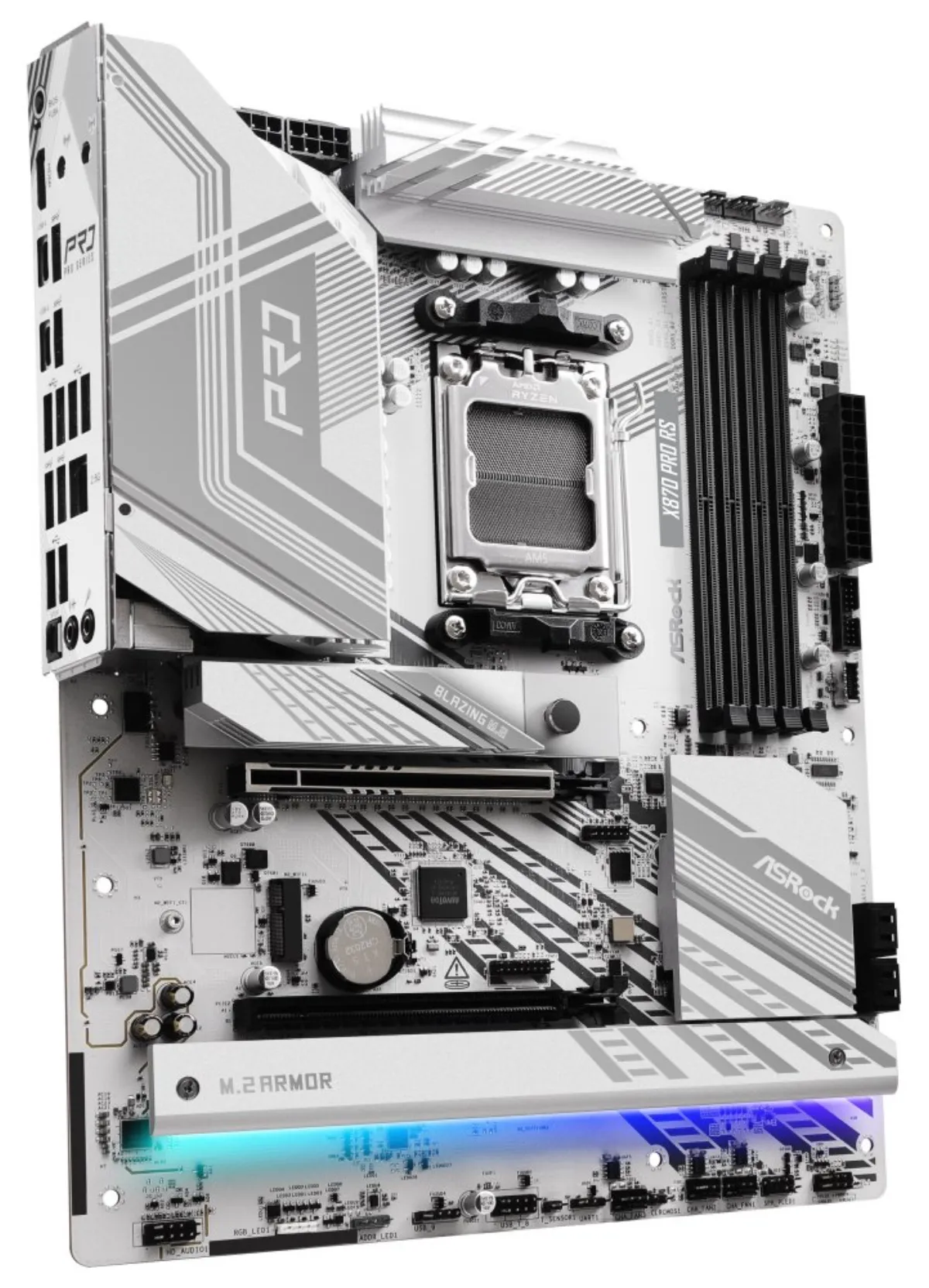

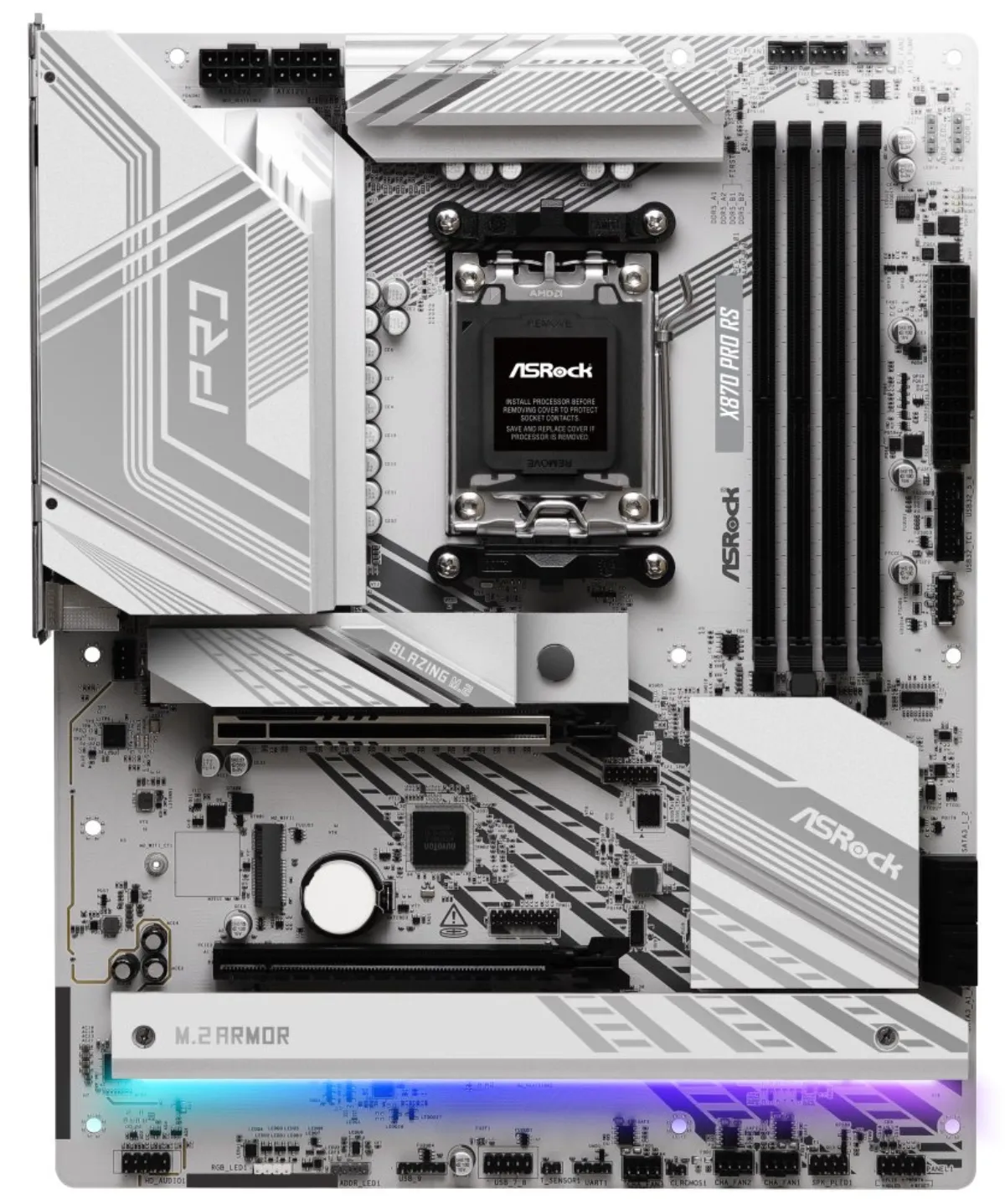

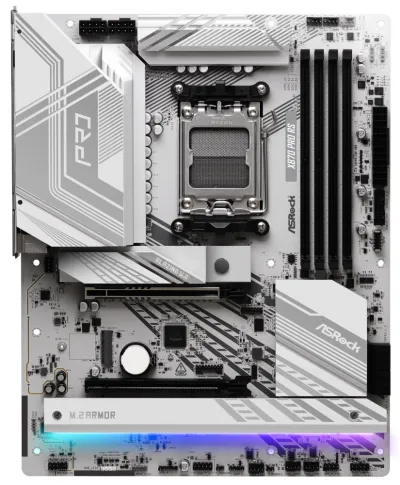

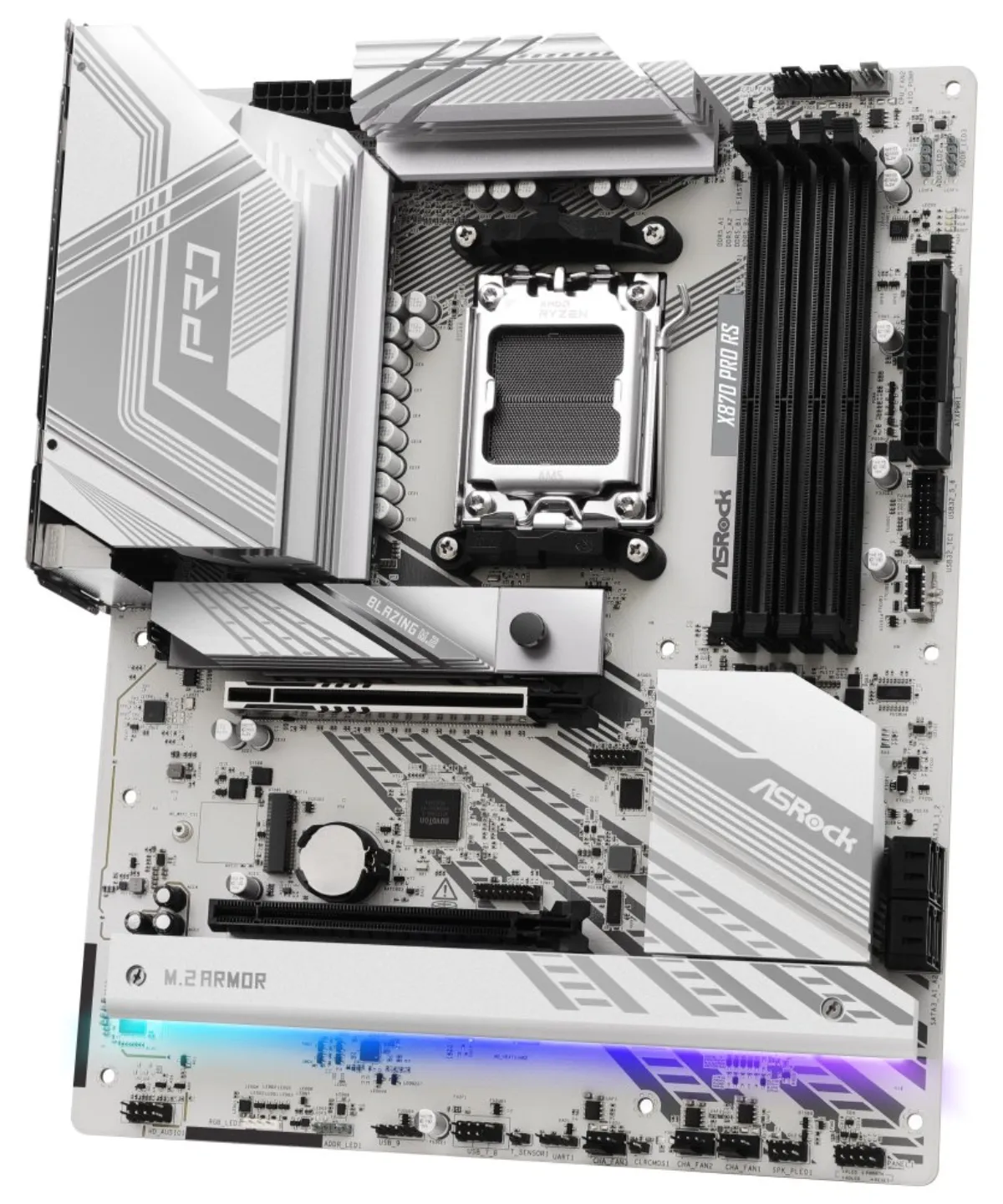

ASRock X870 Pro RS

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 9000, 8000 and 7000 series processors (socket AM5)

Chipset

• AMD X870

Memory

• 4x DDR5 memory slot, support up to 256 GB
• Support DDR5 up to 8000+ (OC) MT/s
• Dual channel memory architecture
• ECC and non-ECC support, unbuffered
• AMD EXtended Profiles for Overclocking (EXPO) support
• Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 5.0 x16 slot
• 1× PCIe 4.0 x16 slot (supports x4 mode)

Graphics

• 1× HDMI port, supporting a maximum resolution of 4K at 120 Hz
• 2× USB4 (USB-C) port, supporting max. 8K resolution at 30 Hz

Multi-GPU

• AMD CrossFire technology support

Storage

• 1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (PCIe 4.0 x4 mode)
• 1× Ultra M.2 slot, M Key, for 2280 type units (SATA 6Gb/s and PCIe 3.0 x4 mode)
• 2x SATA 6Gb/s port
• 2x SATA 6Gb/s port
• RAID 0 and RAID 1 support for SATA drives
• RAID 0, RAID 1 and RAID 10 support for M.2 NVMe drives

USB

• 2× USB4 (USB-C) on the back panel
• 2× USB 3.2 Gen1 (USB 3.0) on the back panel
• 1× USB-C 3.2 Gen2×2 available via the internal USB connector
• 4× USB 3.2 Gen1 (USB 3.0) (2 ports on the back panel, 2 ports available via the internal USB connector)
• 9× USB 2.0 (6 ports on the back panel, 3 ports available via internal USB connectors)

Audio

• Realtek ALC1220 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

• 1x connector for the thermistor cable
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 2x 4pin CPU fan connector
• 4x 4pin case fan connector
• 1× 4pin water cooling pump connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1× M.2 slot, E key for Wi-Fi module (not included)
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 3x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2×2 front panel connector

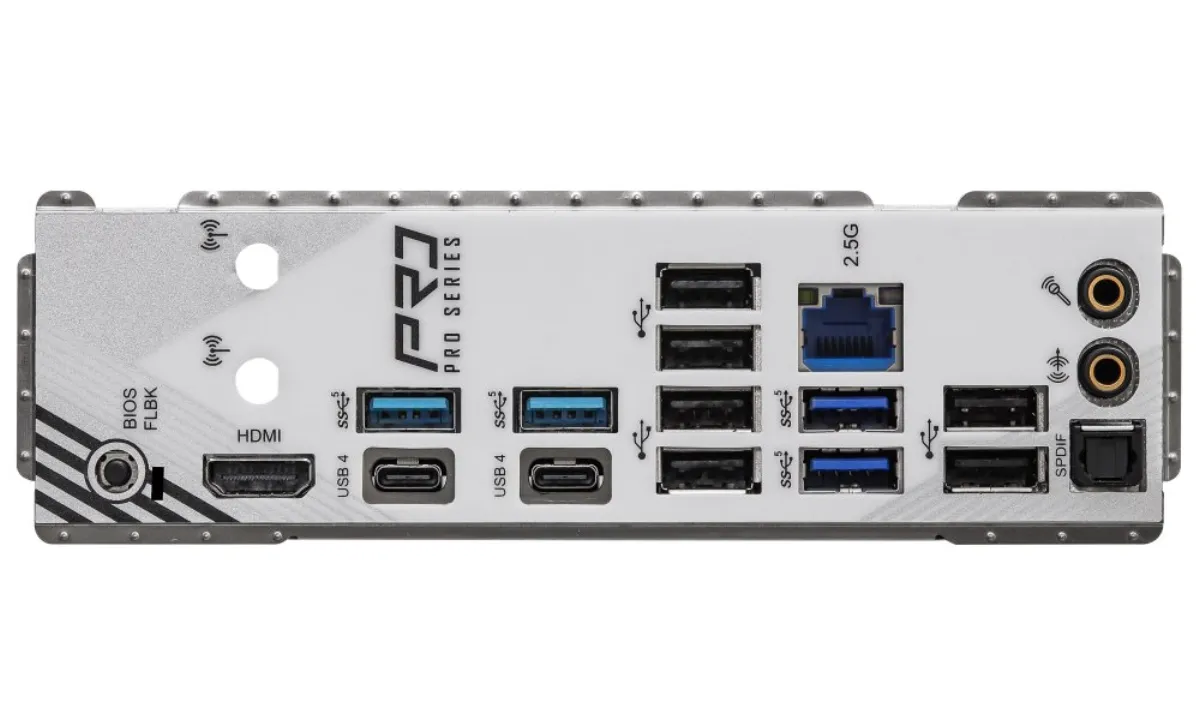

Rear panel connectors

• 1x HDMI
• 1x optical S/PDIF output
• 2× USB4 (USB-C)
• 4x USB 3.2 Gen1 (USB 3.0)
• 6x USB 2.0
• 1x RJ-45
• 2x audio jack
• 1× BIOS Flashback button

Dimensions

• 305 x 244 mm
• ATX format
