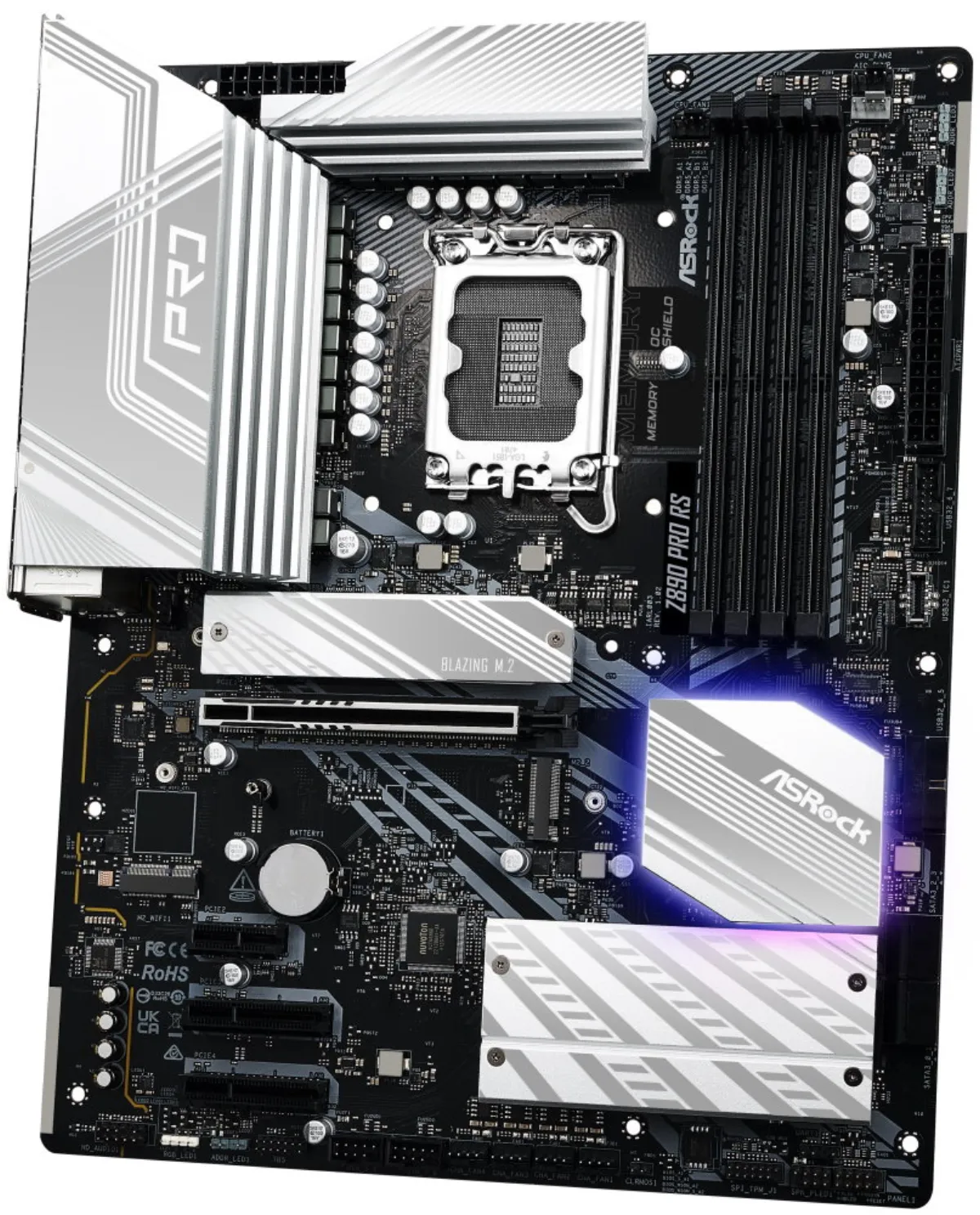

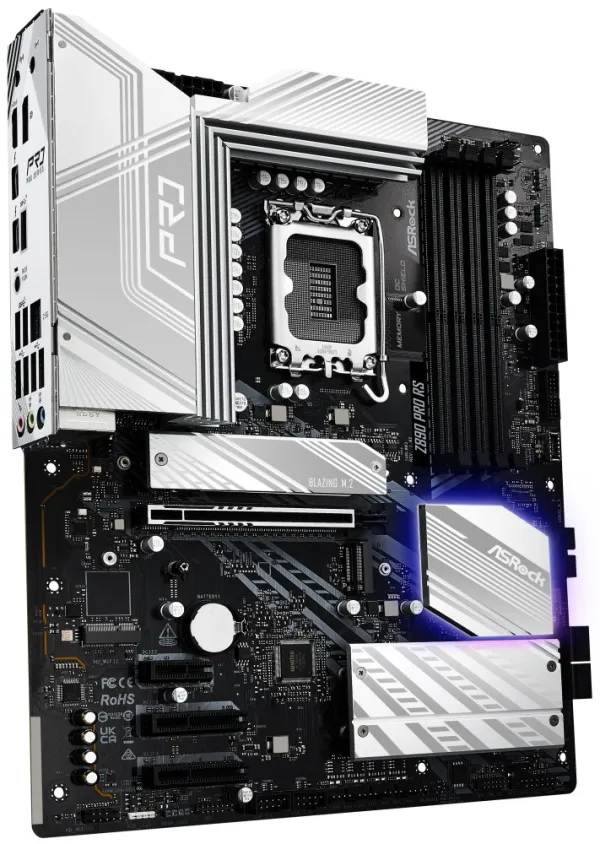

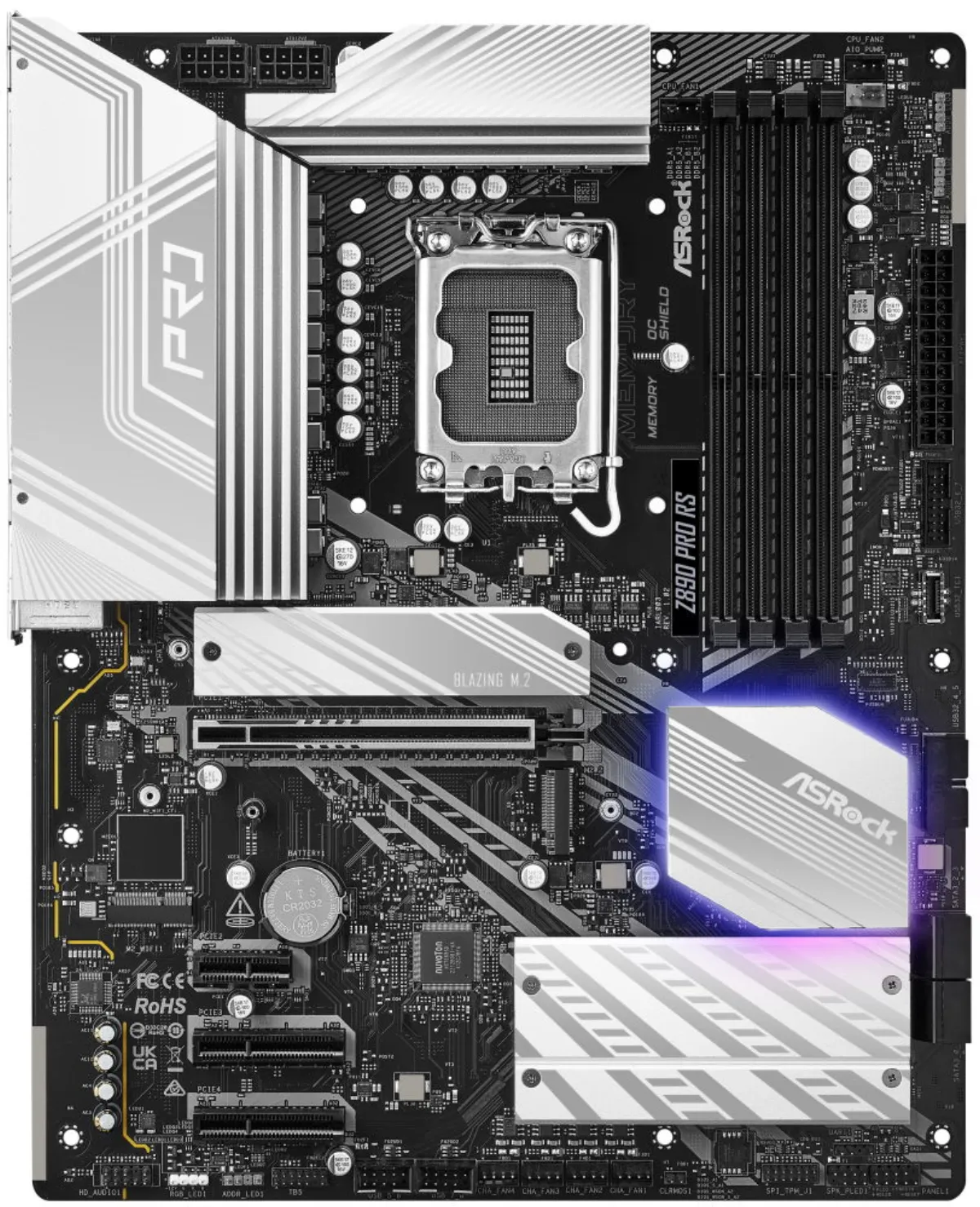

ASRock Z890 Pro RS Intel Z890 LGA1851 4x DDR5 4x M.2 HDMI DP 2x Thunderbolt 4 ATX

ASRock Z890 Pro RS

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Processor support 2 . Intel Core Ultra generation (socket 1851)

Chipset

• Intel Z890

Memory

• 4x DDR5 memory slot, support up to 256 GB
• Support DDR5 up to 9066+ (OC) MT/s
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 5.0 x16 slot
• 2x PCIe 4.0 x4 slot
• 1x PCIe 4.0 x1 slot

Graphics

• 2× Thunderbolt 4, supporting a maximum resolution of 8K at 60 Hz/ 5K at 120 Hz
• 1× HDMI port, supporting a maximum resolution of 4K at 120 Hz
• 1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
• Intel Xe LPG architecture

Storage

• 1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• 4x SATA 6 Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe drives

USB

• 1× USB-C 3.2 Gen2x2 port available via an internal USB connector
• 2× Thunderbolt 4 port on the back panel
• 1× USB 3.2 Gen2 (USB 3.1) port on the back panel
• 6× USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 4 ports available via internal USB connectors)
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

LAN

• 1× Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

• 1× SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 2x 4pin CPU fan connector
• 1× 4pin CPU fan/ water cooling fan connector
• 5× 4pin case fan connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2x2 front panel connector
• 1× M.2 slot, E Key, supports 2230 Wi-Fi/BT PCIe module and Intel CNVio/CNVio2

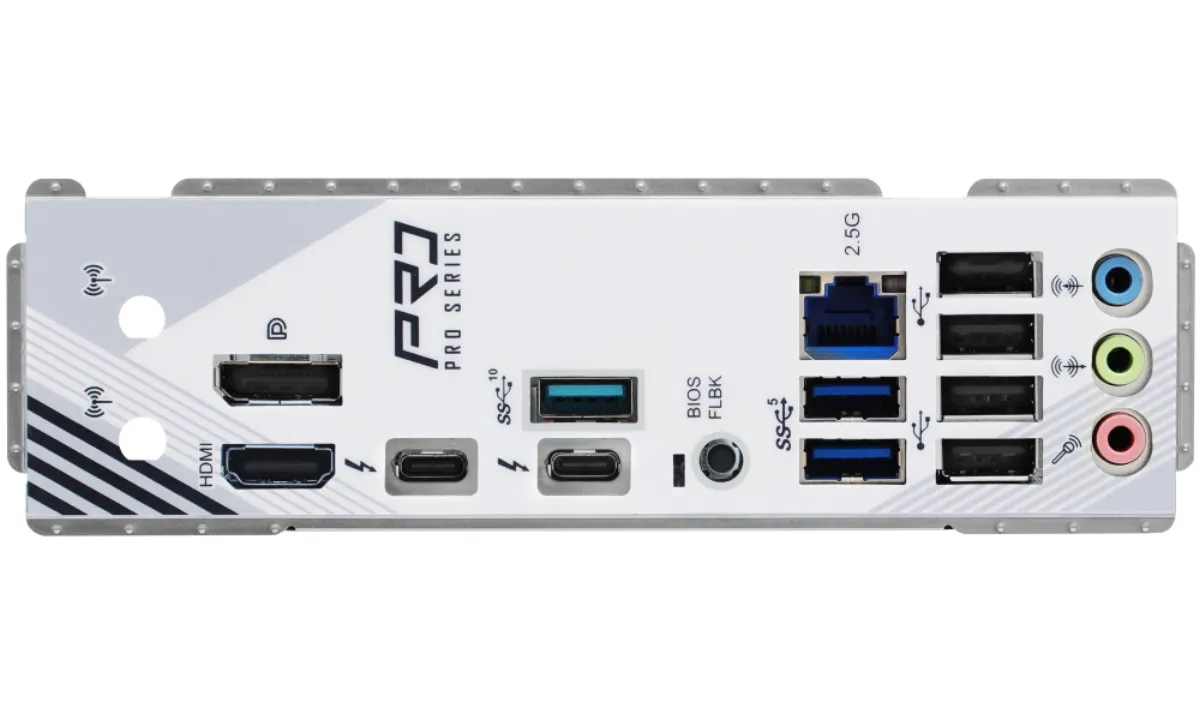

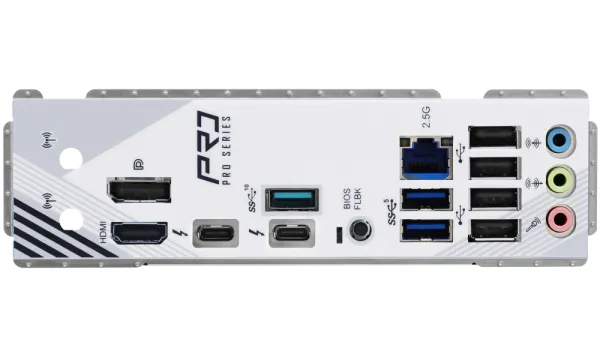

Rear panel ports

• 1x HDMI
• 1x DisplayPort
• 2x Thunderbolt 4
• 1× USB 3.2 Gen2 (USB 3.1)
• 2x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 1× BIOS flashback button
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
