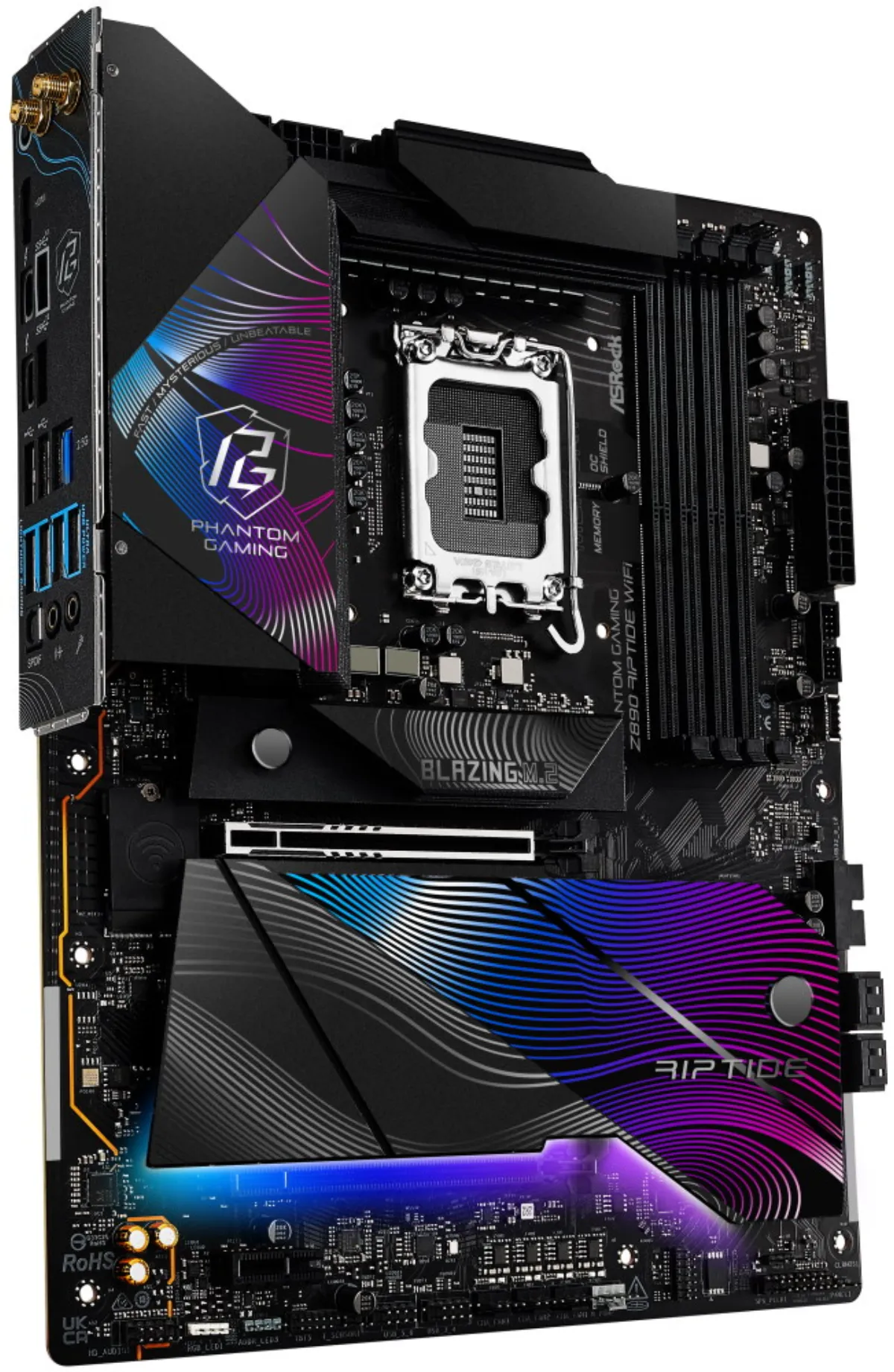

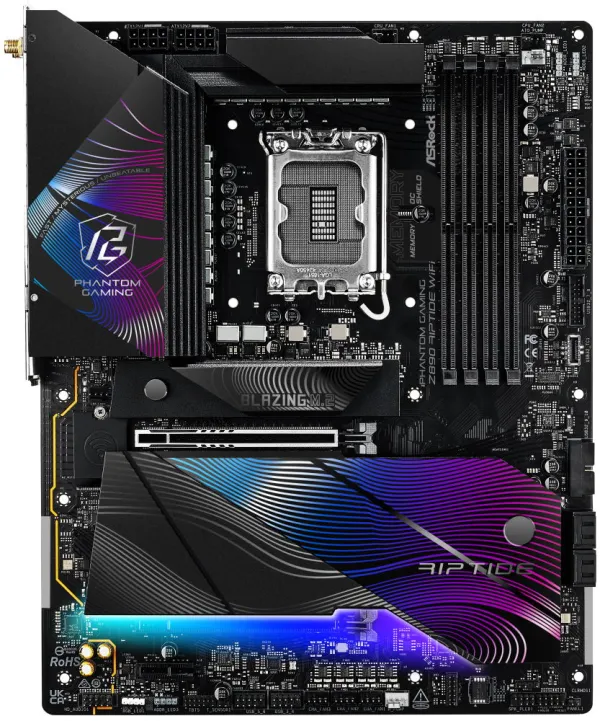

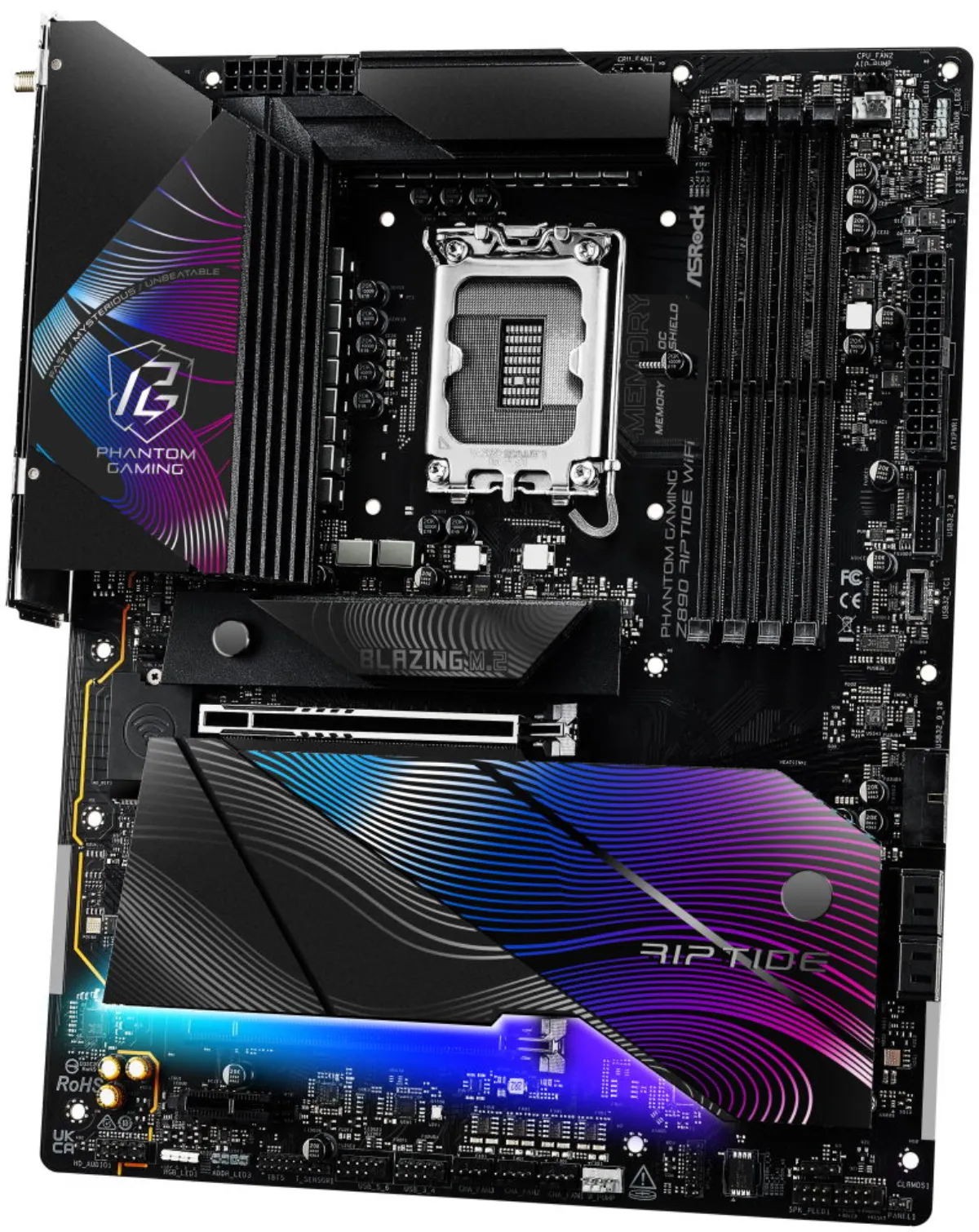

ASRock Z890 Riptide WiFi Intel Z890 LGA1851 4x DDR5 5x M.2 HDMI 2x Thunderbolt 4 WiFi ATX

ASRock Z890 Riptide WiFi

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for Intel Core Ultra Series 2 processors
• Socket LGA1851

Chipset

• Intel Z890

Memory

• 4x DDR5 memory slot, support up to 256 GB
• Support DDR5 up to 9466+ (OC) MT/s
• Dual channel memory architecture
• Support non-ECC, no buffer
• Intel Extreme Memory Profile (XMP) 3.0x support

Slots

• 1x PCIe 5.0 x16 slot
• 1× PCIe 4.0 x16 slot (x4 mode)
• 1x PCIe 4.0 x1 slot

Graphics

• 1× HDMI port, supporting a maximum resolution of 4K at 120 Hz
• 2× Thunderbolt 4 port, supporting a maximum resolution of 8K at 60 Hz / 5K at 120 Hz
• Intel Xe LPG architecture

Storage

• 1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 2× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and M.2 NVMe drives

USB

• 2× Thunderbolt 4 (USB-C) port on the back panel
• 1× USB-C 3.2 Gen2×2 port available via an internal USB connector
• 2x USB 3.2 Gen2 (USB 3.1) port on the back panel
• 8× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 4 ports available via internal USB connectors)
• 6× USB 2.0 port (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC1220 Codec
• 7.1 channel High Definition Audio
• Nahimic audio

LAN

• 1× Killer E3100G 2.5Gb LAN controller

WLAN/Bluetooth

• Wi-Fi 7
• Wi-Fi 802.11a/b/g/n/ac/ax/axe/be
• Triple-Band 2×2 320 MHz (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Bluetooth 5.4

Internal connectors

• 1x thermistor connector
• 1× SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 2x 4pin CPU fan connector
• 4x 4pin case fan connector
• 1× 4pin AIO fan connector
• 1× 4pin water cooling pump fan connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2×2 front panel connector

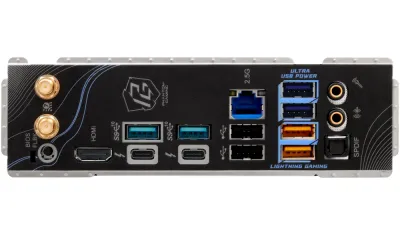

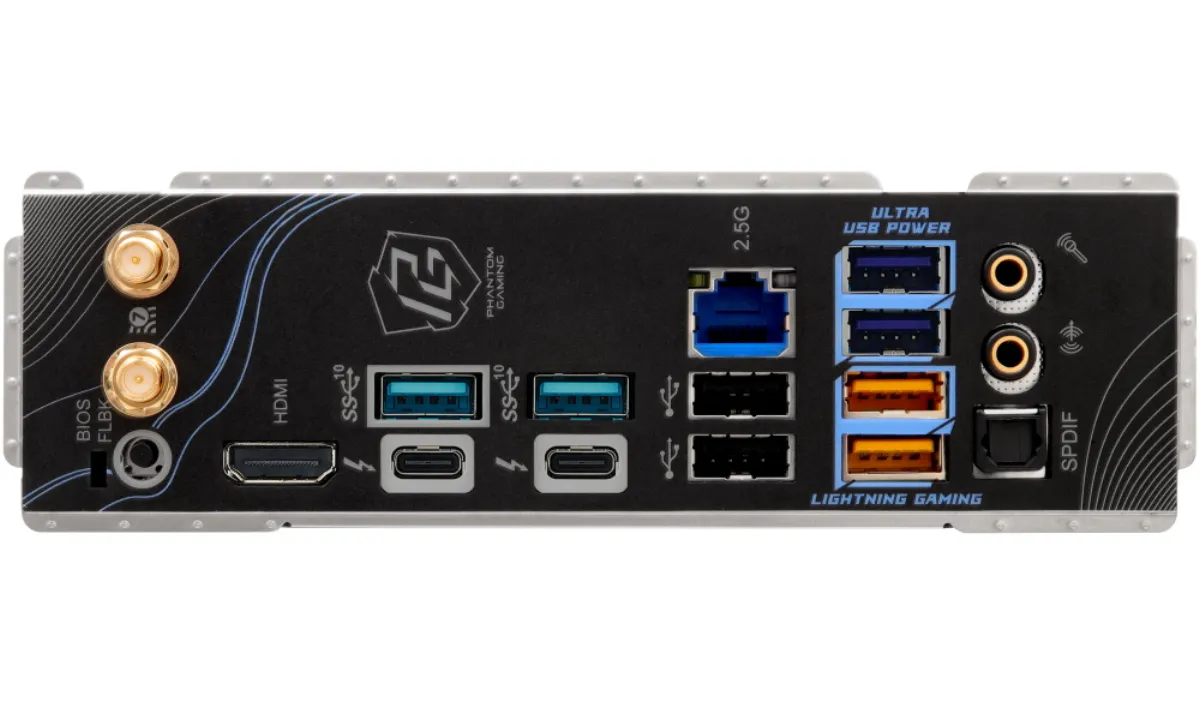

Rear panel ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x optical S/PDIF port
• 2x Thunderbolt 4 (USB-C)
• 2x USB 3.2 Gen2 (USB 3.1 Gen2)
• 4x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 1× BIOS Flashback button
• 2x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
