ASRock Z890 Taichi Aqua Intel Z890 LGA1851 4x DDR5 6x M.2 2x Thunderbolt 4 8x USB-C WiFi EATX

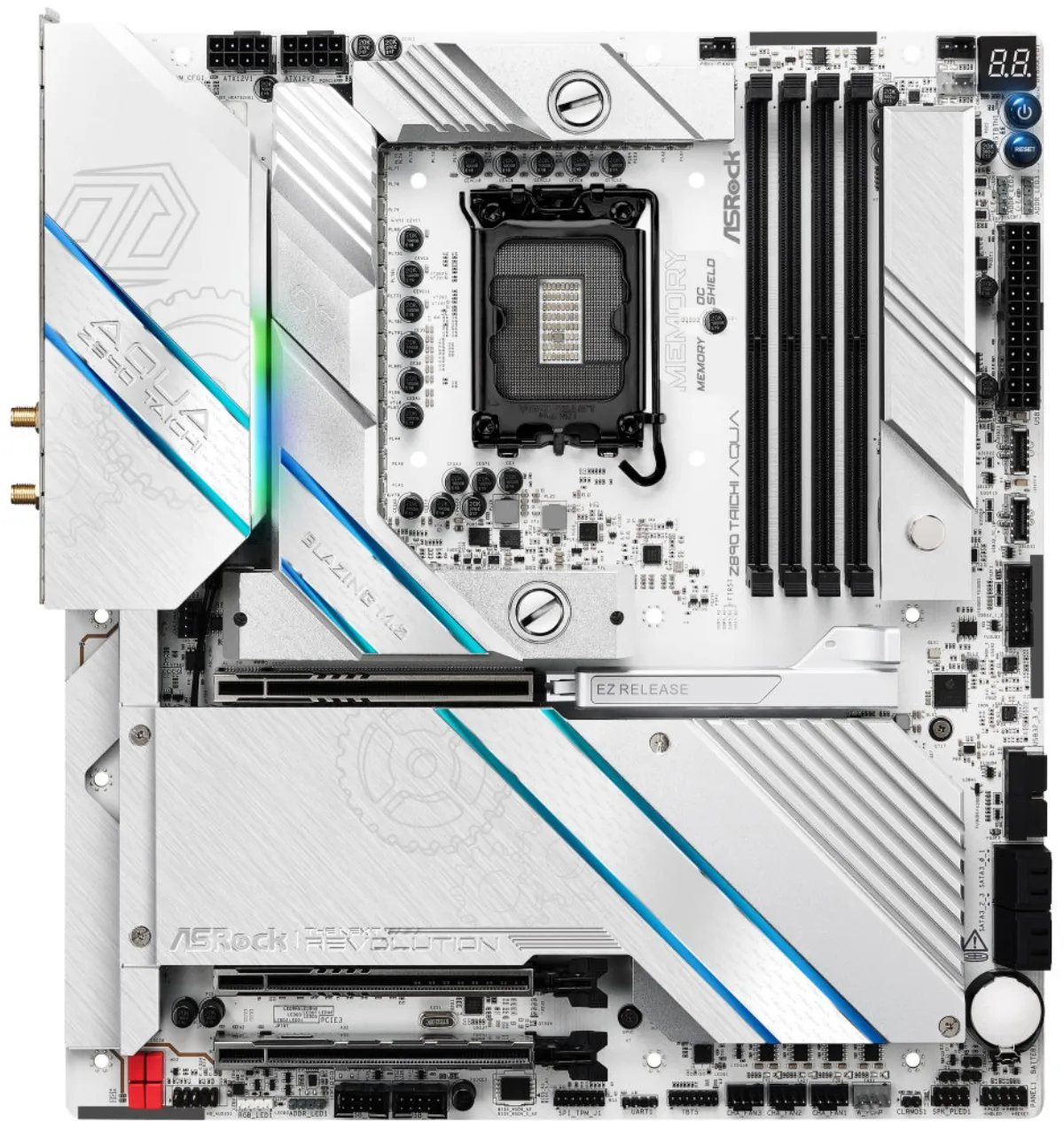

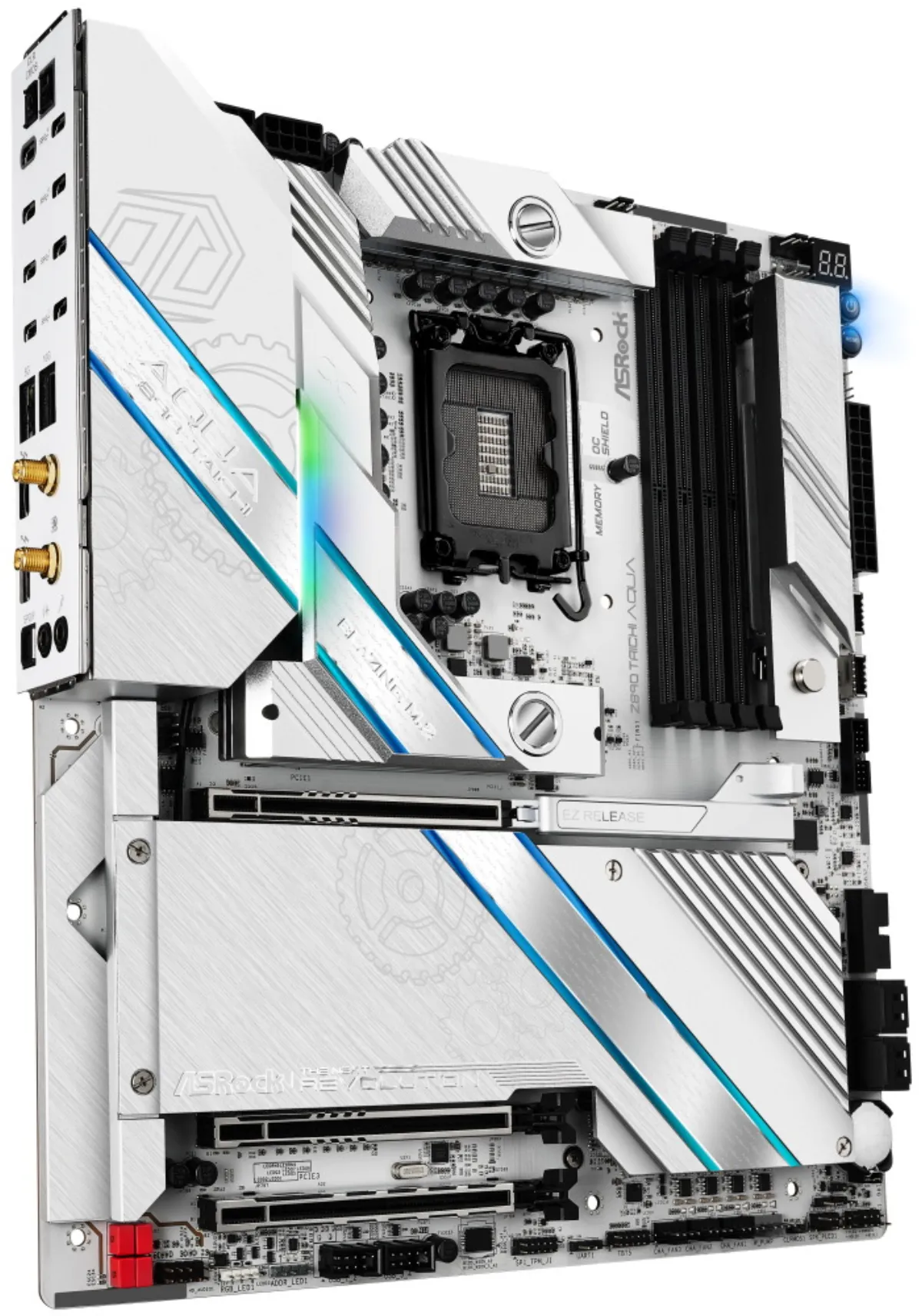

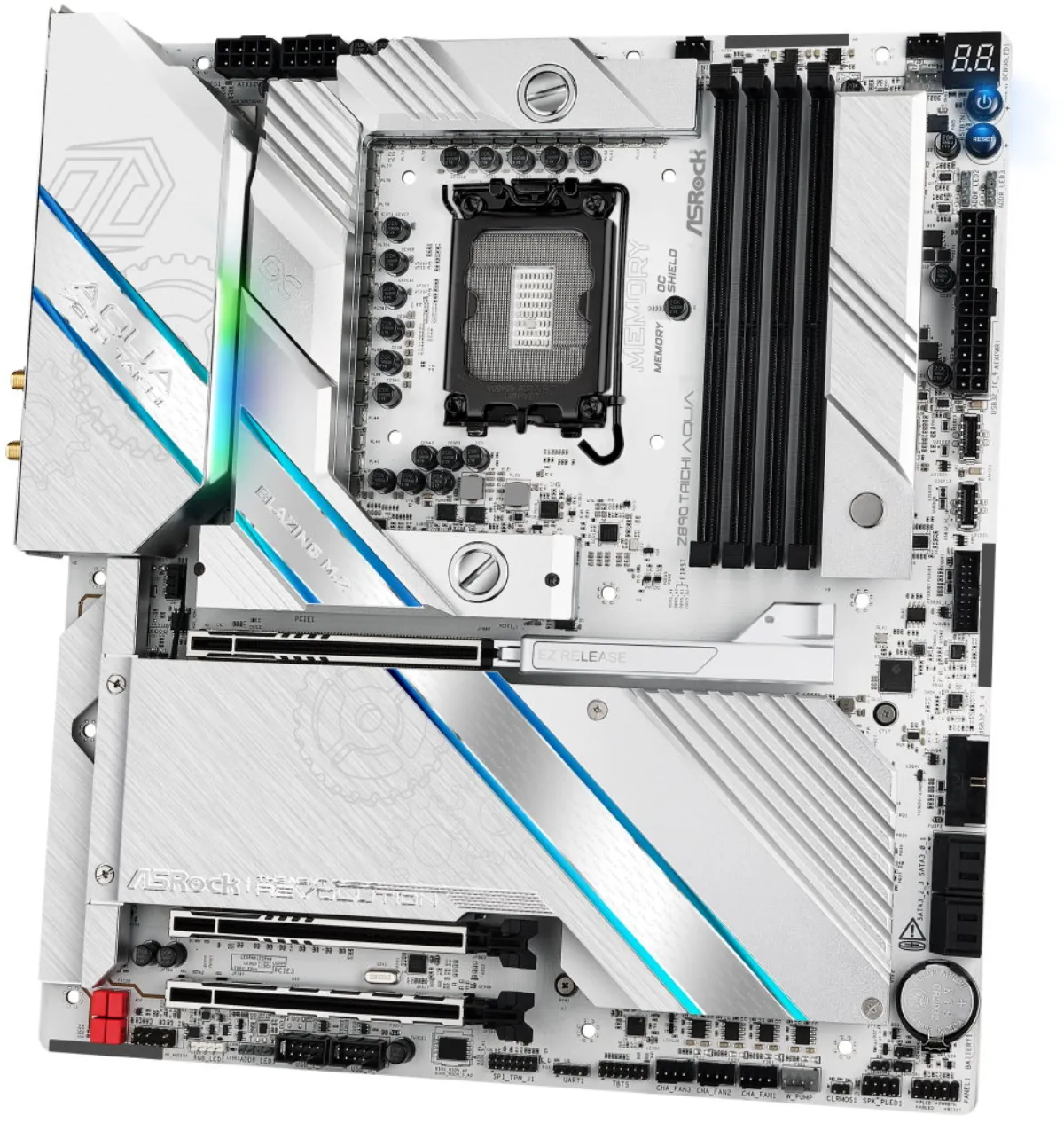

ASRock Z890 Taichi Aqua

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Processor support 2 . Intel Core Ultra generation (socket LGA1851)

Chipset

• Intel Z890

Memory

• 4x DDR5 memory slot, support up to 256 GB
• Support DDR5 up to 9600+ (OC) MHz
• Dual channel memory architecture
• Support non-ECC, no buffer
• Intel Extreme Memory Profile (XMP) 3.0x support

Slots

Intel CPU

• 2× PCIe 5.0 x16 slot (supports x16, x8/x8 mode)
• 1× PCIe 4.0 x16 slot (supports x4 mode)

Graphics

• 2× Thunderbolt 4 port, supporting a maximum resolution of 8K at 60 Hz/ 5K at 120 Hz
• Intel Xe LPG architecture
• AMD CrossFire support

Storage

• 2× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 2× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• 4x SATA 6 Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe drives

USB

• 2× Thunderbolt 4 (USB-C 4.0) port on the back panel
• 2x USB-C 3.2 Gen2x2 port available via an internal USB connector
• 4× USB-C 3.2 Gen2 (USB-C 3.1) port on the back panel
• 4× USB-C 3.2 Gen1 (USB-C 3.0) port on the back panel
• 4x USB 2.0 available via internal USB connectors
• 4x USB 3.2 Gen1 (USB 3.0) available via internal USB connectors

Audio

• Realtek ALC4082 Codec
• 5.1 channel High Definition Audio
• ESS SABER9219 DAC for front panel (130 dB SNR)
• Nahimic Audio

LAN

• 1× Marvell AQC113 10G LAN controller
• 1× Realtek RTL8126 5G LAN controller

WLAN/Bluetooth

• Killer Wi-Fi 7
• Wi-Fi 802.11a/b/g/n/ac/ax/axe/be
• Triple-Band 320 MHz (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Bluetooth 5.4

Internal connectors

• 3x thermistor cable connector
• 1× SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 2x 4pin CPU fan connector
• 1× 4pin CPU fan/ water cooling pump connector
• 1× 4pin AIO fan connector
• 4x 4pin case fan connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 2x USB-C 3.2 Gen2x2 front panel connector
• 1× Dr. Debug with LED
• 1x Power button with LED
• 1x Reset button with LED

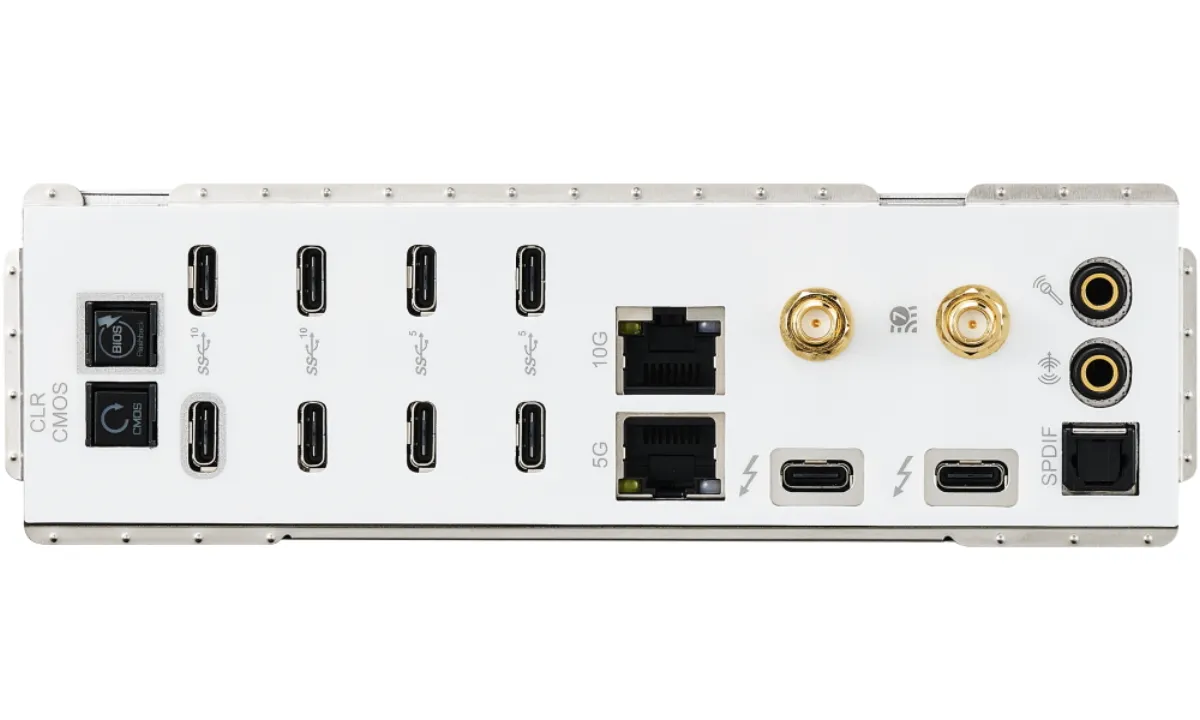

Rear panel ports

• 2x Wi-Fi antenna connector
• 1x optical S/PDIF output
• 2x Thunderbolt 4 (USB-C 4.0)
• 4× USB-C 3.2 Gen2 (USB-C 3.1)
• 4x USB-C 3.2 Gen1 (USB-C 3.0)
• 1x Clear CMOS button
• 1× BIOS Flashback button
• 2x RJ-45
• 2x audio jack

Dimensions

• 30.5 x 27.4 cm
• E-ATX format
