ASUS PRIME B760-PLUS D4 Intel B760 LGA1700 4x DDR4 3x M.2 DP HDMI VGA 1x USB-C ATX

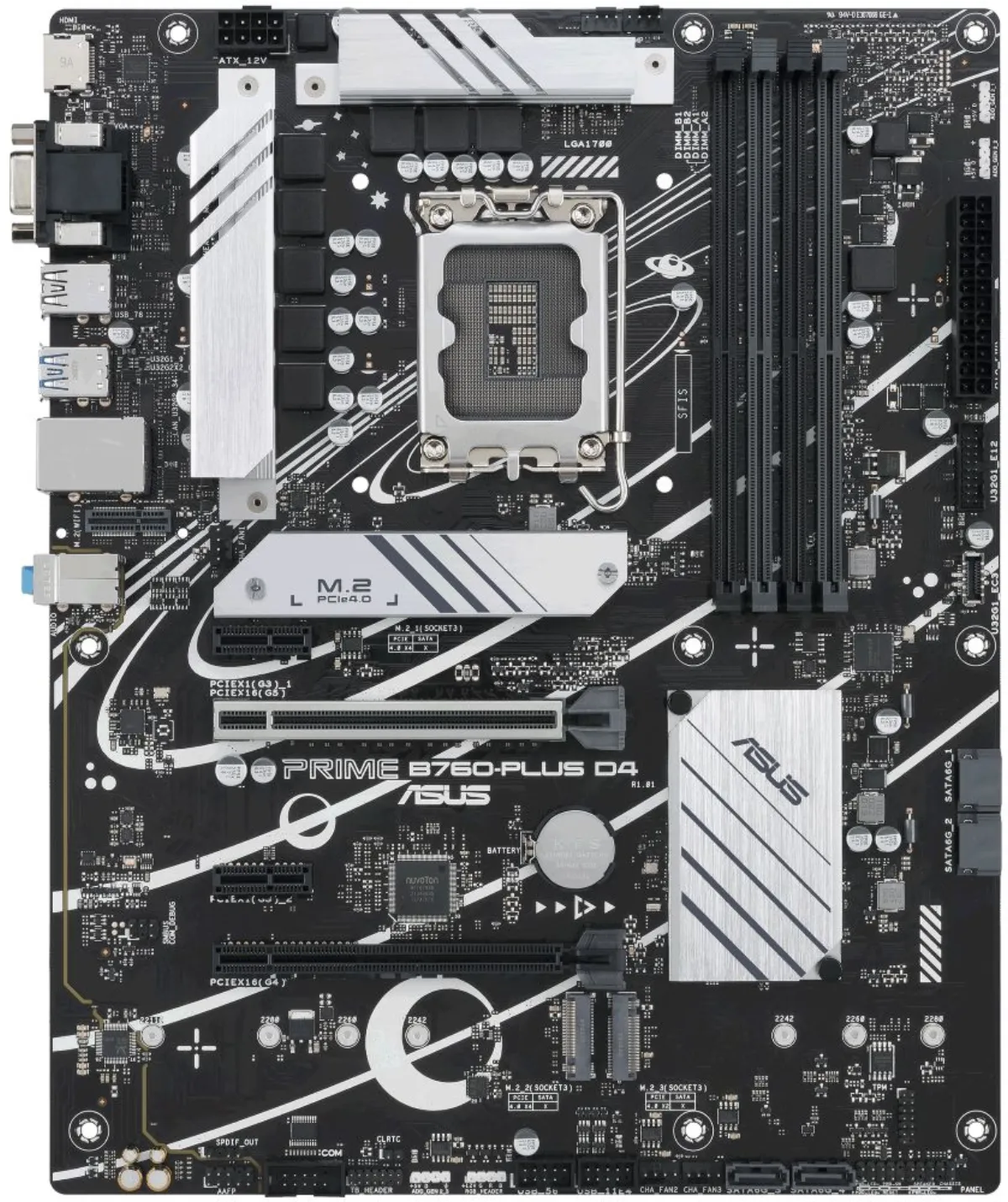

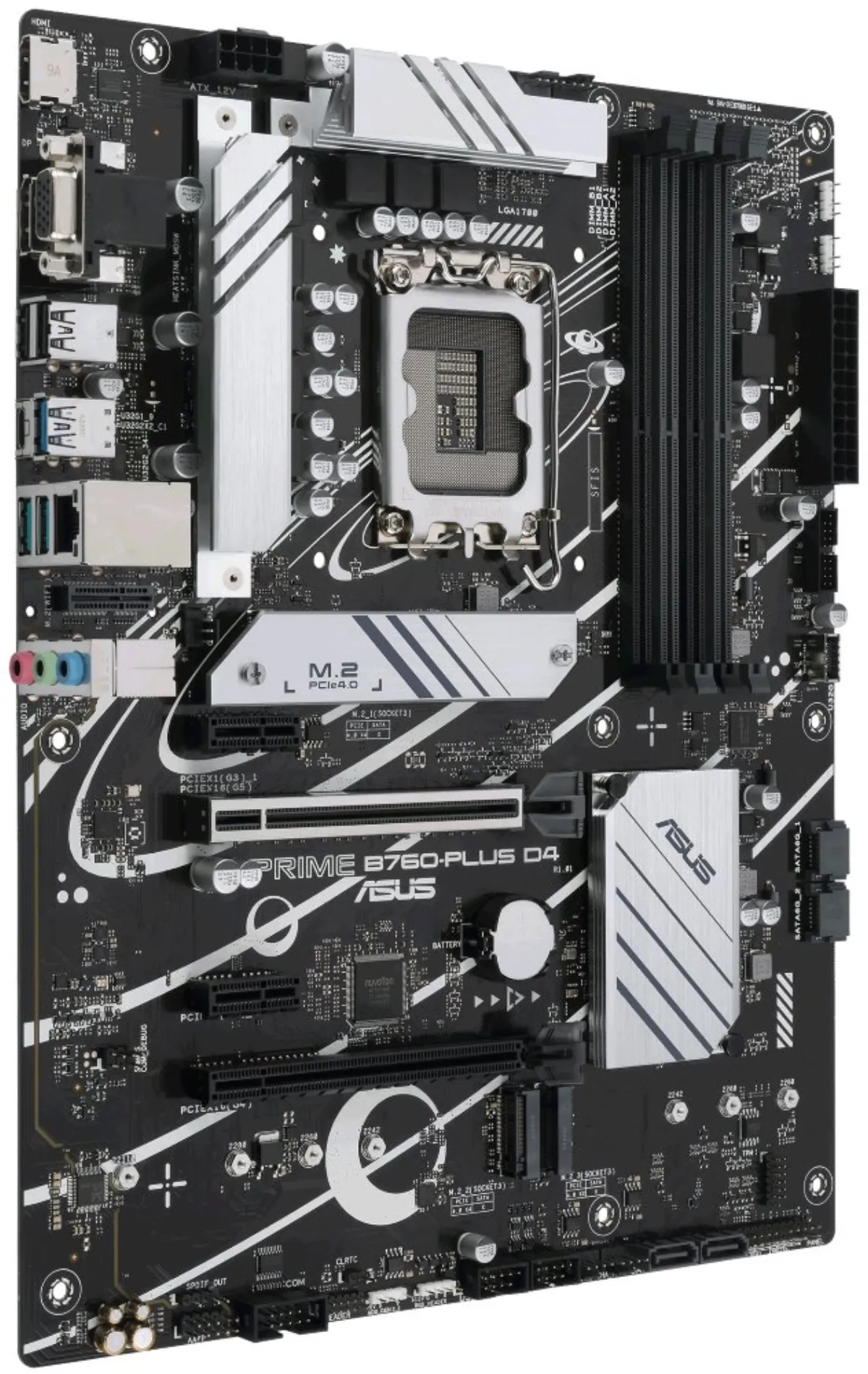

ASUS PRIME B760-PLUS D4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for 12 processors. and 13 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 ( OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) support
• OptiMem support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 2x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 4K at 60 Hz
• 1x VGA port

Storage

• 1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x2 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• Support for Intel Rapid Storage technology

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 2x USB 3.2 Gen2 type A port on the back panel
• 3x USB 3.2 Gen1 (USB 3.0) type A port (1 port on the back panel, 2 ports available via the internal USB connector)
• 1x USB 3.2 Gen1 (USB 3.0) type C port available via an internal USB connector
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek Audio Codec
• 7.1 channel High Definition Audio

LAN

• 1x Realtek 2.5Gigabit LAN controller

Internal connectors

• 1x 24-pin main power connector
• 1x 8-pin 12V power connector
• 4x SATA 6Gb/s connector
• 3x M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi module (not included)
• 1x USB 3.2 Gen1 (USB 3.0) type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x 4-pin CPU fan connector
• 1x 4-pin water cooling pump connector
• 3x 4-pin case fan connector
• 3x addressable RGB LED strip connector
• 1x Aura RGB LED strip connector
• 1x Clear CMOS connector
• 1x serial port connector
• 1x front panel audio connector
• 1x S/PDIF output connector
• 1x SPI TPM connector
• 1x system panel connector (with cabinet opening detection function)
• 1x Thunderbolt connector

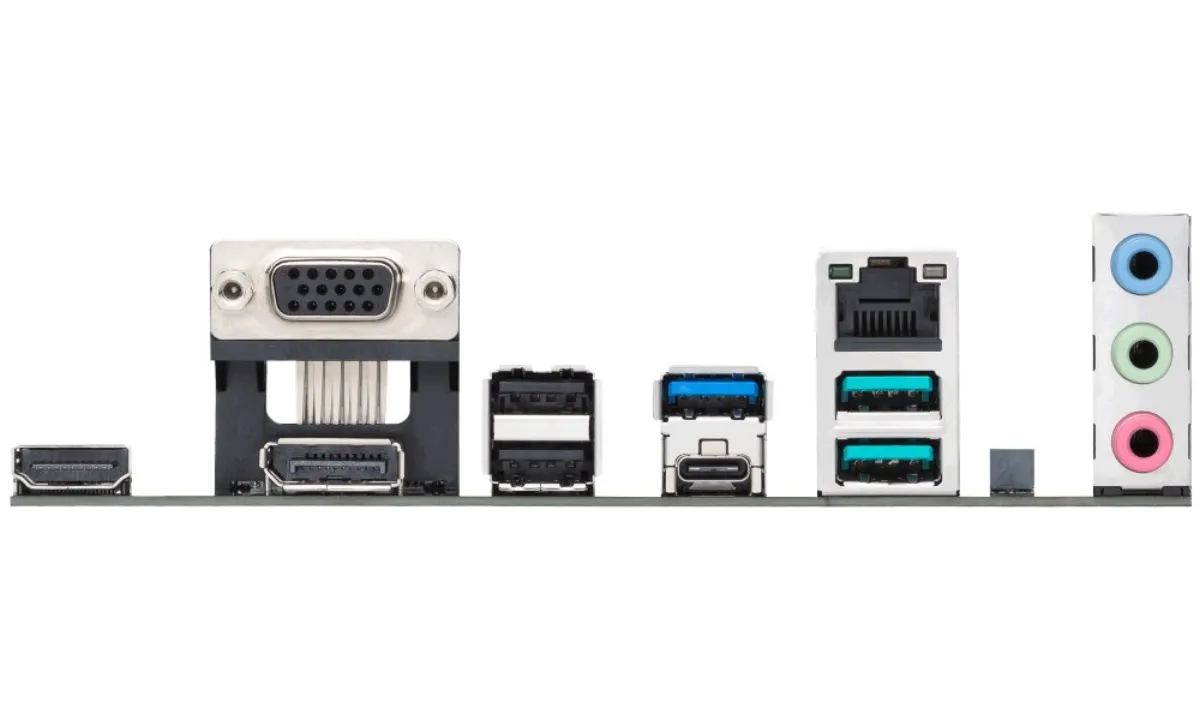

Rear panel ports

• 1x HDMI
• 1x DisplayPort
• 1 x VGA
• 1x USB 3.2 Gen2x2 type C
• 2x USB 3.2 Gen2 type A
• 1x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
