ASUS PRIME H510M-A (R2.0) LGA1200 H470 2x DDR4 M.2 1x DP 1x VGA 1x HDMI mATX

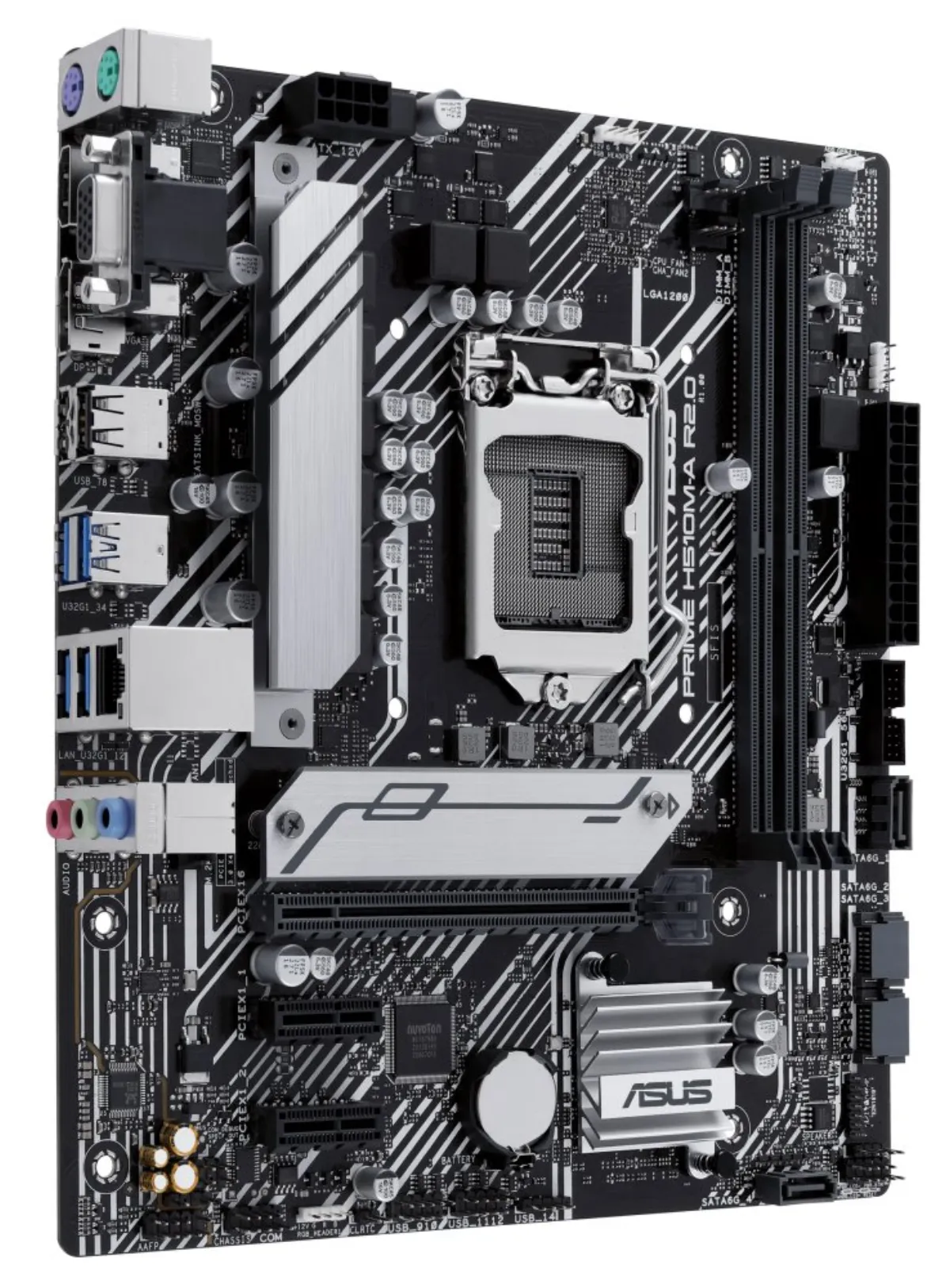

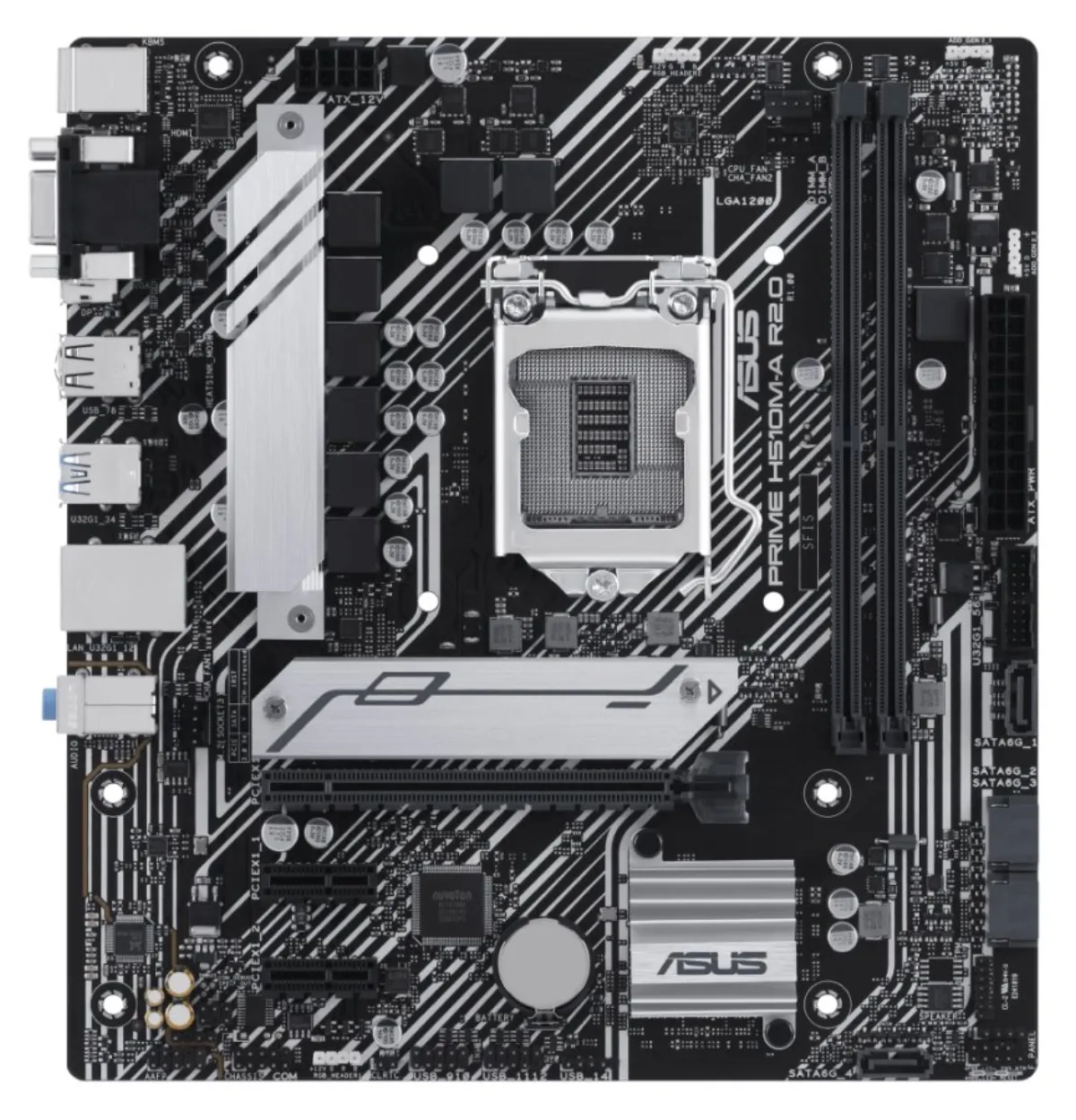

ASUS PRIME H510M-A (R2.0)

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without using the corresponding processor, these outputs will be inoperative.

CPU

• Support for 10th and 11th generation Intel Core/ Pentium/ Celeron processors (LGA1200 socket)

Chipset

• Intel H470

Memory

• 2× DDR4 memory slot, support up to 64 GB
• Support for DDR4 3200 (OC) / 3000 (OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• CPU Intel 10th gen. (Core i7/ i9) supports 2933 / 2800 / 2666 / 2400 / 2133 MHz
• Intel 10th gen CPU (Core i5/ i3 / Pentium / Celeron) supports 2666 / 2400 / 2133 MHz
• Intel 11th gen CPU supports 3200 (OC) / 3000 (OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• Dual-channel memory architecture
• Non-ECC support, unbuffered
• Intel Extreme Memory Profile (XMP) support

Slots

• 1× PCIe 4.0 x16 slot
• Intel 10th gen CPU supports PCIe 3.0
• 2× PCIe 3.0 x1 slot

Graphics

• 1× HDMI port, supporting max. 4K resolution at 60 Hz
• 1× DisplayPort port, supporting max. resolution 4096 × 2304 @ 60 Hz
• 1× VGA port

Storage

• 4× SATA 6Gb/s port
• 1× M.2 slot, M Key, for type 2242/2260/2280 drives (PCIe 3.0 x4 and SATA mode)

USB

• 6× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via internal USB connector)
• 7× USB 2.0 port (2 ports on the back panel, 5 ports available via internal USB connectors)

Audio

• Realtek Audio Codec
• 7.1-channel High Definition Audio

LAN

• 1× Realtek Gigabit LAN controller

Internal connectors

• 1× 4-pin CPU fan connector
• 2× 4-pin system power connector fan
• 1× 24pin ATX main power connector
• 1× 8pin ATX 12V power connector
• 4× SATA 6Gb/s connector
• 1× M.2 slot, M Key
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 2× USB 2.0 connector (supports 4× USB 2.0 port)
• 1× USB 2.0 connector (supports 2× USB 2.0 port)
• 2× Aura RGB LED strip connector
• 2× Aura addressable RGB LED strip connector
• 1× Clear CMOS jumper
• 1× serial port connector
• 1× front panel audio connector
• 1× S/PDIF out connector
• 1× speaker connector
• 1× SPI TPM connector
• 1× system board connector

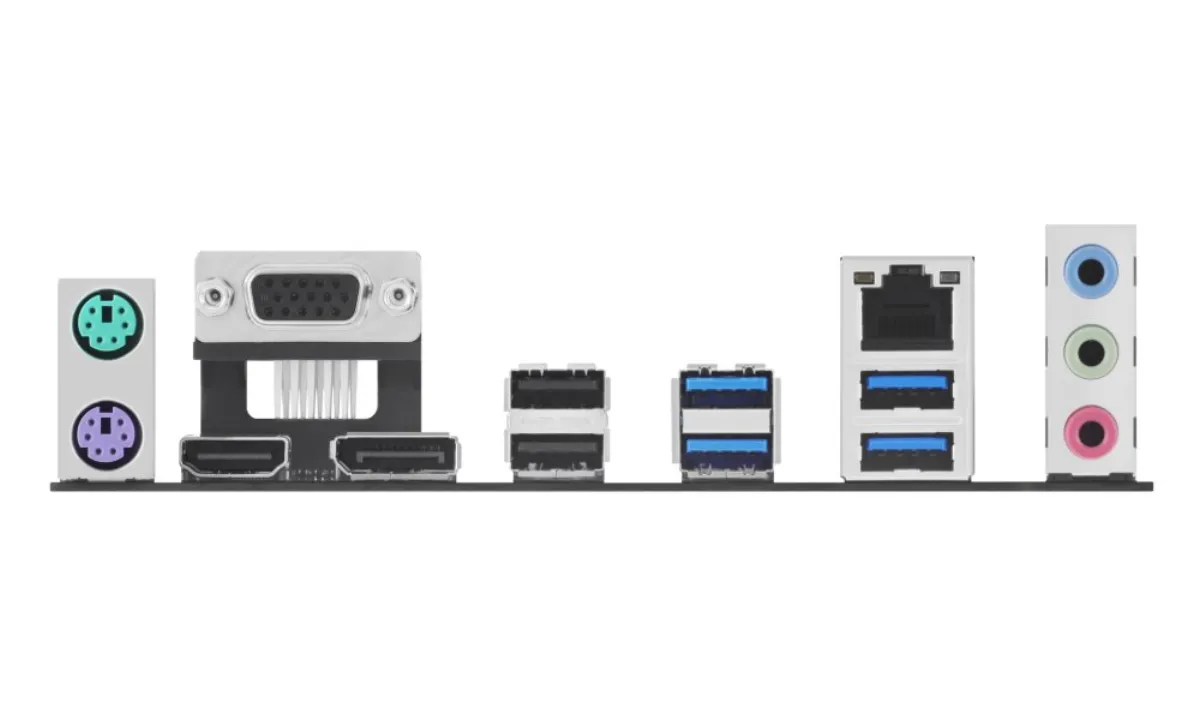

Back panel ports

• 1× PS/2 keyboard port
• 1× PS/2 mouse port
• 1× HDMI
• 1× DisplayPort
• 1× VGA
• 4× USB 3.2 Gen1 (USB 3.0)
• 2× USB 2.0
• 1× RJ-45
• 3× audio jack

Dimensions

• 22.6 × 21.1 cm
• Micro ATX format
