ASUS PRIME H510M-K H510 Intel LGA1200 2x DDR4 VGA HDMI mATX

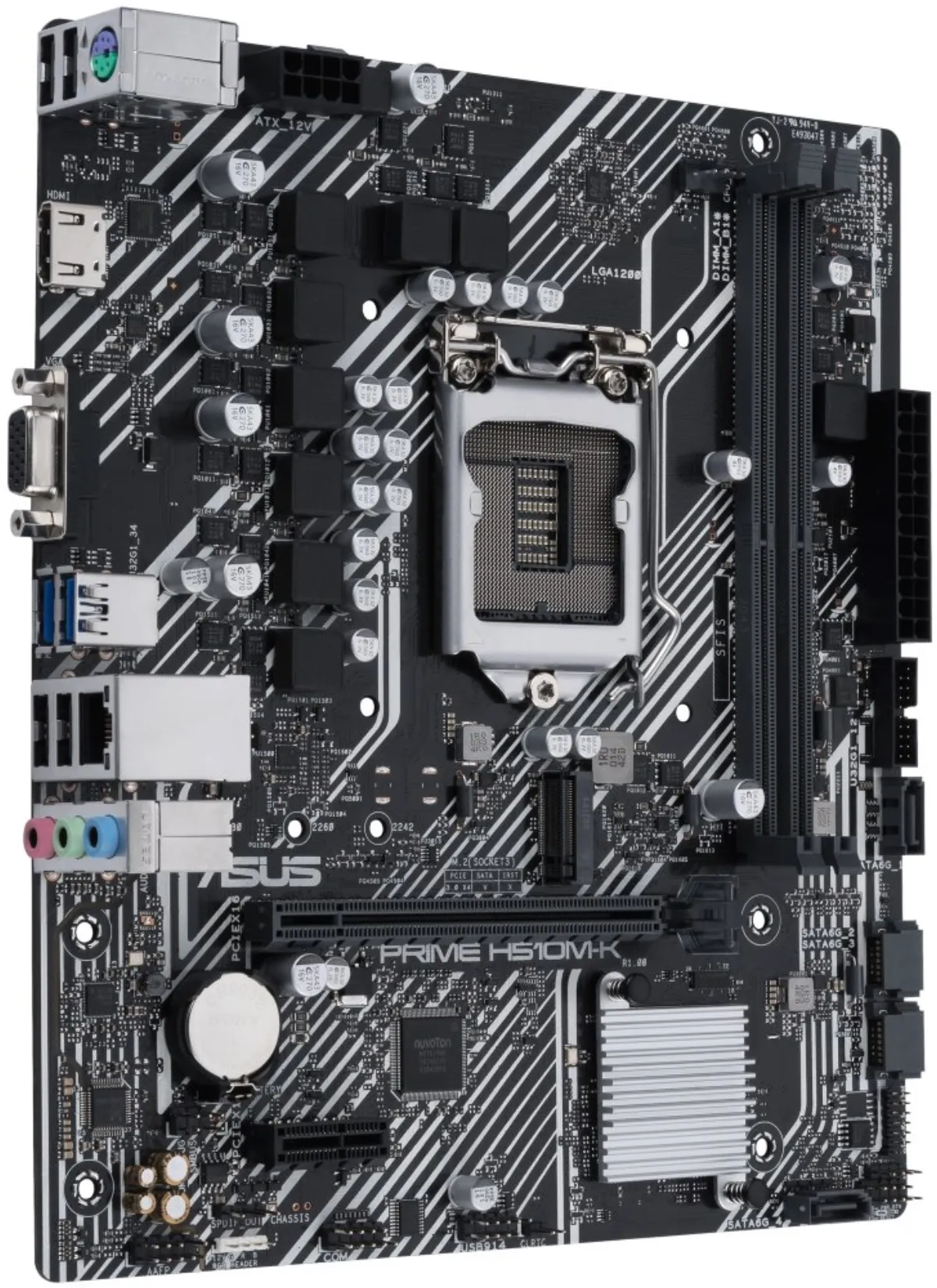

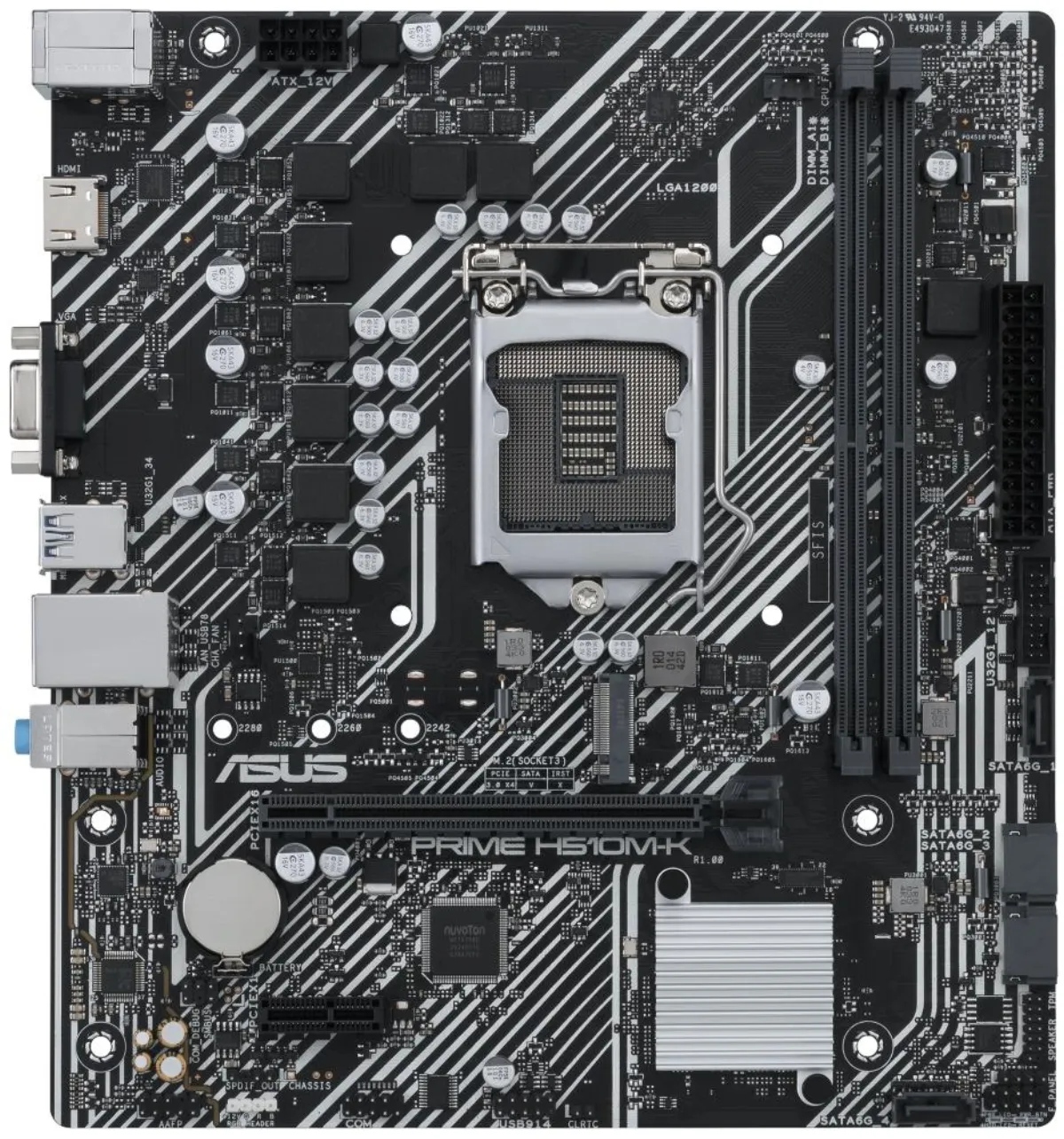

ASUS PRIME H510M-K

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 10 . and 11 . generation Intel Core/ Pentium/ Celeron (socket LGA1200)

Chipset

• Intel H510

Memory

• 2x DDR4 memory slot, support up to 64 GB
• Support DDR4 3200 (OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
• Intel 10 CPU. gene. (Core i7/ i9) supports 2933/ 2800/ 2666/ 2400/ 2133 MHz
• Intel 10 CPU. gene. (Core i5/ i3/ Pentium/ Celeron) supports 2666/ 2400/ 2133 MHz
• Dual-channel memory architecture
• Support Non-ECC, no buffer
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 4.0 x16 slot
• Intel 10 CPU. gene. supports PCIe 3.0
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1 x VGA port

Repository

• 4x SATA 6Gb/s port
• 1x M.2 slot, M Key, for 2242/ 2260/ 2280 type units (PCIe 3.0 x4 and SATA mode)

USB

• 4x USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 port (4 ports on the back panel, 2 ports available via the internal USB connector)

Audio

• Realtek ALC897/887 Codec
• 7.1 channel High Definition Audio

HIND

• 1x Intel I219V Gigabit LAN controller

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connector
• 1x M.2 slot, M Key
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 2.0 connector (supports 2x USB 2.0 port)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x 4-pin RGB connector
• 1x front panel audio connector
• 1x system panel connector
• 1x serial port connector
• 1x TPM connector
• 1x speaker connector
• 1x S/PDIF output connector
• 1x Clear CMOS jumper

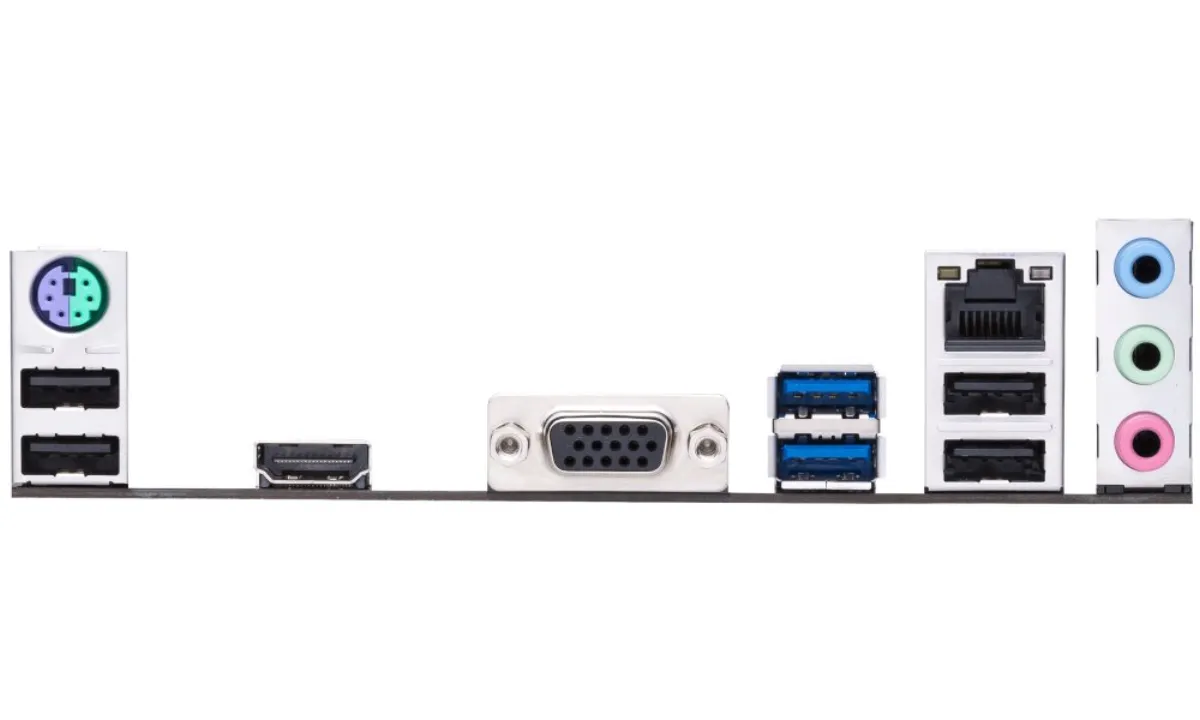

Rear Panel Ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1 x VGA
• 2x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 22.6 x 20.3 cm
• Micro ATX format
