ASUS ROG STRIX X670E-A GAMING WIFI AMD X670 AM5 4x DDR5 4x M.2 HDMI DP USB-C WiFi ATX

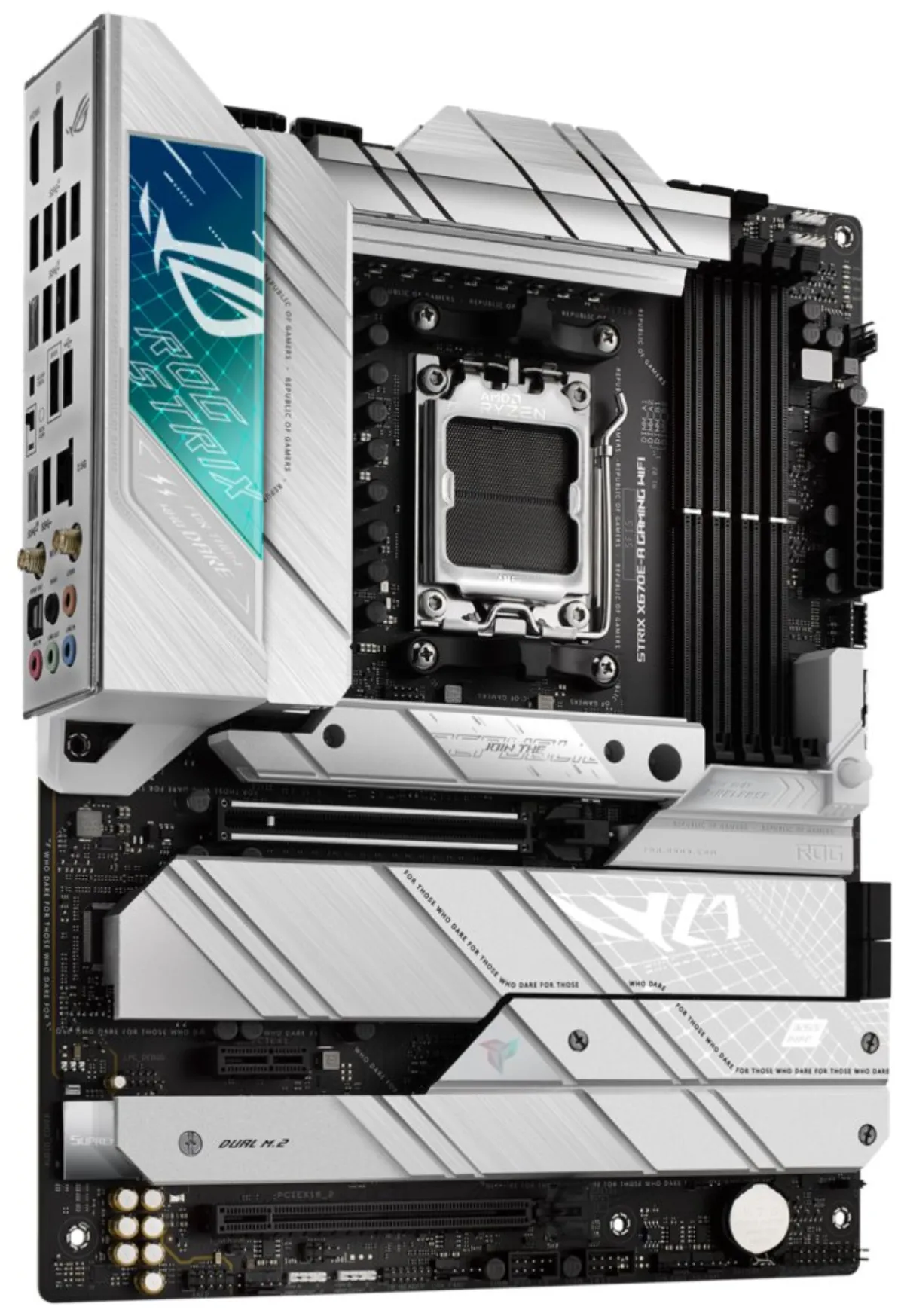

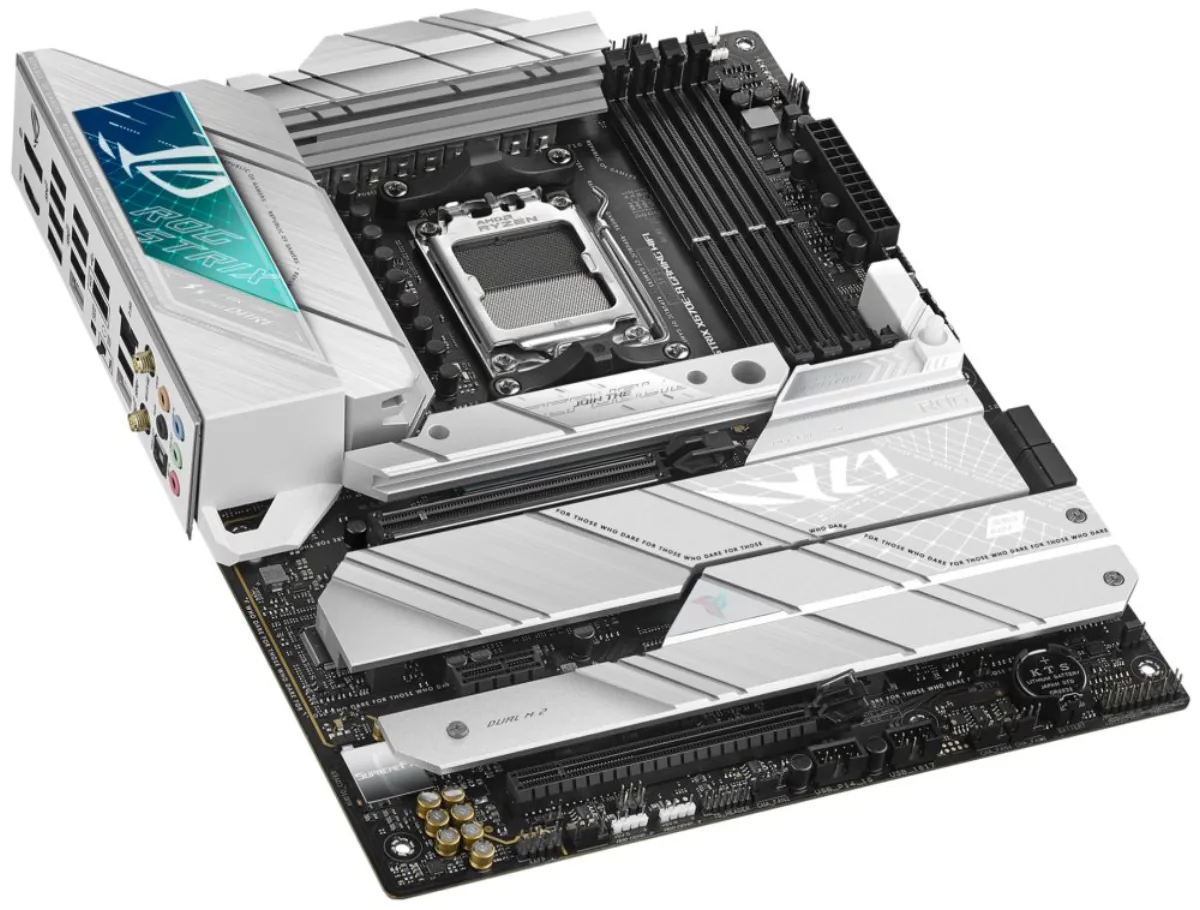

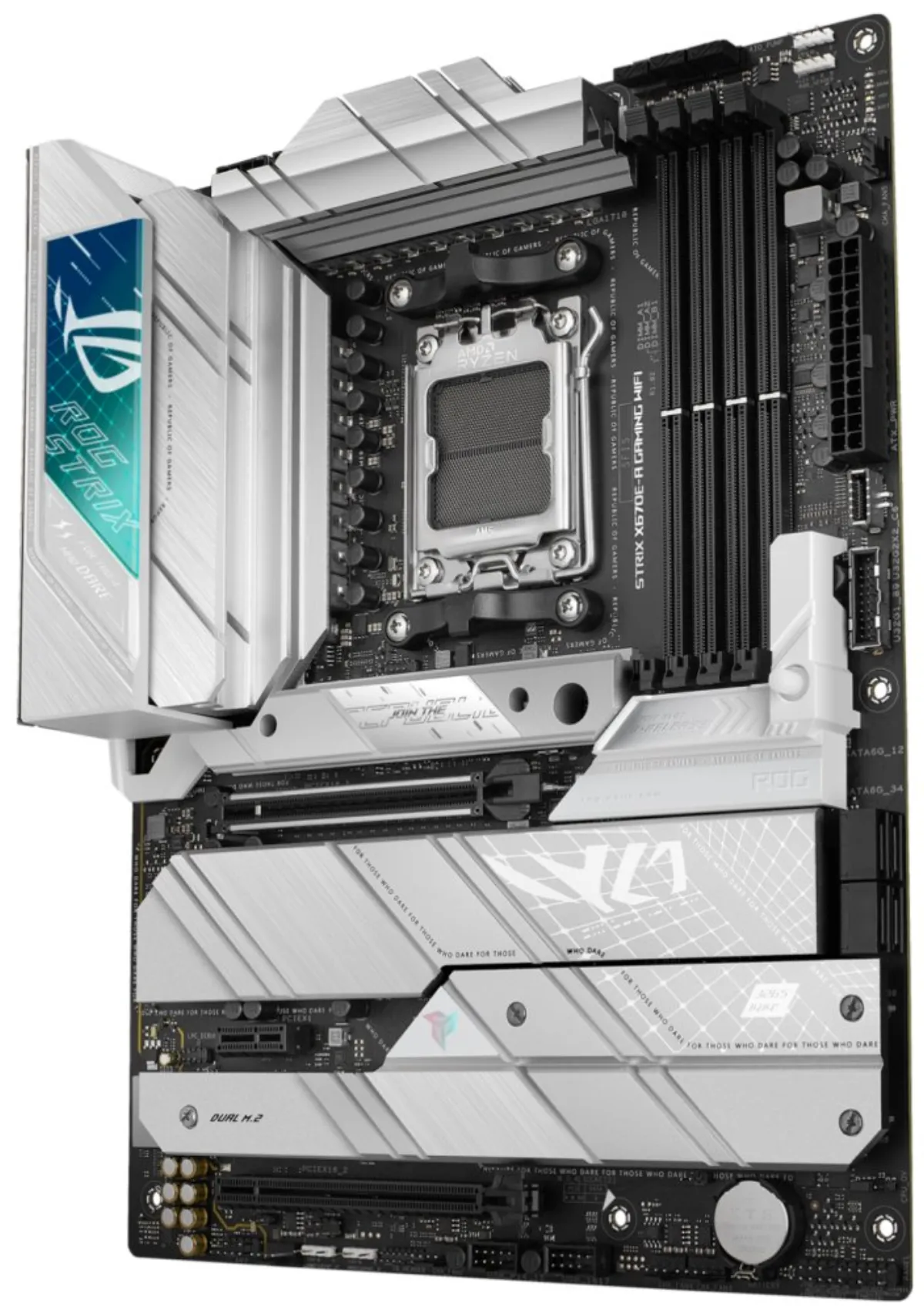

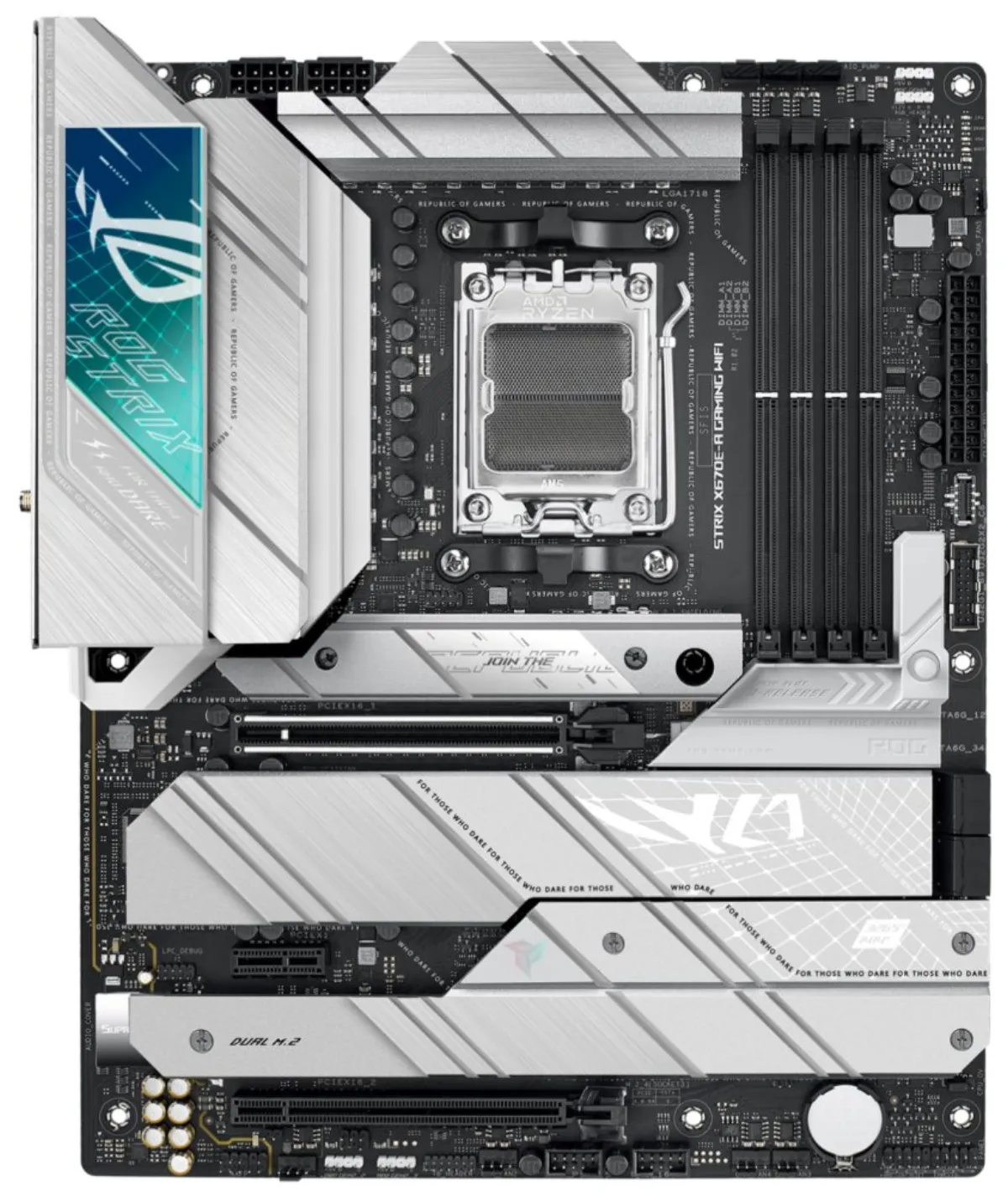

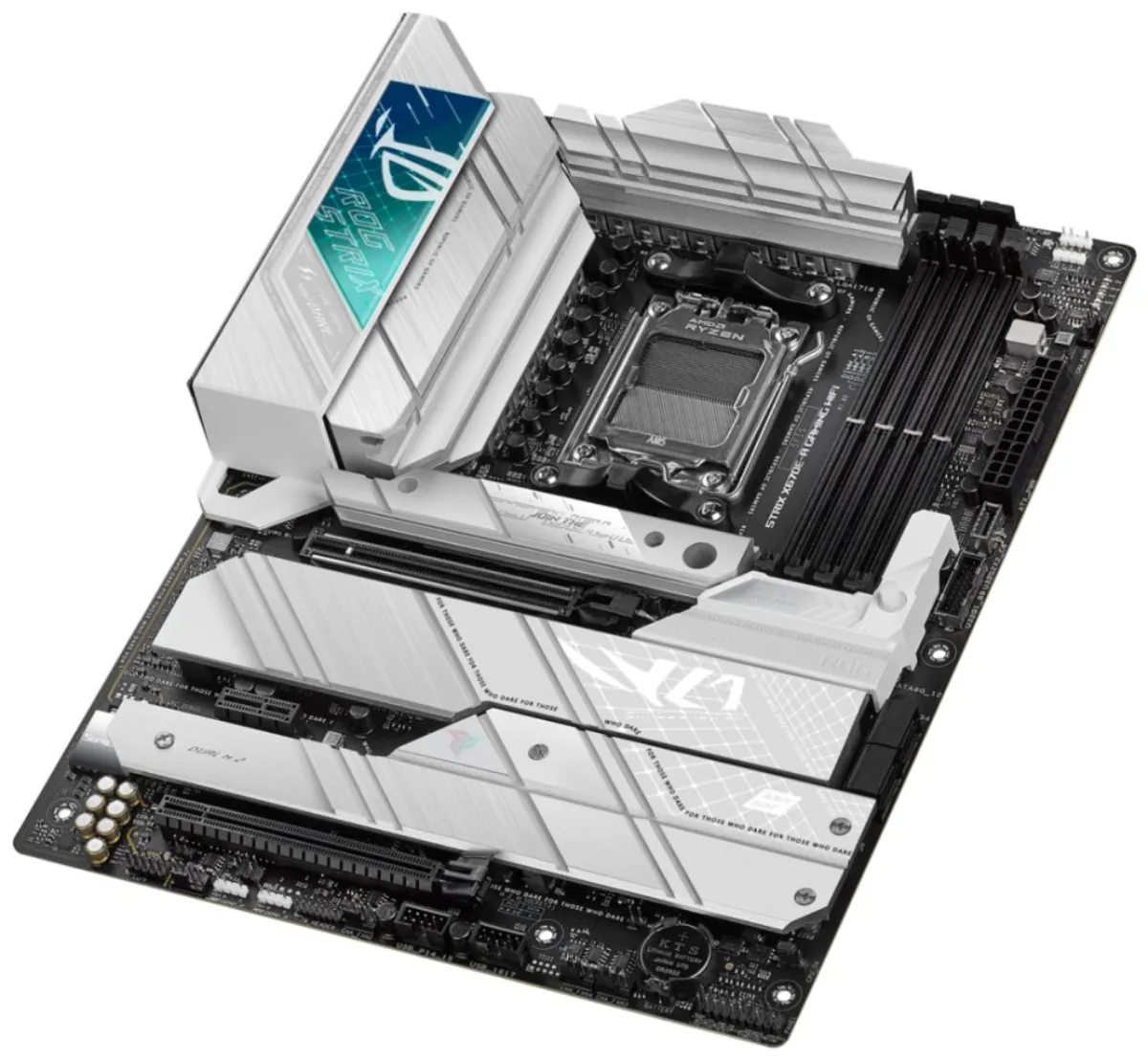

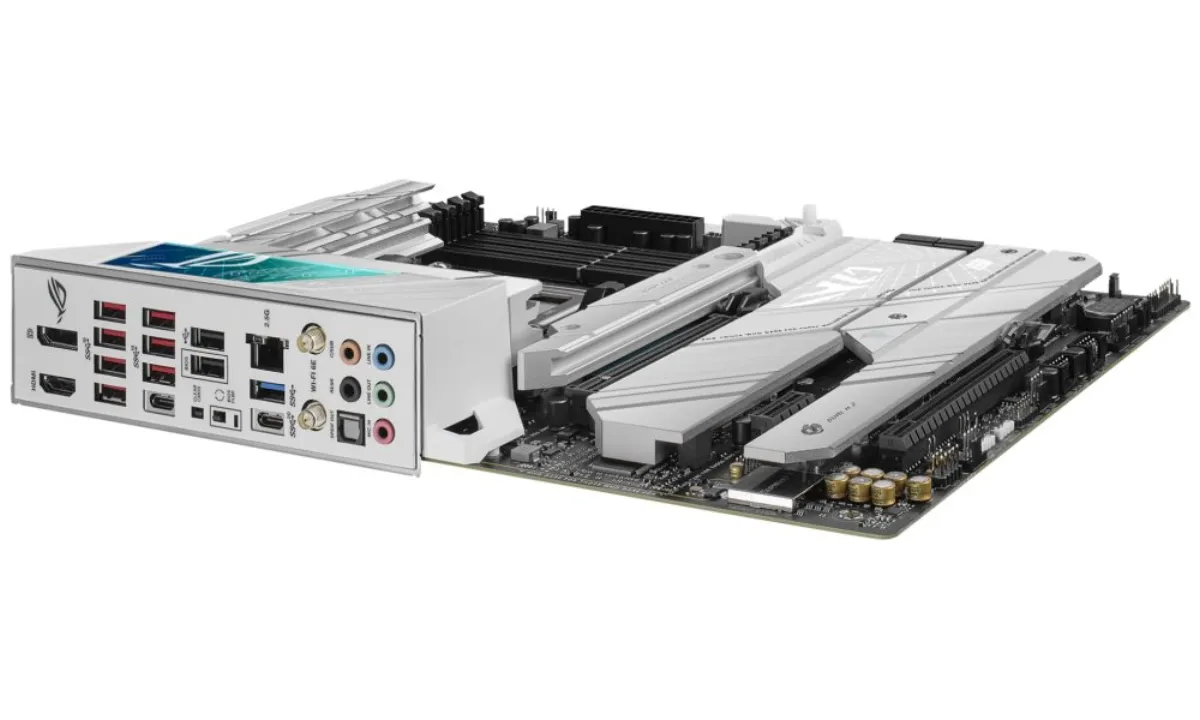

ASUS ROG STRIX X670E-A GAMING WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000 series processors (socket AM5)

Chipset

• AMD X670

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz
• Dual channel memory architecture
• ECC and non-ECC support, unbuffered
• Support On-Die ECC function
• AMD EXtended Profiles for Overclocking (EXPO) support
• OptiMem II support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 8K at 60 Hz

Storage

• 1x M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)
• 4x SATA 6 Gb/s
• 2x M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 5.0 x4 mode)
• AMD RAIDXpert2 support
• RAID 0, RAID 1 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

• 2x USB 3.2 Gen2x2 type C port (1 port on the back panel, 1 port available via the internal USB connector)
• 1x USB 3.2 Gen2 type C port on the back panel
• 7x USB 3.2 Gen2 type A port on the back panel
• 3x USB 3.2 Gen1 (USB 3.0) port (1 port on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• ROG SupremeFX ALC4080 Codec
• 7.1 channel High Definition Audio
• SupremeFX Shielding technology
• Savitech SV3H712 AMP
• 120 dB SNR playback, 113 dB SNR recording
• S/PDIF output support

LAN

• 1x Intel 2.5Gigabit LAN controller
• ASUS LANGuard support

WLAN/Bluetooth

• AMD Wi-Fi 6E RZ616 (MT7922A22M)
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Bluetooth 5.2

Internal connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 4x SATA 6Gb/s connector
• 4x M.2 slot, M Key
• 1x USB 3.2 Gen2x2 type C front panel connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x 4-pin CPU fan connector
• 1x 4-pin connector of the optional CPU fan
• 1x 4-pin water cooling pump connector
• 5x 4-pin case fan connector
• 3x addressable RGB LED strip connector
• 1x Aura RGB LED strip connector
• 1x CPU Over Voltage jumper
• 1x front panel audio connector
• 1x system panel connector (including cabinet opening detection)
• 1x temperature sensor connector
• 1x Thunderbolt connector

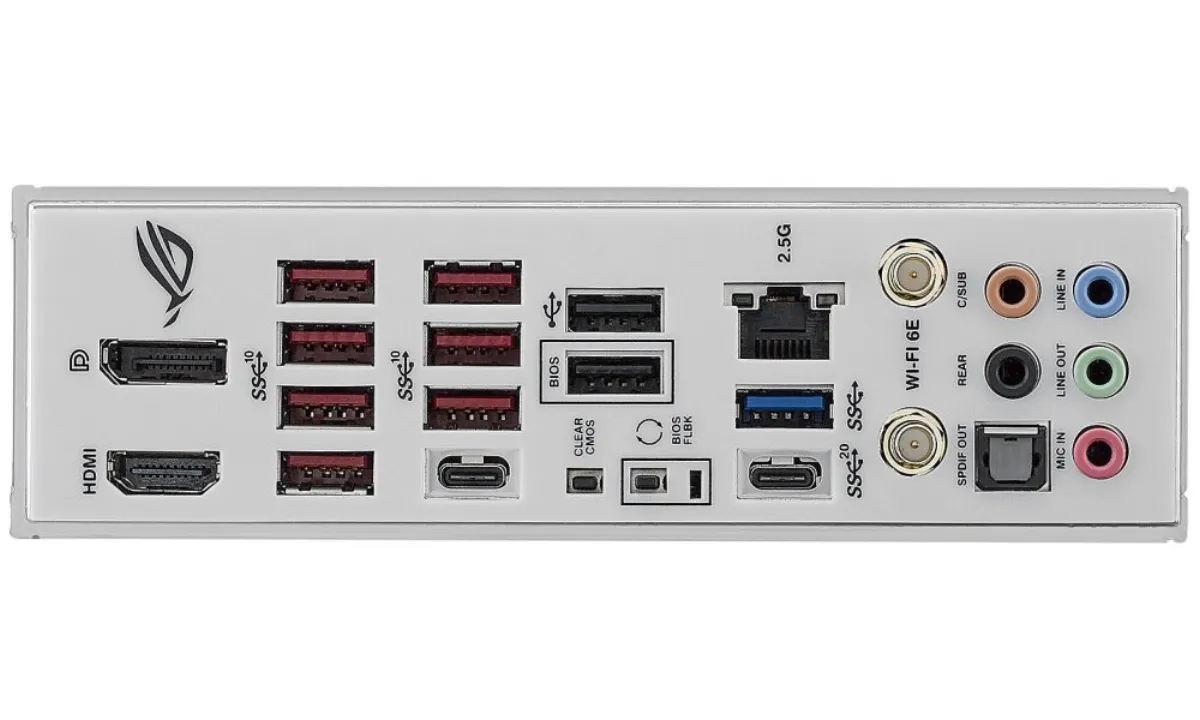

Rear panel ports

• 1x USB 3.2 Gen2x2 type C
• 1x USB 3.2 Gen2 type C
• 7x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 1x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x DisplayPort
• 1x HDMI
• 2x Wi-Fi antenna connector
• 1x RJ-45
• 5x audio jack
• 1x optical S/PDIF output
• 1x BIOS Flashback button
• 1x Clear CMOS button

Dimensions

• 30.5 x 24.4 cm
• ATX format
