ASUS TUF GAMING B650M-PLUS AMD B650 AM5 4x DDR5 2x M.2 HDMI DP USB-C mATX

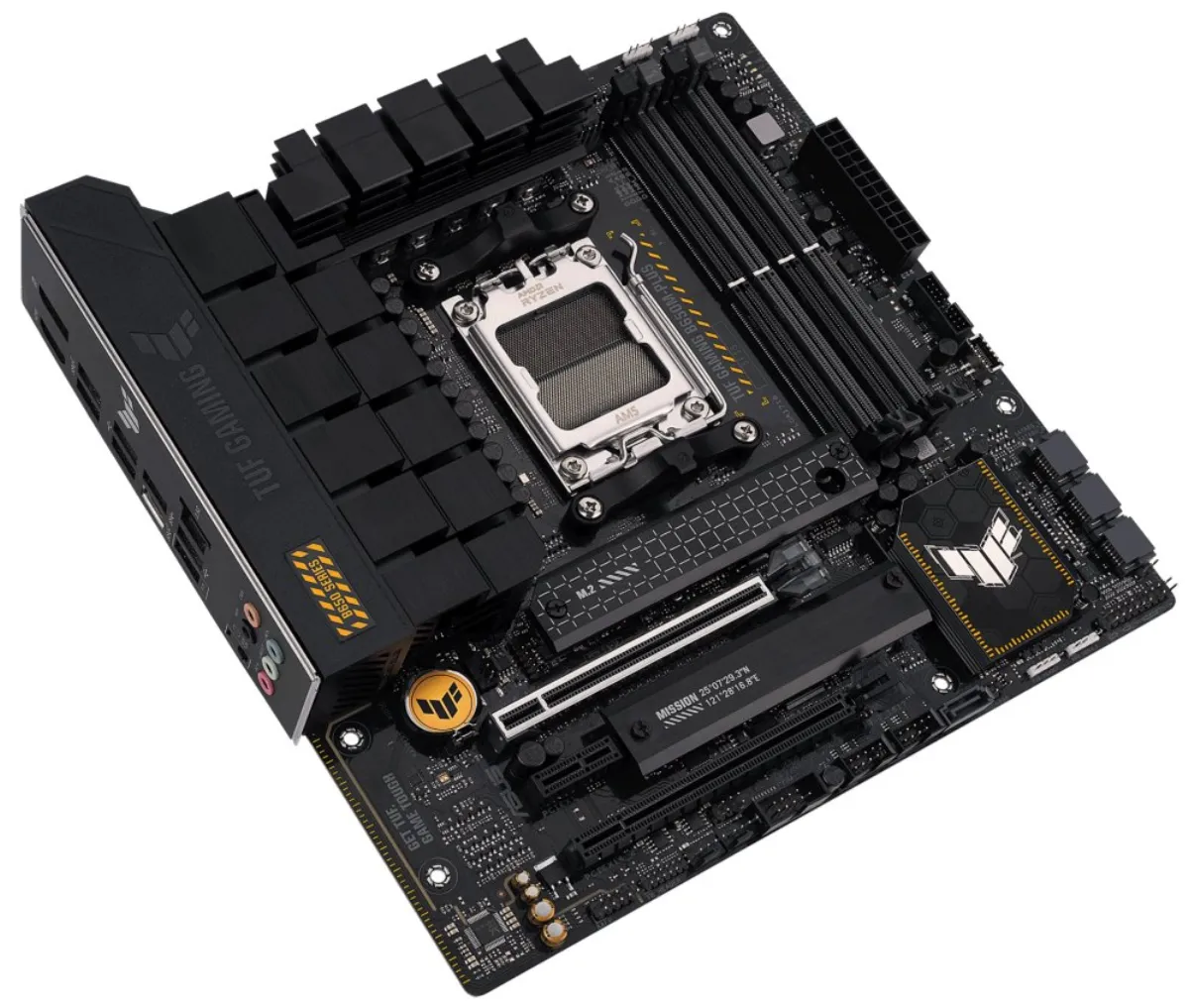

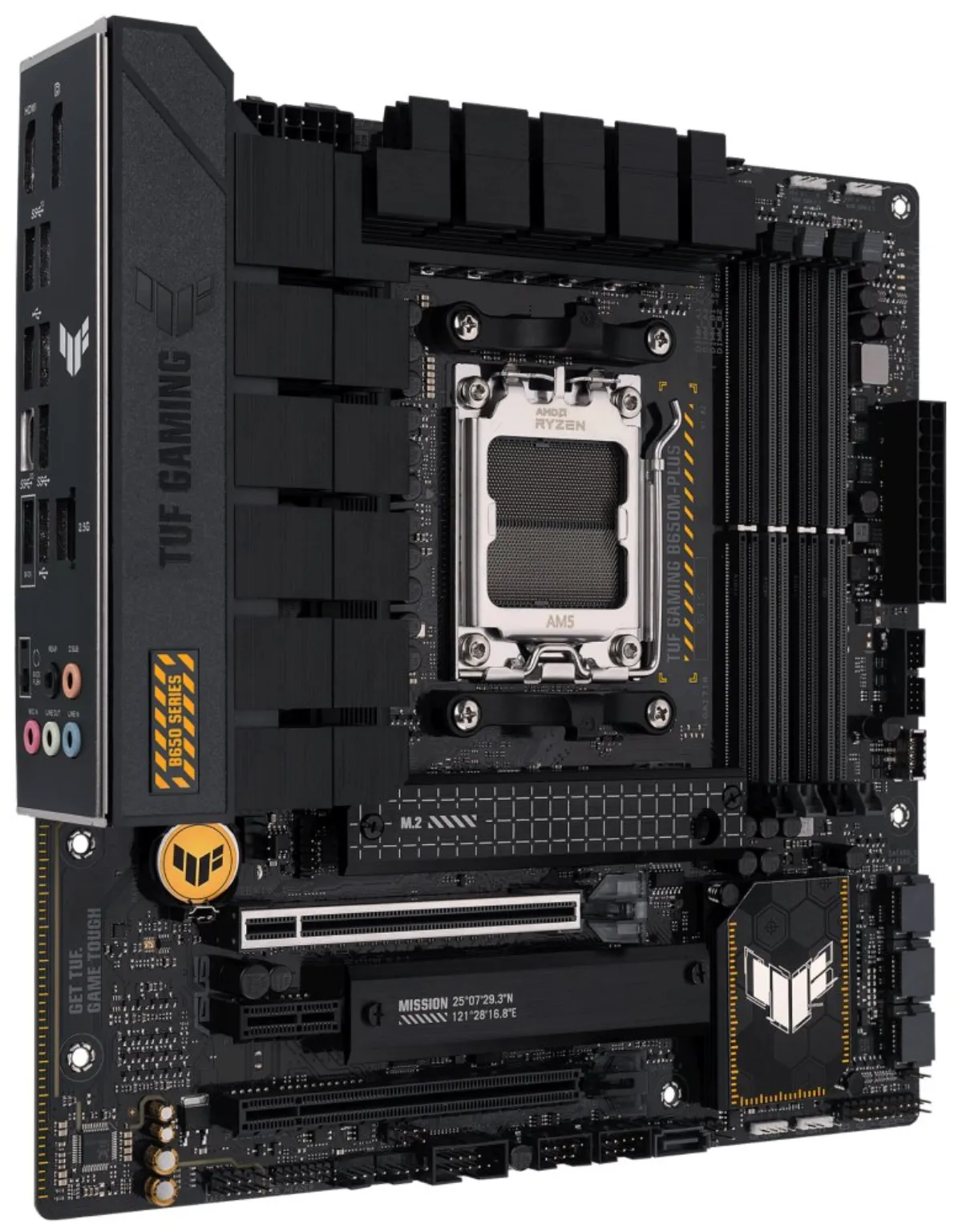

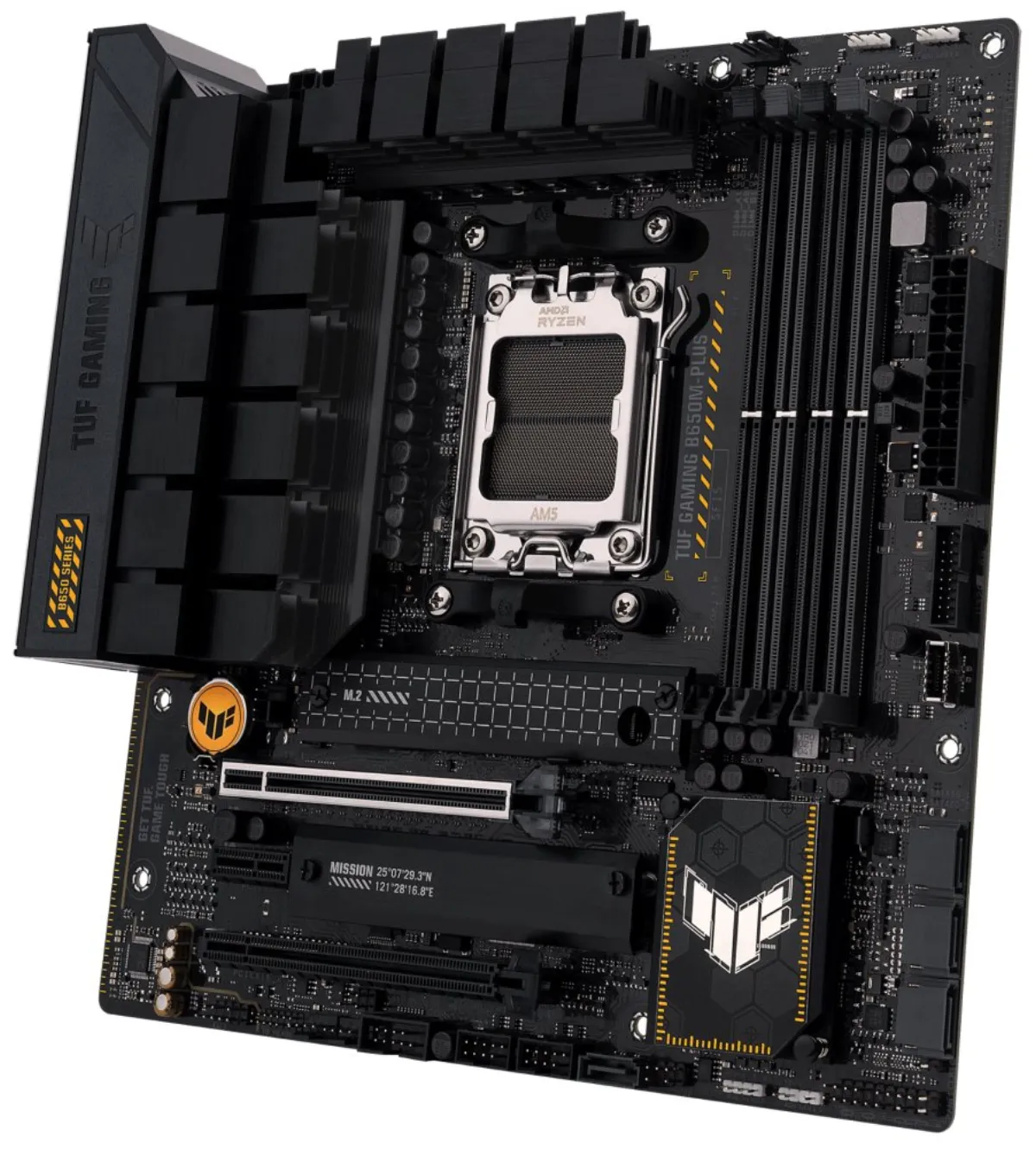

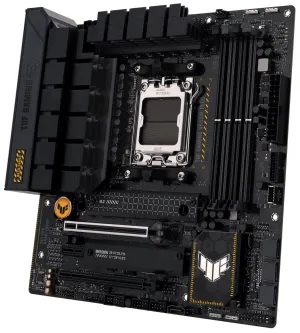

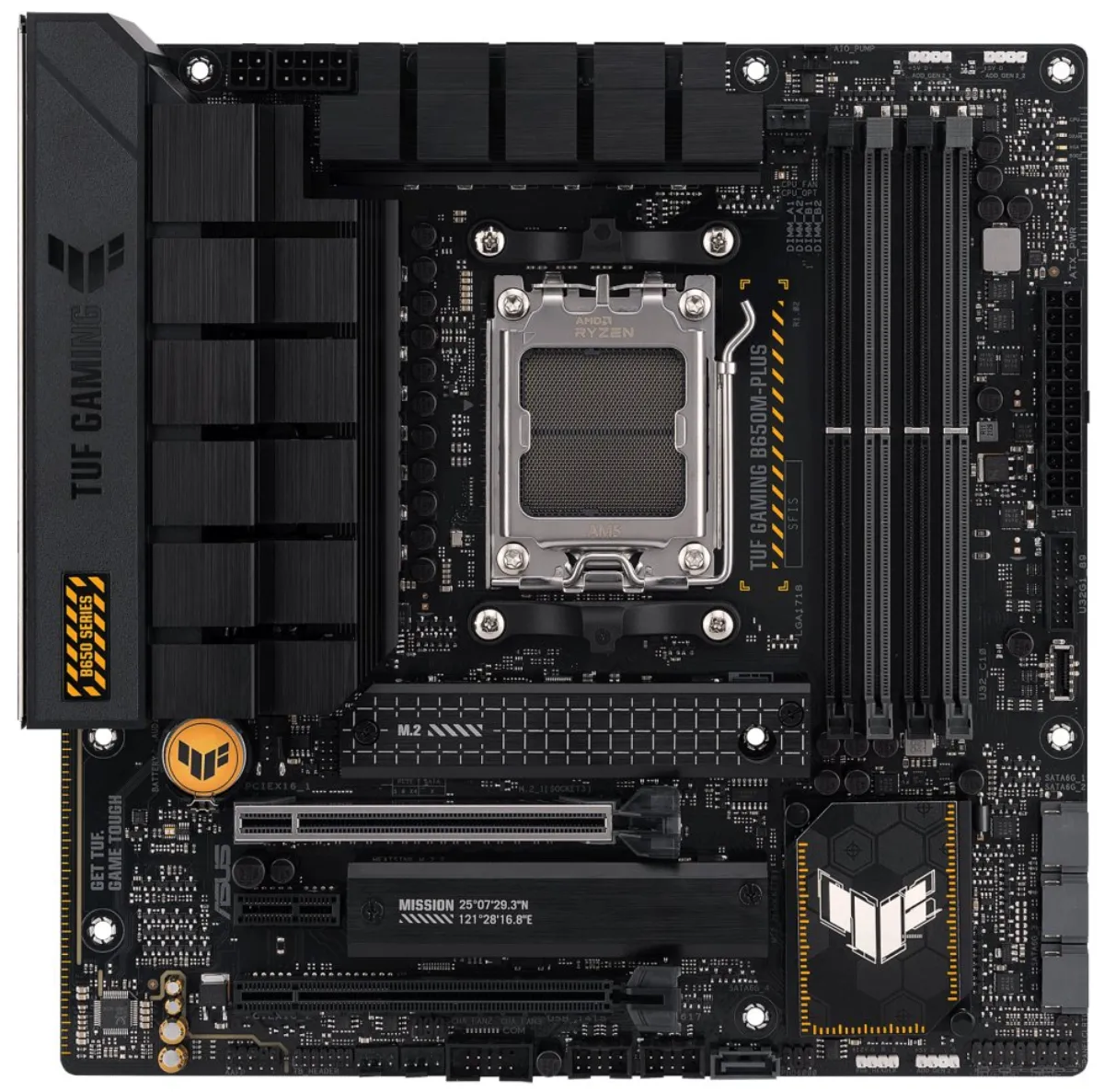

ASUS TUF GAMING B650M-PLUS

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000 series processors (socket AM5)

Chipset

• AMD B650

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz
• Dual channel memory architecture
• ECC and non-ECC support, unbuffered
• Support On-Die ECC function
• Support for AMD EXtended Profiles for Overclocking (EXPO)
• OptiMem II support

Slots

• MD CPU
• 1x PCIe 4.0 x16 slot

AMD B650 Chipset

• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 4.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 8K at 60 Hz

Repository

• AMD B650 Chipset
• 4x SATA 6 Gb/s

AMD CPU

• 1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)
• 1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)
• AMD RAIDXpert2 support
• RAID 0, RAID 1 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 2x USB 3.2 Gen2 type A port on the back panel
• 1x USB 3.2 Gen1 type C port available via an internal USB connector
• 3x USB 3.2 Gen1 (USB 3.0) port (1 port on the rear panel, 2 ports available via the internal USB connector)
• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek Audio Codec
• 7.1 channel High Definition Audio

HIND

• 1x Realtek 2.5Gigabit LAN controller
• TUF LANGuard support

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x 4-pin 12V power connector
• 4x SATA 6Gb/s connector
• 2x M.2 slot, M Key
• 1x USB 3.2 Gen1 Type C front panel connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x 4-pin CPU fan connector
• 1x 4-pin connector of optional CPU fan
• 1x 4-pin water cooling pump connector
• 3x 4-pin case fan connector
• 3x addressable RGB LED strip connector
• 1x Aura RGB LED strip connector
• 1x Clear CMOS jumper
• 1x serial port connector
• 1x front panel audio connector
• 1x system panel connector (including cabinet opening detection)
• 1x Thunderbolt connector

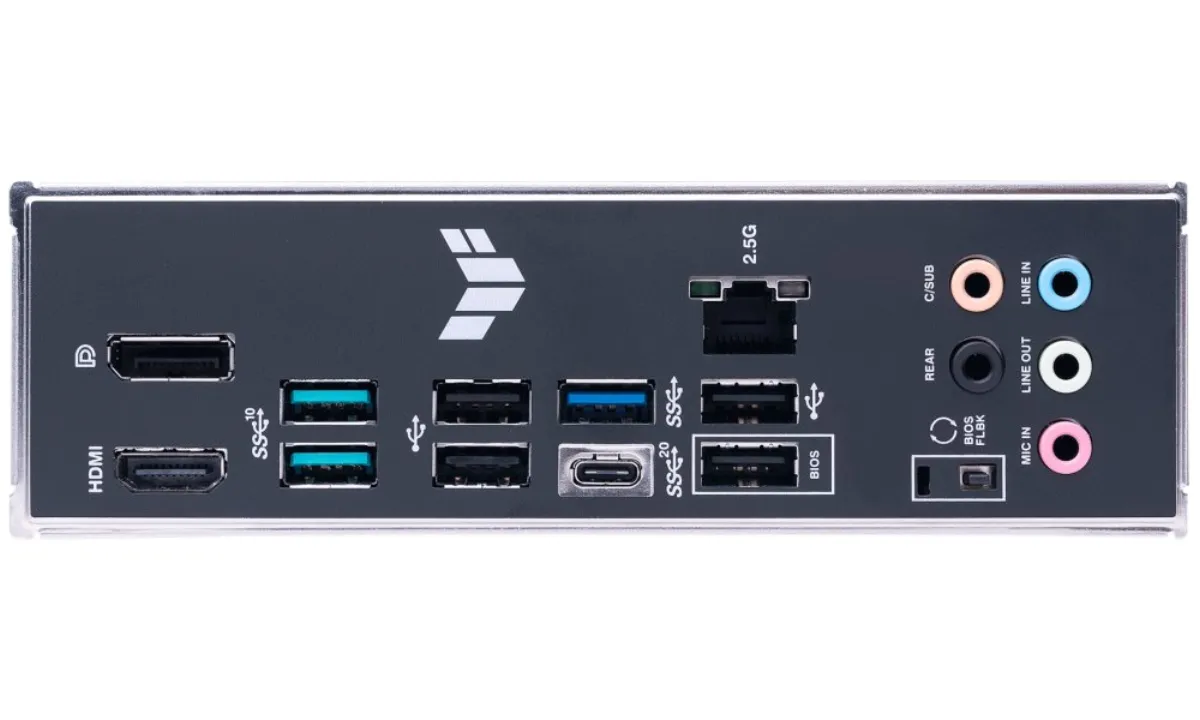

Rear Panel Ports

• 1x HDMI
• 1 x DisplayPort
• 4x USB 2.0
• 1x USB 3.2 Gen1 (USB 3.0)
• 2x USB 3.2 Gen2 (USB 3.1 Gen2)
• 1x USB 3.2 Gen2x2 Type C
• 1x RJ-45
• 5x audio jack
• 1x BIOS Flashback button

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
