AXAGON external memory card reader microSD SD CF CRE-S3C USB-C 3.2 Gen 1 UHS-II aluminum body

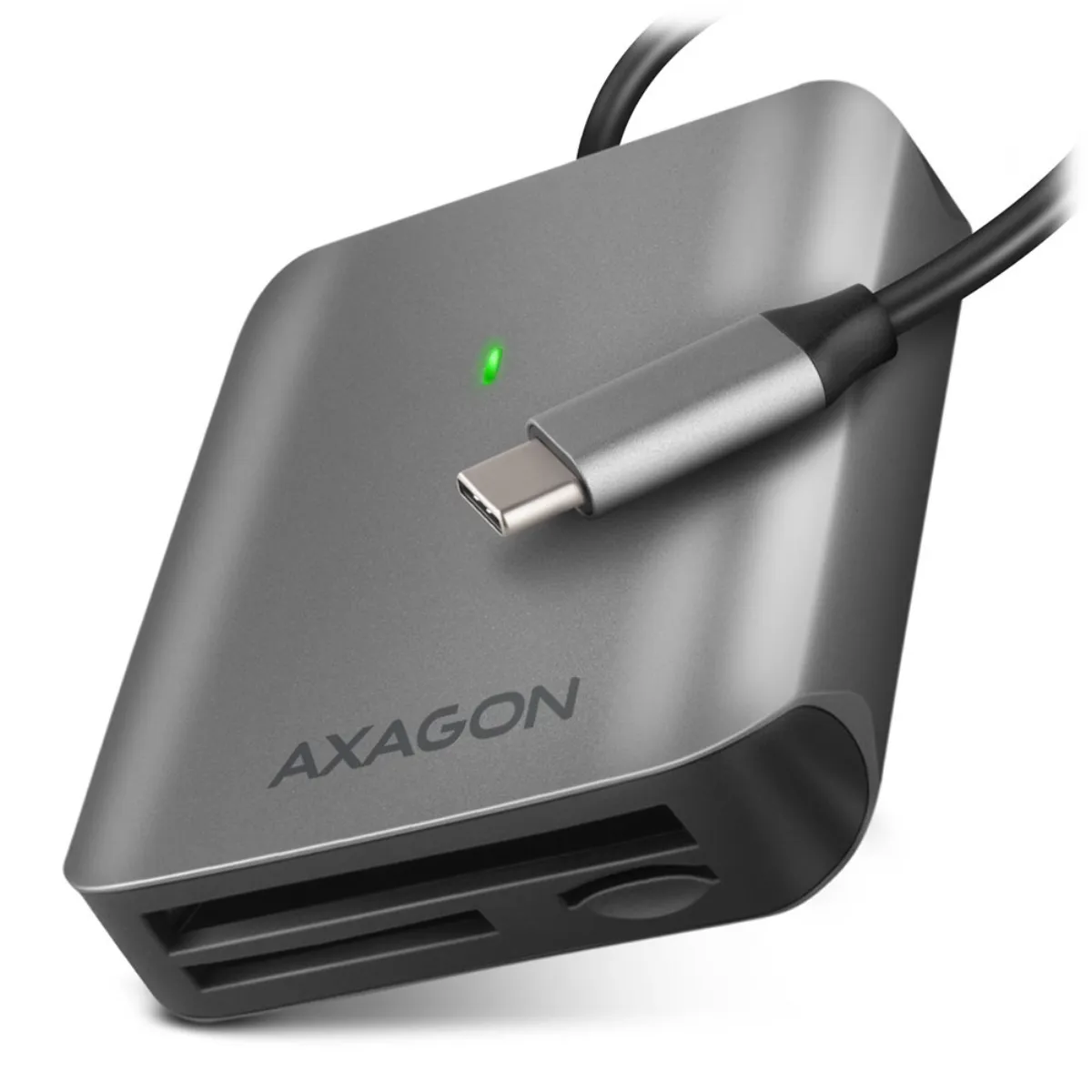

AXAGON CRE-S3C

The compact reader in aluminum design is equipped with three slots and supports almost all current memory cards. It goes without saying that it is possible to simultaneously work with cards in all slots and to copy directly between them. The connection is implemented via the USB 3.0 type C interface.

Interface: USB 3.0 Type C

Card support

SD, SDHC, SDXC, mini SD with adapter microSD, microSDHC, microSDXC, TransFlash MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, MMC Micro CompactFlash Type I

Dimensions: 64 x 60 x 15 mm

Weight: 53 g

The reader supports these card specifications

• SD 1.0/ 1.1 (SD - Secure Digital, up to 2 GB
• SD 2.0 (SDHC - Secure Digital High Capacity, up to 32 GB)
• SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)
• SD 4.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)
• MMC and eMMC 3.x/ 4.0/ 4.1/ 4.2/ 4.3/ 4.4/ 4.5/ 5.0 (8-bit)
• CF 6.0 (UDMA 0 - UDMA 7, up to 128PB)
• Support SD 3.01 and SD Jukebox application (CPRM function)
• Support Ultra High Speed bus UHS-I (SDR12/ SDR25/ SDR50/ DDR50/ SDR104) speed up to 104 MB/s
• Support Ultra High Speed bus UHS-II (FD156/HD312) speed up to 156 MB/s Full Duplex, or 312 MB/s Half Duplex
• Support hardware ECC (Error Correction Code) function and CRC (Cyclic Redundancy Check) function
• 3 LUN - in file managers, the reader is indicated as three disk units
• Support for file formats FAT 12/ 16/ 32, NTFS, exFAT (FAT 64)
