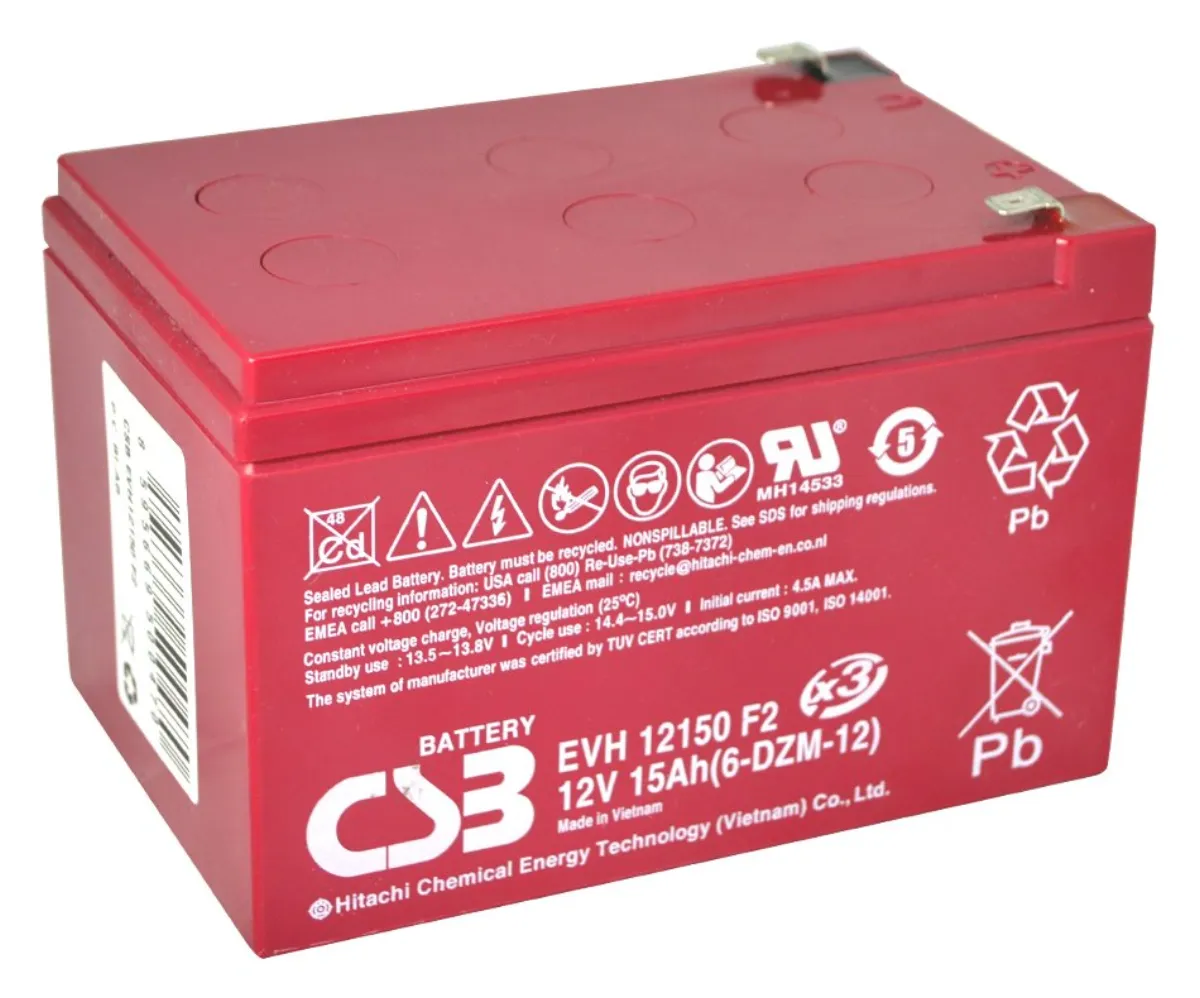

CSB Pb backup battery VRLA AGM 12V 15Ah 6-DZM-12 (EVH12150)

CSB EVH12150 (6-DZM-12)

Backup lead battery (12 V, capacity 15 Ah) in VRLA (AGM) design.

It is a construction in which internal pressure is regulated using valves (VRLA - Valve Regulated Lead Acid = valve-controlled lead-acid accumulator).

• AGM = the electrolyte is bound in a glass fleece
• High quality standard of used materials and processing
• Higher maximum discharge currents
• Absolutely maintenance-free (in terms of water refilling)
• Longer life than a conventional flooded battery
• Cyclic resistance (resistance to repeated charging and discharging)
• Deep Discharge Resistance (Resists deep discharge better)
• During cyclic operation, charging voltage 14.4 to 15.0 V at a temperature of +25 °C
• When operating the backup source, the charging voltage is 13.5 to 13.8 V at a temperature of +25 °C
• Vibration-proof
• Indestructible block (leak-proof) - the battery can work permanently at an angle of inclination of up to 90°
• It is not a dangerous product of the FAA and IATA category

AGM (Absorbed Glass Mat) technology

Although the battery contains an electrolyte in a liquid state, it is "stuck" in the glass laminate microfibers, or in the so-called glass wool, and is thus firmly bound in the bowels of the battery cells (its leakage is practically precluded) .

AGM traction batteries of CSB series EVX and EVH. These are sealed lead accumulators in the VRLA design. It is a design in which internal pressure is regulated using valves (VRLA - valve regulated lead acid = valve-controlled lead-acid accumulators). AGM (absorbed glass mat) technology, the battery does not contain electrolyte in a liquid state, the electrolyte is absorbed in the glass mat and is thus firmly bound in the interior of the battery cells, preventing its leakage. The extra strong grid of cells ensures high cyclic endurance of the battery. EVX and EVH series CSB batteries can also be used for "stand by" applications, where the batteries are permanently powered and serve as a backup source in the event of a power outage. Especially where outages are frequent and batteries run deep.

Lifetime: approximately 700 cycles / 50% D.o.D

CSB AGM batteries EVX and EVH series, optimal lifetime is given in cycles at a temperature of +20 °C, number of discharge cycles with regular discharge to 50% D.o.D. (Depth of Discharge = depth of discharge, 50% of the energy is taken from the battery) is roughly 700 cycles.

These traction batteries are mainly intended for the following applications:

• Powering ELECTRIC MOTORS (golf carts, electric bikes, electric scooters and more)
• CARS (caravans, trailers, external power sources)
• SHIPS, BOATS, SAILBOATS, (for electric motor, powering other devices on board)
• SOLAR EQUIPMENT (cyclic charging and discharging - solar energy accumulated in the battery)
• MOBILE TRAFFIC CONTROL SYSTEMS, TRAFFIC LIGHTS, WARNING SIGNS
• Toys, children's scooters - rides, etc.

CSB brand products are used by world-renowned computer and office technology producers such as: POWERWARE, APC, LIBERT, MGE, RIELLO, SICON SOCOMEC, IBM, ASCOM, etc. The quality of accumulators, used for example in backup sources, is ensured by several properties. One of the main ones is the requirement for the same physical properties of individual battery cells connected in series or series-parallel. If this condition is met, a long service life is guaranteed. CSB accumulators fulfill this condition, and this can be appreciated by millions of users all over the world.

Capacity: 15 Ah

Voltage: 12V

Battery technology: VRLA / AGM

Type of contact: Faston 6.3 mm (F2)

Max. charging current: 4.5 A

Max. discharge current: 180 A (5 seconds)

Status: charged

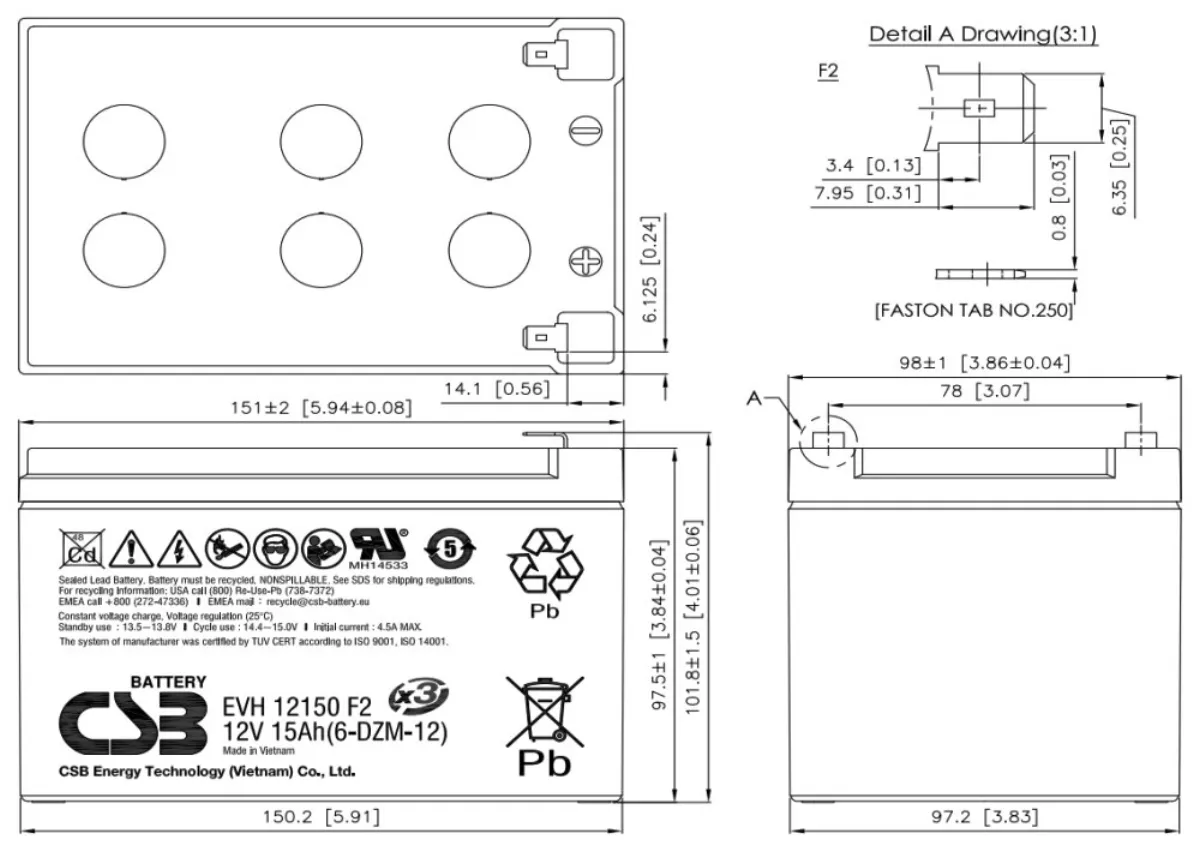

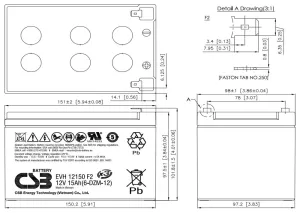

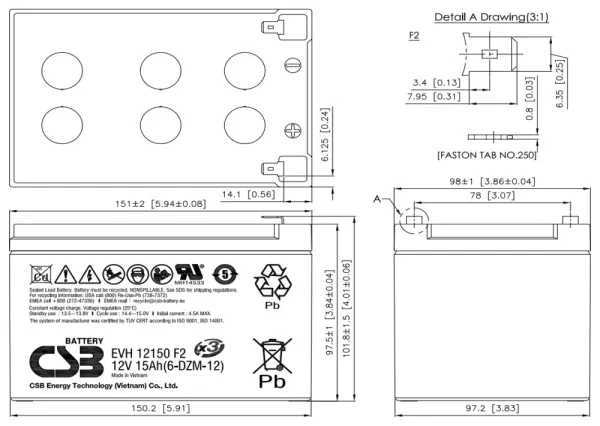

Dimensions: 151 x 102 x 98 mm

Weight: 4.6 kg
