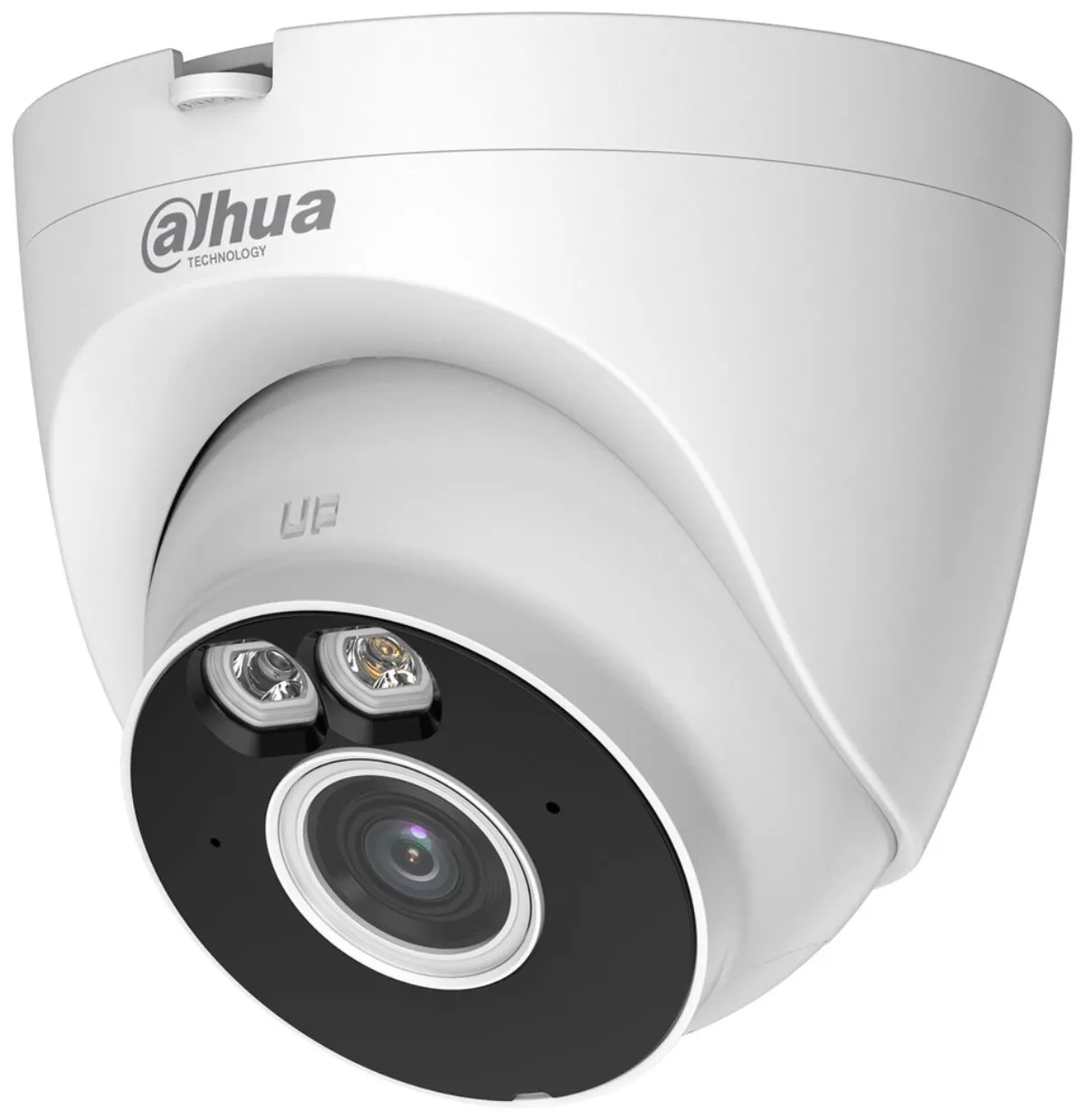

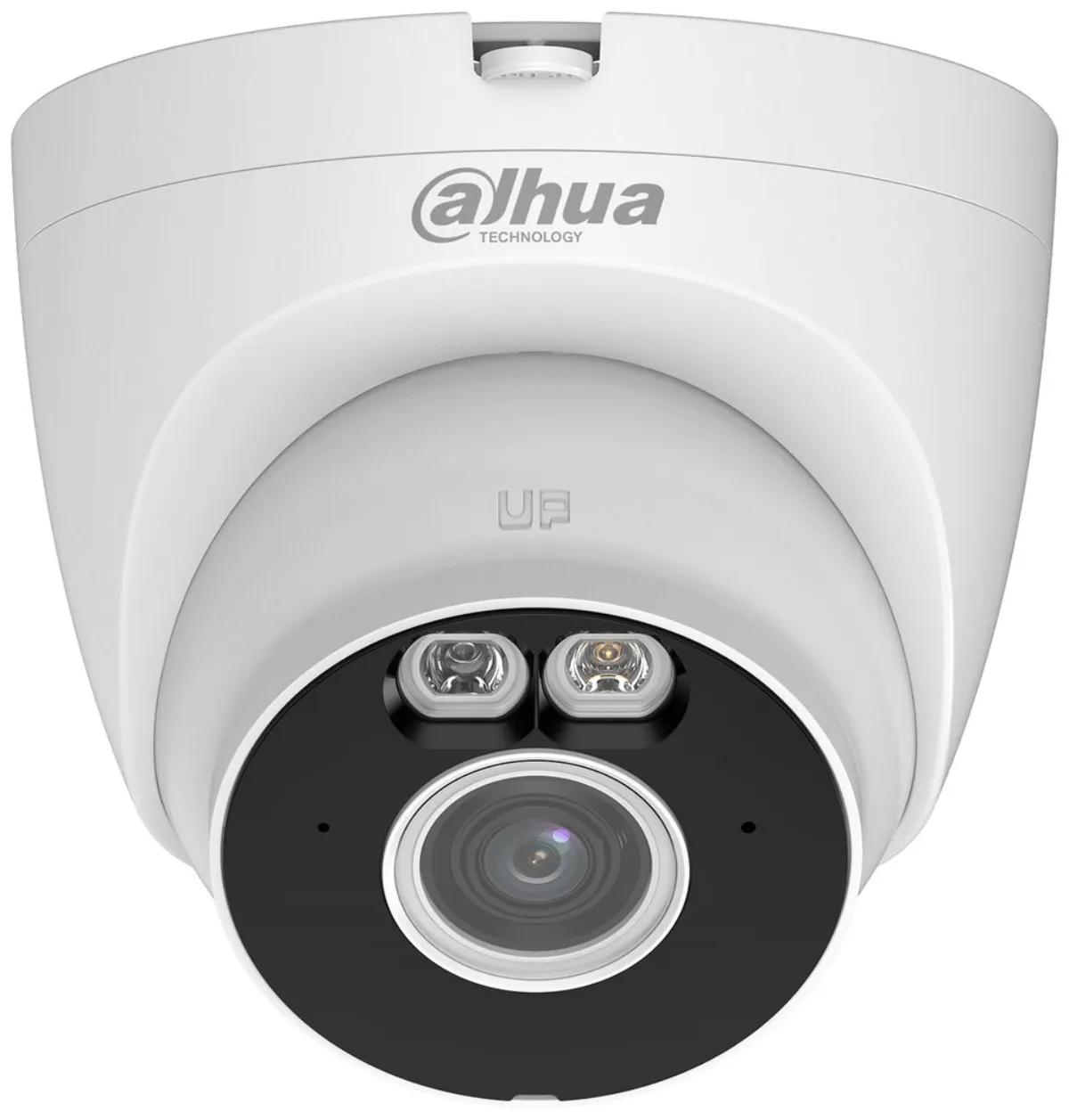

DAHUA IP camera T4A-PV Turret Wi-Fi 4Mpix lens 28mm H.265 protection IP67 IR up to 30m ONVIF

Dahua IPC-T4AP-PV-0280B

Outdoor 4 megapixel IP network camera with Wi-Fi, resolution 2560 × 1440 px, sensor CMOS 1/3", video compression H.265+, microphone and speaker. IR and LED illumination up to 30 m, lens f = 2.8 mm, angle of view 98° horizontally, ICR, BLC, HLC, DWDR, 1× LAN 10/100 Mbps, dual streaming, RTSP , ONVIF (profile S/G), slot for microSD card (max 256 GB), waterproof IP67, power supply DC 12 V.

• The camera initializes in the same way as other Dahua cameras without Wi-Fi. Therefore, first connect the camera to the LAN with a cable and perform the initial initialization via a web browser at the address 192.168.1.108.

Properties

• H.265+ and H.264+ compression
• Multiple access from a remote computer on a LAN or the Internet
• Motion detection can automatically send alert emails with captured images
• Hardware monitoring and video recording
• Dual stream - two data streams with different bandwidth sizes
• Slot for installing a microSD card up to 256 GB
• Active deterrence

Display

Sensor resolution: 4 Mpx

Sensor chip: 1/3" CMOS

Maximum resolution: 2560 × 1440 px

Supported resolutions

• 4 Mpx (2560 × 1440)
• 3 Mpx (2304 × 1296)
• 1080p (1920 × 1080)
• 1.3 Mpx (1280 × 960)
• 720p (1280×720)

Frame rate: 25/30 fps

Minimal lighting

• 0.005 lux (F1.6
• colorfully
• 30 IRE)
• 0.0005 lux (F1.6
• black and white 30 IRE)
• 0 lux with IR illumination

IR illuminator

• yes
• up to 30 m

Lens

• f = 2.8 mm
• solid
• angle of engagement 98° horizontally
• 55° vertically
• 115° diagonally

Shutter speed: 1/3 - 1/100,000 s

ICR filter: yes

Light compensation

• BLC
• HLC

Image dynamics: DWDR

Noise reduction: 3D NR

Automatic gain and brightness control: yes

Auto White Balance: yes

Image Flicker Suppression: yes

Interfaces and protocols

Interface

• 1x Fast Ethernet
• 10/100 Base-T
• RJ-45

Wi-Fi

• yes
• IEEE 802.1b/g/n (2.4GHz)

Number of users: up to 20 simultaneously connected clients

Video compression

• Smart H.265+
• Smart H.264+
• H.265
• H.264
• H.264H
• H.264B

ONVIF support

• yes
• S/G profile + CGI support

Logs

• IPv4
• HTTP
• TCP
• UDP
• ARP
• RTP
• RTSP
• RTCP
• DHCP
• DNS
• NTP
• Multicast
• RTMP
• P2P

Streaming: Dual stream

Memory card slot: microSD (max. 256 GB)

I/O interface: no

Audio

• yes
• two-way communication (microphone + speaker)

Mechanical properties and environment

Power supply

• DC 12V
• power consumption up to 7.1 W (translucent light + H.265)
• the power adapter is included in the package

Cover

• waterproof
• degree of protection IP67

Operating temperature

• -40 to +60 °C
• humidity up to 95%

Dimensions: 109.9 x 109.9 x 102.2 mm

Weight: 353g
