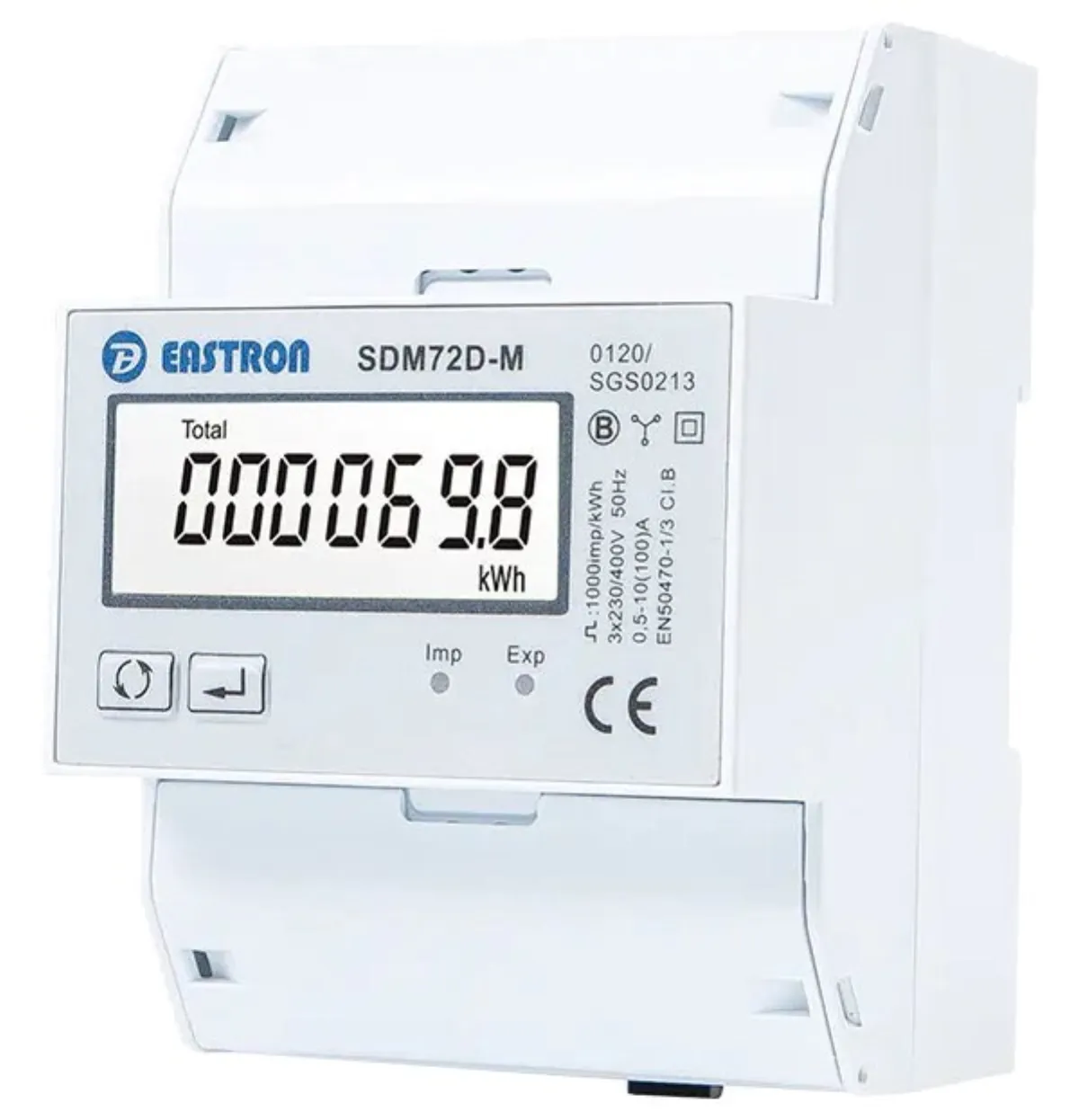

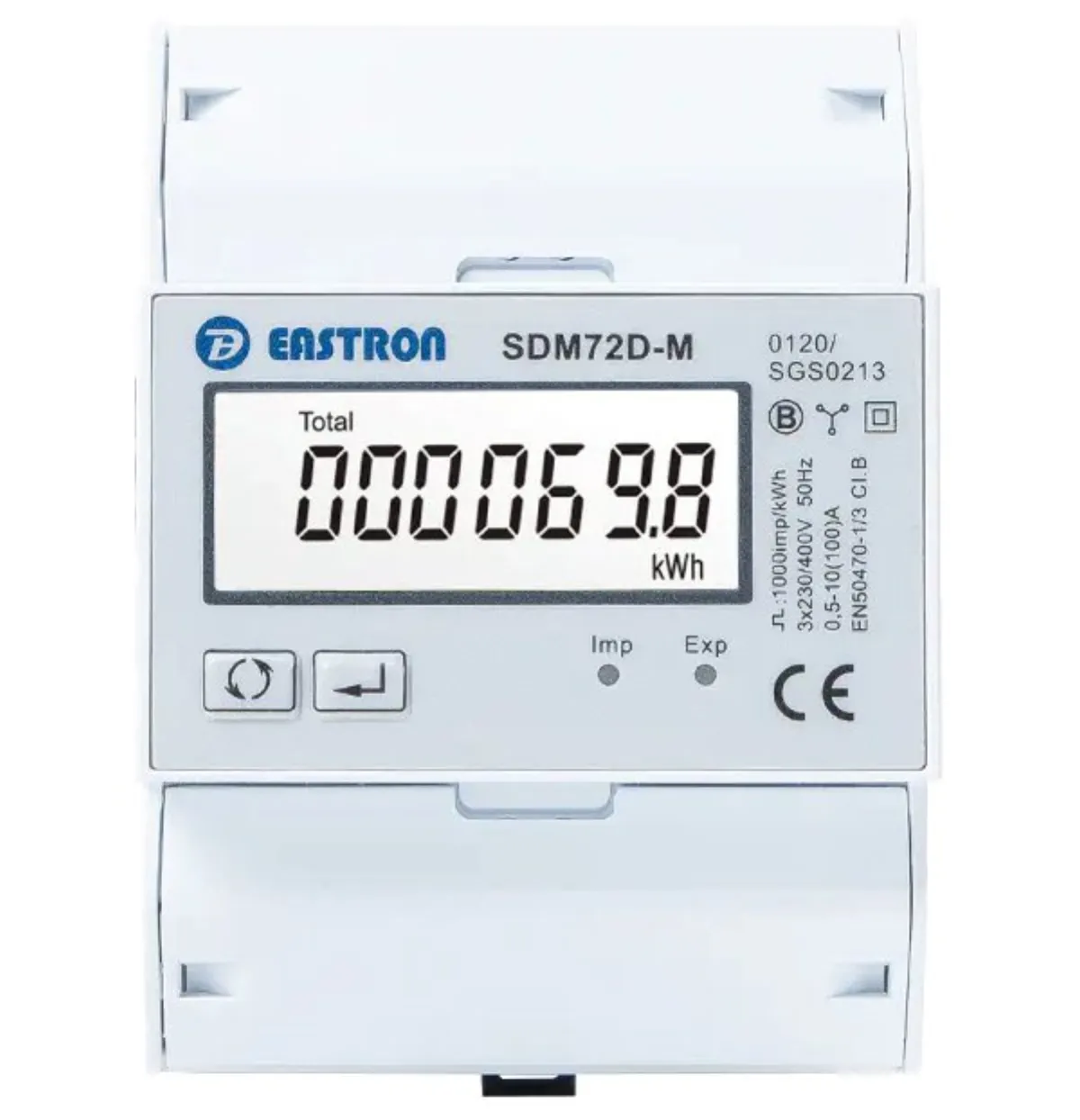

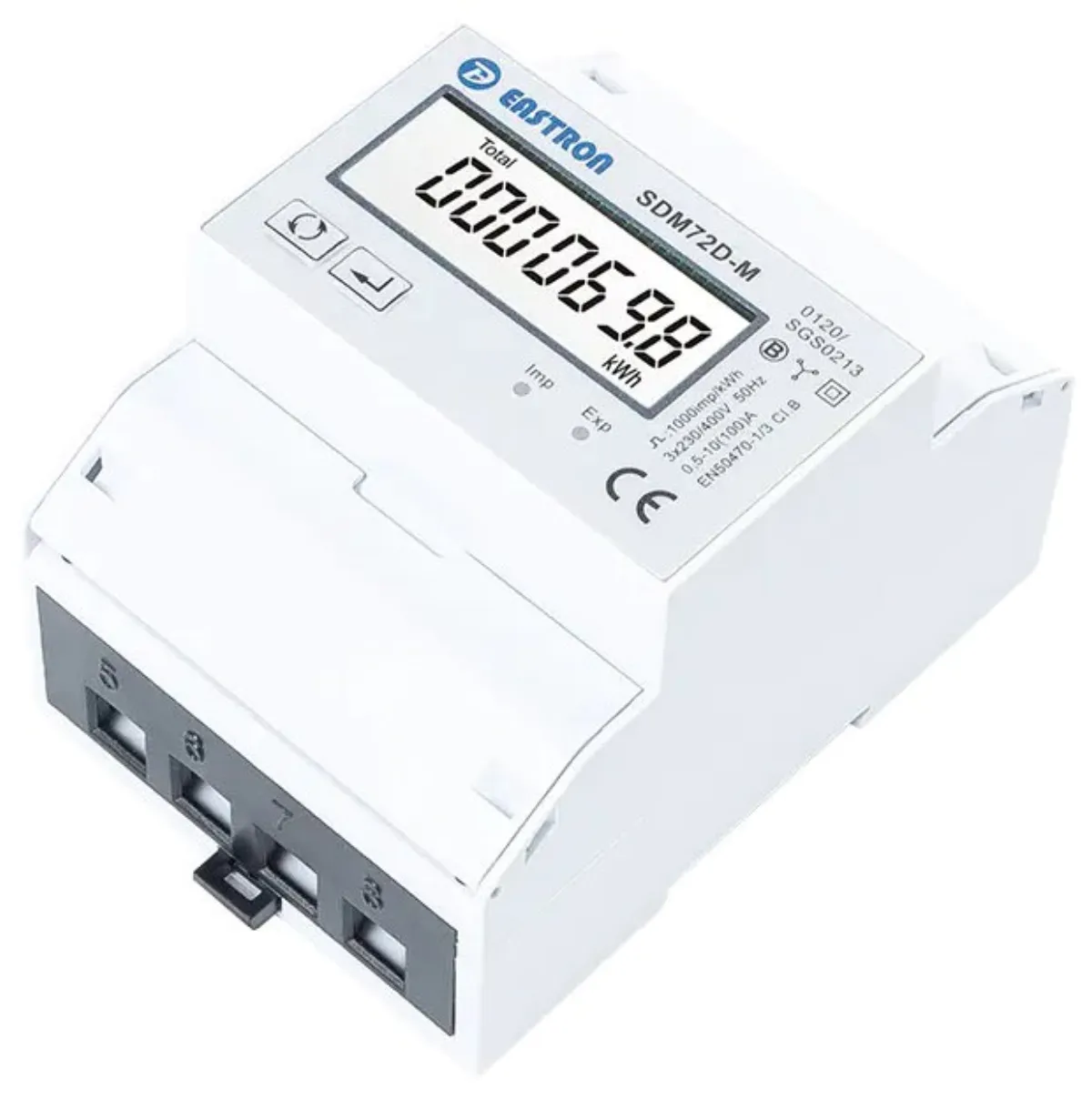

Eastron SDM72D-MID
Basic three-phase electricity meter with RS-485 RTU Modbus measures and displays only total active energy ( kWh) and power ( Watts). DIN rail mounting housing, IP51 protection and direct connection up to 100 A.
The electricity meter meets the strict European standards and requirements of the Measuring Instruments Directive 2014/32/EU (MID), which guarantees its accuracy and reliability.
Key Features
- Support for 2p3w and 3p4w installations
- Bidirectional measurement of electricity consumption (export/import)
- Communication via RS-485 (Modbus RTU)
- Compact design with DIN rail mounting
- Backlit LCD display for easy reading of values
- High measurement accuracy according to IEC 62053-21 and EN50470-1/3 standards
- Three-phase direct source 100 A
- MID B+D certificate
- Accuracy class 1 (active energy)
- Fixed pulse output
- Resettable energy counter
Rated voltage: 3× 230/400 V AC
Working voltage range: 80-120 % of rated voltage (Un)
Max. current (Imax): 100 A
Interface: RS-485 (Modbus RTU)
Mounting: DIN rail
Dimensions: 100 × 72 × 66 mm
Protection: IP51
| Name | Value | |
|---|---|---|
| Maximum operating temperature [°C] | 55 | |
| Minimum operating temperature [°C] | -25 | |
| Width [mm] | 72 | |
| Rated voltage [V] | 400 (AC) | |
| Depth [mm] | 66 | |
| Height [mm] | 100 | |
