EATON UPS 5E Gen2 5E700UD USB DIN 700VA 1 phase

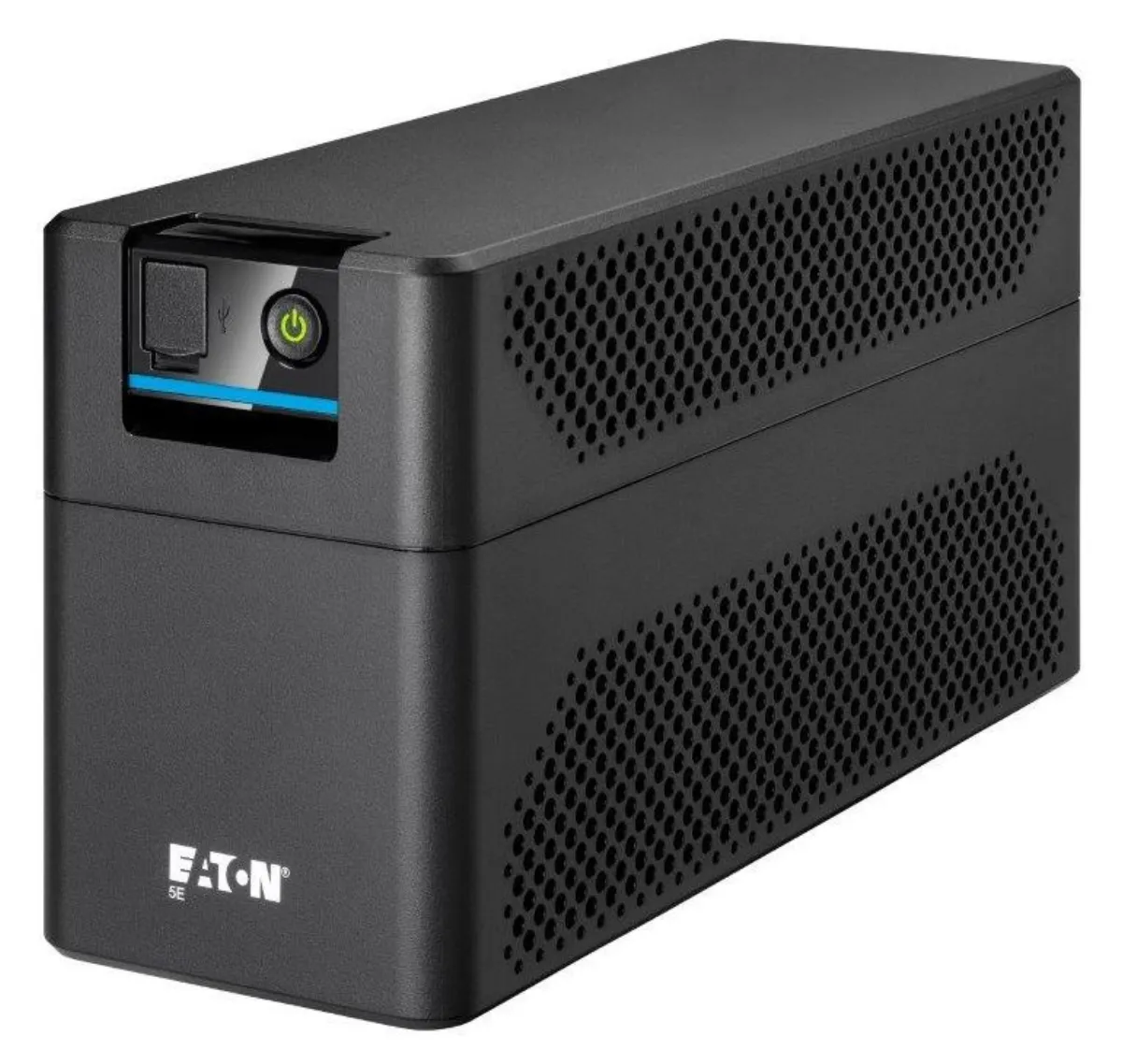

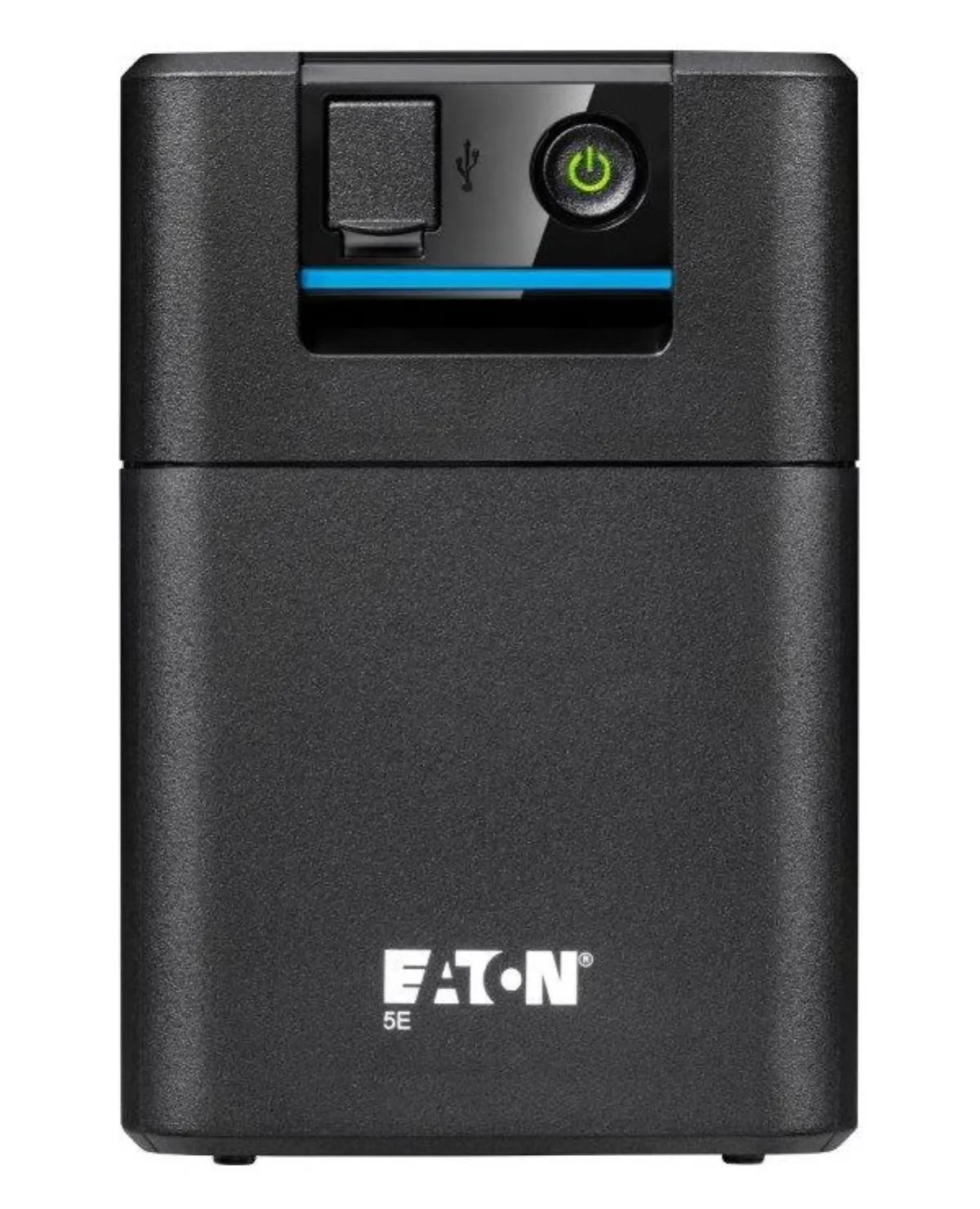

Eaton 5E Gen2 UPS - 5E700UD

The Eaton 5E Gen2 provides efficient and affordable power protection for critical applications in homes and professional environments

As power protection, the Eaton 5E Gen2 UPS is designed to protect applications and data from power loss. This system uses Double-boost Automatic Voltage Regulation (AVR) technology, which regulates network fluctuations (under and overvoltage) and saves battery power in the event of a power outage. The system is certified by an external agency (TUV) according to the latest international safety standards and its batteries are permanently recharged (even when switched off).

Power Protection & Easy Integration

• A wide range of products covers the power requirements of many IT devices.
• The automatic restart function allows the UPS to automatically restart if the mains power is restored after the battery is completely discharged.
• Dual-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (undervoltage and overvoltage) to conserve battery power in the event of a power outage.
• Fanless design ensures quiet operation in residential buildings (models up to 1200 VA).
• 5E Gen2 batteries are permanently charged (even when switched off).
• The UPS can be started even without connecting to the mains (cold start).
• Automatic battery test and battery replacement alarm.
• Easy management of the UPS from a computer (for models with a USB interface). Automatic integration with Windows, MacOS and Linux operating systems.
• Analyze energy usage and manage UPS parameters with Eaton UPS Companion software.

Ideal protection for

• Computers, workstations and peripherals
• Internet routers (routers), NAS
• Televisions, game consoles and other devices more demanding on power
• Home security
• Sales points, ticket machines, etc.

Do you need advice on choosing the most suitable backup source? You can use the Eaton UPS Selector, which you can find HERE.

General

Configuration: Tower

Type number: 5E700UD

Topology: Line Interactive

Load: 700 VA / 360 W

Battery

• 1× 7 Ah
• duration up to 14 min (1× PC)
• duration up to 5 min (2× PC)

Communication ports: 1× USB

Dimensions: 288 x 148 x 100 mm

Weight: 4.3 kg

Input

Input connection: 1x cable with Euro plug

Nominal voltage: 230 V (220-240 V)

Frequency: 50/60 Hz (operating range 45 to 65 Hz

Output

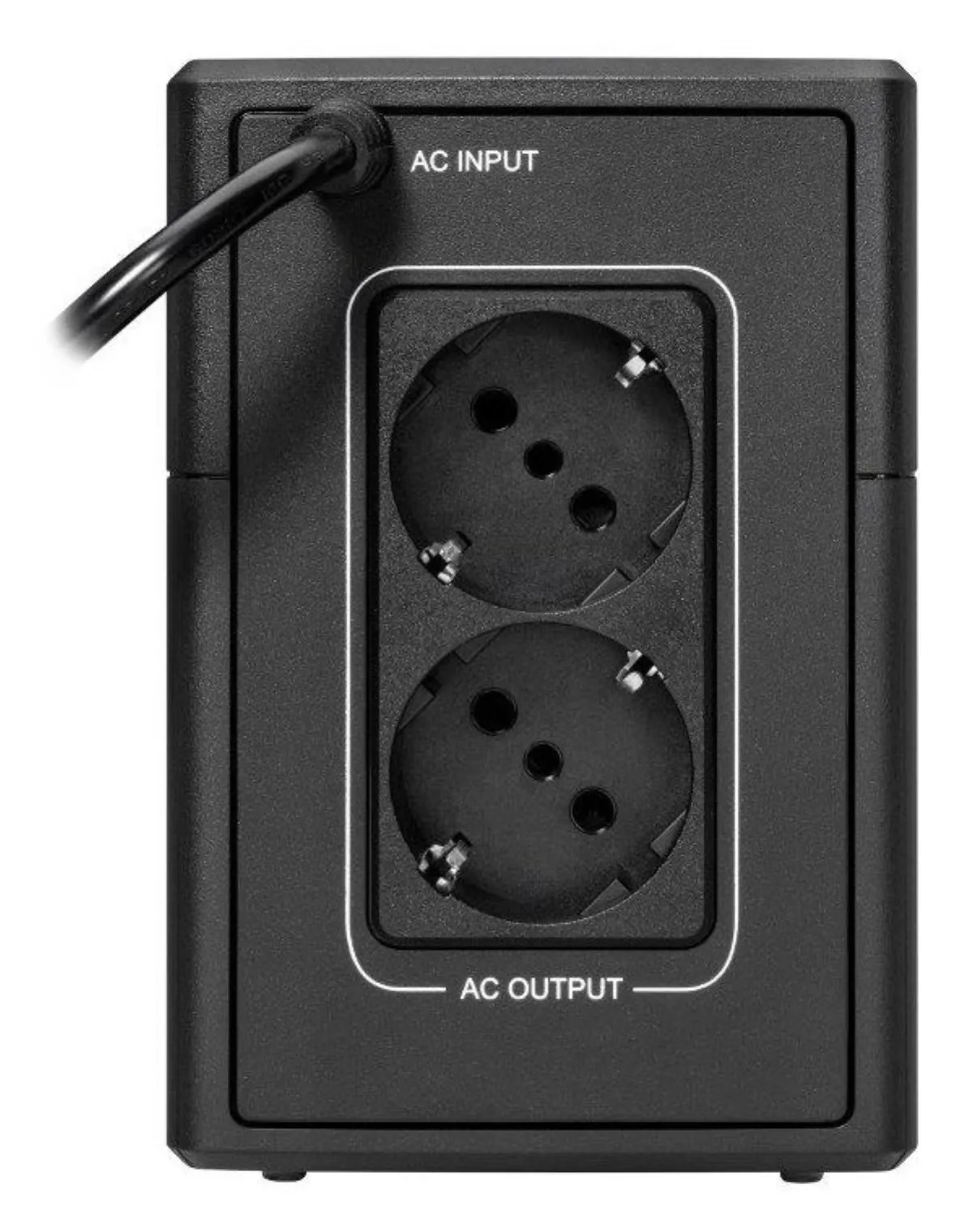

Output sockets: 2× DIN/IT socket (Schuko)

Voltage: 230V
