EATON UPS 9SX1500IR 1500VA 1 1 phase rack 2U

Eaton 9SX1500IR

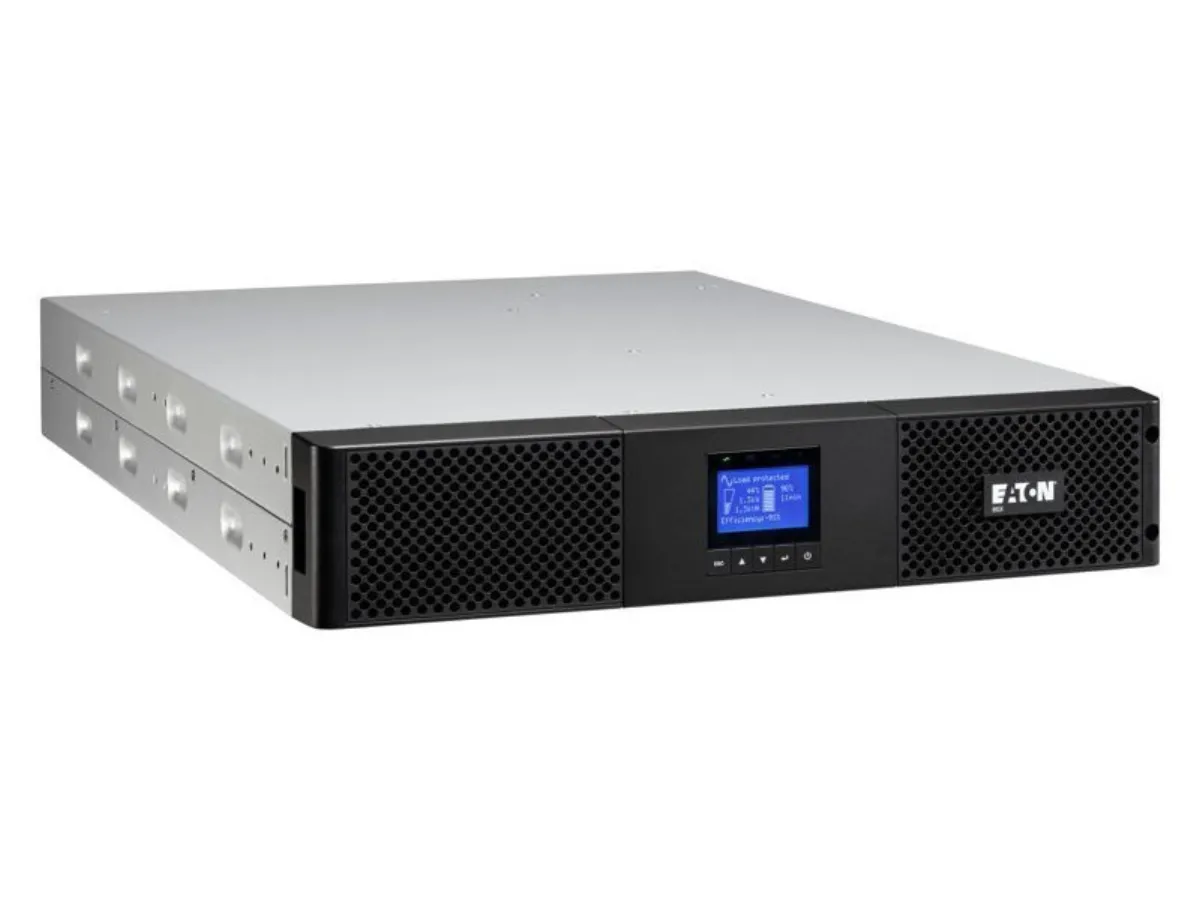

The Eaton 9SX high-performance online double-conversion UPS provides reliable protection and backup power for infrastructure, industry and healthcare, IT, data networks, data storage or telecommunications. It continuously monitors the power supply conditions, regulates the voltage and frequency of the electrical network, but also measures energy consumption. The static bypass enables operation to be maintained even in the event of an internal fault. Batteries are hot-swappable without the need to shut down critical systems, and up to 4 external batteries can also be added while running. Graphic LCD display provides clear information about UPS unit status and measurements on one screen. UPS 9SX offers serial interface, USB and relay contacts for connection plus a slot for an add-on card. The backup power supply offers a remote shutdown function. Placement is possible in a Rack, unit height is 2U.

General

Configuration: rac

Type number: 9SX1500IR

Load (VA/W): 1500 / 1350

Efficiency: up to 95% in online mode

User interface: multilingual LCD display

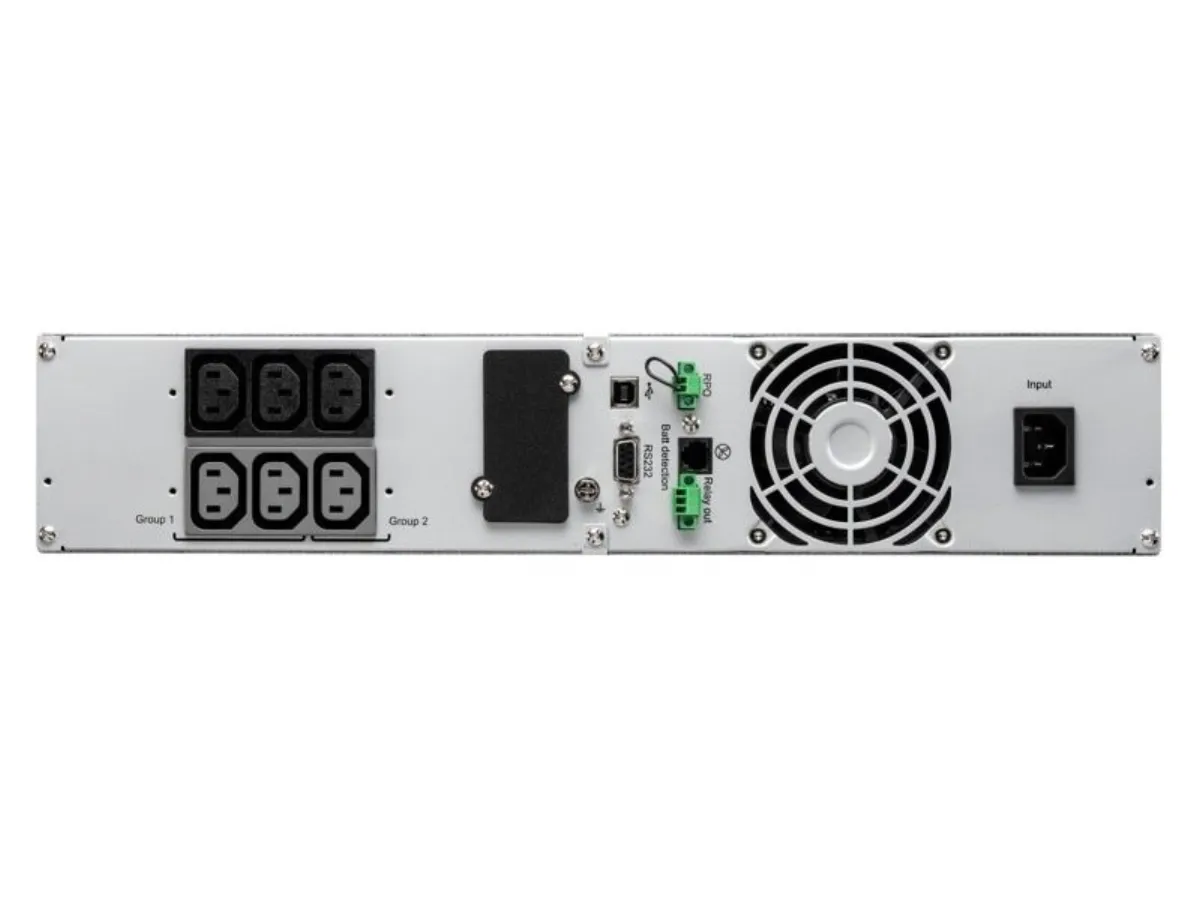

Communication ports

• 1 x USB port
• 1 x RS232 port (USB port and RS232 cannot be used at the same time)
• 1 x mini terminal block with terminals for remote start and shutdown
• 1 x mini terminal block for remote shutdown
• 1 x slot for an additional card

Dimensions: 438 x 438 x 86.5 mm

Weight: 18.4 kg

Entry

Input connection: 1 x IEC C14

Nominal voltage: 200/208/220/230/240 V

Frequency: 50/60 Hz

Frequency range: 40 - 70 H

Output

Output sockets: 6 x IEC C13

Effective factor: 0.9
