EATON UPS ELLIPSE ECO 650USB FR 650VA 1 phase USB
EATON | EL650USBFR | 3553340620713
On stock 5 pcs.
Price of goods is 124.22 €.
Weight of goods is 4.47 Kg.
Actual in cart 0 pcs.

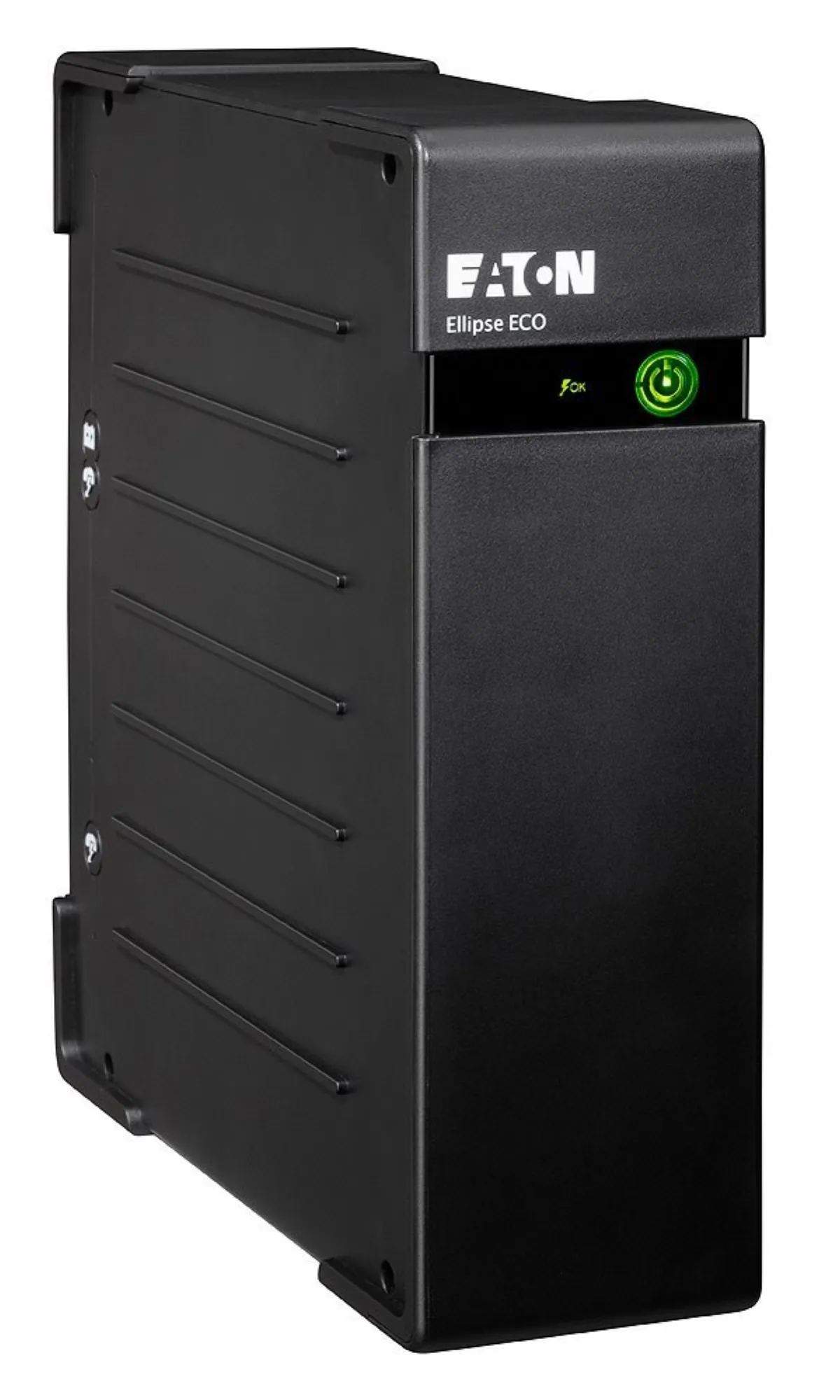

Eaton Ellipse ECO 650USB FR
The Eaton Ellipse ECO is a UPS combined with surge protection that offers protection for four devices in standard sockets, as well as Ethernet data networks or telephone lines. It is equipped with a USB port and power management software. The extra flat design allows for easy installation in any office environment. The UPS can be installed vertically under a desk or horizontally under a monitor. 19" rack or wall mounting is possible with optional mounting kits. The powerful battery provides up to 9 minutes of backup at 50% load. The EcoControl function, which automatically turns off connected devices when the main device is turned off, can reduce energy consumption by up to 20% compared to previous generations.
General
Configuration: rack / towe
Type number: EL650USBFR
Load (VA/W): 650 / 400
Battery description
- 12 V
- 7 Ah
User interface: LED + acoustic alarm
Communication ports: 1 x USB port
Dimensions: 263 x 235 x 81 mm
Weight: 3.6 kg
Entry
Input connection: 1 x IEC-320-C14
Nominal voltage: 230 V
Frequency: 50/60 Hz
Frequency range: 46 - 70 Hz
Rated current: 3
Output

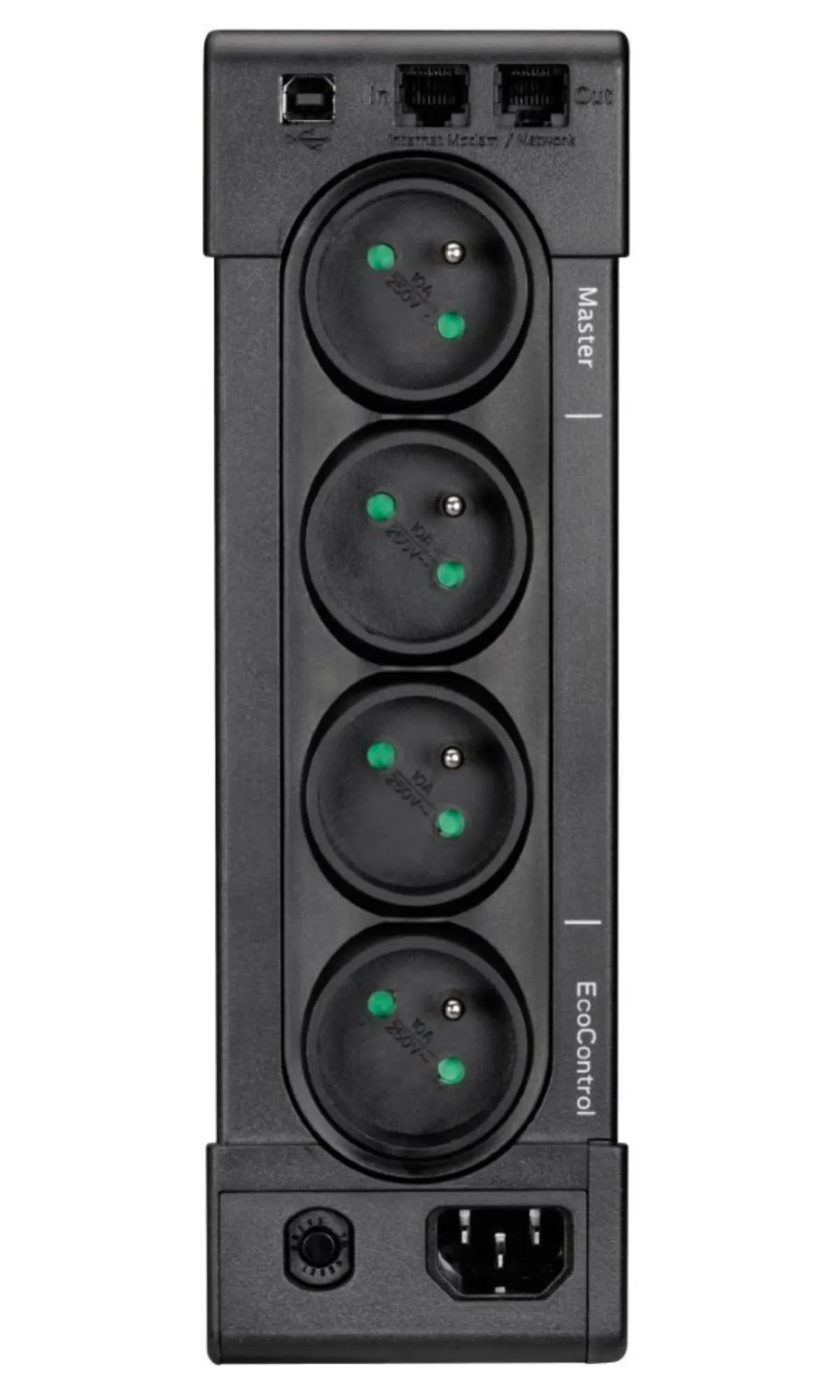

Output sockets: 4 x FR socket (of which 1 x surge only)
Battery output voltage tolerance: -20% to +15%
Effective factor: 0.6
| Name | Value | |
|---|---|---|
| Color | black | |
| Max power source | 400 | |
| Weight, brutto [kg] | 3,6 | |
| Dimension [mm] | 263 × 235 × 81 mm | |
| FR socket/plug count | 4 | |
| IEC-320-C14 connector count | 1 | |
| Design | on the wall | |
| Battery capacity [Wh] | 84 | |
| Battery/cell voltage [V] | 12 | |
| Battery capacity [Ah] | 7 | |
| Battery technology | Leaded | |
| Electric power [W] | 0-400 W | |
| Number of outputs | 4 | |
| Technology | Off-line | |
| Communication interface | USB | |
| Hook - detailed settings | 309003 | |
