EPEVER LS2024EU solar PWM controller 12 24V 20A input 30V 50V
EPsolar | LS2024EU | 8592457220671
Price of goods is 22.32 €.
Weight of goods is 0.214 Kg.
Actual in cart 0 pcs.

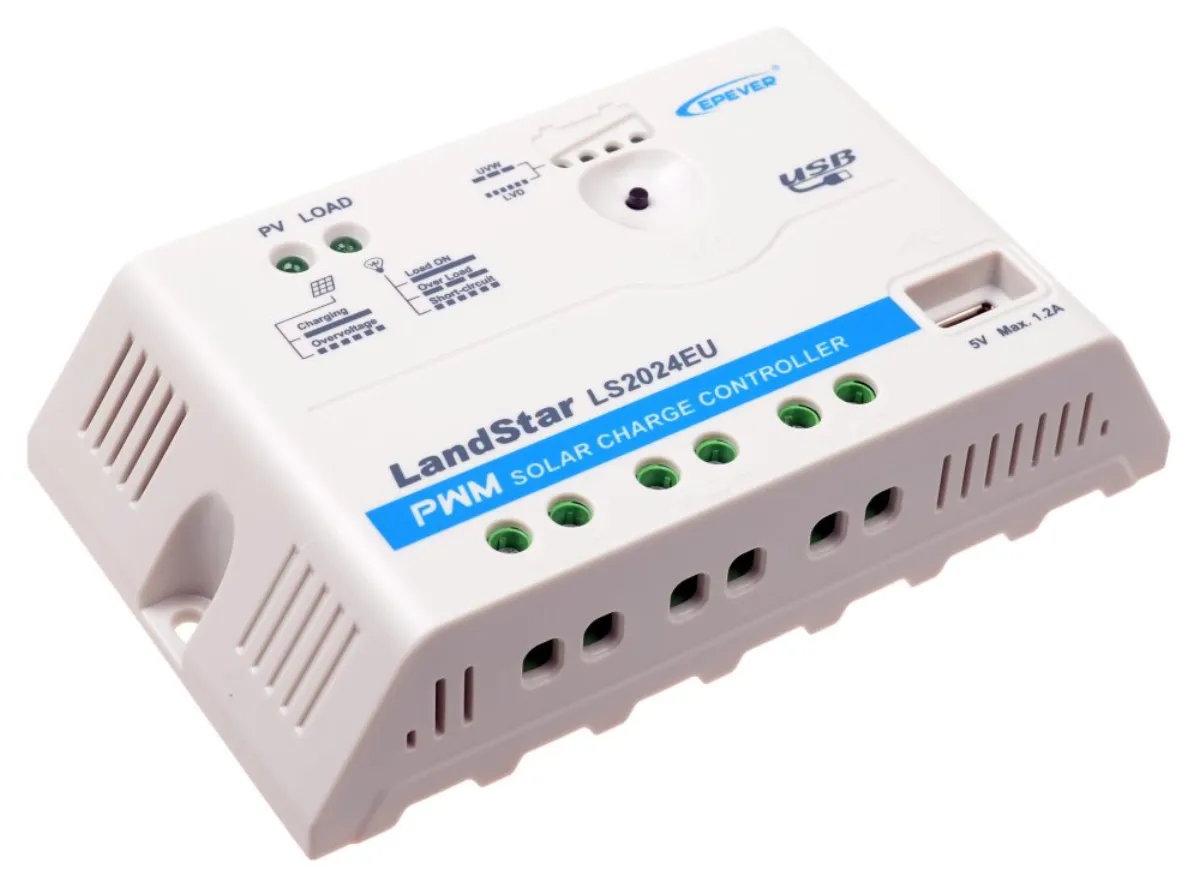

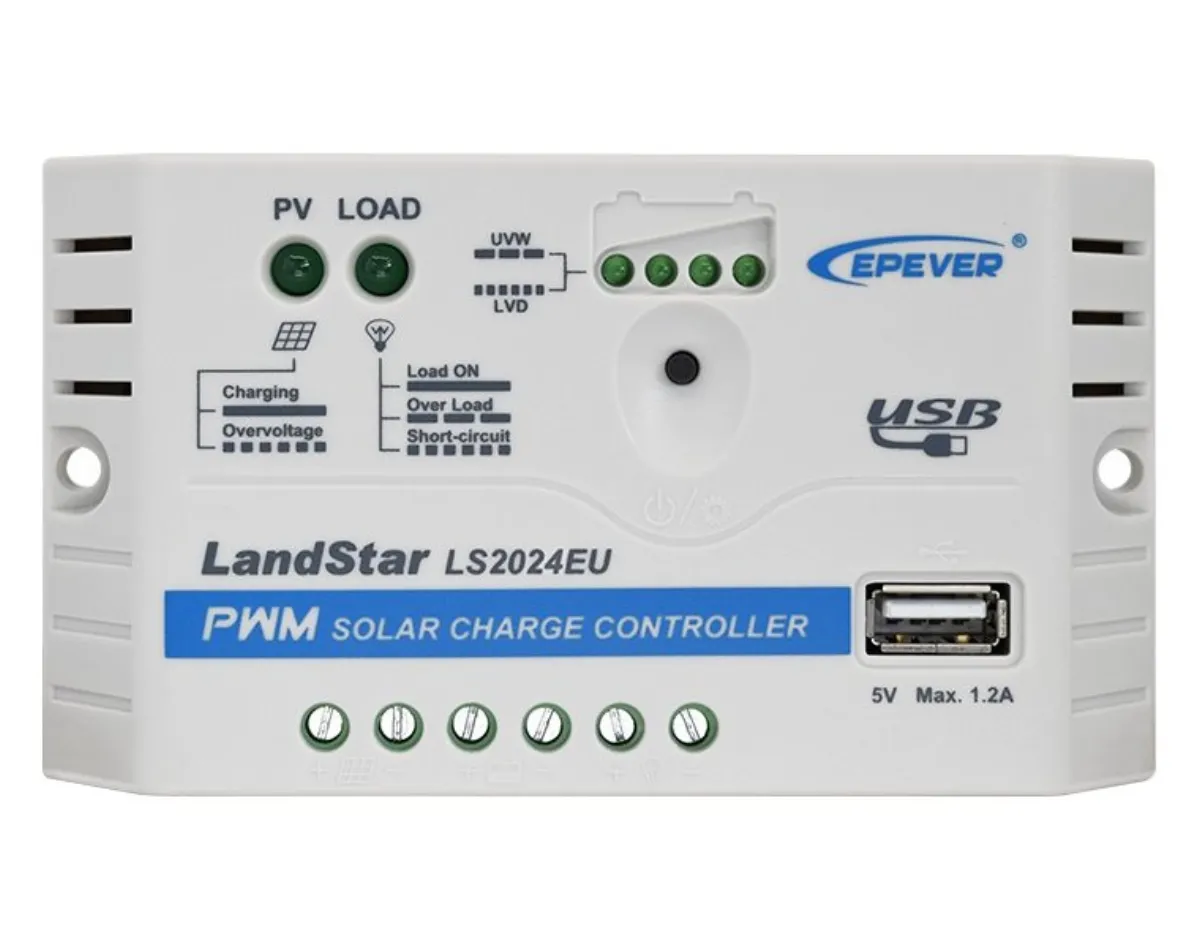

EPEVER LS2024EU
This 12/24 V PWM solar controller is designed for small island solar systems. This is an inexpensive way to back up power. The regulator is used to control the flow of energy from the solar panel or power supply to the batteries and the appliance. It works with both 12 V and 24 V with currents up to 20 A. The advantage is very simple and undemanding installation, reliable operation and USB power port (5 V, max. 1.2 A).
Properties
- Intelligent 3-phase PWM charging
- Automatic detection of 12 V or 24 V
- Protection against overvoltage and battery discharge
- Short circuit protection
- Overload protection
- Protection against high voltage
- Operating temperature: -35 to +55 °C
- Maximum size of connection cables: 6 mm2 (10 AWG)
- Protection: IP20
- Designed for indoor installation, wall mounting
- Easy installation
- USB power port (5 V, max. 1.2 A)
Note: The controller disconnects and connects the battery according to the characteristics of lead batteries.
Rated system voltage: DC 12/24 V (automatic detection
Battery Input Voltage Range: 8-32V
Battery Type: Sealed (Default) / Gel / Flooded
Rated charge/discharge current: 20 A
Max. open circuit voltage (Voc): 50 V
Dimensions: 148 x 85.6 x 34.8 mm
Weight: 0.18 kg
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,18 | |
| Dimension [mm] | 148 × 85,6 × 34,8 mm | |
| Maximum operating temperature [°C] | 55 | |
| Minimum operating temperature [°C] | -35 | |
| Width [mm] | 148 | |
| Rated voltage [V] | 12/24 | |
| Max. output current [A] | 20 | |
| LED indication | Yes | |
| Depth [mm] | 34,8 | |
| Technology | PWM | |
| Height [mm] | 85,6 | |
| Degree of coverage | IP20 | |
