EPEVER VS3024AU solar PWM controller 12 24 V 30 A USB input 50V
EPsolar | VS3024AU | 8592457178859
On stock 2 pcs.
Price of goods is 41.41 €.
Weight of goods is 0.66 Kg.
Actual in cart 0 pcs.

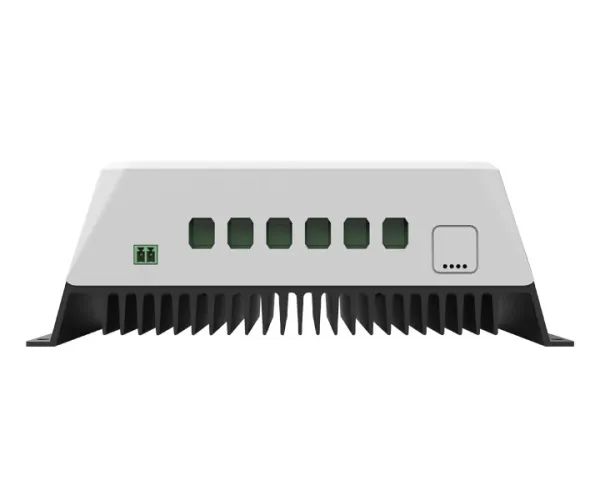

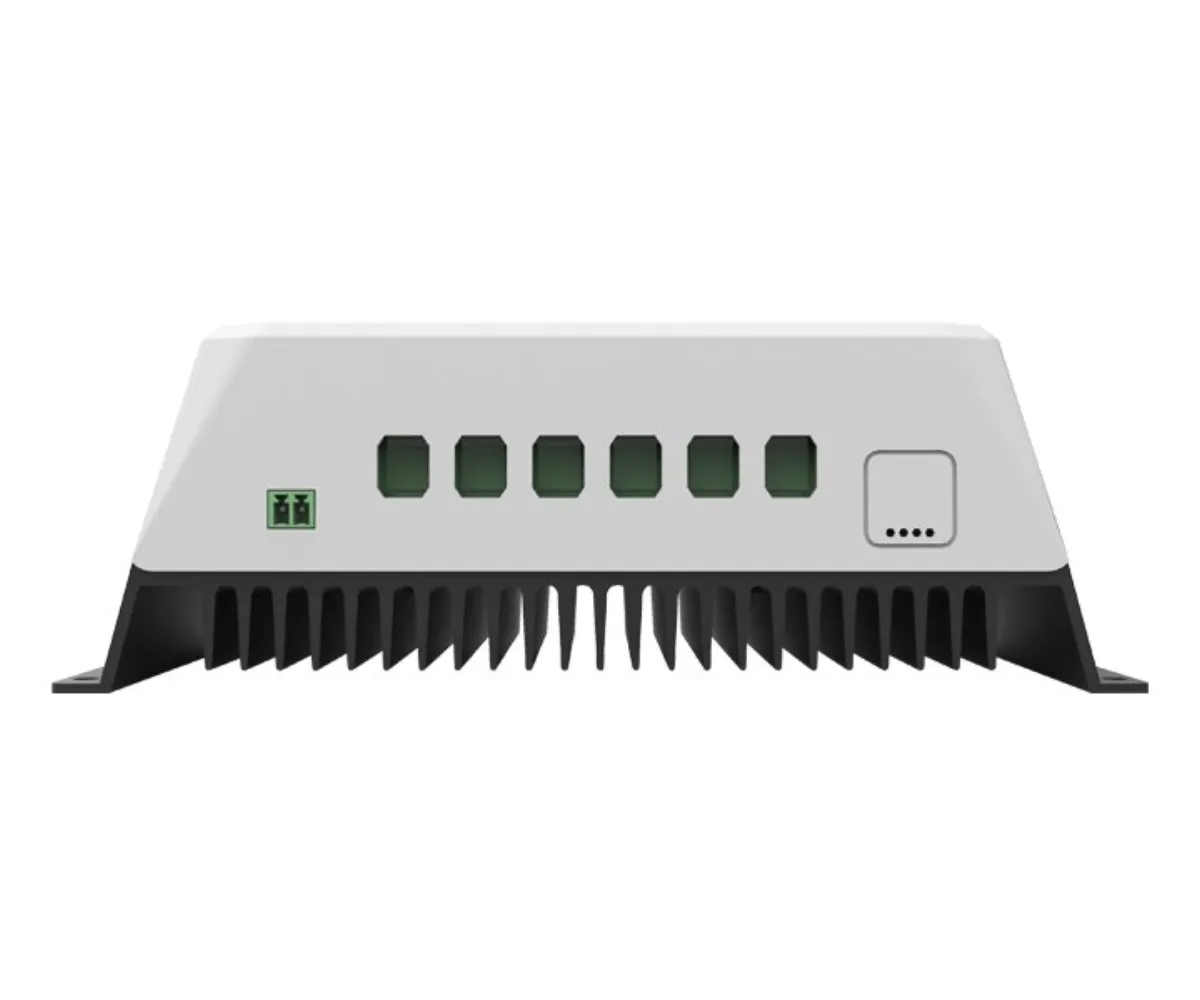

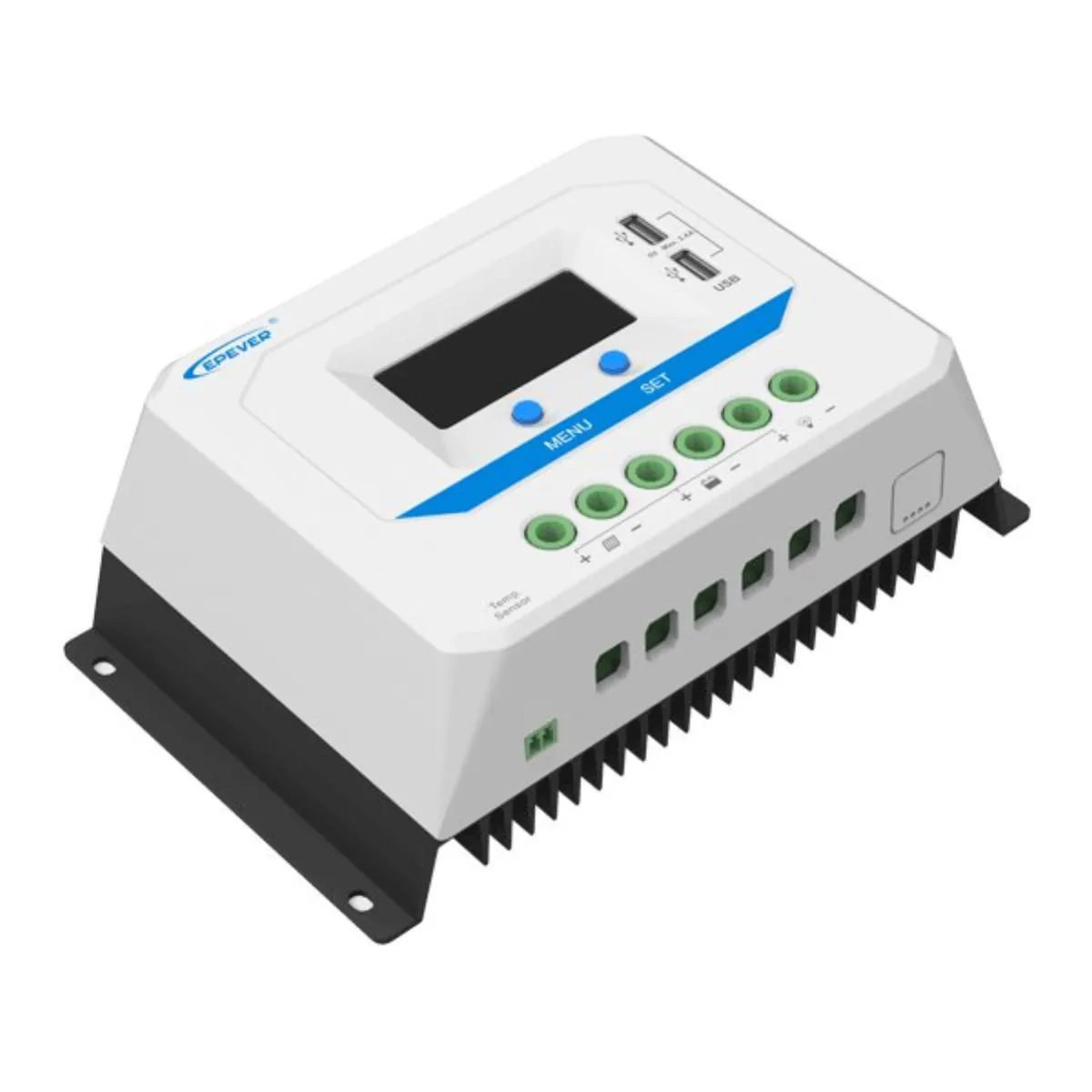

EPEVER VS3024AU
PWM solar controller. It is designed for small island solar systems with 12 V solar panels (max. 400 Wp) for charging a 12 V battery, or 24 V solar panels (max. 800 Wp) for charging a 24 V battery and maximum charging current up to 30 A. The advantage is very simple and undemanding installation and reliable operation.

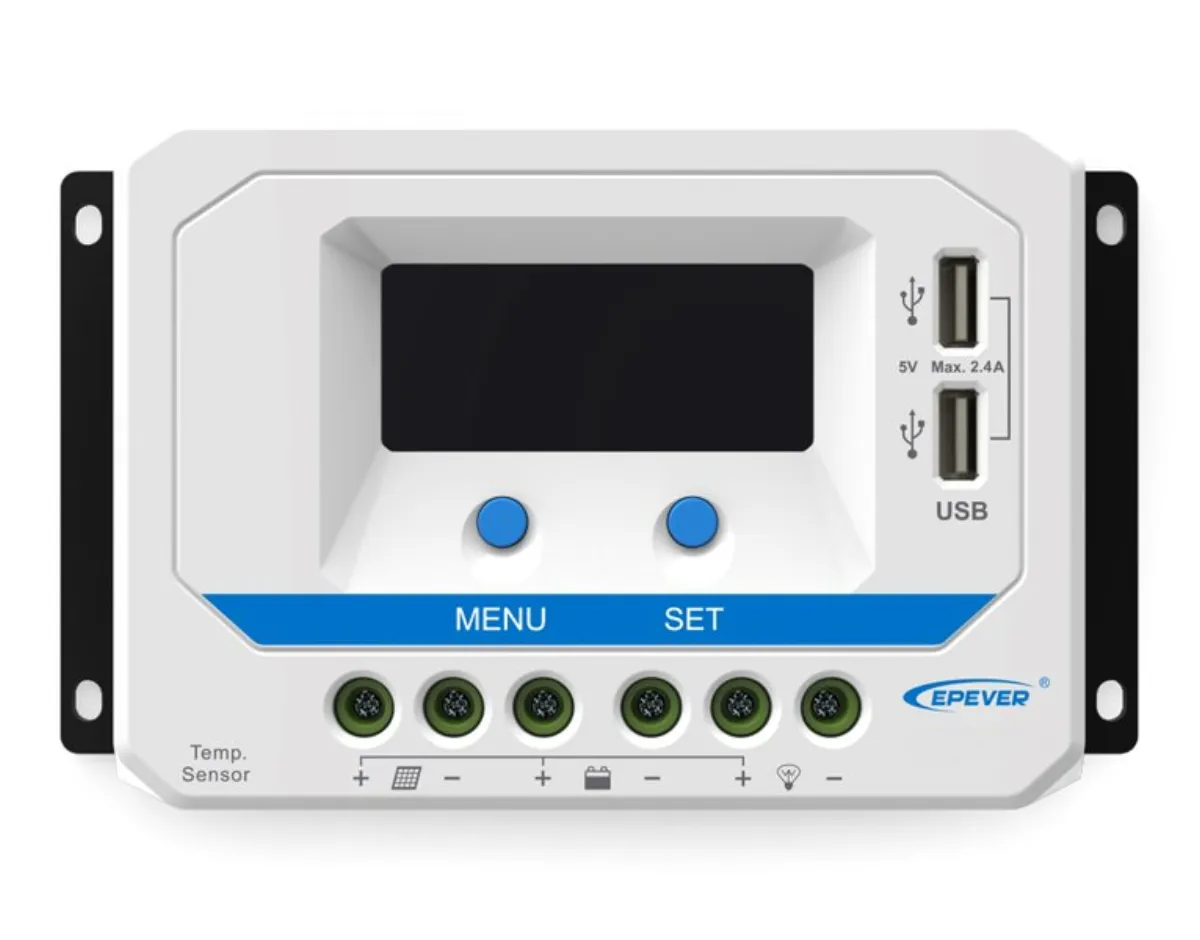

The built-in LCD clear display will provide you with information about the voltage and current of the solar panel, the battery voltage and charging current, as well as the current consumption of DC appliances. It also offers statistical information on the total amount of energy produced and consumed. Using the buttons below the display, you can set one of three types of lead-acid batteries (sealed, gel or open liquid).
Furthermore, this model newly offers two USB outputs for charging e.g. a mobile phone or other portable electronic devices. The maximum current of the USB output is 2.4 A. Note An external MT50 display or a PC interface cannot be connected to the controller. An external battery temperature sensor can be connected.
Properties
- Automatic detection of 12 V or 24 V
- Overvoltage protection
- Short circuit protection
- Protection against polarity reversal of solar panel and battery connections
- When the voltage is low, it disconnects the output of the load
- Optional external temperature sensor
- Operating temperature: -25 °C to +55 °C
- Maximum dimension of connecting cables: 16 mm2
- Designed for indoor installation, wall mounting
- Easy installation
- Protection: IP30
Rated system voltage: 12/24 V DC or aut
Battery Input Voltage Range: 9V to 32V
Battery Type: Sealed (Default) / Gel / Flooded
Rated charge/discharge current: 30 A
Max. PV open circuit voltage: 50 V
Dimensions: 181 x 100.9 x 59.8mm
Weight: 0.55 kg
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,55 | |
| Dimension [mm] | 181 × 100,9 × 59,8 mm | |
| Maximum input current [A] | 30 | |
| Maximum operating temperature [°C] | 55 | |
| Minimum operating temperature [°C] | -25 | |
| Width [mm] | 181 | |
| Rated voltage [V] | 12/24 | |
| Max. output current [A] | 30 | |
| Depth [mm] | 59,8 | |
| Technology | PWM | |
| Height [mm] | 100,9 | |
| Degree of coverage | IP30 | |
