EZVIZ Smart Door Lock DL01 Pro+DL01CP+A3 (Kit)

EZVIZ DL01 Pro Smart Door Lock + DL01CP Keypad and A3 Gate

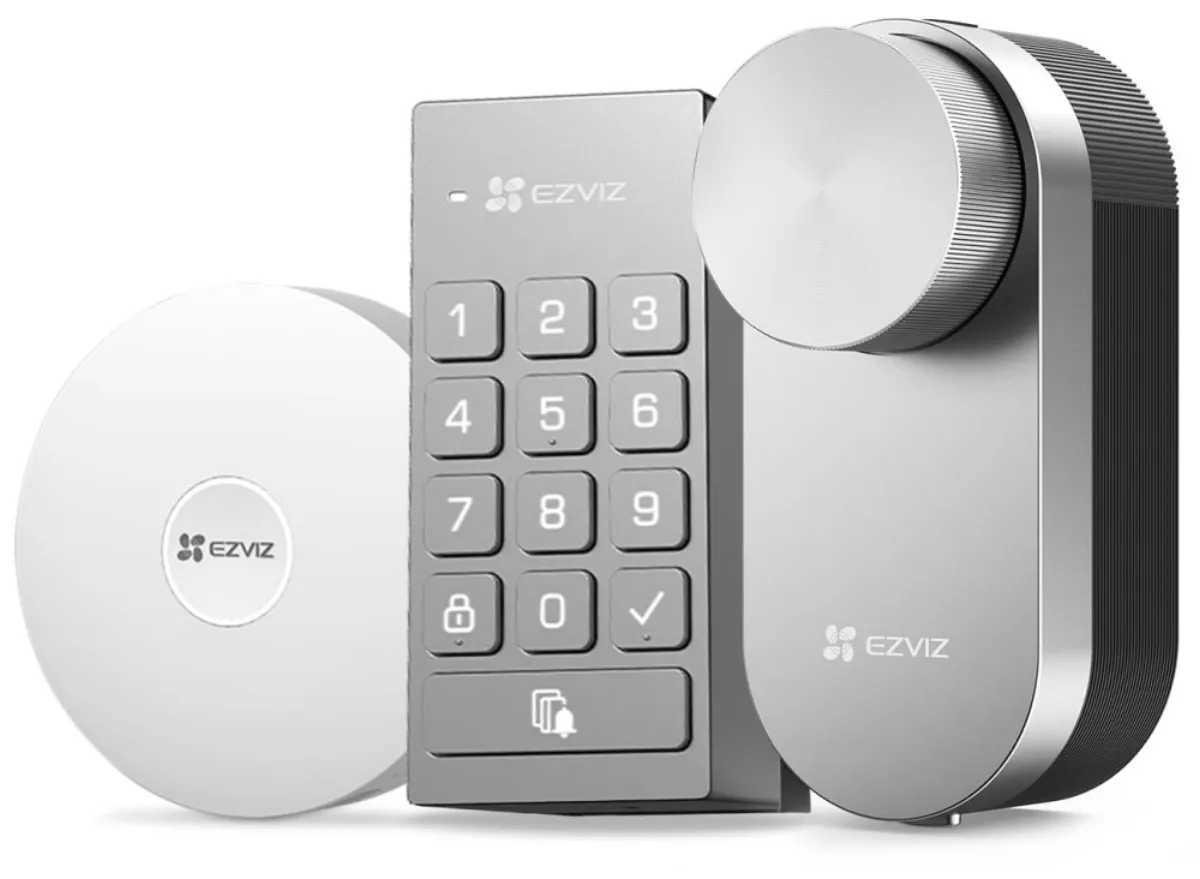

Set of smart lock, wireless keypad and smart gate.

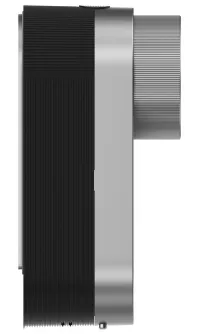

Smart door lock in a minimalist gray design perfectly secures the entrance and allows you to unlock or lock the door with just a click in the mobile application. Another option is to enter a security code or place a contactless card on the wireless keypad, which is included in the package. The keypad is waterproof according to IP65 and will trigger a loud alarm if you try to remove it. It is also equipped with a middle button with a bell function, after pressing which the smart lock inside will start ringing. The device is installed directly on the original lock with the key inserted, no intervention in the lock mechanism is required. After that, the key turns automatically, but if necessary, the lock can be unlocked manually using the button. From the outside, it appears as a completely ordinary lock and can also be unlocked with a key. The lock communicates with the smartphone and keyboard wirelessly using Bluetooth. It uses Zigbee technology to connect to the EZVIZ A3 smart gateway (included in the package) and subsequently integrate into a smart home. AA batteries power the keyboard and lock.

The combination with the supplied EZVIZ A3 smart gateway brings a wide range of options and functions, including remote access from anywhere, automatic locking, generating a temporary key for guests, user management or sending notifications in the event of unlocking. The gateway can be easily connected to the Internet both wired via RJ-45 connector and wirelessly via Wi-Fi.

The package includes a wireless keypad, a smart gate, 2x doorbell mounting plates, 2x keypad mounting plates, 6x AA batteries, a smart gate power adapter, a USB cable, a door sensor, 2x access cards, a screwdriver, a hex key, double-sided adhesive tape and 2x set of screws.

Note: Installation is only suitable for a lock with a cylinder with a through coupling.

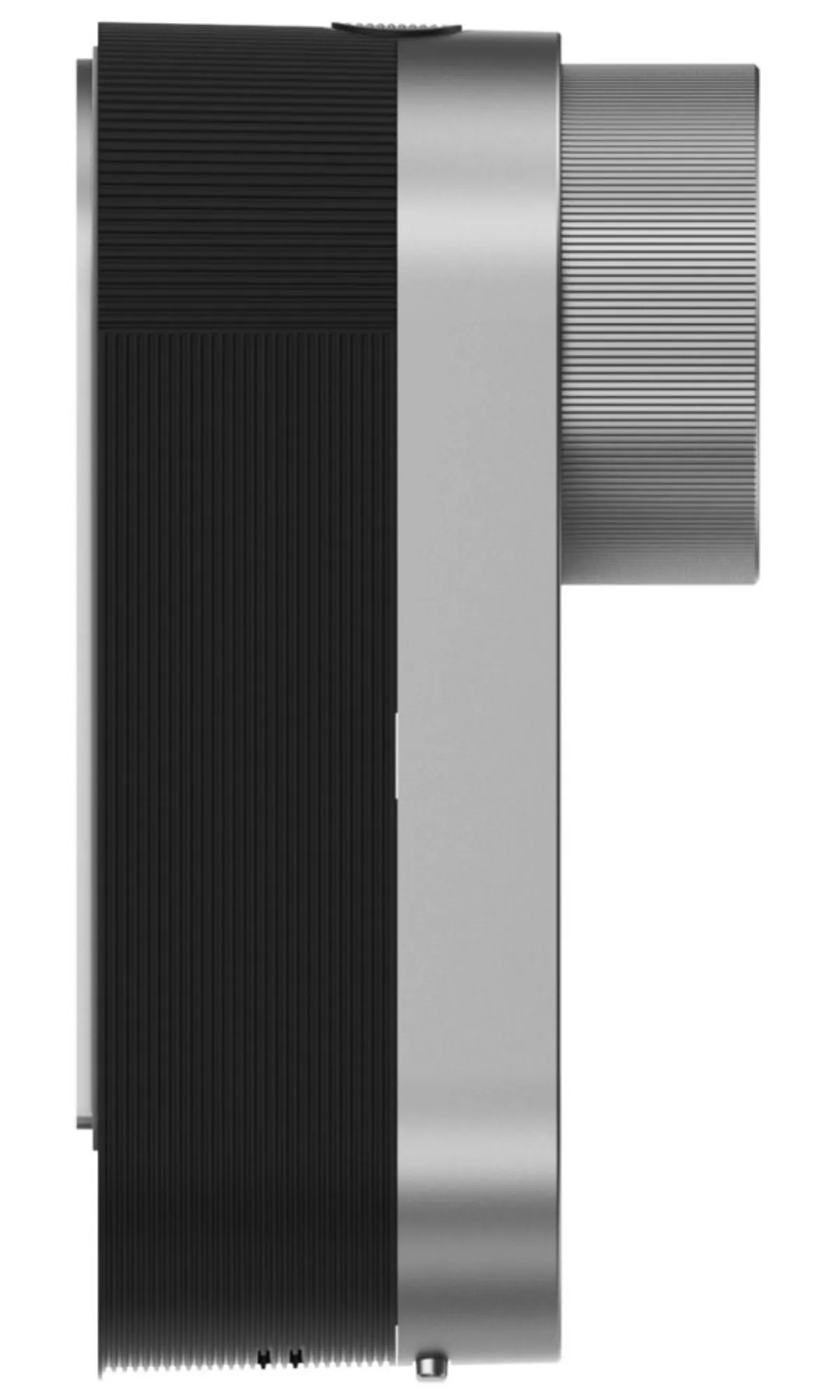

Door lock

Interface

• Bluetooth
• Zigbee 3.0

Power supply: 4× AA batteries

Dimensions: 127 × 63 × 57 mm

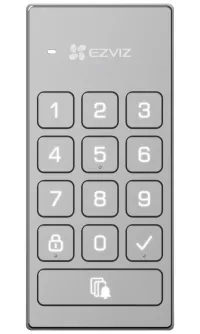

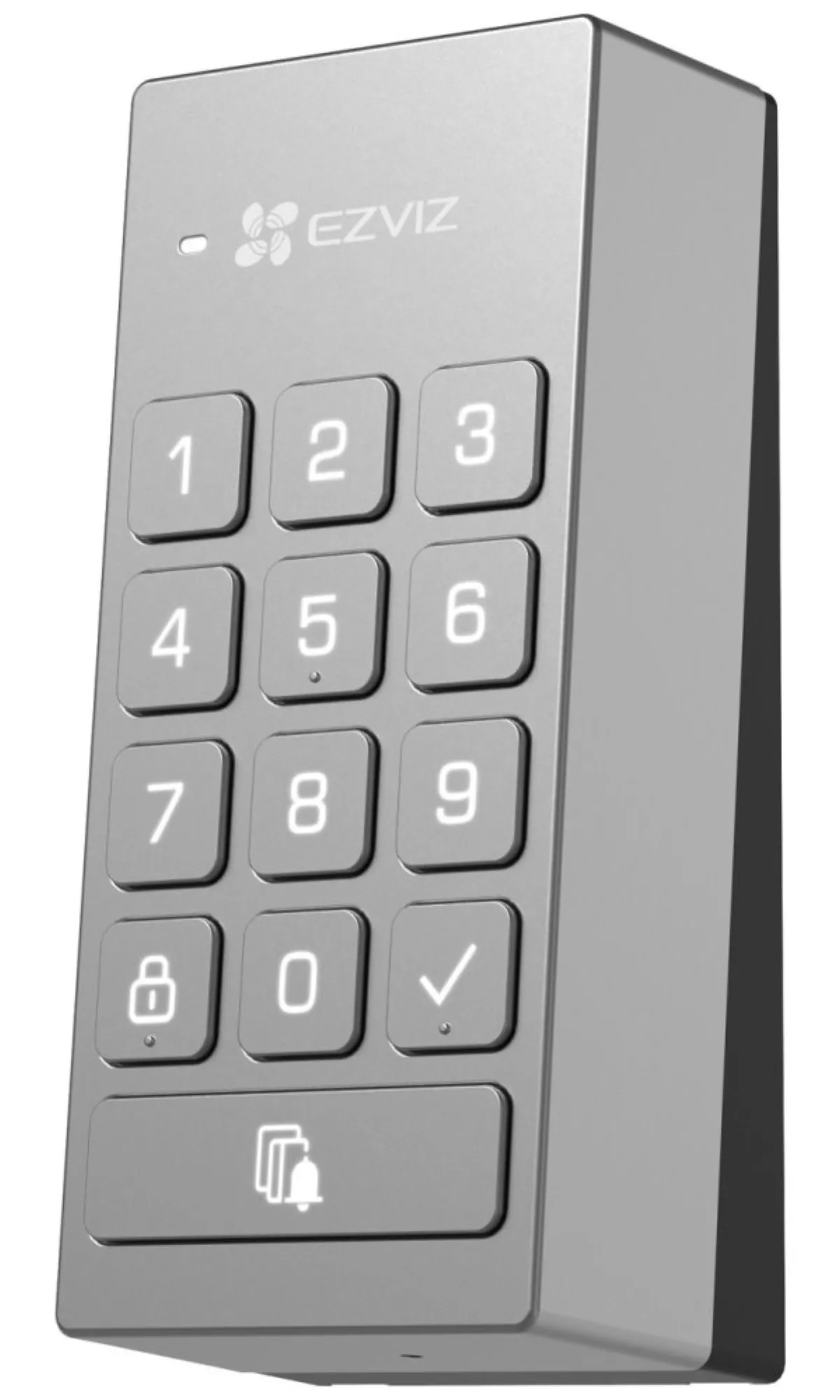

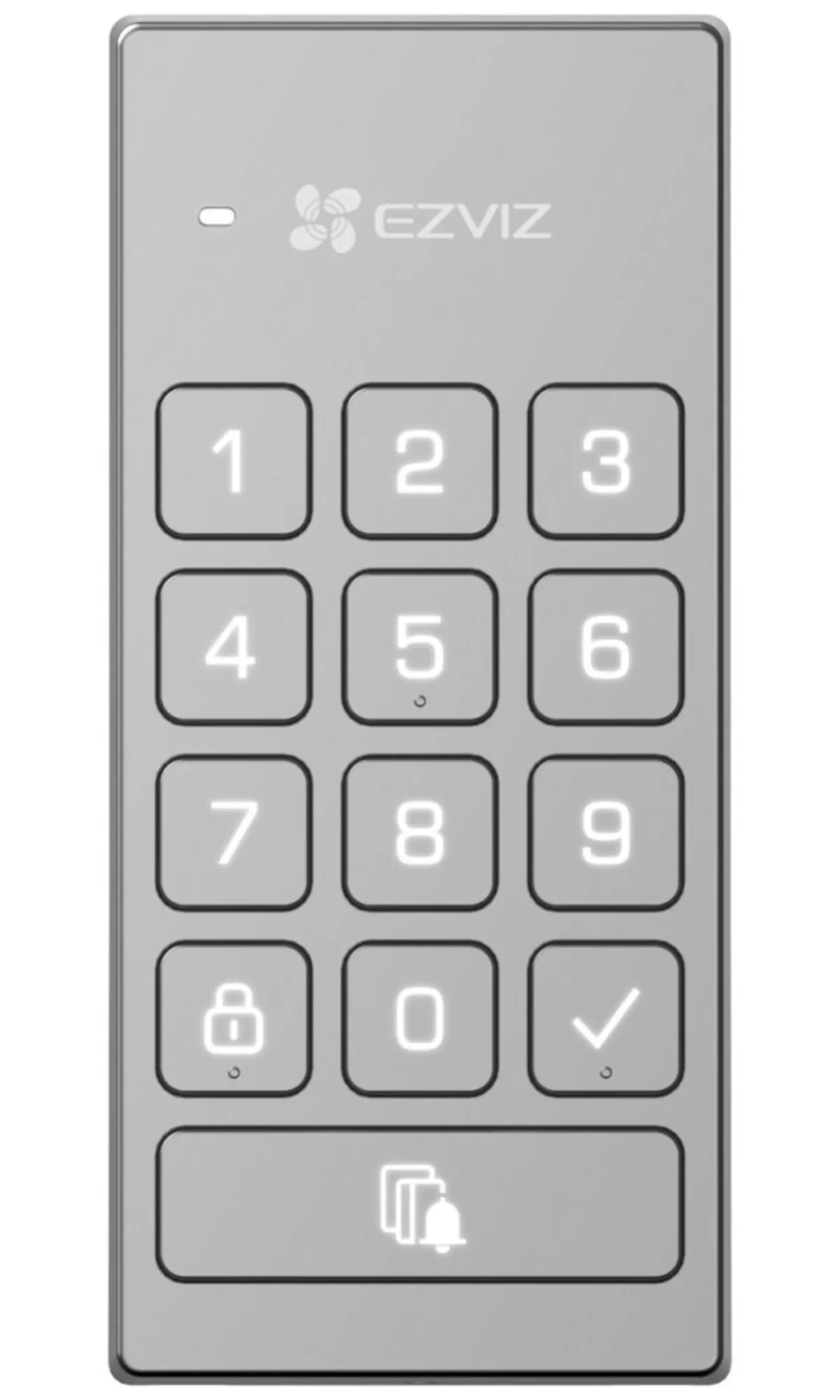

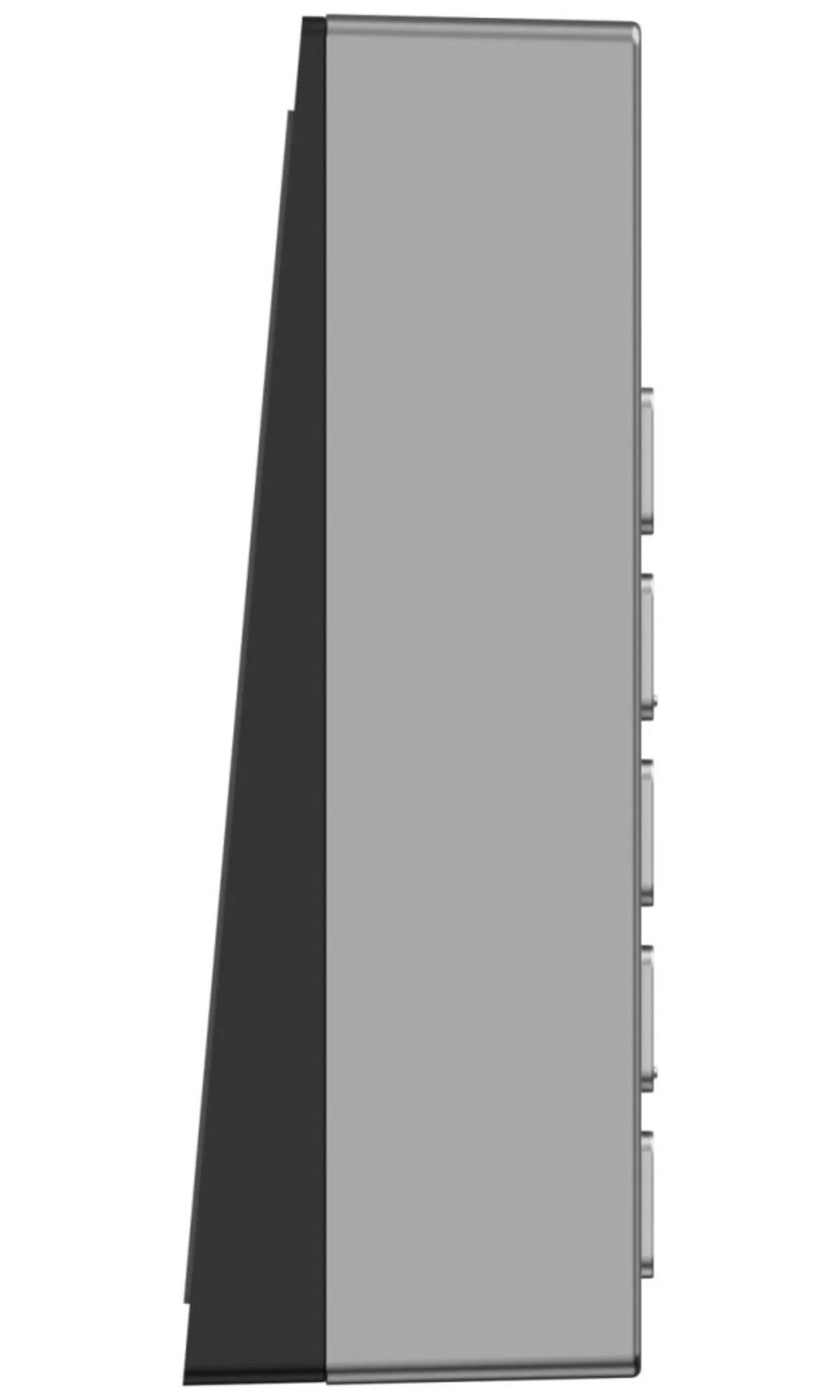

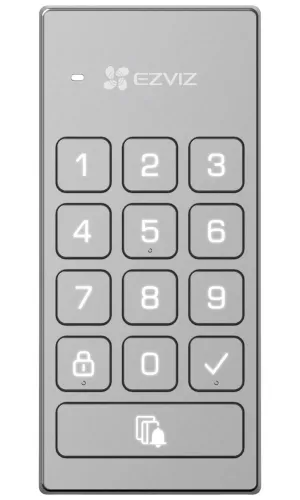

Keypad

Interface: Bluetooth

Power supply: 2× AA batteries

Protection: IP65

Operating temperature: -25 °C to +55 °C °C

Dimensions: 110.5 × 50 × 25.5 mm

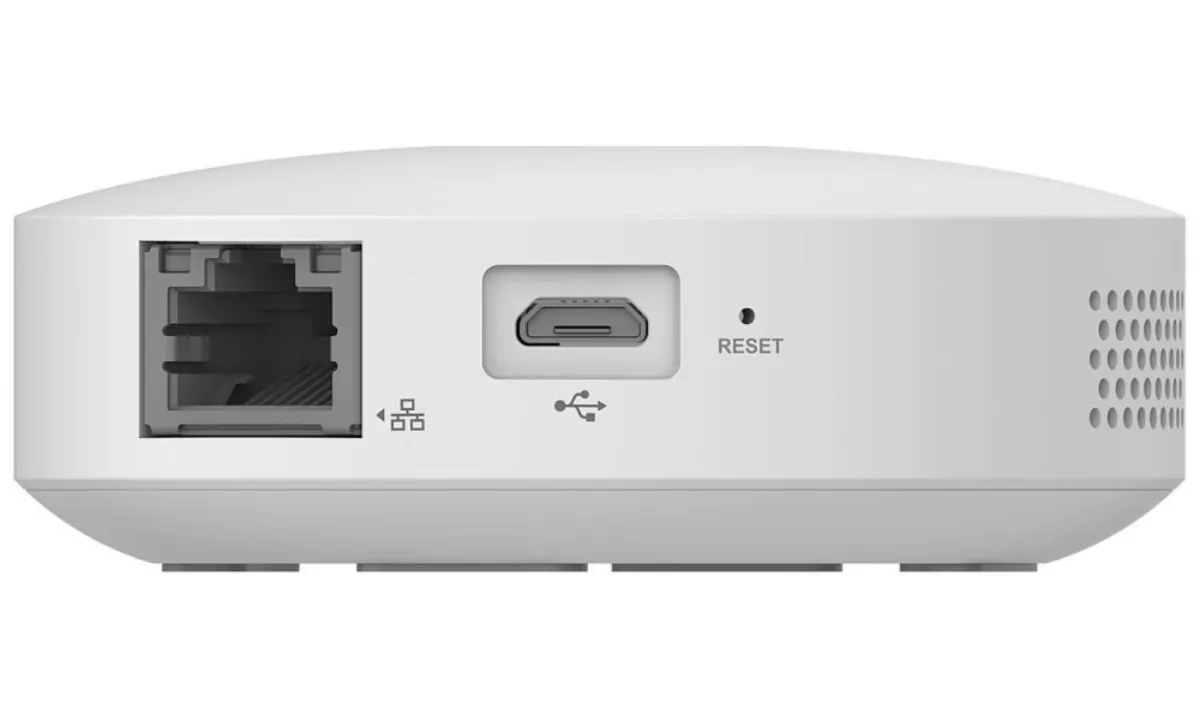

Smart gateway

Application available for

• Android

• iOS

Interface

• Zigbee 3.0
• Wi-Fi (2.4 GHz)
• RJ-45

Power supply

• DC 5 V external microUSB adapter (included)
• power consumption up to 3 W

Dimensions: 70 × 70 × 25.4 mm

Weight: 71 g
