Flow sensor OKY3430-0

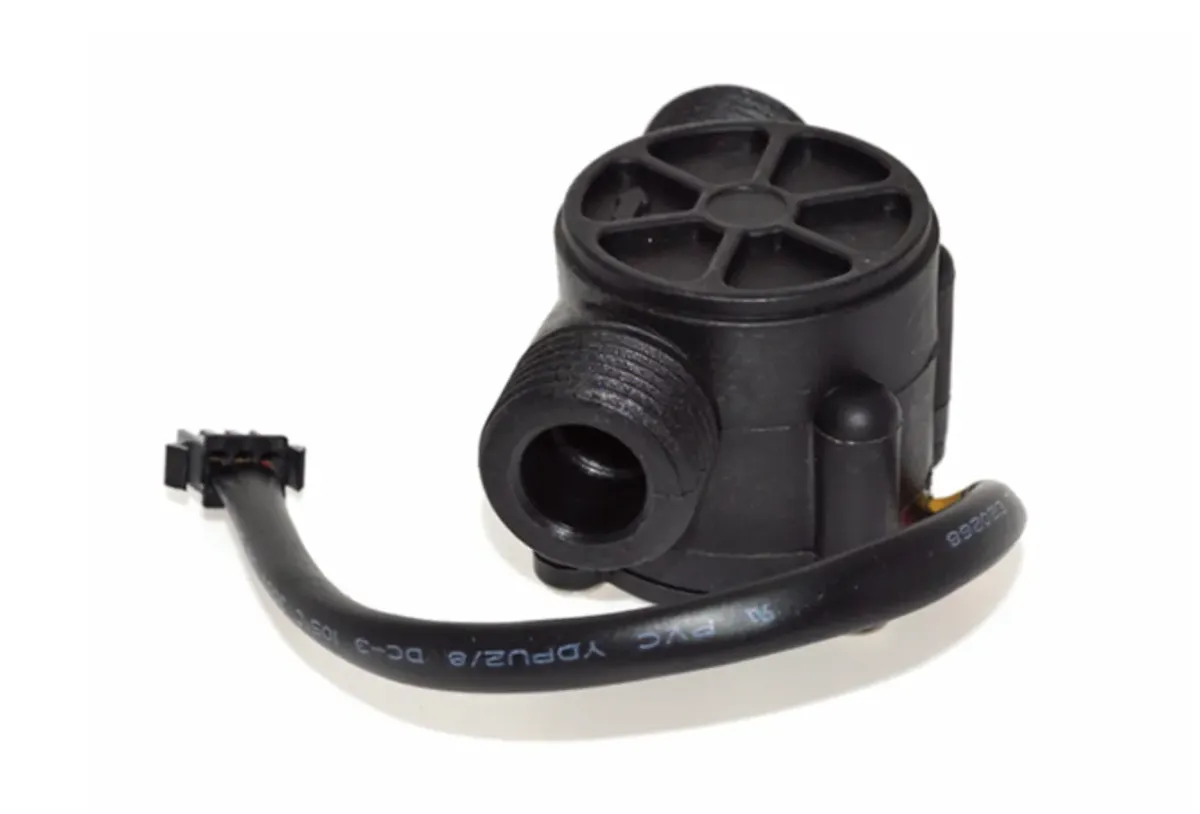

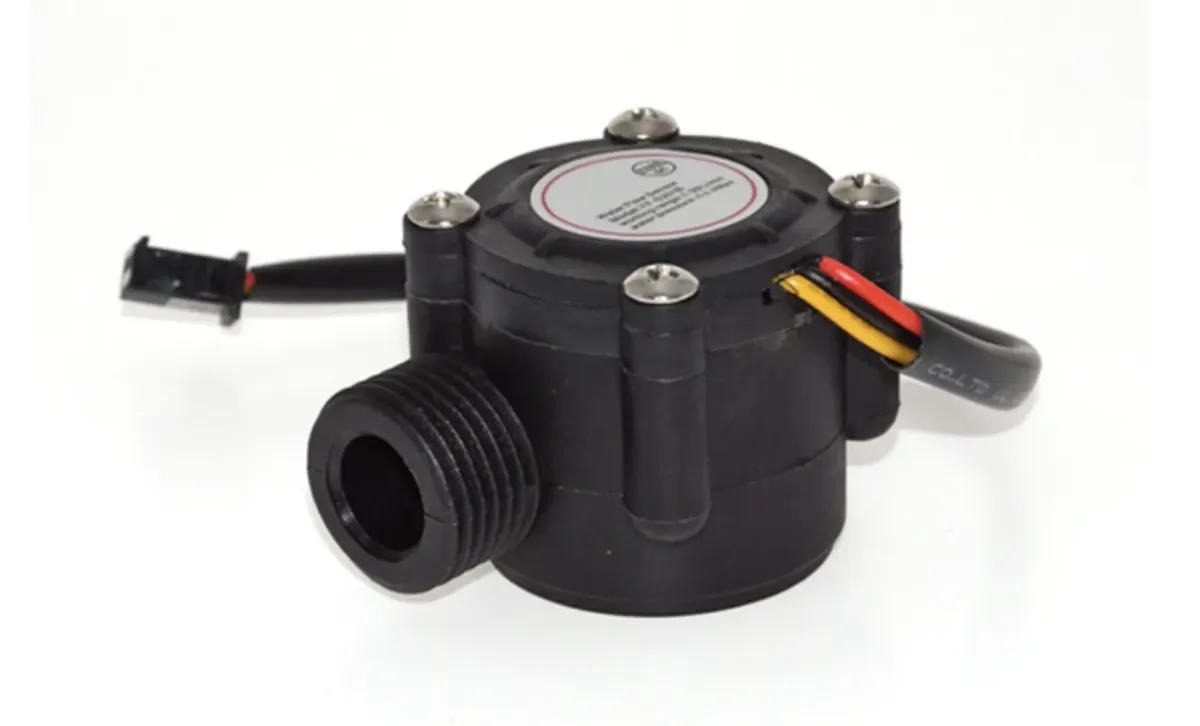

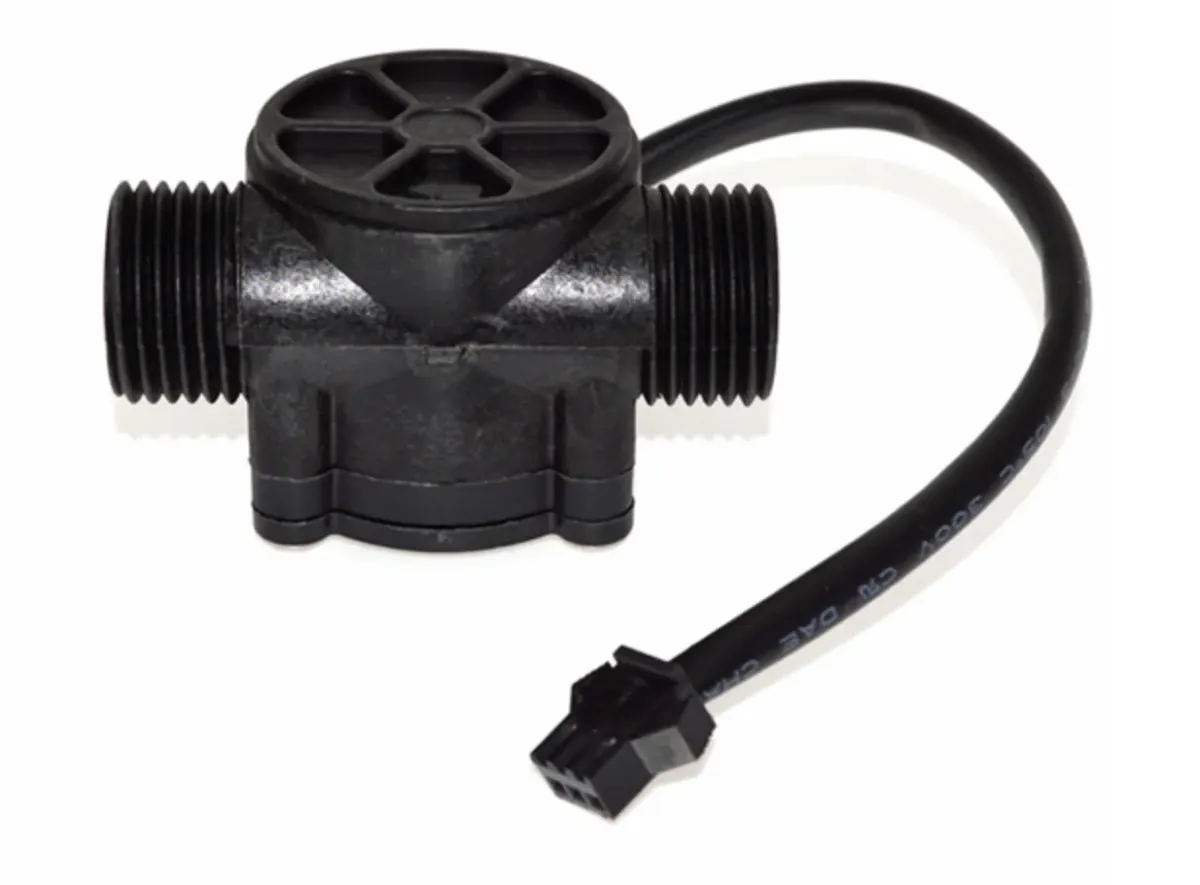

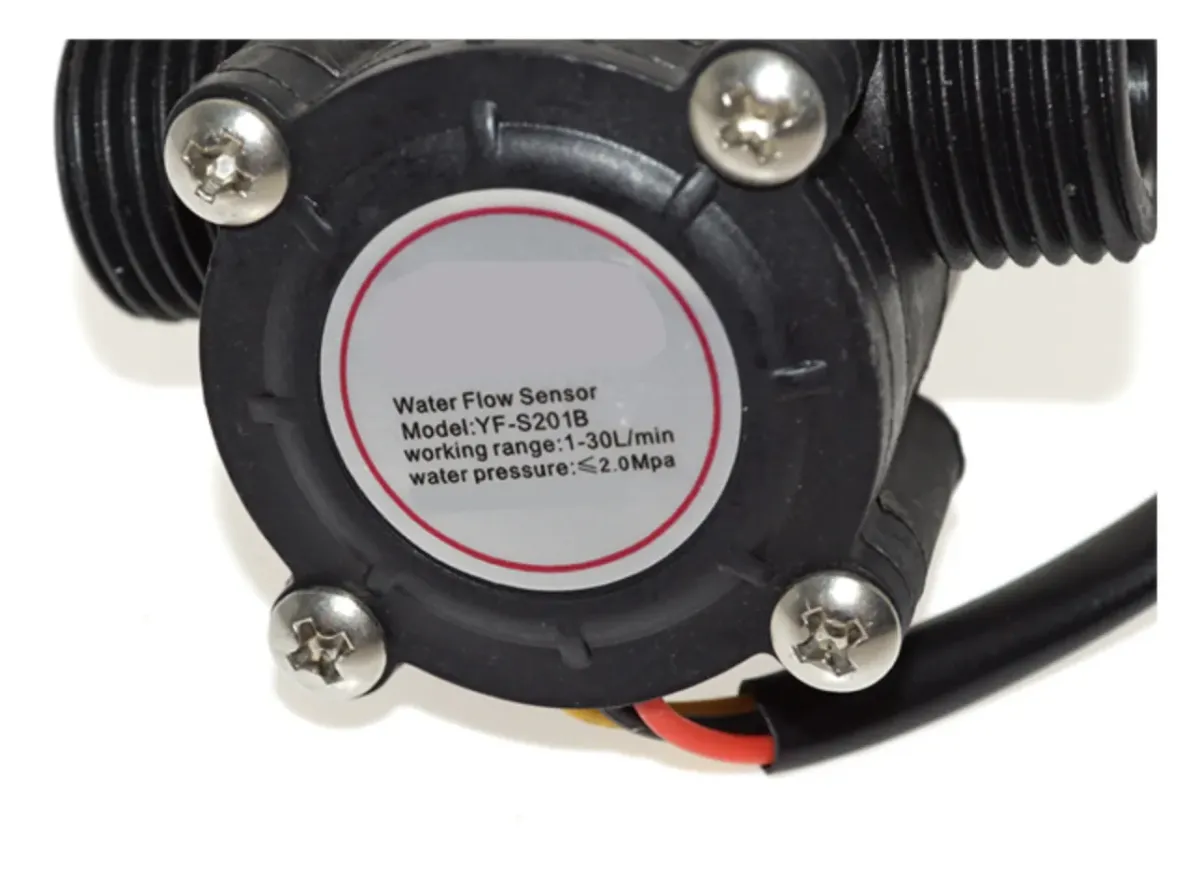

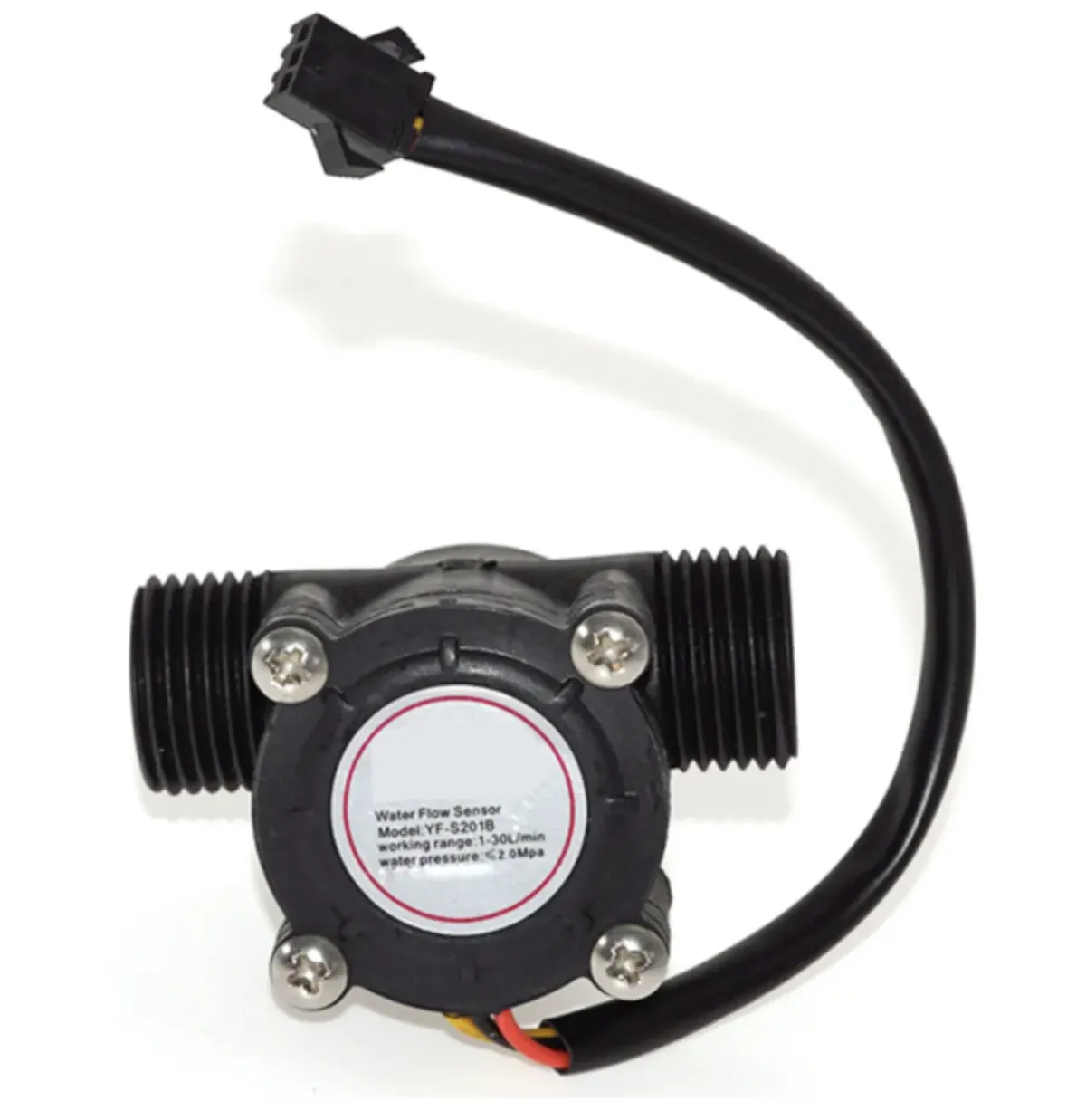

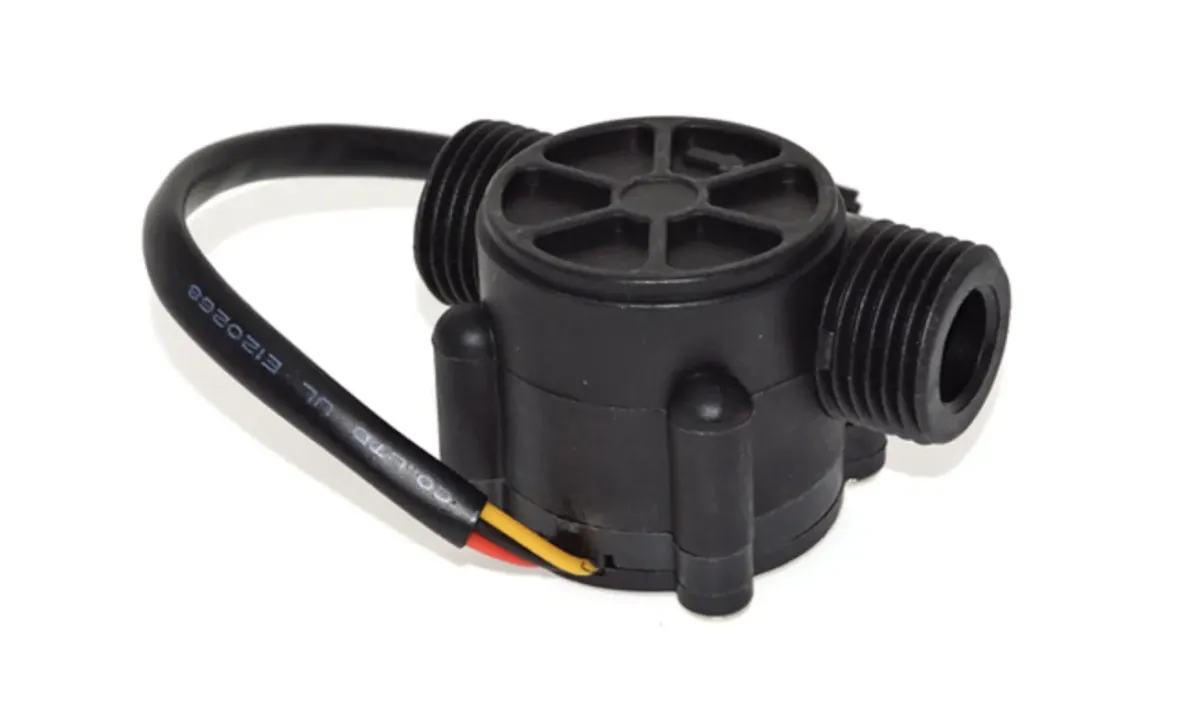

1/2″ Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201

• The lowest rated working voltage: DC4.5 5V-24V
• Maximum operating current: 15 mA (DC 5V)
• Working voltage range: DC 5~18 v
• Load capacity: ≤ 10 mA (DC 5V)
• Use temperature: ≤ 80 ℃
• Operating humidity range: 35%~90%RH (no frost)
• Allowing pressure: <=1.75Mpa
• Temperature:-25~+80 ° c
• Storage humidity: 25%~95%RH
• Output waveform: square wave NPN pulse signal
• Product line: Red +, black -, yellow for the pulse signal output
• The frequency of YF-S201: F=7.5*Q (L / min) error: + 2% voltage: 3.5-24VDC, current cannot exceed 10mA, flow through a litre of water output 450 pulse
• Flow range: 1-30L/min
