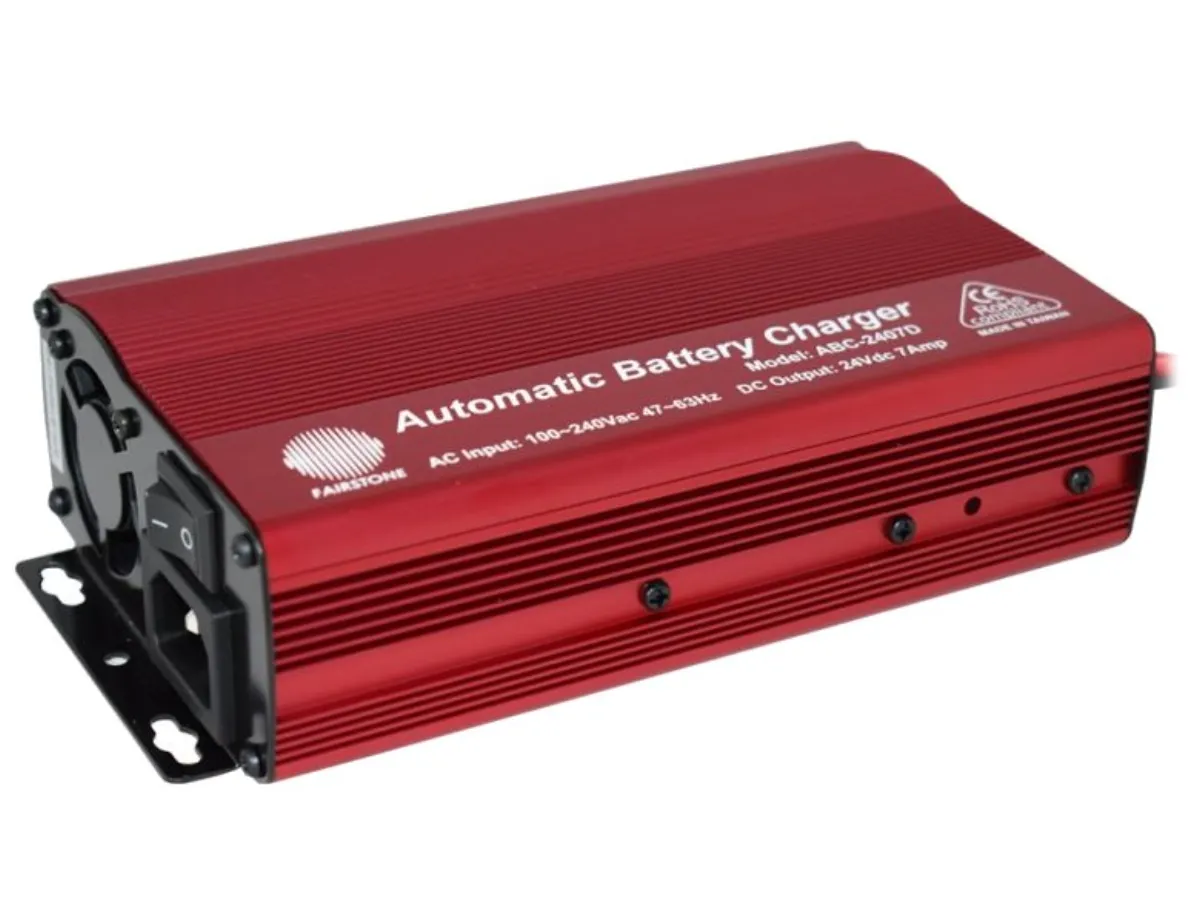

FST Battery charger ABC-2407D 24V 7A
OEM | ABC-2407D | 8592457258865
On stock 1 pcs.
Price of goods is 70.92 €.
Weight of goods is 1.257 Kg.
Actual in cart 0 pcs.
FST ABC-2407D
Charger intended for charging lead-acid batteries (flooded WET - maintenance and maintenance-free, AGM - maintenance-free with soaked electrolyte) for various purposes: car batteries, motorcycle batteries, traction and station (backup) batteries.
- The shell is made of solid polished aluminum
- Digital indicator of voltage, current and other values
- Fan for better cooling
- Protection against overload and short circuit
- Battery clamps for connecting to the battery poles
- Advanced timers and precharge functions
- Integrated fuse 250 V/ 8 A
Protection
The device is equipped with electronic protection elements: Anti-short circuit - if both terminals on the output cables are accidentally connected, the charger will automatically turn off.
Anti-polarity reversal - if the user connects the terminals to the battery incorrectly, i.e. reverses the polarity, the charger will automatically turn off.
Anti-overload - if the charger is operated in demanding conditions, it may become overloaded, in which case it will automatically switch off and stop supplying electricity.
Caution! The charger is not designed to charge non-lead batteries.
Rated charging voltage: 24
Main charging voltage: 29.4 V (± 0.2 V)
Sustaining charge voltage: 27.4 V (± 0.2 V)
Rated charging current: 7 A (± 0.4 A)
Rated input voltage: 220-240V
Input frequency: 50 Hz (± 3 Hz)
Input: 206 W
Efficiency: >85%
Recommended battery capacity: 14-180 Ah
Cooling
- active
- automatic
- ventilator
Dimensions: 167 x 103 x 50 mm
Weight: 0.9 kg
| Name | Value | |
|---|---|---|
| Input voltage [V] | 220 - 240 (AC) | |
| Weight, brutto [kg] | 0,9 | |
| Dimension [mm] | 167 × 103 × 50 mm | |
| Voltage frequency | 50 | |
| Output voltage [V] | 24 (DC) | |
| Max. output current [A] | 7 | |
| Connector | terminal block | |
