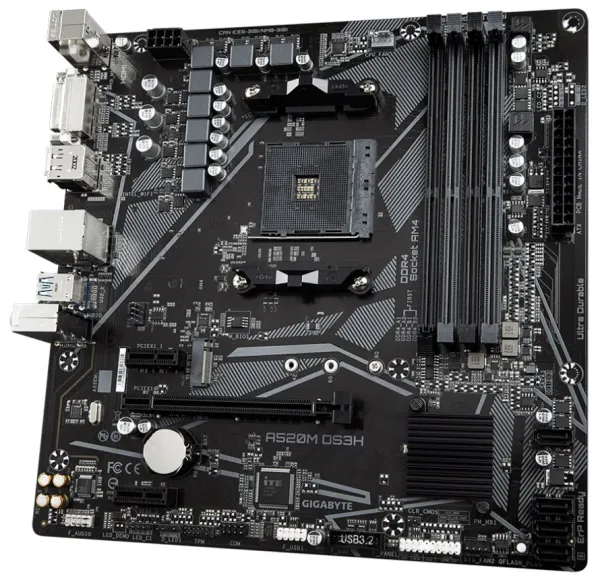

GIGABYTE A520M DS3H

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 3 processors. generation and AMD Ryzen 3 . generation with Radeon Vega graphics card (socket AM4)

Chipset

• AMD A520

Memory

• 4 x DDR4 memory slot, support up to 128 GB
• AMD Ryzen 3 . generation:
• Support DDR4 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz AMD Ryzen 3 . generation with Radeon Vega graphics card:
• Support DDR4 4733 (OC)/ 4600 (OC)/ 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz Dual-channel memory architecture
• ECC DIMM support, unbuffered, 1Rx8/2Rx8
• Non-ECC DIMM support, unbuffered, 1Rx8/2Rx8/1Rx16
• Extreme Memory Profile (XMP) support

Graphic Design

• The graphics outputs on the board are only functional when used with AMD Ryzen processors with an integrated Radeon Vega graphics card.
• 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 at 60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 at 60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz

Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Repository

• 1 x M.2 slot, M Key, for 2242/2260/2280 type units (SATA and PCIe 3.0 x4/x2 mode)
• 4 x SATA 6 Gb/s
• RAID 0, RAID 1 and RAID 10 support

USB

• 2 x USB 3.2 Gen1 (USB 3.0) ports available via an internal USB connector
• 4 x USB 2.0 ports (2 ports on the rear panel, 2 ports available via internal USB connectors
• 4 x USB 3.2 Gen1 (USB 3.0) ports on the back panel

Audio

• Realtek ALC887 Codec
• 2/4/5.1/7.1 channel High Definition Audio

HIND

• 1 x Realtek Gigabit LAN controller

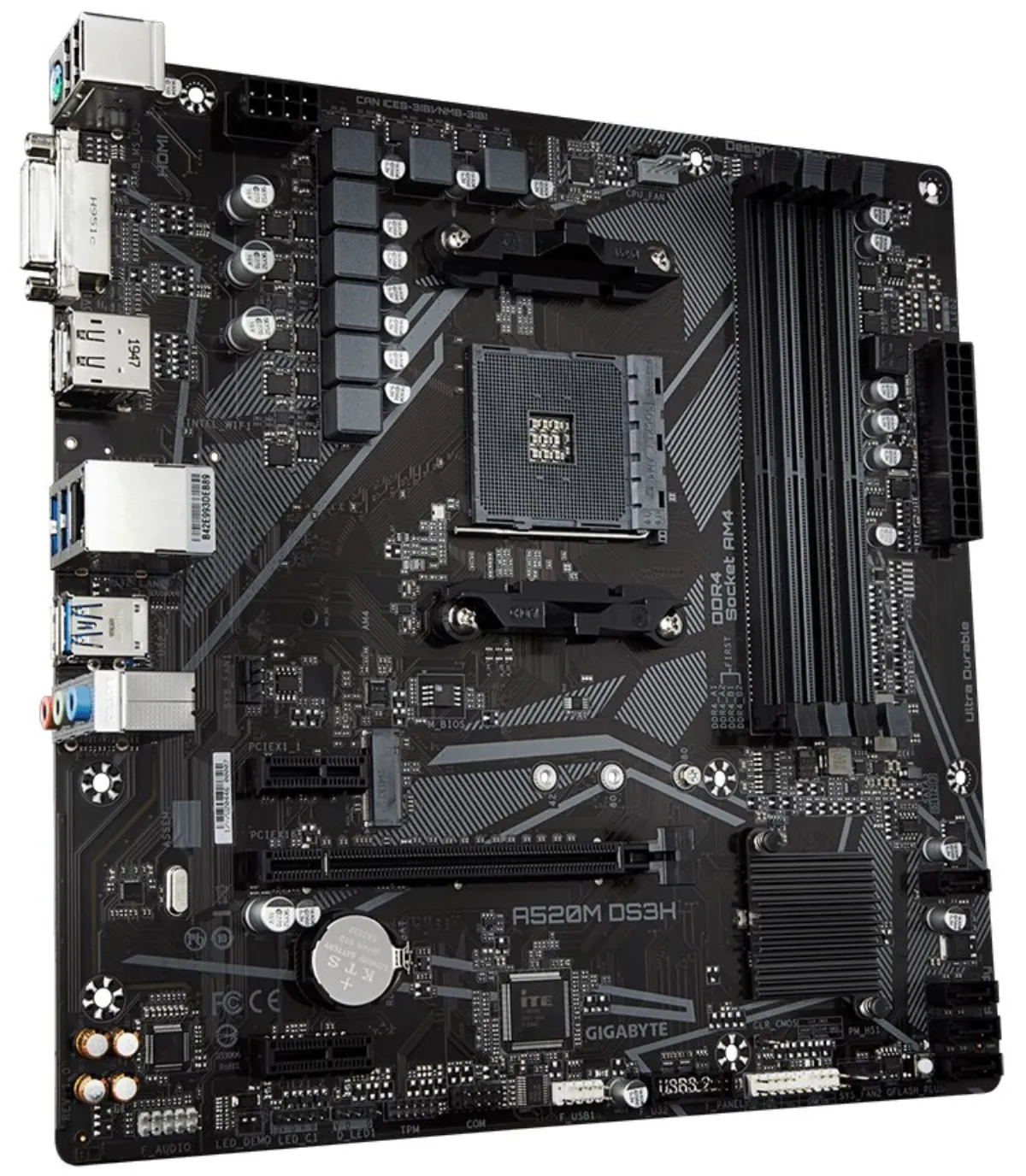

Internal Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connector
• 1 x M.2 slot, M Key
• 1 x CPU fan connector
• 2 x system fan connector
• 1 x addressable LED strip connector
• 1 x RGB LED strip connector
• 1 x Front Panel Connector
• 1 x front panel audio jack
• 1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)
• 1 x USB 2.0 connector (supports 2 x USB 2.0 port)
• 1 x TPM connector
• 1 x serial port connector
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

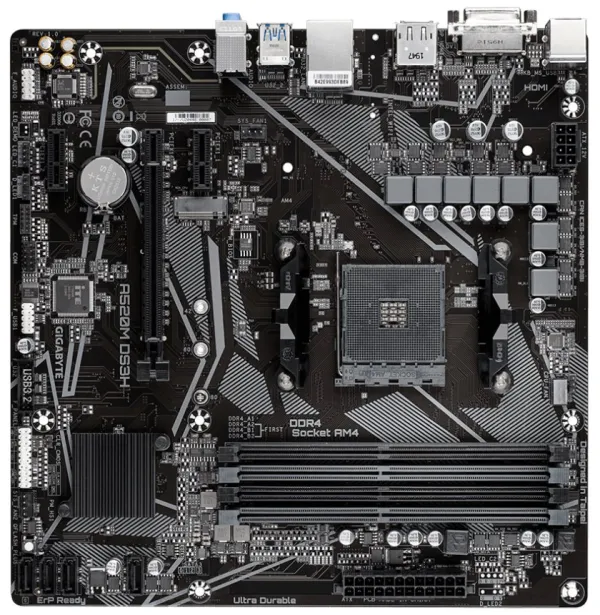

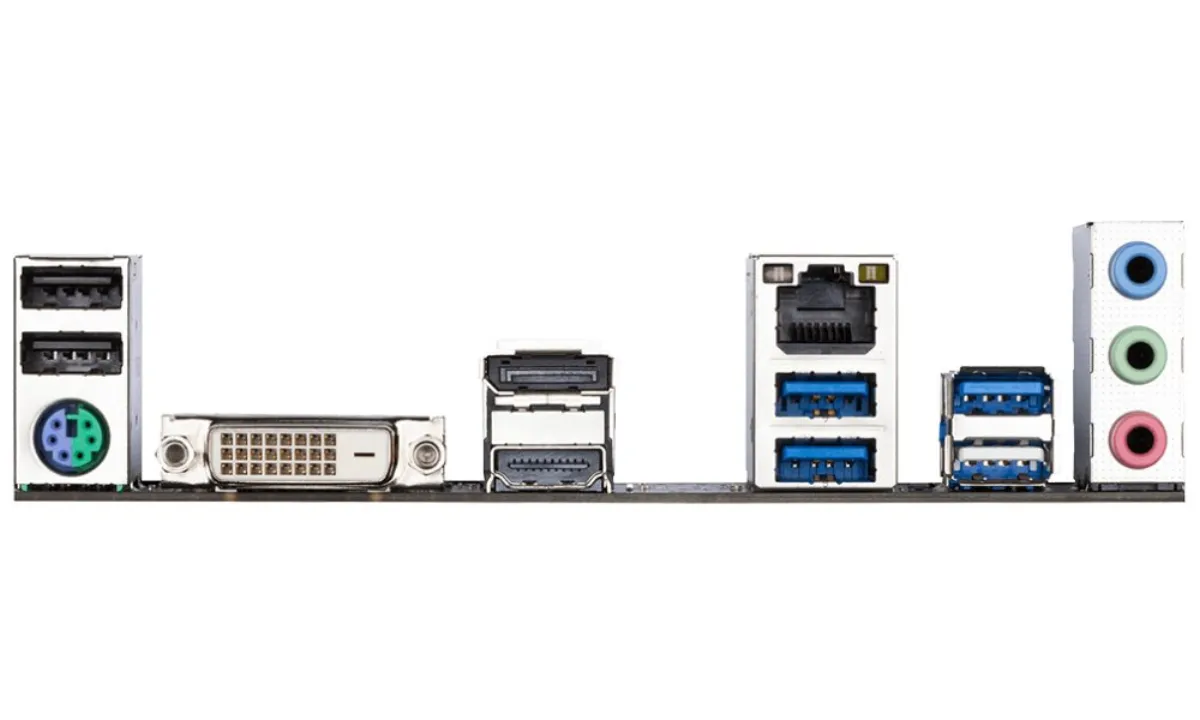

Rear Panel Ports

• 1 x PS/2 keyboard and mouse combo port
• 1 x DisplayPort
• 1 x DVI-D
• 1 x HDMI
• 4 x USB 3.2 Gen1 (USB 3.0)
• 2 x USB 2.0
• 1 x RJ-45
• 3 x audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
