GIGABYTE B760 DS3H Intel B760 LGA1700 4x DDR5 2x M.2 DP HDMI USB-C ATX

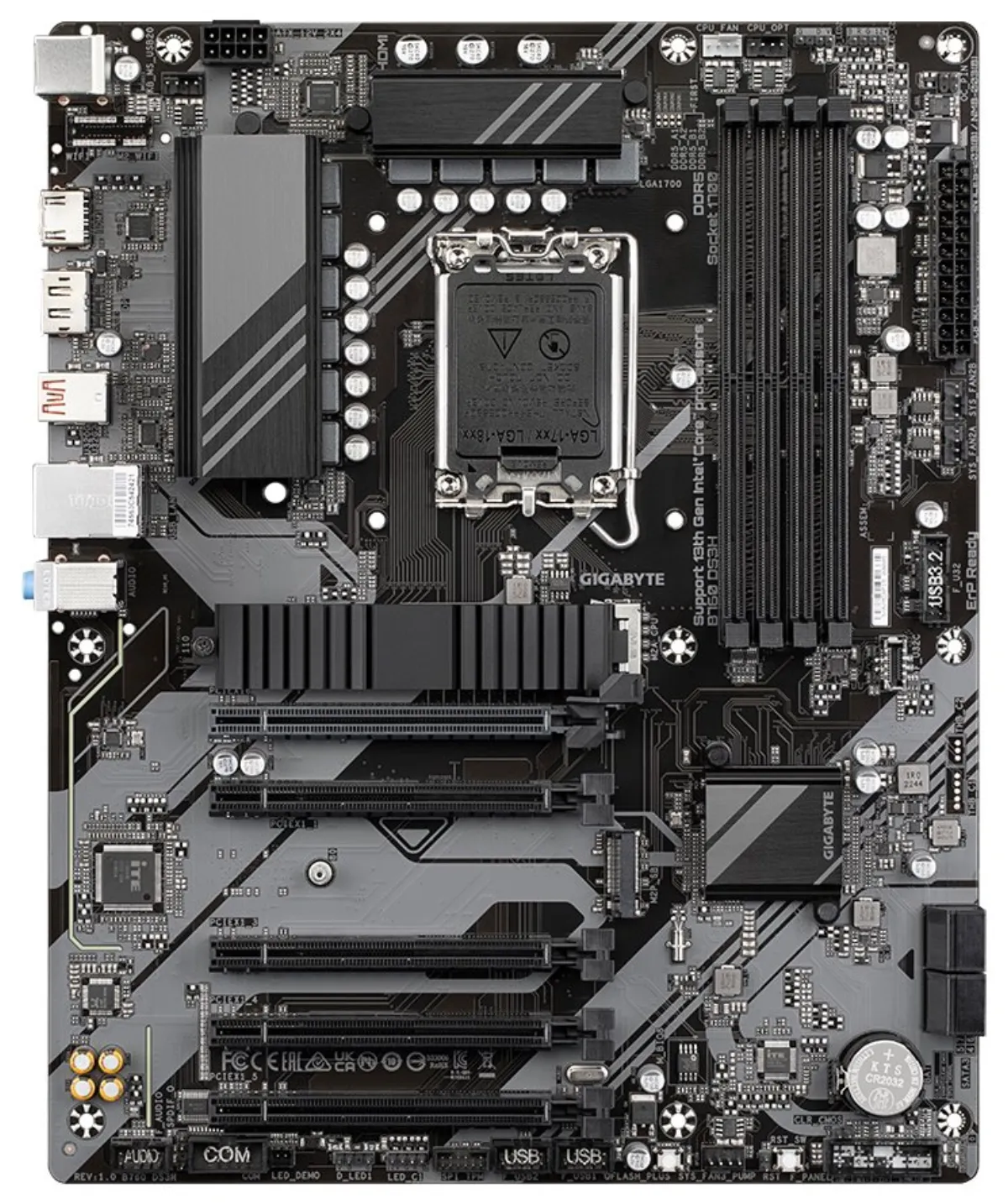

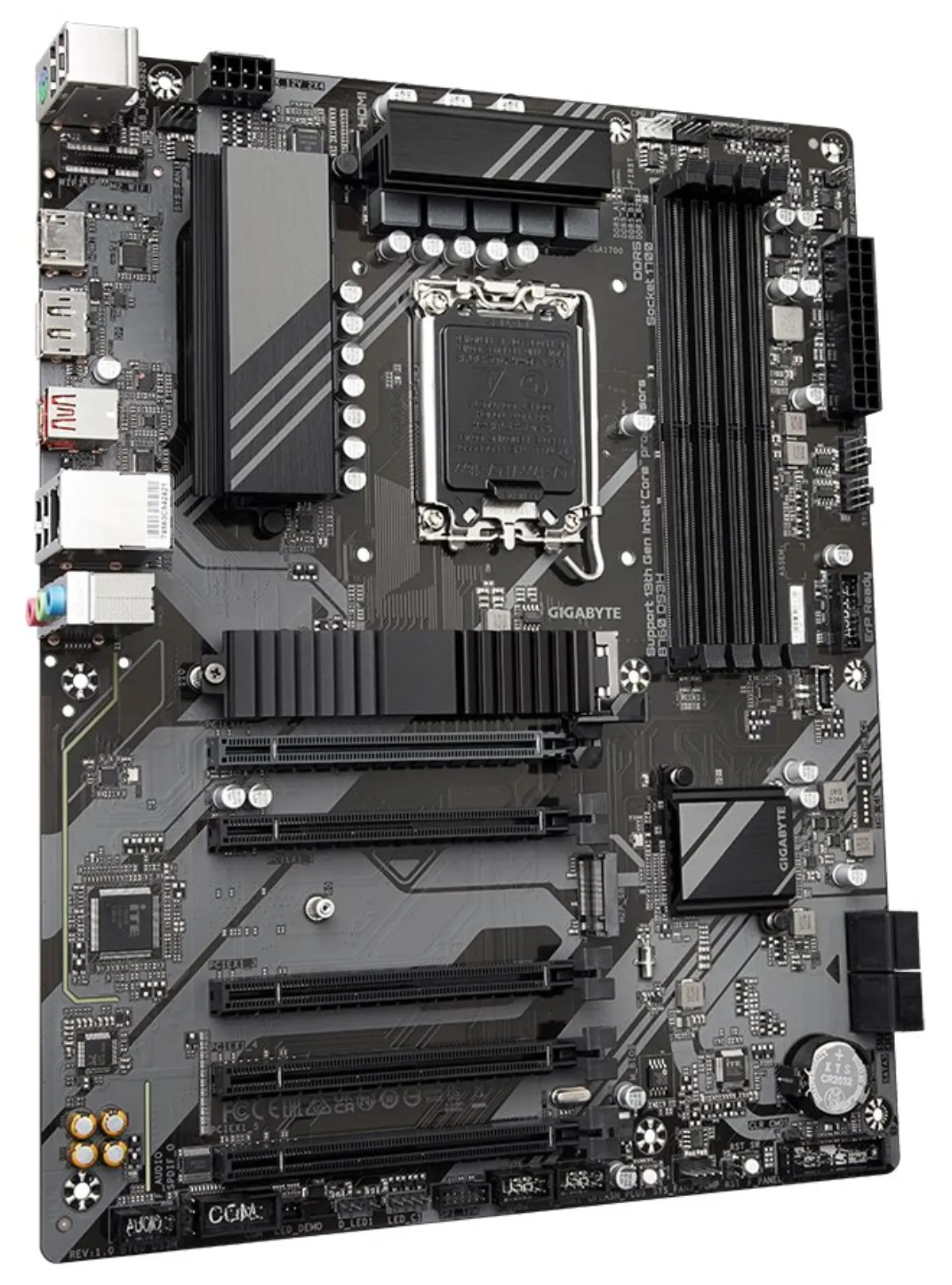

GIGABYTE B760 DS3H

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12., 13. and 14 generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 ( OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz
• Dual channel memory architecture
• ECC support, 1Rx8/2Rx8, no buffer (non-ECC mode)
• Support non-ECC, 1Rx8/2Rx8/1Rx16, no buffer
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 4.0 x16 slot
• 4× PCIe 3.0 x16 slot (supports x1 mode)

Graphic Design

• 1× HDMI port, supporting a maximum resolution of 4096 × 2160 at 60 Hz
• 1× DisplayPort port, supporting a maximum resolution of 4096 × 2304 at 60 Hz

Storage

• 1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)

• 1× M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4/x2 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1× USB-C 3.2 Gen2x2 port on the back panel
• 1× USB 3.2 Gen2 port on the back panel
• 1× USB-C 3.2 Gen1 (USB 3.0) port available via an internal USB connector
• 2x USB 3.2 Gen1 (USB 3.0) port available via the internal USB connector
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek Audio Codec
• 2/4/5.1/7.1 channel High Definition Audio
• S/PDIF output support

LAN

• 1× Realtek Gigabit LAN controller

Internal connectors

• 1× 24pin ATX main power connector
• 1× 8pin ATX 12V power connector
• 1x CPU fan connector
• 1x CPU fan/water cooling pump connector
• 3x system fan connector
• 1x system fan/water cooling pump connector
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 2× M.2 slot, M Key
• 4x SATA 6 Gb/s connector
• 1x front panel connector
• 1x front panel audio connector
• 1x S/PDIF output connector
• 1× USB-C 3.2 Gen1 (USB 3.0) connector
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× TPM connector (only for GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
• 1x serial port connector
• 1× Q-Flash Plus button
• 1x Reset button
• 1x Reset jumper
• 1x Clear CMOS jumper

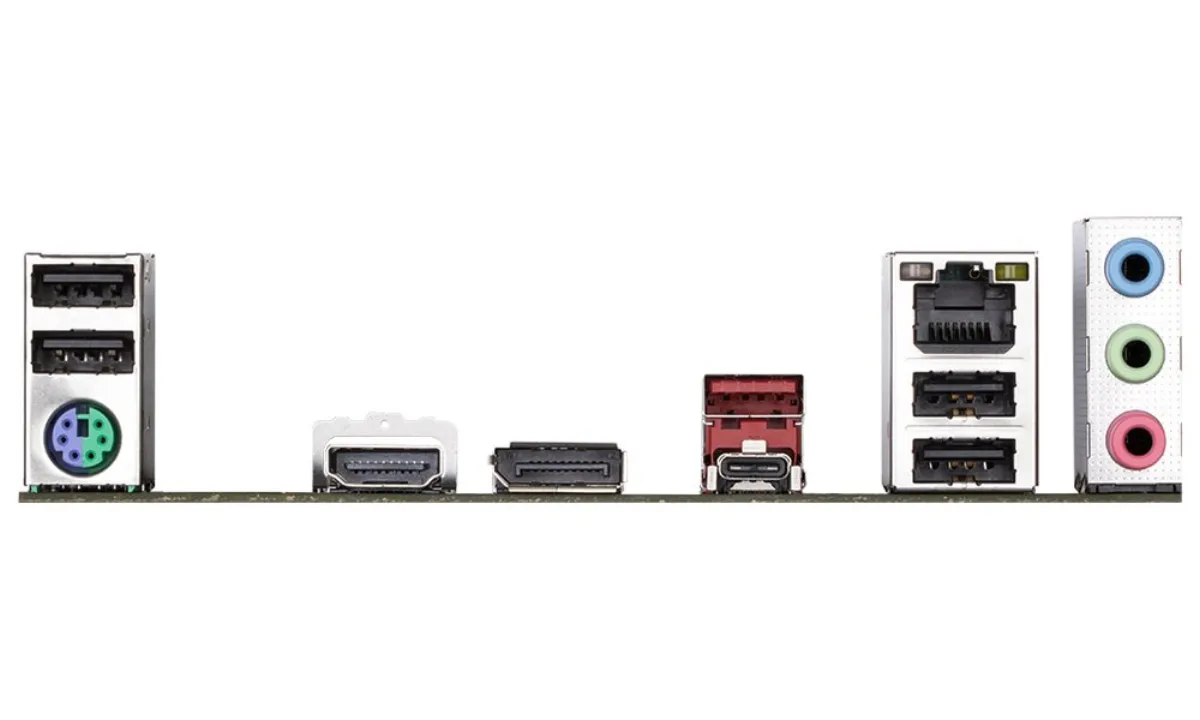

Rear panel ports

• 1× PS/2 keyboard and mouse combo port
• 1× USB-C 3.2 Gen2x2
• 1x USB 3.2 Gen2
• 4x USB 2.0
• 1x DisplayPort
• 1x HDMI
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
