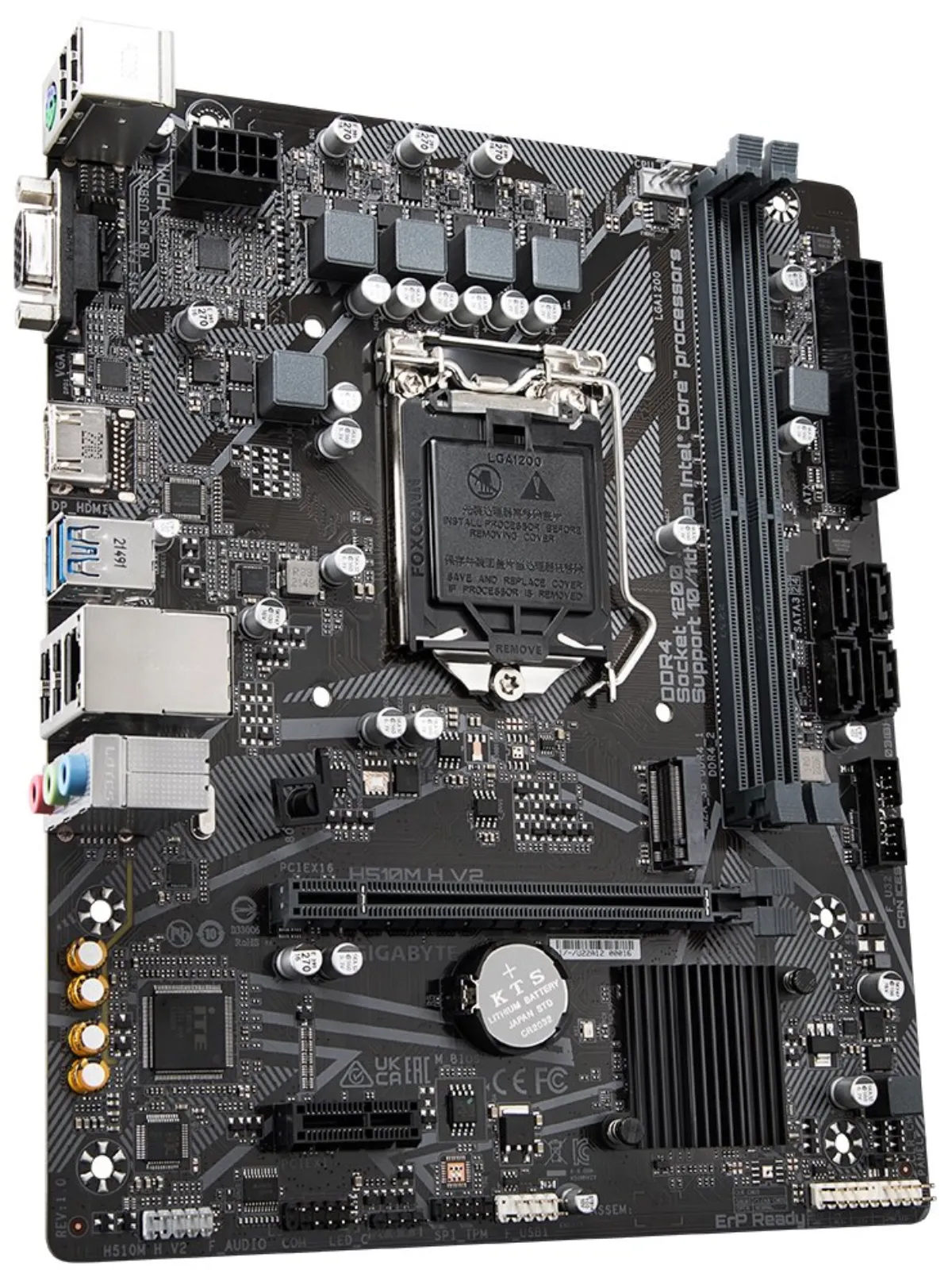

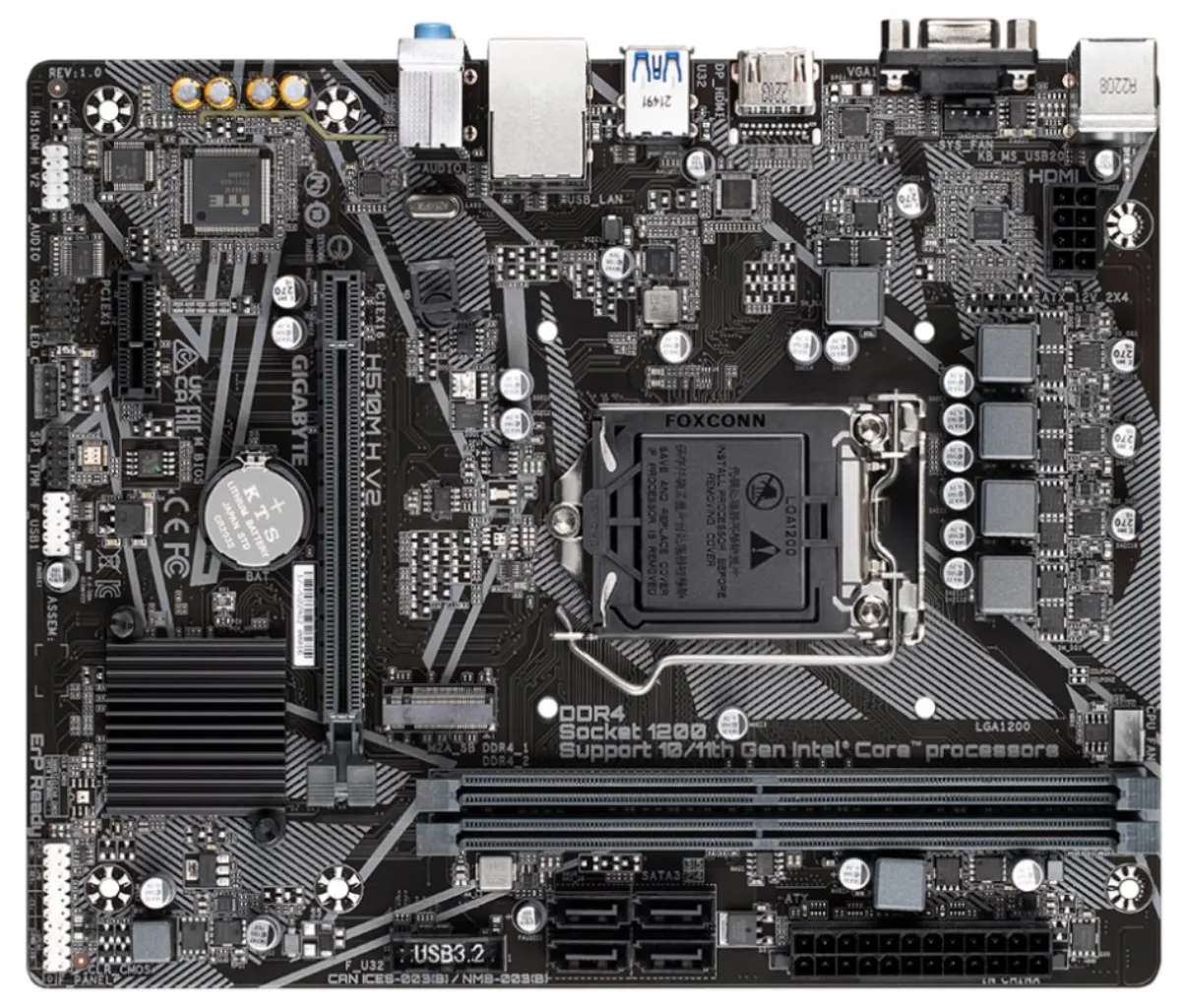

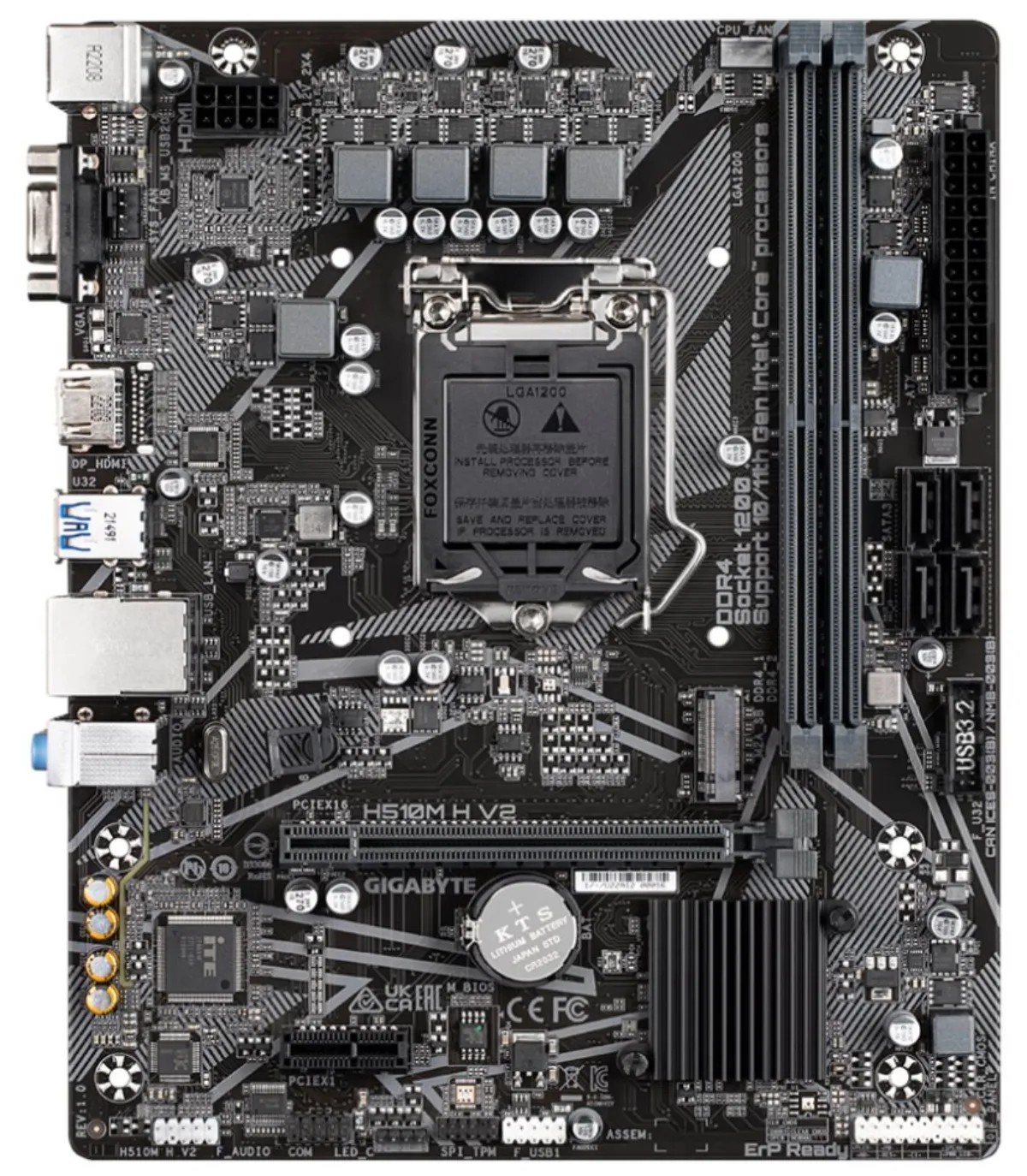

GIGABYTE H510M H V2 Intel H470 LGA1200 2x DDR4 M.2 VGA HDMI mATX

GIGABYTE H510M H V2

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 10 . and 11 . generation Intel Core/ Pentium/ Celeron (socket LGA1200)

Chipset

• Intel H470

Memory

• 2x DDR4 memory slot, support up to 64 GB
• Support DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz
• CPU 10 . gen Intel Core i9/ i7 support 2933/ 2666/ 2400/ 2133 MHz
• CPU 10 . gen Intel Core i5/ i3/ Pentium/ Celeron support 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Support non-ECC, no buffer (1Rx8/2Rx8/1Rx16)
• ECC support (non-ECC mode), unbuffered (1Rx8/2Rx8)
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 3.0 x16 slot
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1× VGA port, supporting a maximum resolution of 1920 × 1200 at 60 Hz
• 1× HDMI port, supporting a maximum resolution of 4096 × 2160 at 30 Hz

Repository

• 1× M.2 slot, M Key, for 2280 type units (PCIe 3.0 x4/x2 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe SSDs

USB

• 4× USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 2 ports available via the internal USB connector)
• 6× USB 2.0 port (4 ports on the back panel, 2 ports available via the internal USB connector)

Audio

• Realtek Audio Codec
• 2/4/5.1/7.1 channel High Definition Audio

HIND

• 1× Realtek Gigabit LAN controller

Internal Connectors

• 1× 24pin ATX main power connector
• 1× 8pin ATX 12V power connector
• 1x RGB LED strip connector
• 1x CPU fan connector
• 1x system fan connector
• 4x SATA 6Gb/s connector
• 1× M.2 slot, M Key
• 1x front panel connector
• 1x front panel audio connector
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB 2.0 connector (supports 2× USB 2.0 port)
• 1× TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
• 1x serial port connector
• 1x Clear CMOS jumper

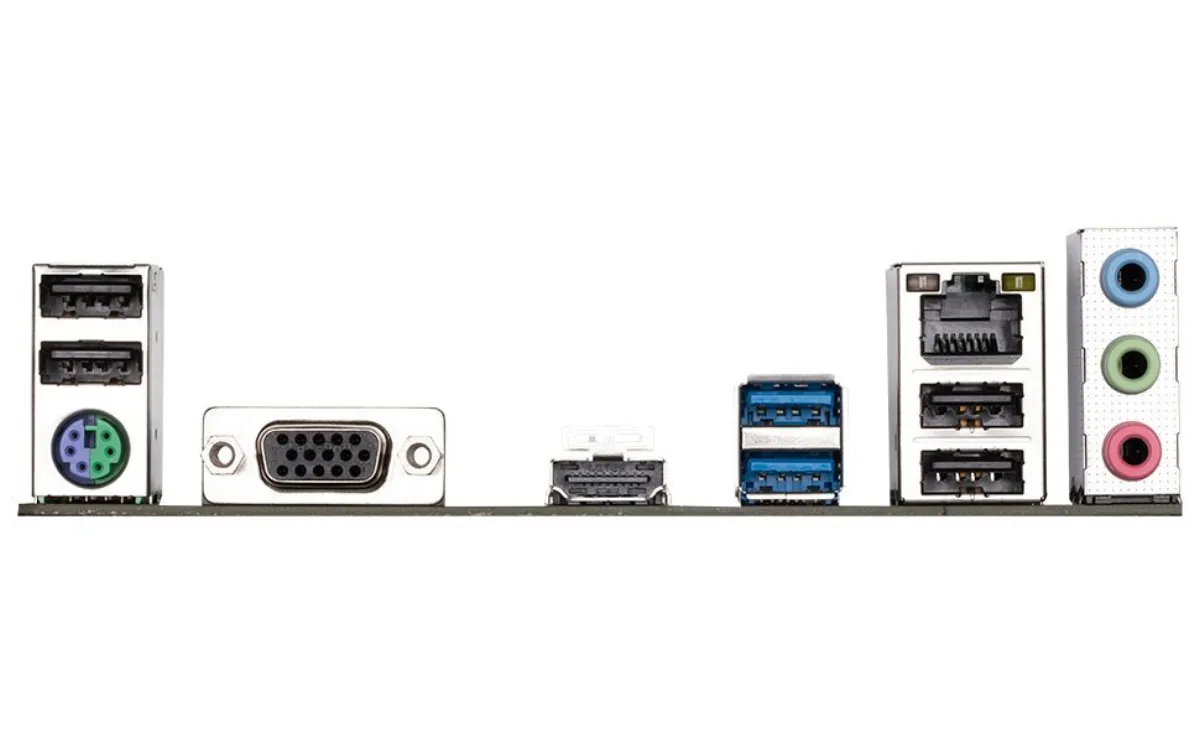

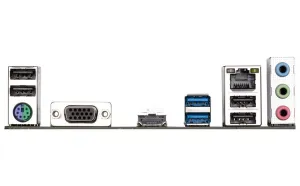

Rear Panel Connectors

• 1× PS/2 keyboard and mouse combo port
• 1x HDMI
• 1x VGA
• 2x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 22.6 x 18.5 cm
• Micro ATX format
