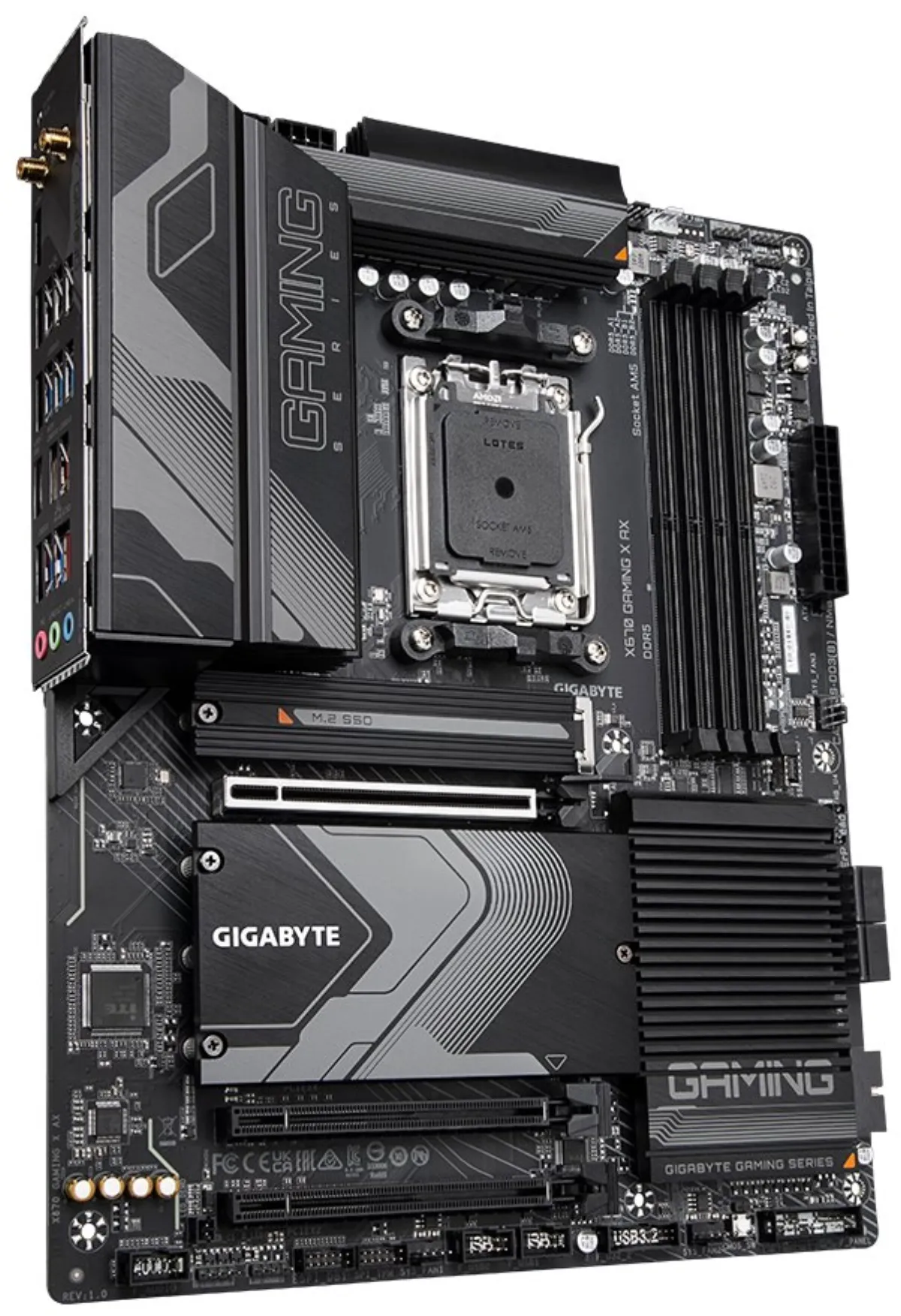

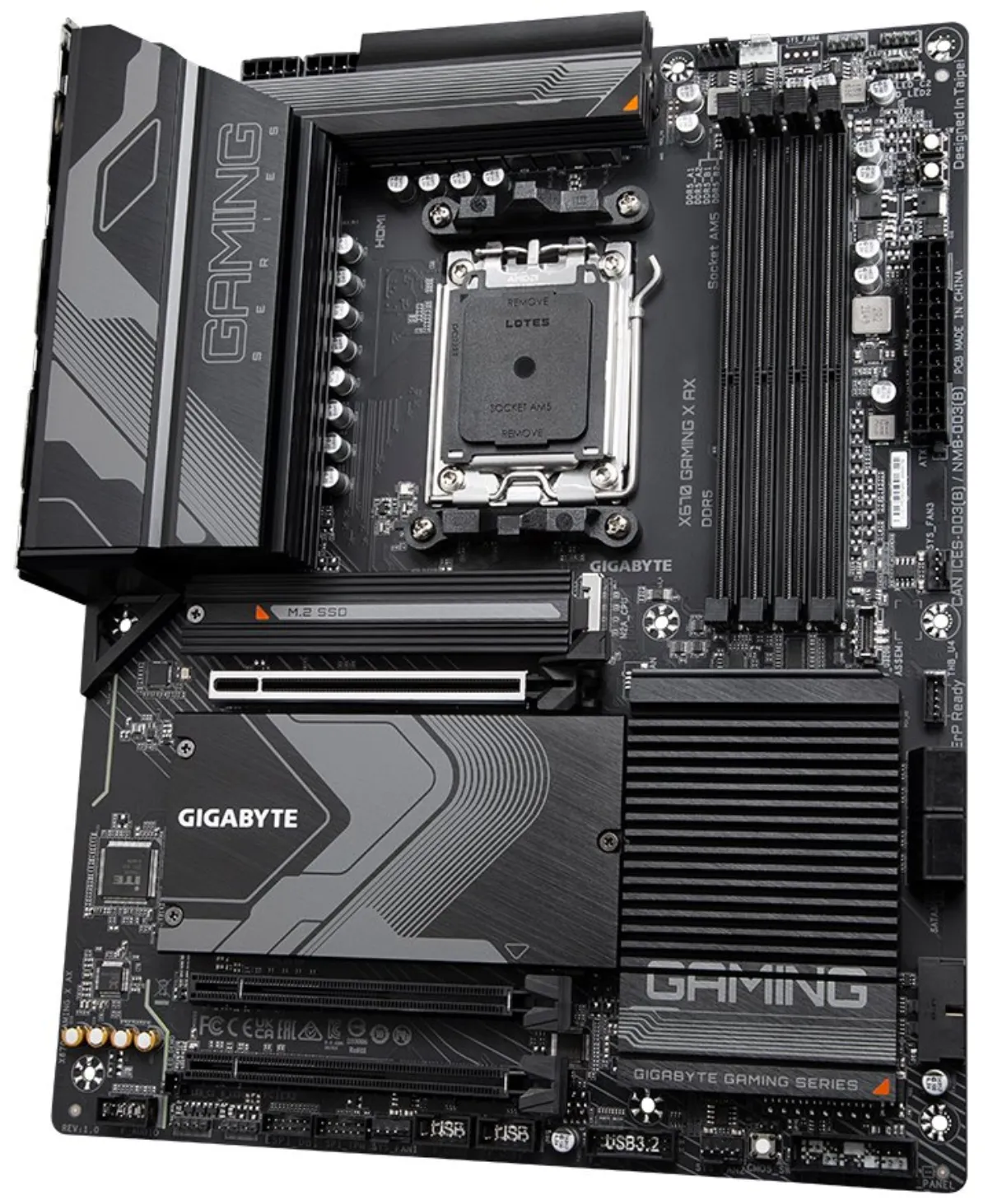

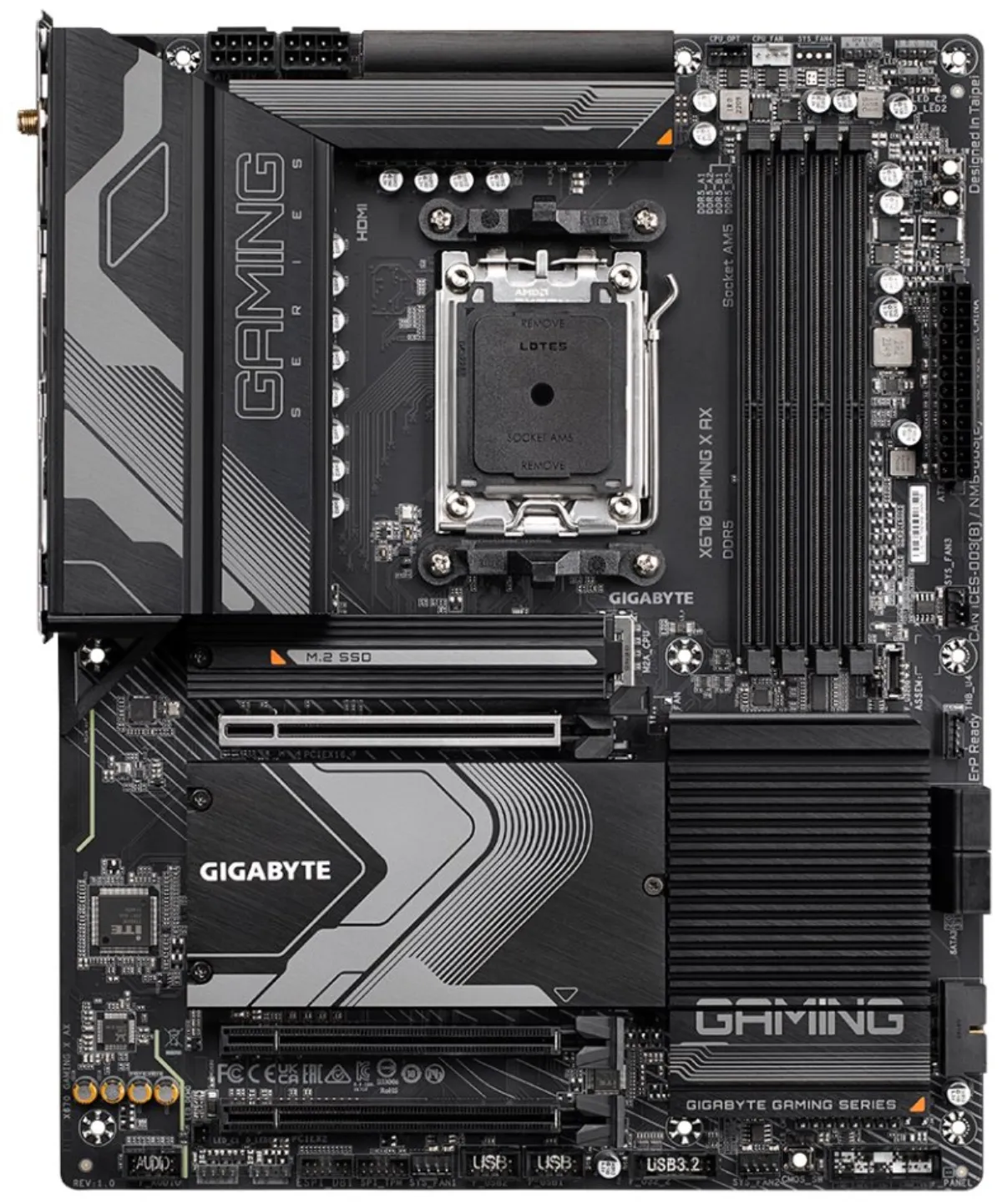

GIGABYTE X670 GAMING X AX AMD X670 AM5 4x DDR5 DIMM 4x M.2 HDMI USB-C WiFi ATX

GIGABYTE X670 GAMING X AX

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000 series processors (socket AM5)

Chipset

• AMD X670

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5600 (OC)/ 5200/ 4800/ 4400 MHz
• Dual channel memory architecture
• Non-ECC DIMM support, unbuffered, 1Rx8/2Rx8/1Rx16
• Extreme Memory Profile (XMP) support
• AMD EXtended Profiles for Overclocking (EXPO) support

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x16 slot (supports x2 mode)

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Storage

• 1x M.2 slot, M Key, for 2280/25110 type units (PCIe 5.0 x4/x2 mode)
• 1x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
• 2x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

• 2x USB 3.2 Gen2x2 type C port (1 port on the back panel, 1 port available via the internal USB connector)
• 8x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 4 ports available via internal USB connectors)
• 4x USB 2.0 port available via internal USB connectors
• 2x USB 3.2 Gen2 type A port on the back panel
• 2x USB 3.2 Gen1 (USB 3.0) port on the back panel
• 4x USB 2.0 ports on the back panel

Audio

• Realtek Audio Codec
• 2/4/5.1/7.1 channel High Definition Audio

LAN

• 1x Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

• AMD Wi-Fi 6E RZ616 (MT7922A22M)
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.2

Internal connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connector
• 1x CPU fan connector
• 1x CPU water cooling fan connector
• 3x system fan connector
• 1x RGB LED strip connector/CPU cooling LED strip
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 4x M.2 slot, M Key
• 4x SATA 6Gb/s connector
• 1x front panel connector
• 1x front panel audio connector
• 1x USB 3.2 Gen2x2 type C connector
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x Thunderbolt AIC connector
• 1x TPM connector (supports only GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
• 1x Power button
• 1x Reset button
• 1x Reset jumper
• 1x Clear CMOS button
• 1x Clear CMOS jumper

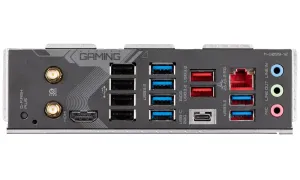

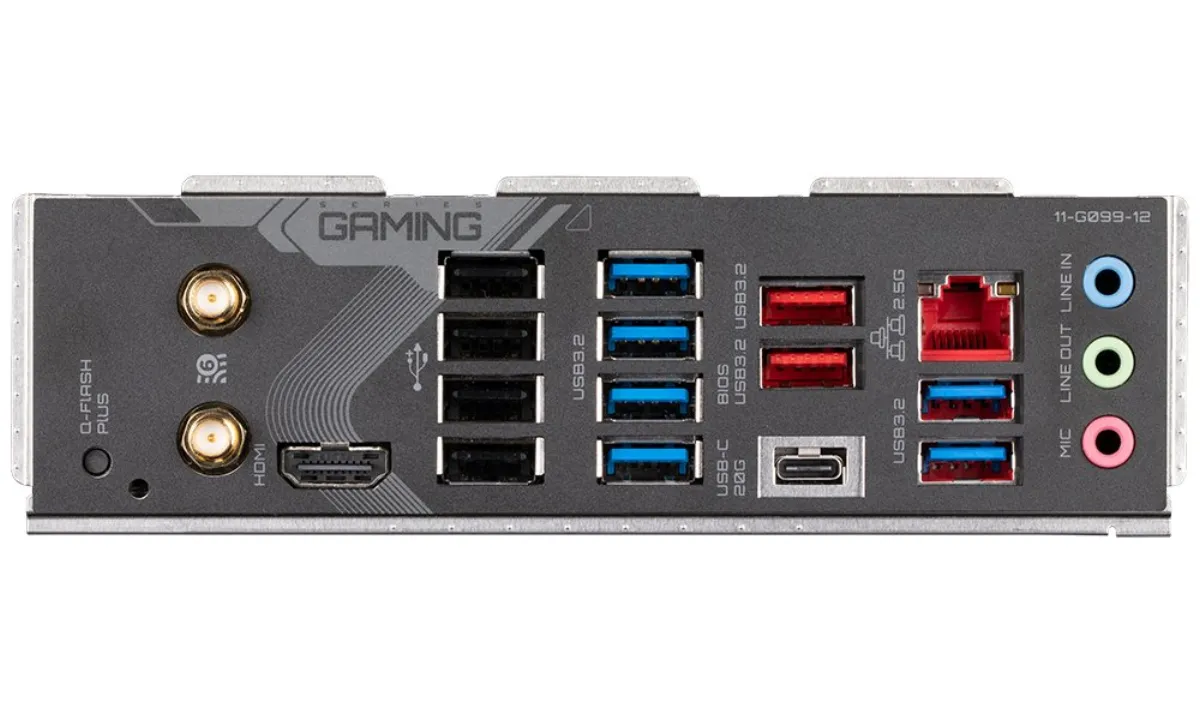

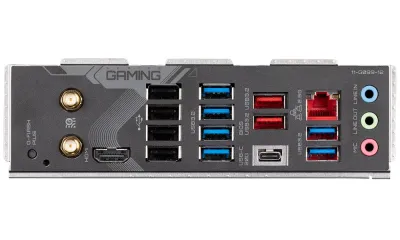

Rear panel ports

• 1x Q-Flash Plus button
• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x USB 3.2 Gen2x2 type C
• 2x USB 3.2 Gen2 (USB 3.1 Gen2)
• 6x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
