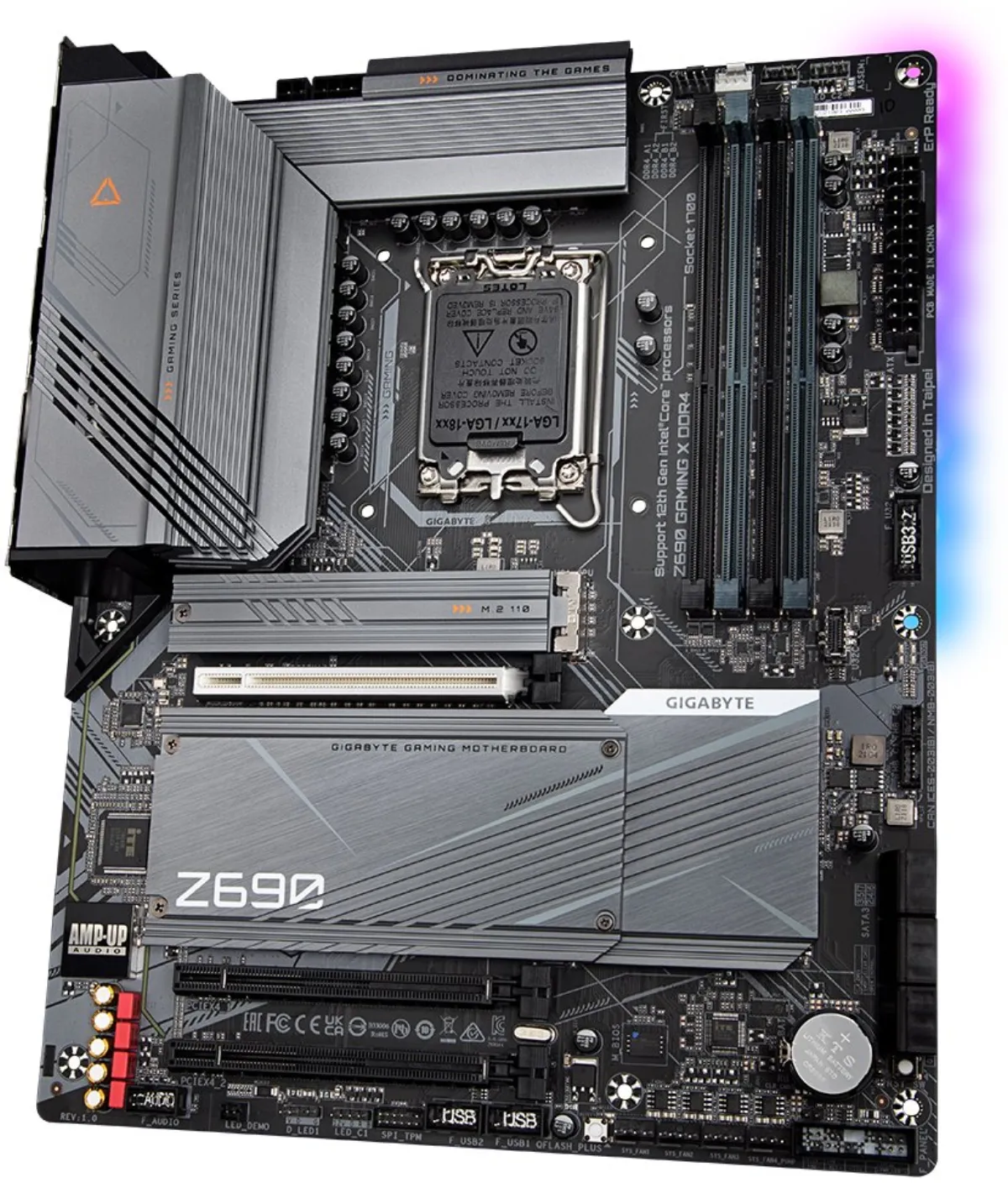

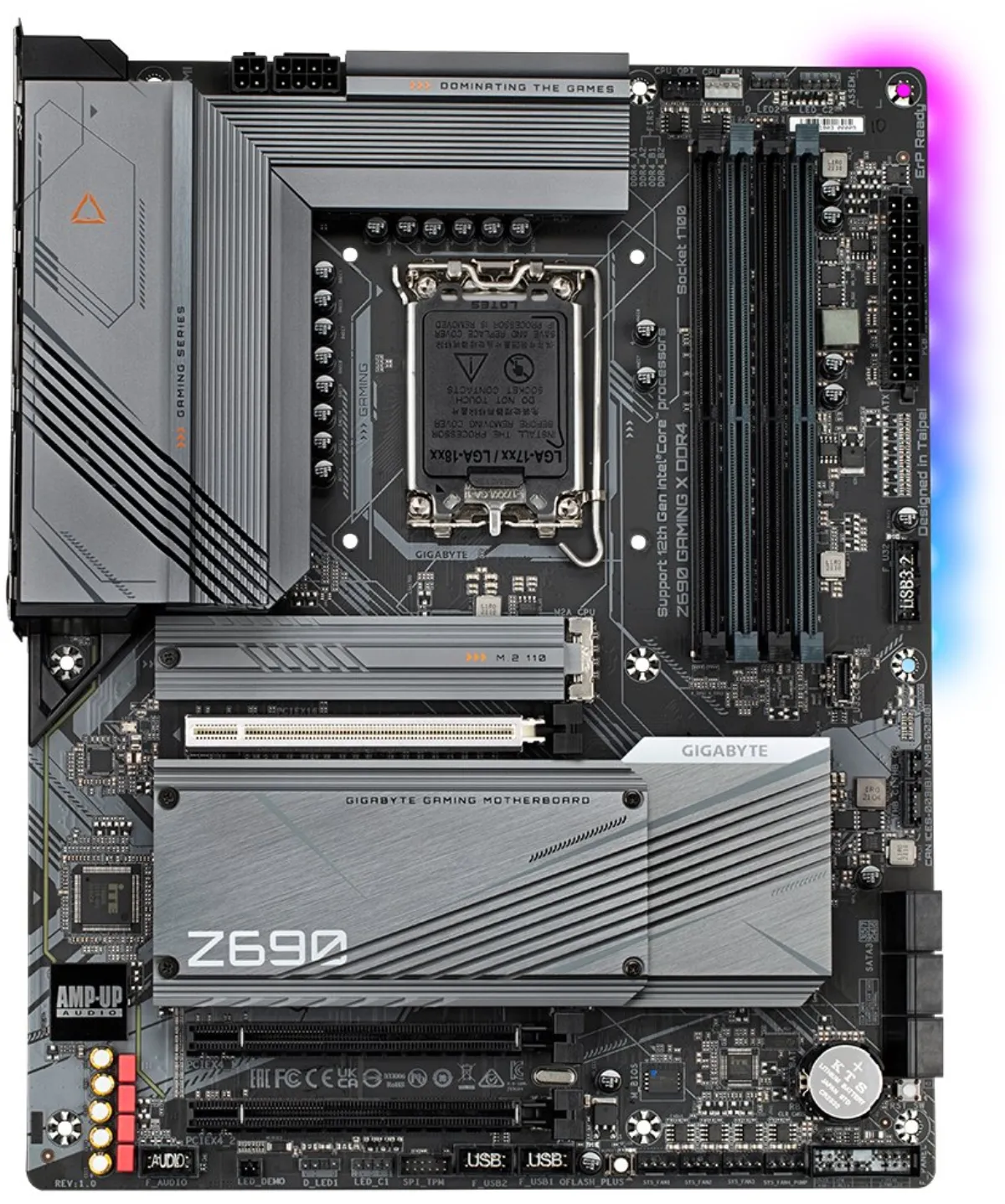

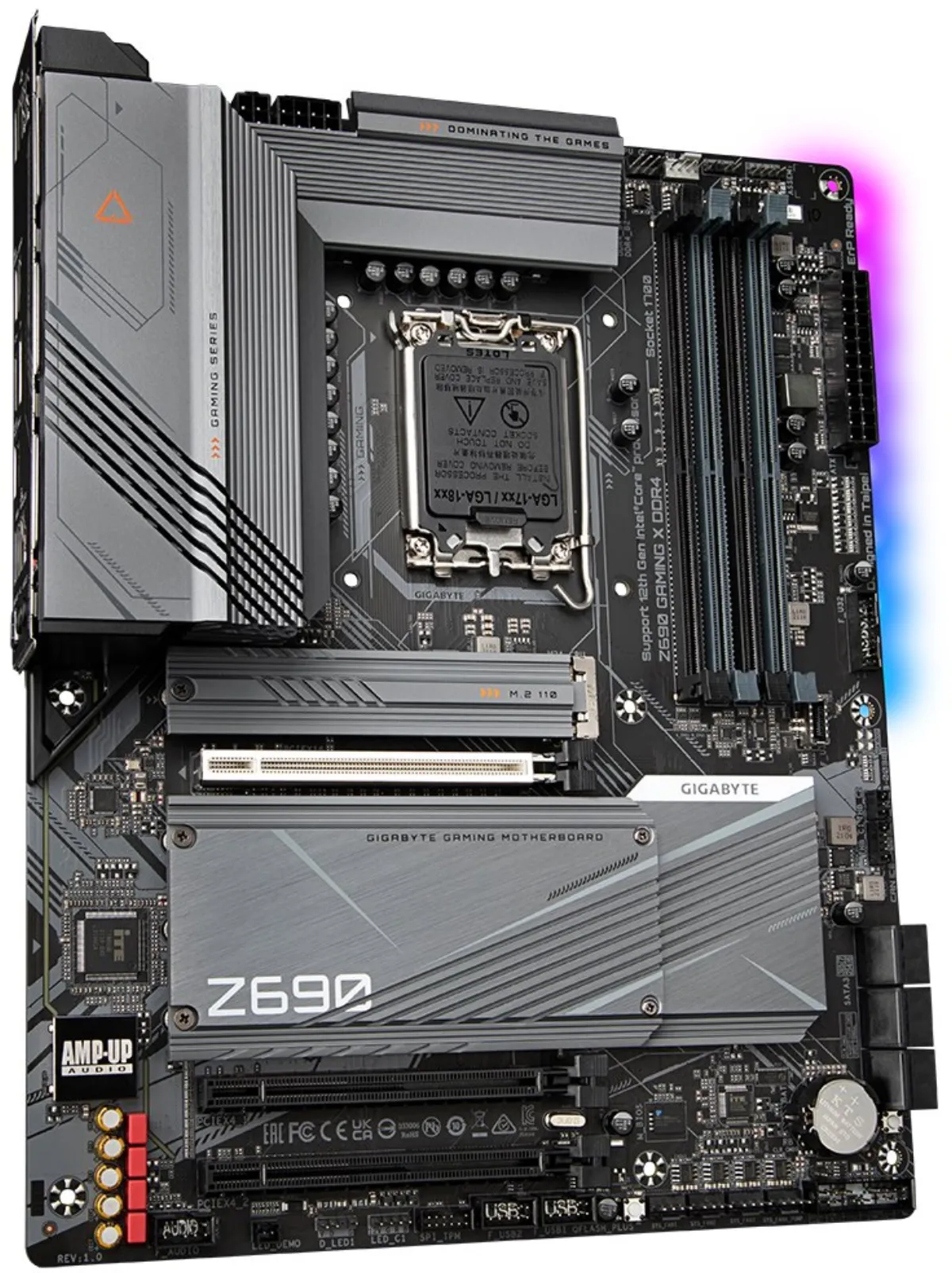

GIGABYTE Z690 GAMING X DDR4 LGA1700 Intel Z690 4x DDR4 4x M.2 HDMI DP USB-C ATX

GIGABYTE Z690 GAMING X DDR4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . generation Intel Core i5/ i7/ i9
• Socket LGA1700

Chipset

• Intel Z690

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 5333 (OC)/ 5133 (OC)/ 5000 (OC)/ 4933 (OC)/ 4800 (OC)/ 4700 (OC)/ 4600 (OC)/ 4500 (OC)/ 4400 (OC)/ 4300 (OC) )/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3666 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC) )/ 3333 (OC)/ 3300 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16
• ECC memory support (non-ECC mode), 1Rx8/2Rx8
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 5.0 x16 slot
• 2x PCIe 3.0 x16 slot (supports x4 mode)

Graphic Design

• 1x DisplayPort port, supporting a maximum resolution of 4096 x 2304 at 60 Hz
• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz

Multi-GPU

• Support for AMD Quad-GPU CrossFire and 2-Way CrossFire technology

Repository

• 1x M.2 slot, M Key, for 2260/2280/22110 type units (PCIe 4.0 x4/x2 mode)
• 2x M.2 slot, M Key, for units of type 2260/2280/22110 (PCIe 4.0 x4/x2 mode)
• 1x M.2 slot, M Key, for 2260/2280/22110 type units (SATA and PCIe 4.0 x4/x2 mode)
• 6x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support
• Intel Optane technology support

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 2x USB 3.2 Gen2 type A port on the back panel
• 5x USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports available via the internal USB connector)
• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC1220-VB Codec
• 7.1 channel High Definition Audio
• 2-channel analog output
• S/PDIF output support

HIND

• 1x Realtek 2.5Gigabit LAN controller

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x CPU fan connector
• 1x CPU water cooling fan connector
• 3x system fan connector
• 1x system fan/water cooling pump connector
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 4x M.2 slot, M Key
• 6x SATA 6Gb/s connector
• 1x front panel connector
• 1x front panel audio connector
• 1x USB 3.2 Gen2 type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x Thunderbolt AIC connector
• 1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
• 1x Reset button
• 1x Reset jumper
• 1x Q-Flash Plus button
• 1x Clear CMOS jumper

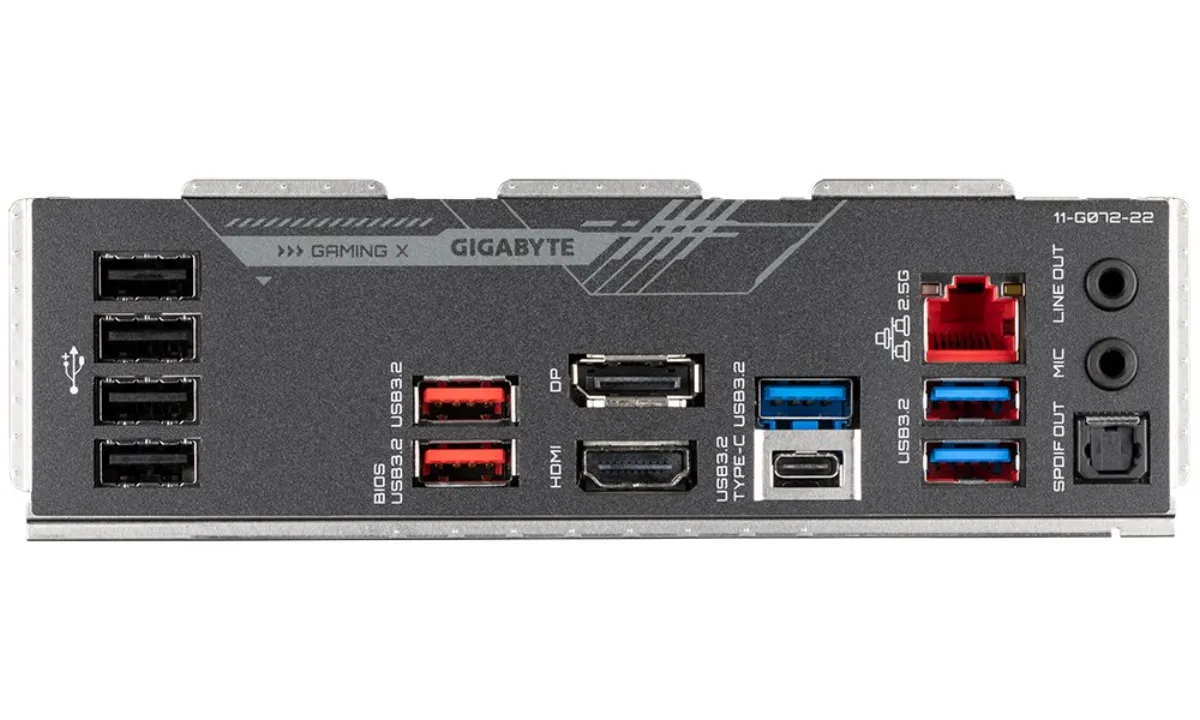

Rear Panel Ports

• 1x USB 3.2 Gen2x2 Type C
• 2x USB 3.2 Gen2 (USB 3.1 Gen2)
• 3x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1 x DisplayPort
• 1x HDMI
• 1x RJ-45
• 1x optical S/PDIF output
• 2x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
