GoodWe Smart meter GM1000 Single-phase smart electricity meter
GOODWE | GMS1000-00-00P | 8592457254836
On stock 1 pcs.
Price of goods is 135.56 €.
Weight of goods is 0.49 Kg.
Actual in cart 0 pcs.

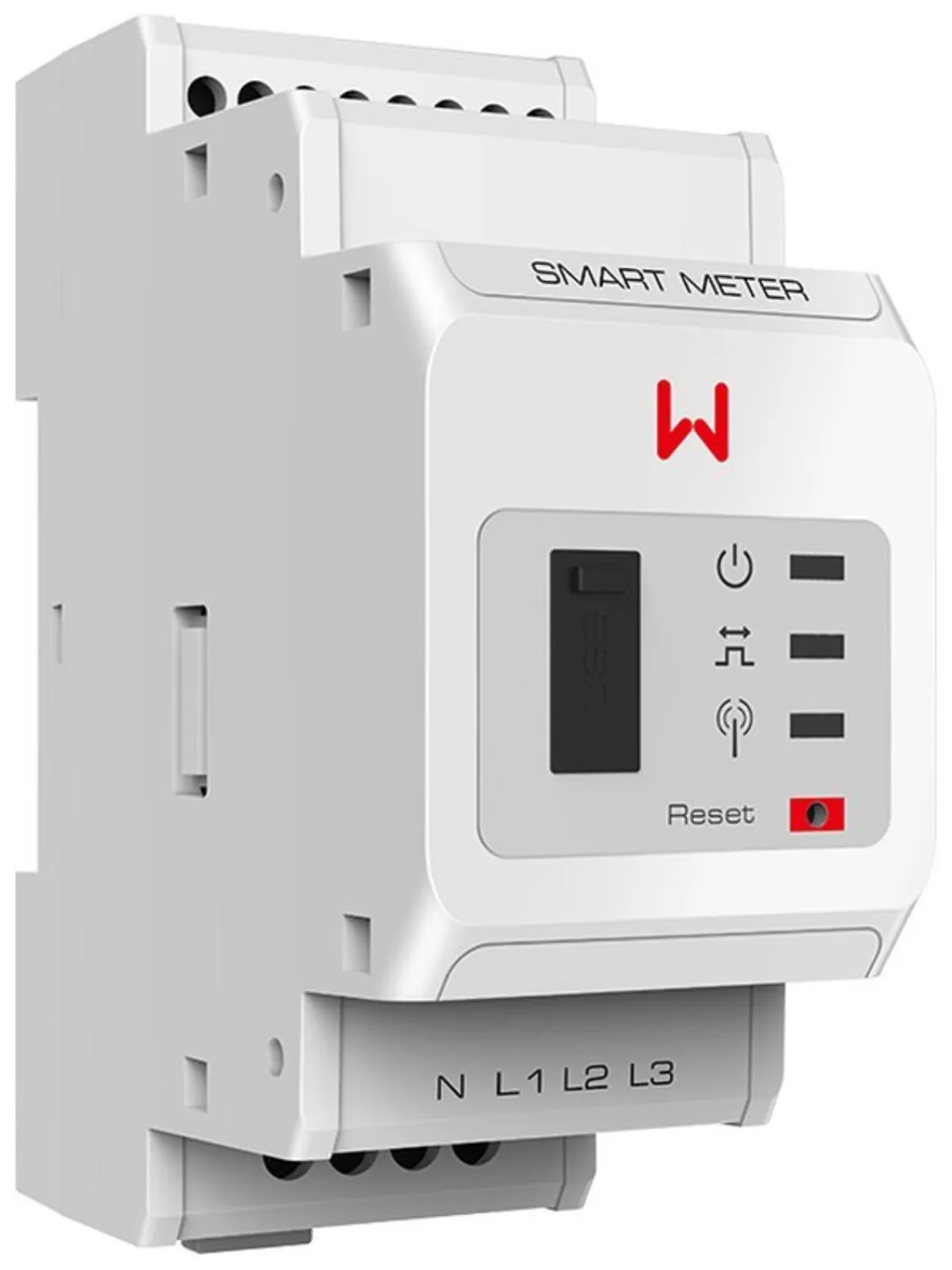

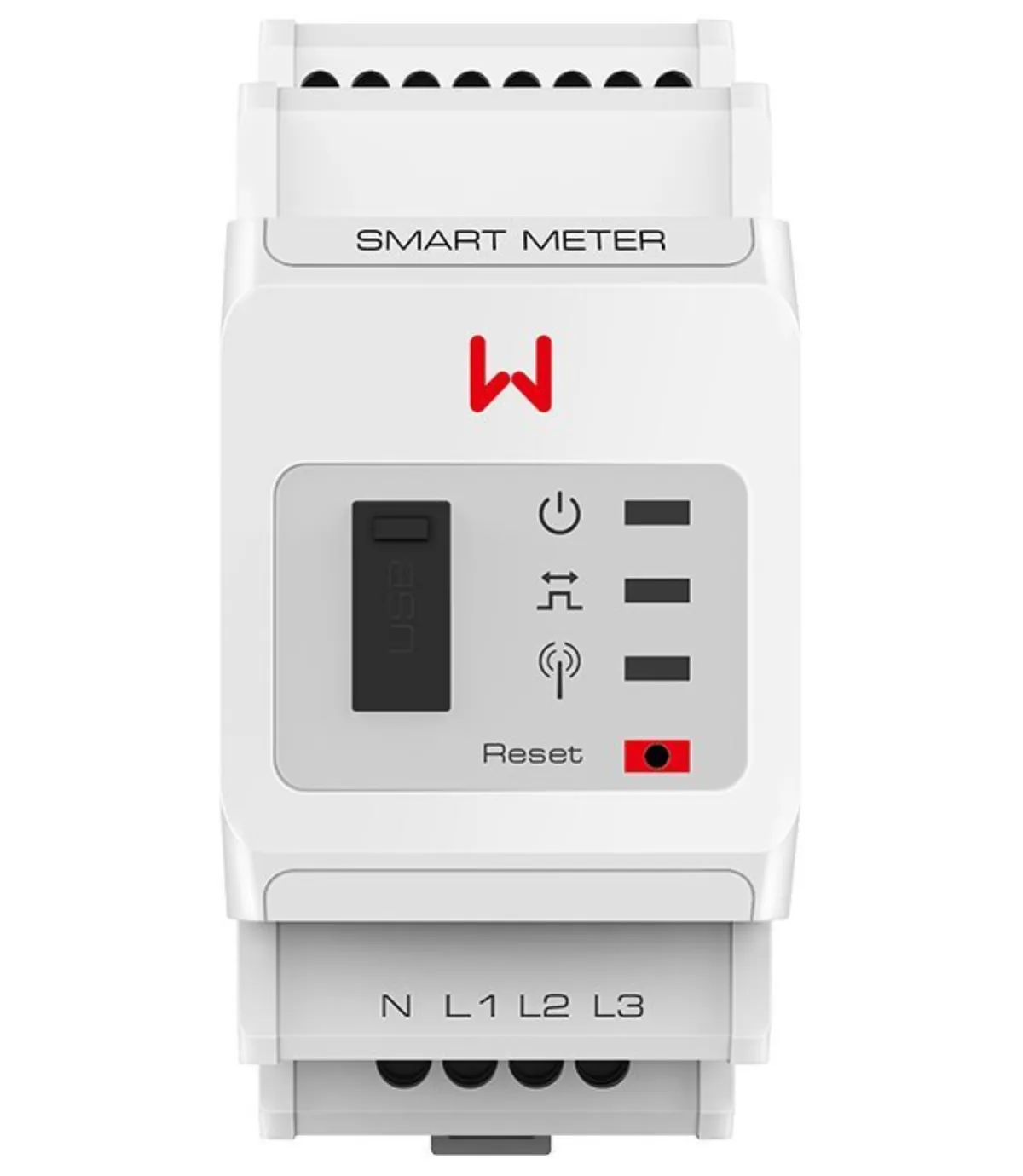

GoodWe GM1000

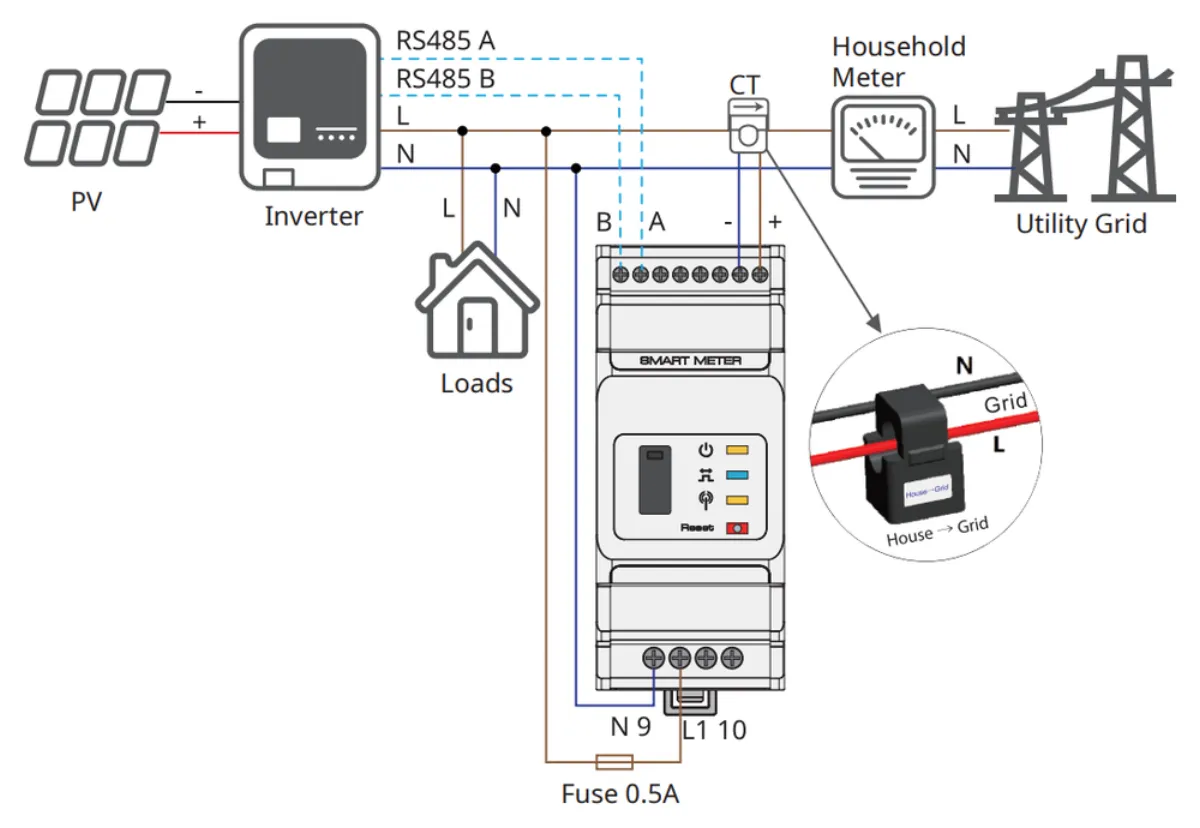

Single-phase electricity meter GoodWe Smart Meter GM1000 for GoodWe grid inverters DNS, XS, MS, NS and HV 1100. The measuring module is necessary for the proper operation of the inverter and serves to measure the direction, range of power and current, and then controls the operation of the inverter via RS485 communication.
Rated voltage: AC 110 V/ 23
Frequency: 50/60 Hz
Max. current (Imax): 120 A
Min. current (Imin): 0.40 A
Own consumption: <3 W
Interface
- RS-485
- Reset button
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,25 | |
| Color | white | |
| Voltage frequency | 50/60 | |
| Maximum input current [A] | 120 | |
| Maximum operating temperature [°C] | 60 | |
| Minimum operating temperature [°C] | -25 | |
| Wi-fi | No | |
| Depth [mm] | 36 | |
| Height [mm] | 85 | |
| Width [mm] | 66,5 | |
| Rated voltage [V] | 110/230 (AC) | |
