Grandstream GWN7660 access point Dual Band 2x RJ45 Gbps 802.11 a b g n ac ax
Grandstream | GWN7660 | 6947273703518
Out of stock.
Price of goods is 110.58 €.
Weight of goods is 0.812 Kg.
Actual in cart 0 pcs.

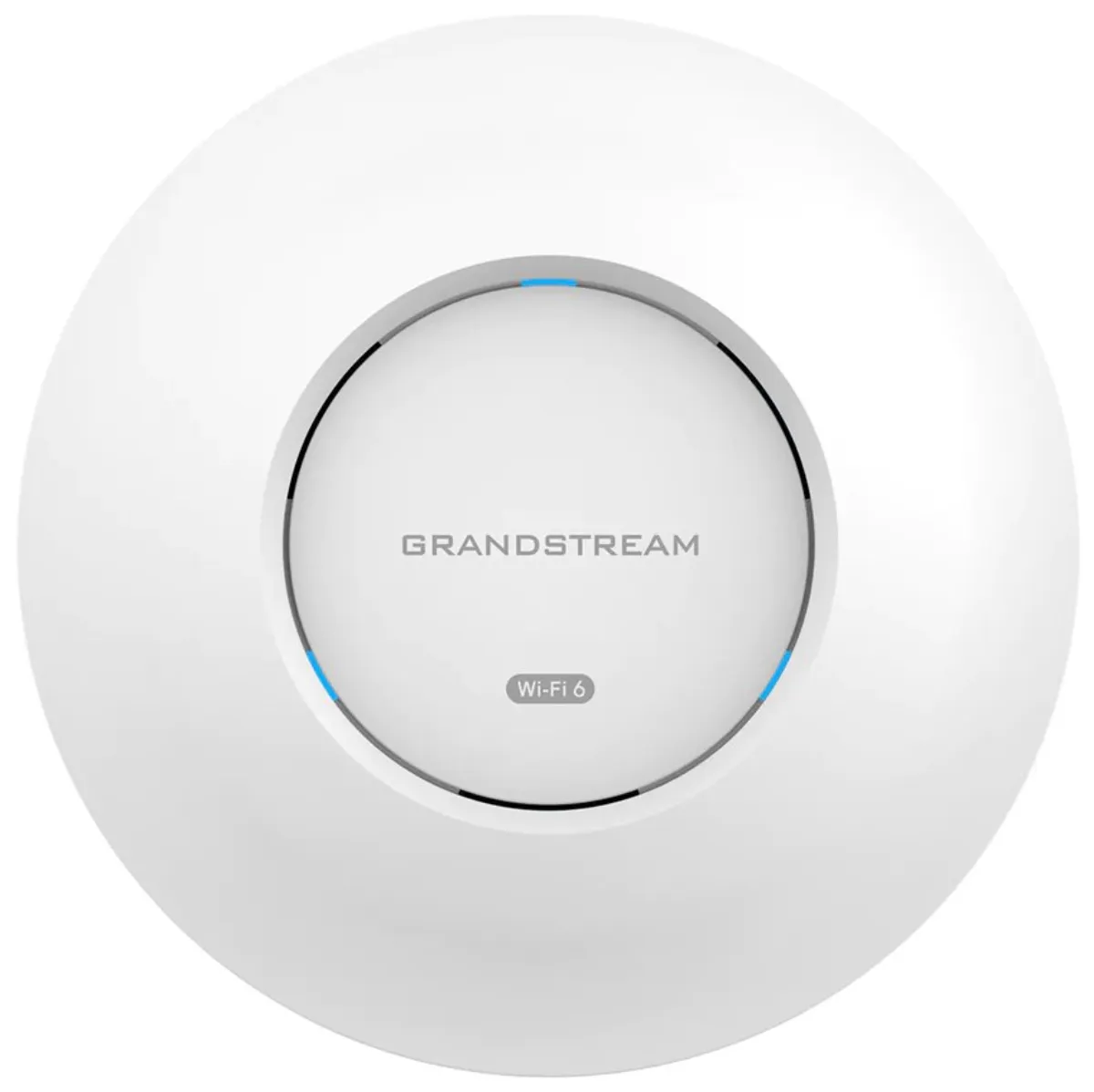

Grandstream GWN7660
Ceiling/wall Wi-Fi 6 access point designed for corporate wireless networks with higher traffic density. Two dual-band internal antennas with high gain and support for OFDMA technology ensure a strong and reliable Wi-Fi signal for up to 256 connected wireless devices. GWN.Cloud - Grandstream's free cloud platform - is supported to ensure easy installation and management. The GWN7660 is the ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions, offering seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, mesh networks and captive portals, it represents a scalable Wi-Fi solution for mid-sized enterprise deployments.
- Dual-band 2x2:2 MU-MIMO technology with DL/UL OFDMA support
- Aggregated speed of 1.77 Gb/s (wireless throughput), 2x Gigabit port
- Coverage up to a distance of 175 meters
- Power adaptation and automatic detection of PoE/PoE+
- Secure boot (Anti-hacking secure boot), critical data/control + lock via digital signature, security via certificate, random default password for each device
- Support up to 256 Wi-Fi client devices
- The built-in control unit (controller) can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller
Standard: IEEE 802.11a/b/g/n/ac/a
Data transfer speed
- 5 GHz - 1201 Mbit/s
- 2.4 GHz - 573.5 Mbit/s
Antenna
- 2x 2-band internal antenna (3 dBi for 2.4 GHz
- 4 dBi for 5 GHz)

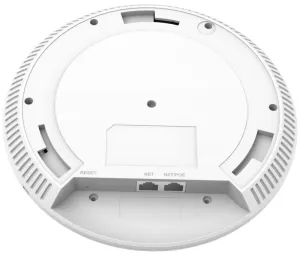

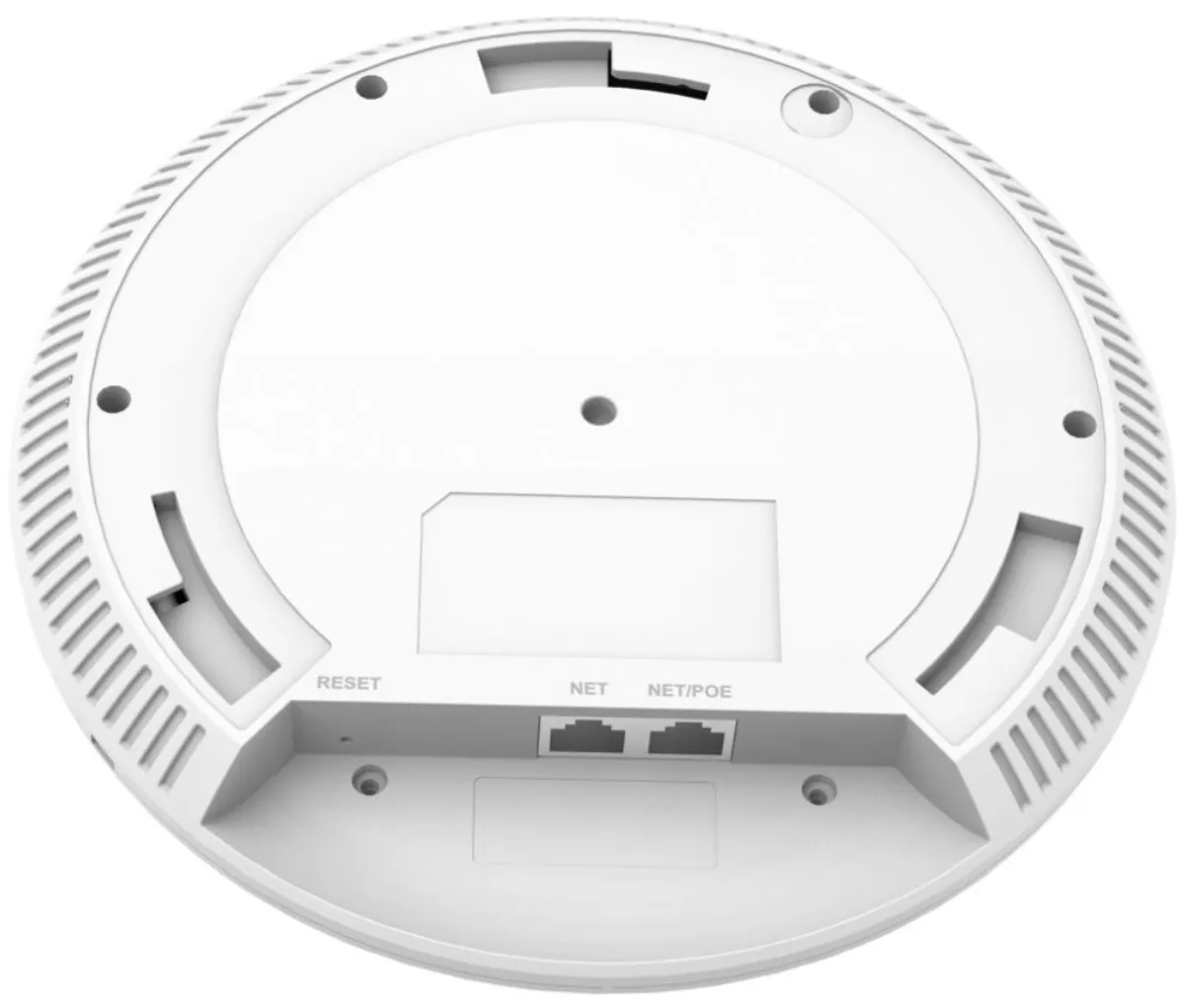

Ports: 2x GbE RJ-45
Frequency
- 2.4 GHz
- 5 GHz
Security
- WEP
- WPA/WPA2-PSK
- WPA/WPA2 Enterprise (TKIP/AES)
- WPA3
- anti-hacking boot
- management using digital signatures/certificates
- random default password
PoE support
- yes
- PoE/PoE+ (802.3af/at)
Dimensions: 180.4 x 180.4 x 40.8 mm
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,443 | |
| Color | white | |
| Dimension [mm] | 180,4 × 180,4 × 40,8 mm | |
| Maximum operating temperature [°C] | 45 | |
| Port speed | 1 Gb/s | |
| Minimum operating temperature [°C] | 0 | |
| Design | on the ceiling | |
| Conformity | FCC, CE, RCM, IC | |
| Consumption [W] | 9 | |
| Transmission speed [Mbps] | 1201 (5GHz), 574 (2,4GHz) | |
| Max. output power [dBm] | 24 | |
| AP mode | Yes | |
| Encryption | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 | |
| Bridge mode | No | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax | |
| Sensitivity [dBm] | -96 (11b, 1Mbps); -92 (11a, 6Mbps) | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Repeater mode | No | |
| Antenna design | internal | |
| Indoor use | Yes | |
| Gain [dBi] | 3 (2,4GHz), 4 (5GHz) | |
