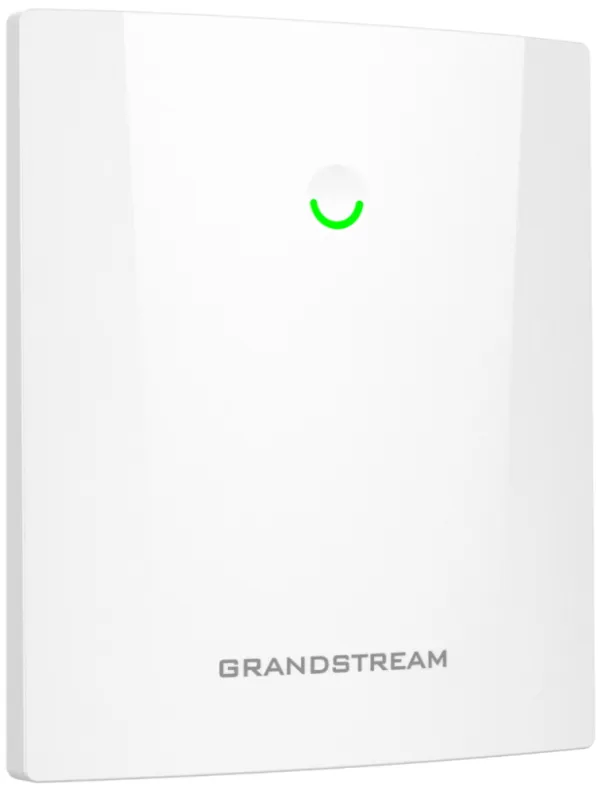

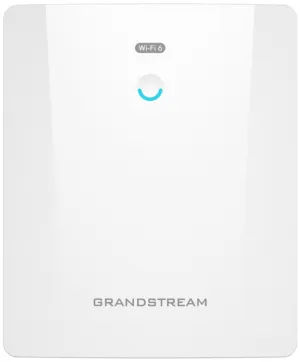

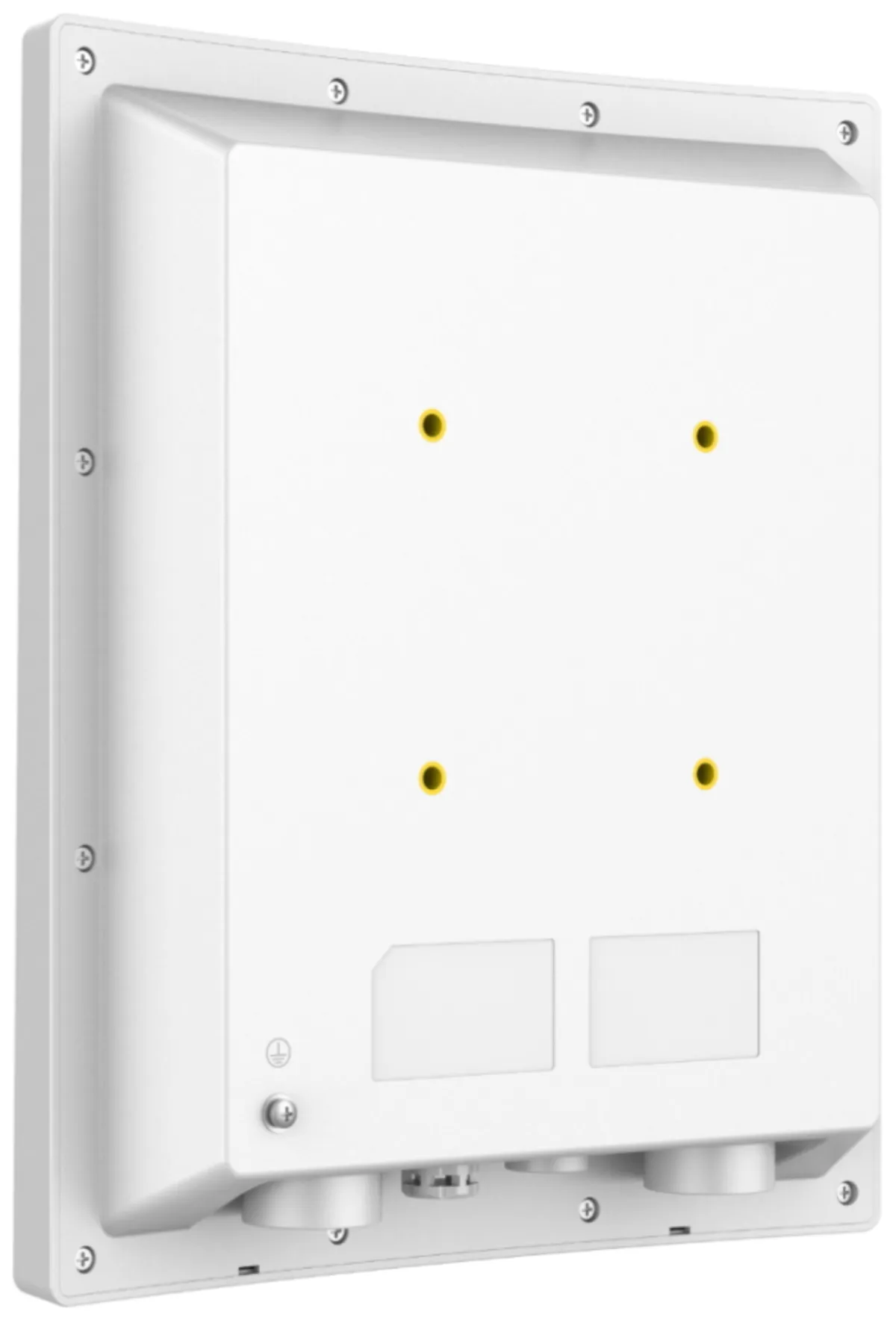

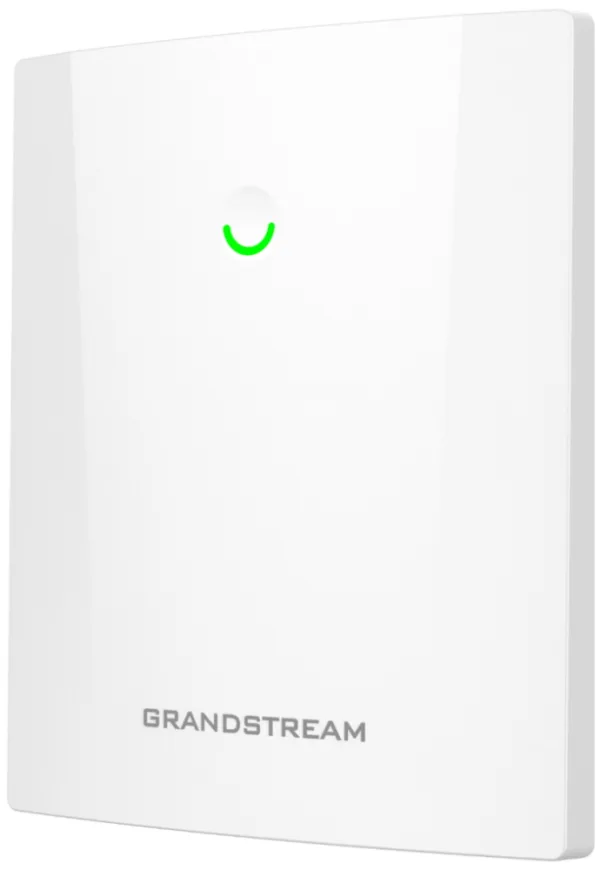

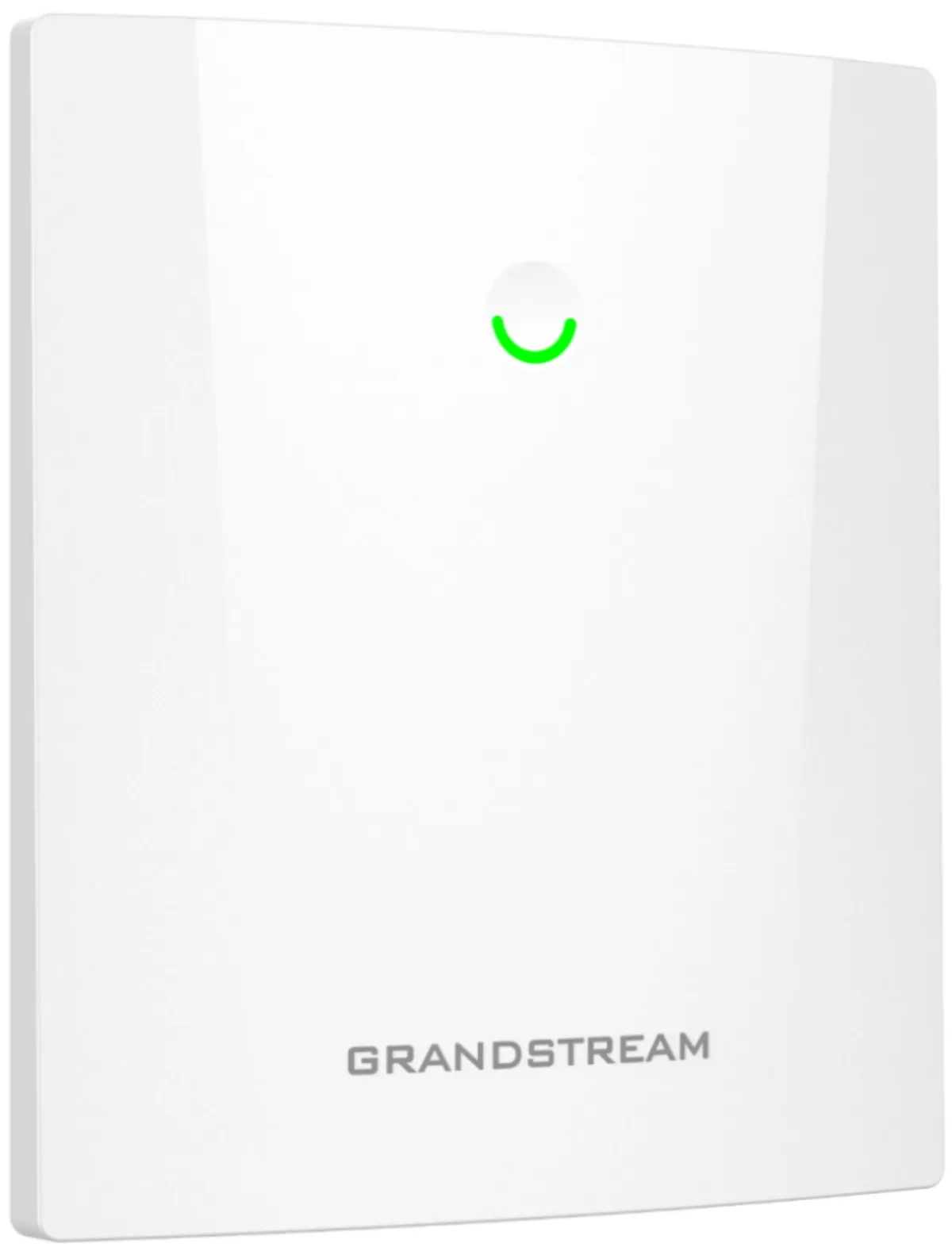

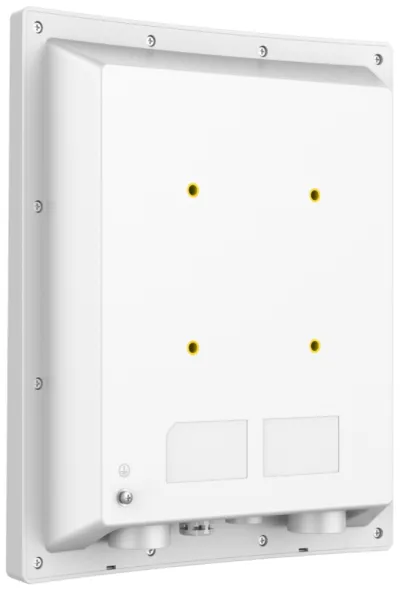

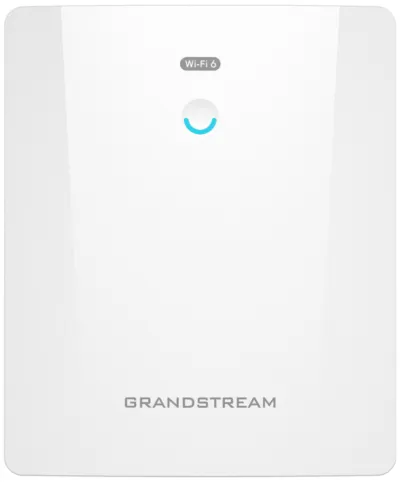

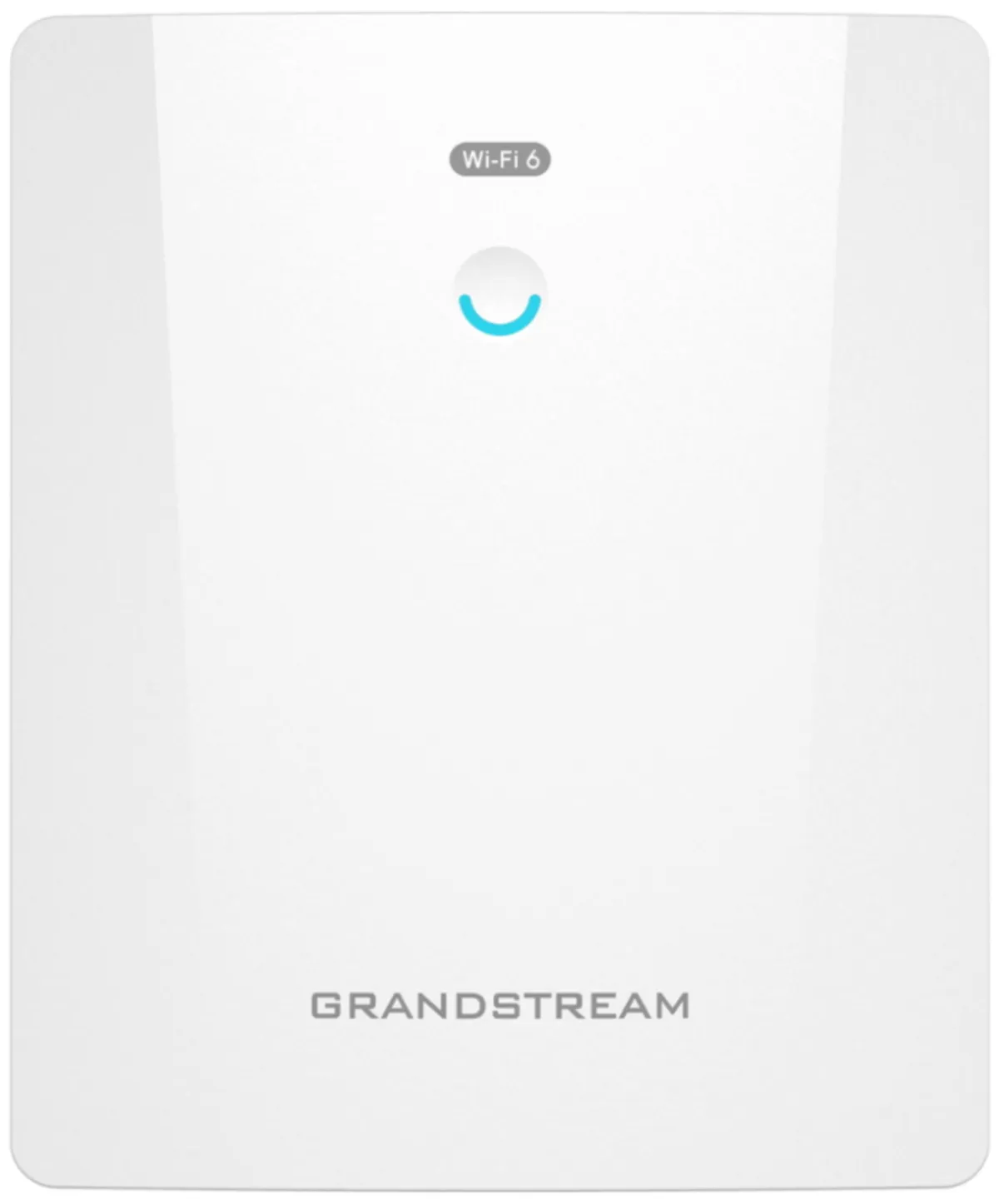

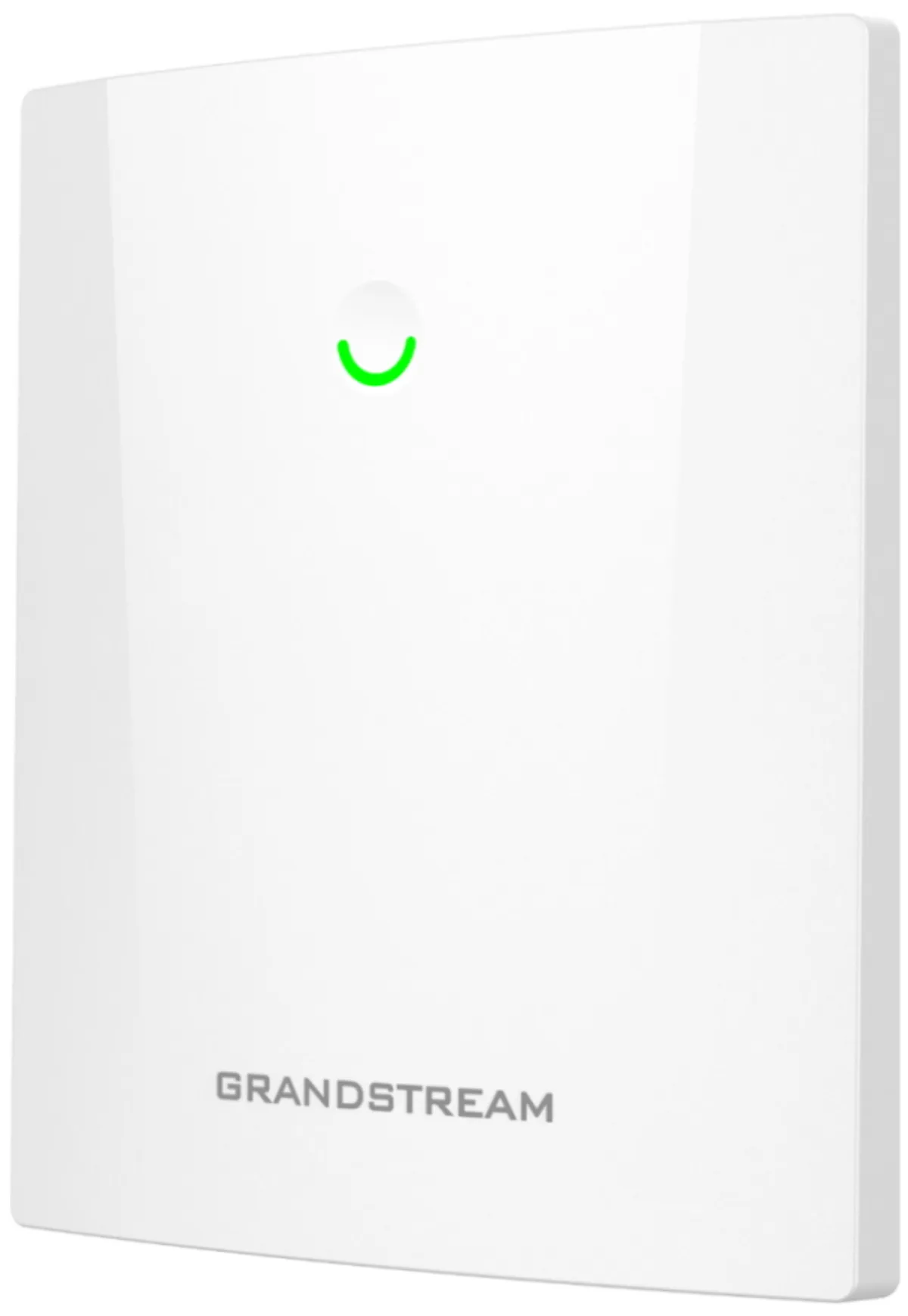

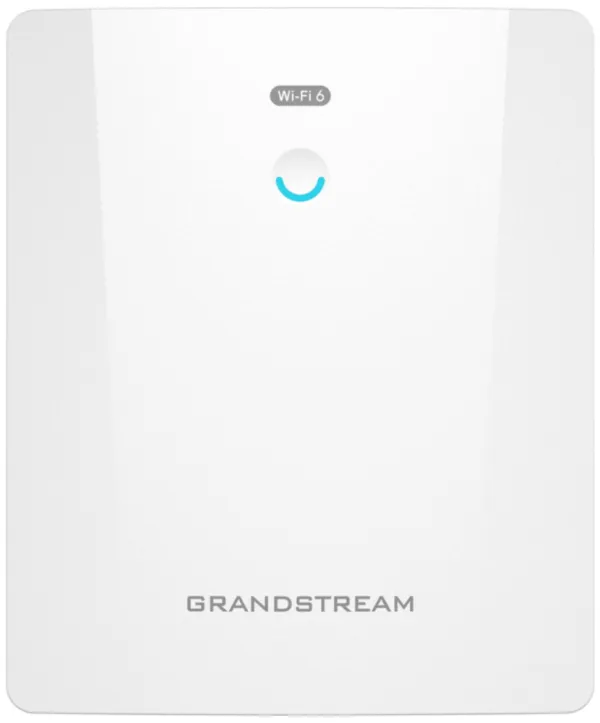

Grandstream GWN7660ELR Outdoor Wi-Fi 6 Access Point

Grandstream GWN7660ELR

Outdoor Wi-Fi 6 access point designed for high-density enterprise wireless networks. Five internal high-gain antennas with OFDMA technology support ensure a strong and reliable Wi-Fi signal for up to 256 connected wireless devices. For easy installation and management, it is supported by GWN.Cloud - Grandstream's free cloud platform. The GWN7660ELR is the ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions and offers seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, Mesh networks and captive portals, it is the ideal outdoor access point for enterprises, multi-story offices, warehouses, hospitals, schools and more.

• Aggregated speed of 3 Gbps (wireless throughput), 1× 2.5 Gigabit SFP port and 1× Gigabit RJ-45 port
• Dual-band 2×2:2 MIMO technology with OFDMA support
• Coverage up to 300 meters
• Support for up to 256 Wi-Fi client devices
• Built-in Bluetooth 5.2 LE
• Secure boot (Anti-hacking secure boot), critical data/control + digital signature lock, certificate security, random default password for each device
• Power adaptation and PoE/PoE+ auto-detection
• Built-in controller can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller

Standard: IEEE 802.11a/b/g/n/ac/ax

Data transfer rate

• 5 GHz - 2403 Mbit/s
• 2.4 GHz - 573.5 Mbit/s

Antenna

• 5× 1-band internal antenna (5.5 dBi for 2.4 GHz
• 6 dBi for 5 GHz)

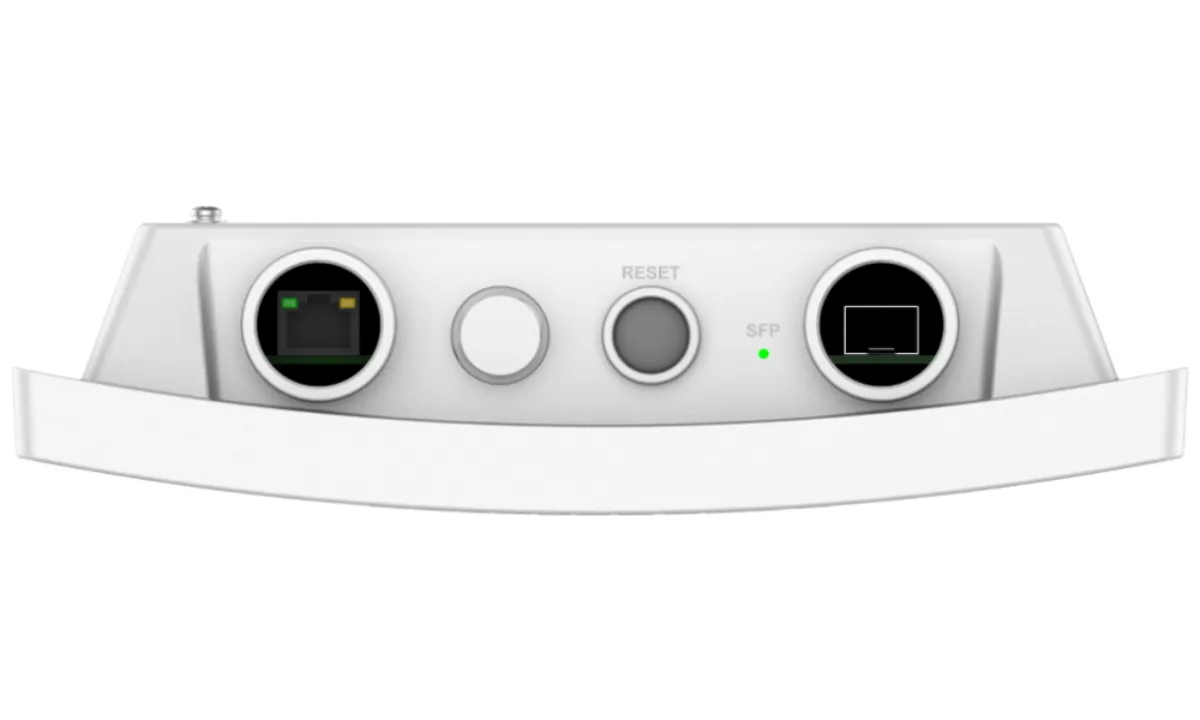

Ports

• 1× 2.5G SFP
• 1× GbE RJ-45

Frequency

• 2.4 GHz
• 5 GHz

Security

• WPA/WPA2-PSK
• WPA/WPA2 Enterprise (TKIP/AES)
• WPA3
• anti-hacking boot
• digital signature/certificate management
• random default password

PoE Support

• yes
• PoE/PoE+ (802.3af/at)

Dimensions: 270 × 230 × 57 mm

Weight: 1000 g
