Grandstream GWN7665 Wi-Fi 6E Access Point

Grandstream GWN7665

Ceiling/wall-mounted Wi-Fi 6E access point designed for medium to high-density enterprise wireless networks. Seven internal high-gain antennas with OFDMA technology support ensure a strong and reliable Wi-Fi signal for up to 384 connected wireless devices. For easy installation and management, GWN.Cloud - Grandstream's free cloud platform is supported. The GWN7665 is an ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions and offers seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, Mesh networks and captive portals, it is an ideal solution for medium-sized enterprises, multi-story buildings, residential environments and commercial locations.

• Aggregated speed of 5.38 Gbps (wireless throughput), 1× 2.5Gigabit port and 1× Gigabit port
• Tri-band 2×2:2 MU-MIMO technology with DL/UL OFDMA support
• Coverage up to 175 meters
• Support for up to 384 Wi-Fi client devices
• Built-in Bluetooth 5.2 LE
• Secure boot (Anti-hacking secure boot), critical data/control + digital signature lock, certificate security, random default password for each device
• Power adaptation and PoE/PoE+ auto-detection
• Built-in controller can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller

Standard: IEEE 802.11a/b/g/n/ac/ax

Data transfer rate

• 6 GHz - 2403 Mbit/s
• 5 GHz - 2403 Mbit/s
• 2.4 GHz - 573.5 Mbit/s

Antenna

• 7× 1-band internal antenna (4 dBi for 2.4 GHz
• 5 dBi for 5 GHz
• 4.5 dBi for 6 GHz)

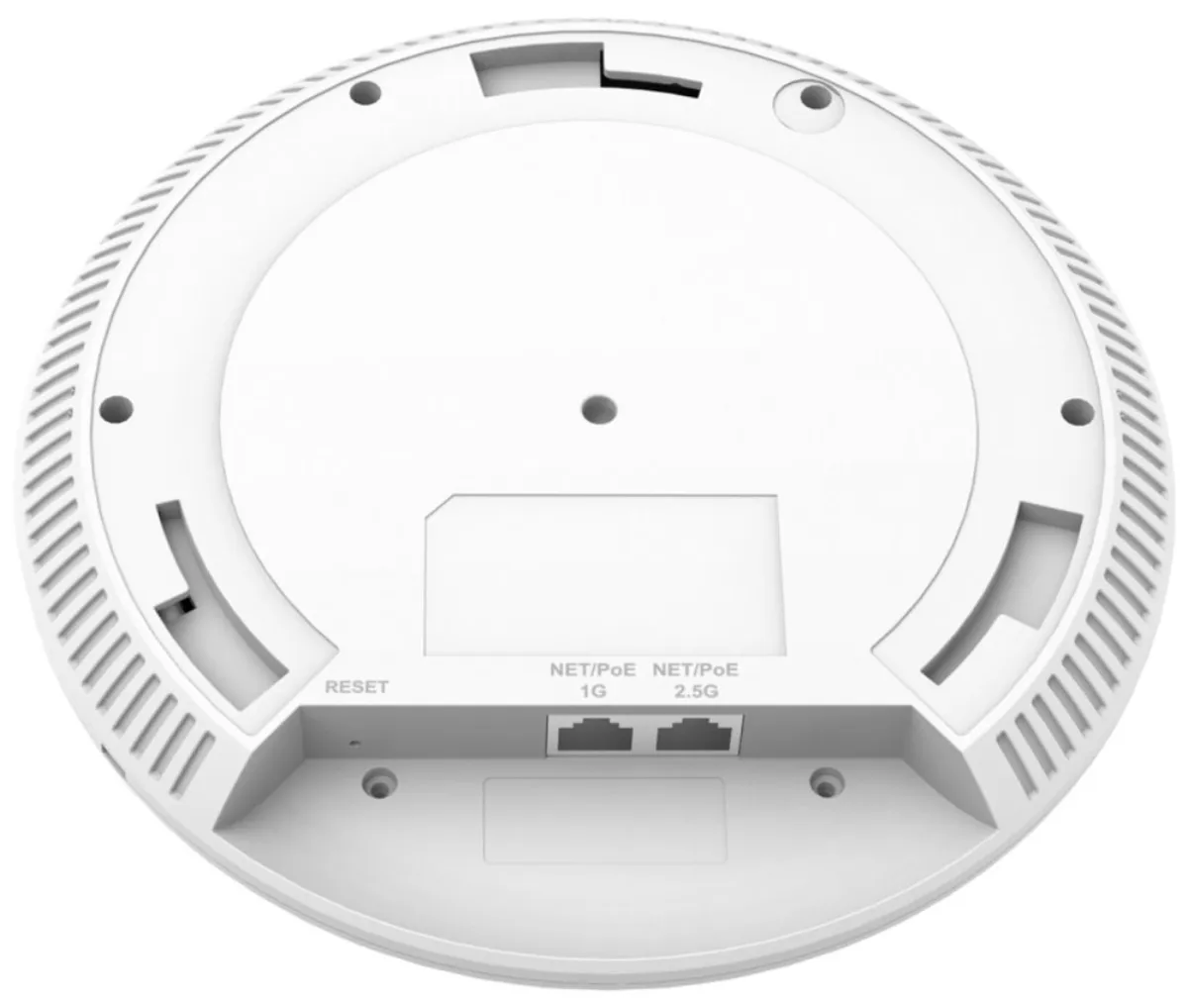

Ports

• 1× 2.5GbE RJ-45
• 1× GbE RJ-45

Frequency

• 2.4 GHz
• 5 GHz
• 6 GHz

Security

• WEP
• WPA/WPA2-PSK
• WPA/WPA2 Enterprise (TKIP/AES)
• WPA3
• anti-hacking boot
• digital signature/certificate management
• random default password

PoE support

• yes
• PoE/PoE+ (802.3af/at)

Dimensions: 205.3 × 205.3 × 45.9 mm

Weight: 765 g
