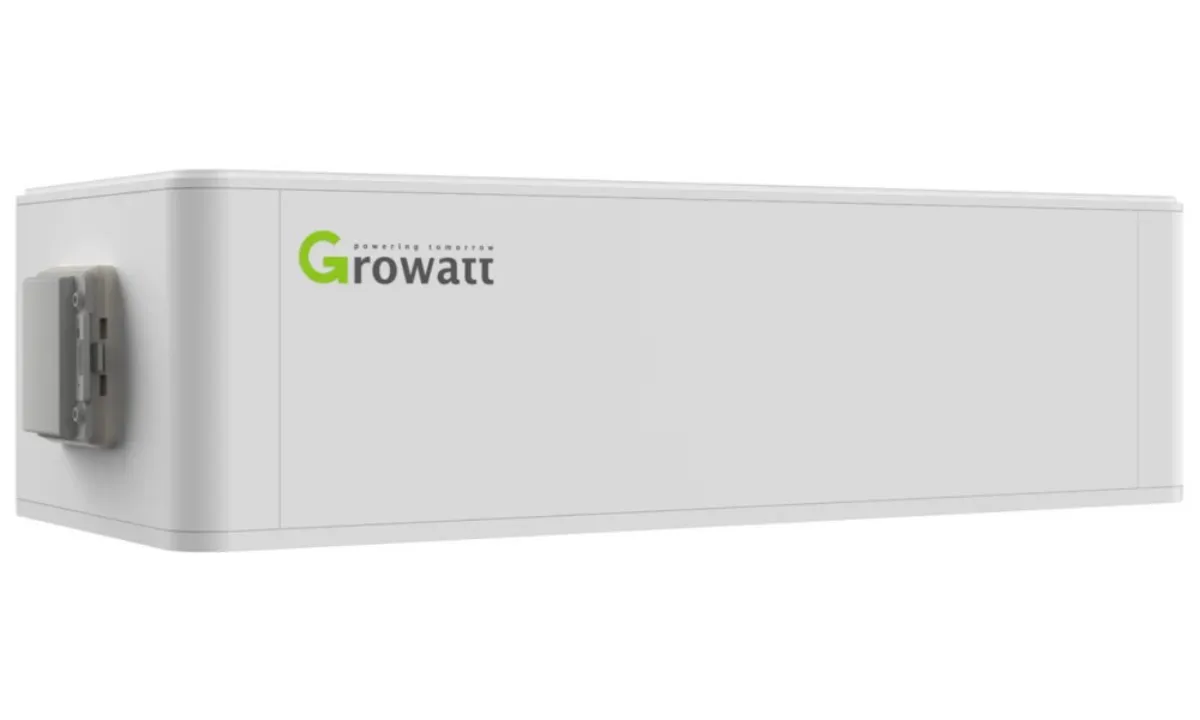

Growatt chassis with BMS for modules 25kWh max 10 modules

GROWATT | ARK-2.5H-A1-BMS | 8592457260455

On stock 4 pcs.

Price of goods is 753.29 €.

Weight of goods is 10.86 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

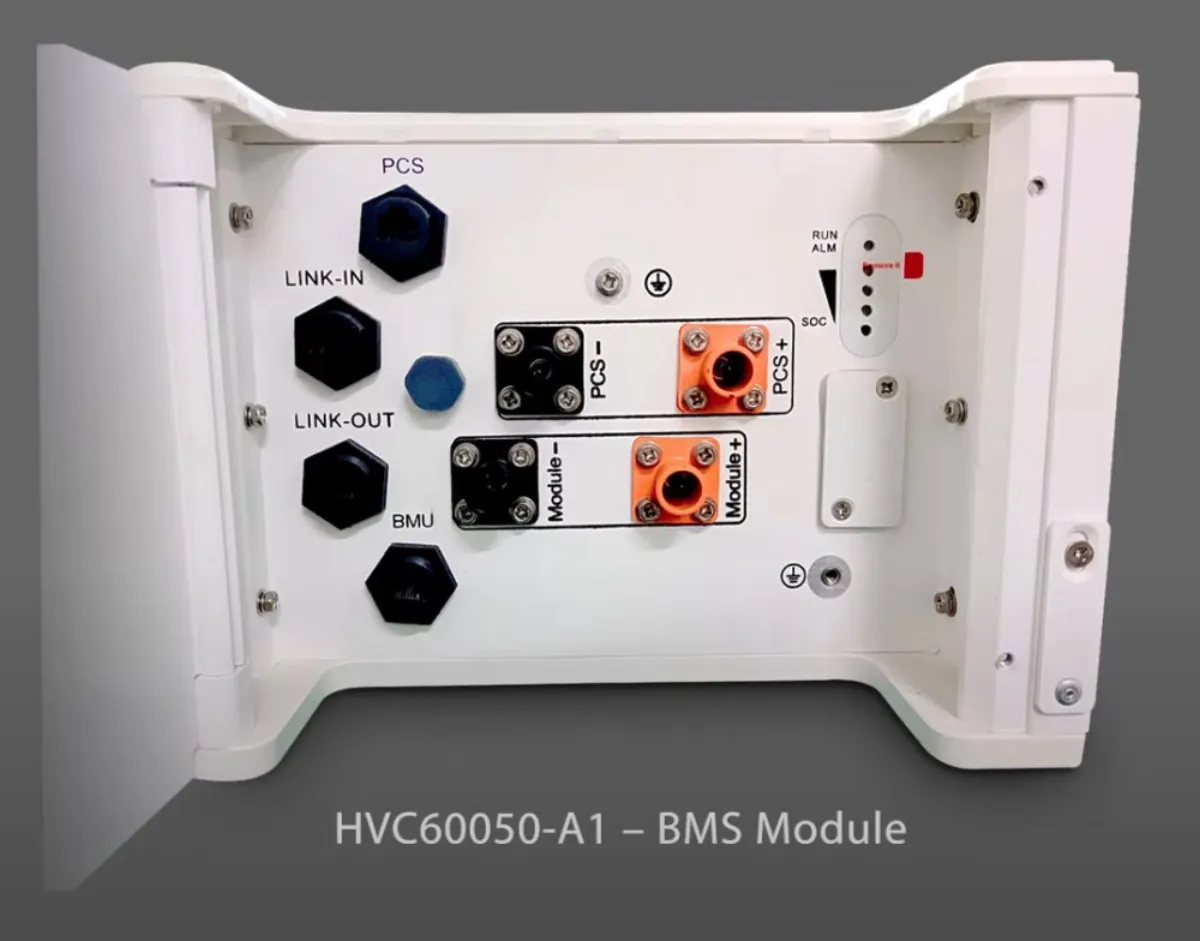

Growatt ARK-2.5H-A1-BMS

Control unit (BMS) for ARK HV battery systems. The unit communicates with the inverter, checks the charge status of individual cells and is responsible for their balanced charging. Supports a total of 3 to 10 ARK-2.5H-A1 battery modules.

Growatt ARK HV is a high-voltage storage system with a modular design. Provides flexible configurations from 7.68 kWh to 25.6 kWh (3 to 10 modules).

Key features and benefits of the ARK HV system

  • Modular stackable construction
  • Degree of protection IP65
  • Flexible capacity from 7.68 to 25.6 kWh
  • 6000 cycle life with 90% DoD
  • Lithium-iron-phosphate (LFP) technology
  • Weight of one battery module: 27 kg
  • Compatible with Growatt SPH and SPA series 3-phase inverters
  • Certification: CE, RCM, CEC, VDE 2510-50, IEC62619, IEC62040, IEC62477, UL 1642, UN38.3, RoHS
  • Remote firmware update

Compatibility: Growatt ARK HV (ARK-2.5H-A1

Communication: CAN

Max. number of connectable batteries: up to 10 pcs

Dimensions: 650 x 260 x 185 mm

Weight: 8.5 kg

Degree of protection: IP65

Properties

NameValue
Weight, brutto [kg]8,5
Maximum operating temperature [°C]50
Minimum operating temperature [°C]-10
Width [mm]650
Depth [mm]260
Height [mm]185
