GWL LiFePO4 balancer CBM BMS for 1 to 4 cells 32V (12A)
GWL/ELERIX | GWL/M-CBM4S | 8592457220114
On stock 32 pcs.
Price of goods is 19.94 €.
Weight of goods is 0.074 Kg.
Actual in cart 0 pcs.

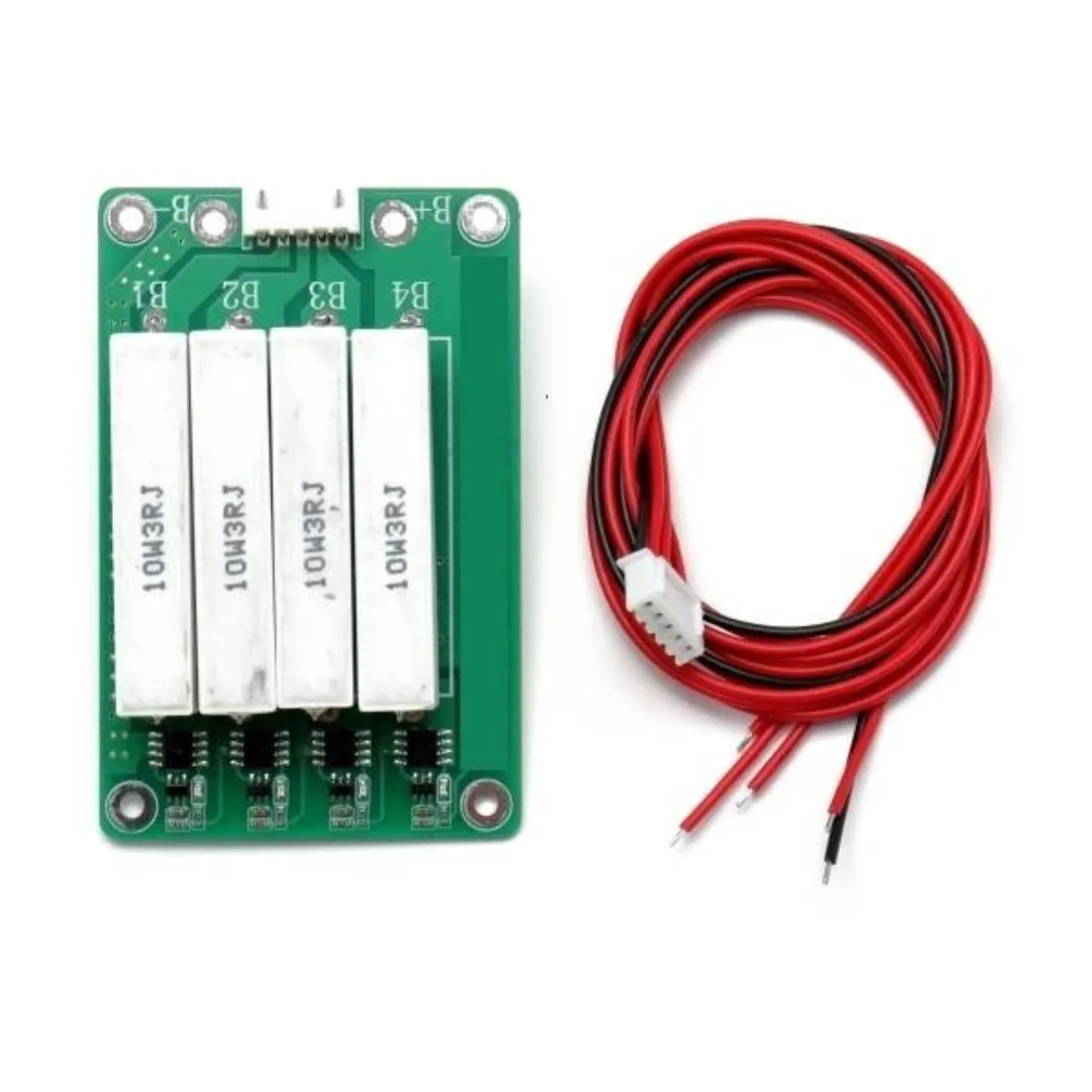

GWL/ELERIX LiFePO4 balancer CBM
Battery balancer (equalizer) for 1 to 4 LFP cells (LiFePO4) with a balancing current of up to 1.2 A. The battery balancer equalizes the voltage between the batteries - it balances to the maximum voltage difference between the batteries. This will improve the performance and life of the batteries connected in the battery pack.
- Indication using LEDs.
- Can be used to balance (balance) LFP cells during the final part of charging.
- Easy connection to LFP cells with a 5-pin connector (socket) JST XH 2.50.
- Possibility of increase due to parallel connections.
- You can disconnect the board from the battery when balancing is not performed.
Information
For transport, there is a plastic holder under the resistors, which must be removed before operation.
Resistors are very hot during operation. Be careful not to touch the resistors
Permanently disconnect the balancer from the cables if you do not plan to use it. We recommend completely disconnecting all components when you stop using the pack.
Cell support: 1-4 (LiFePO4 type
Balance Voltage: 3.60V (+/- 25mV)
Balance resistance: 3.0 Ω
Balance current: 1.0 to 1.2 A
Own consumption: up to 0.05 mA
Connector: JST XH 2.50 5pin (socket)
| Name | Value | |
|---|---|---|
| Input voltage [V] | 3,6 | |
| Dimension [mm] | 80 × 50 × 12 mm | |
| Maximum input current [A] | 1,2 | |
| Connector | JST XH 2.50 5pin | |
