Imou by Dahua Dual-Band Wi-Fi router HR12F-A Wi-Fi IEEE 802.11b g n (2.4GHz) IEEE 802.11a n ac (5GHz) 3x LAN 1x WAN

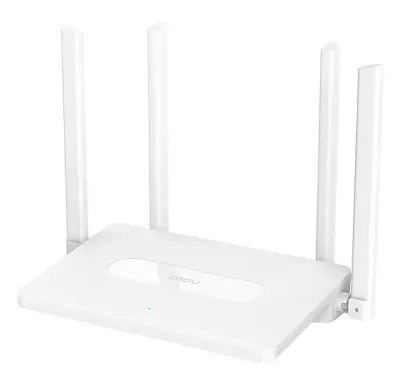

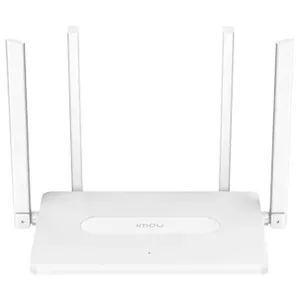

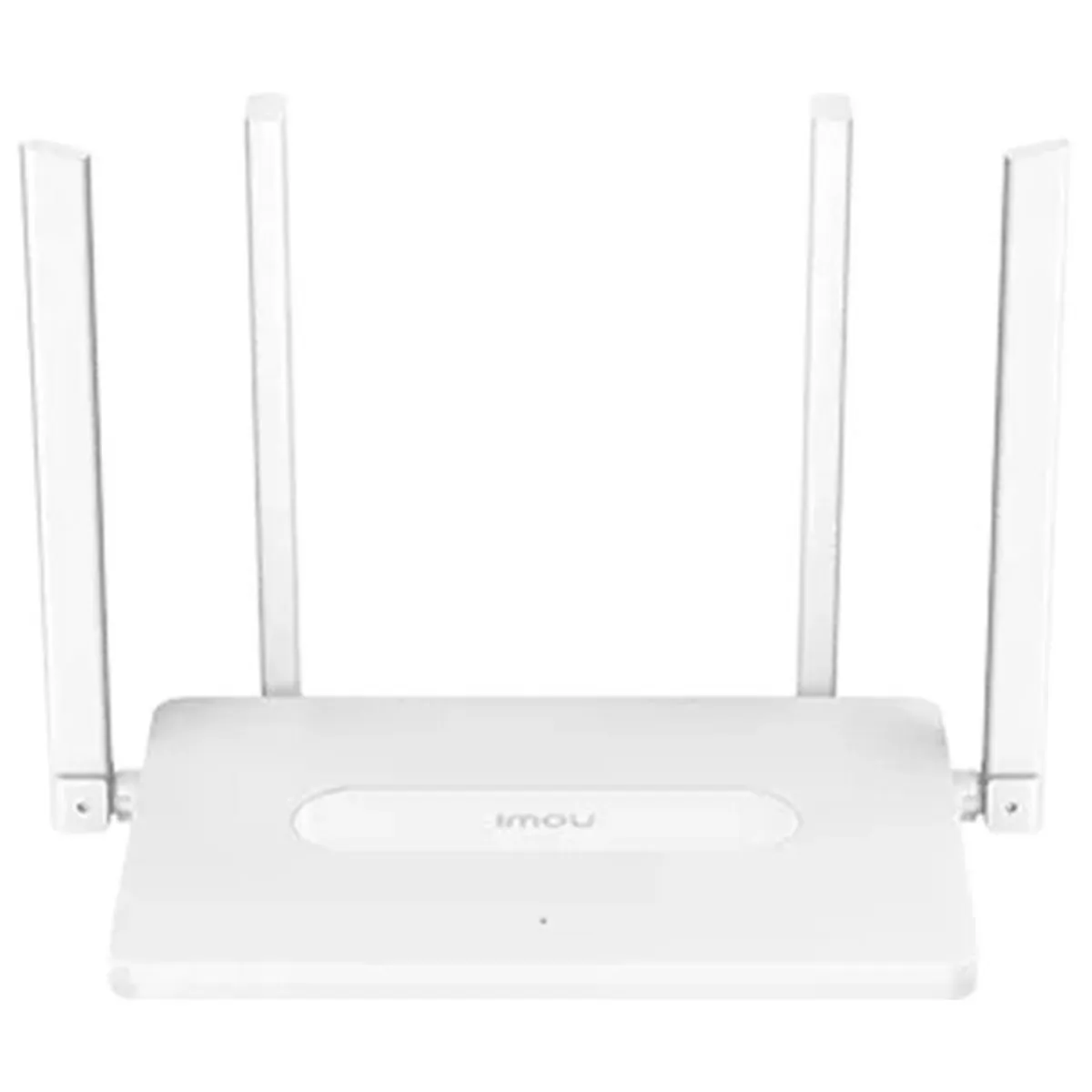

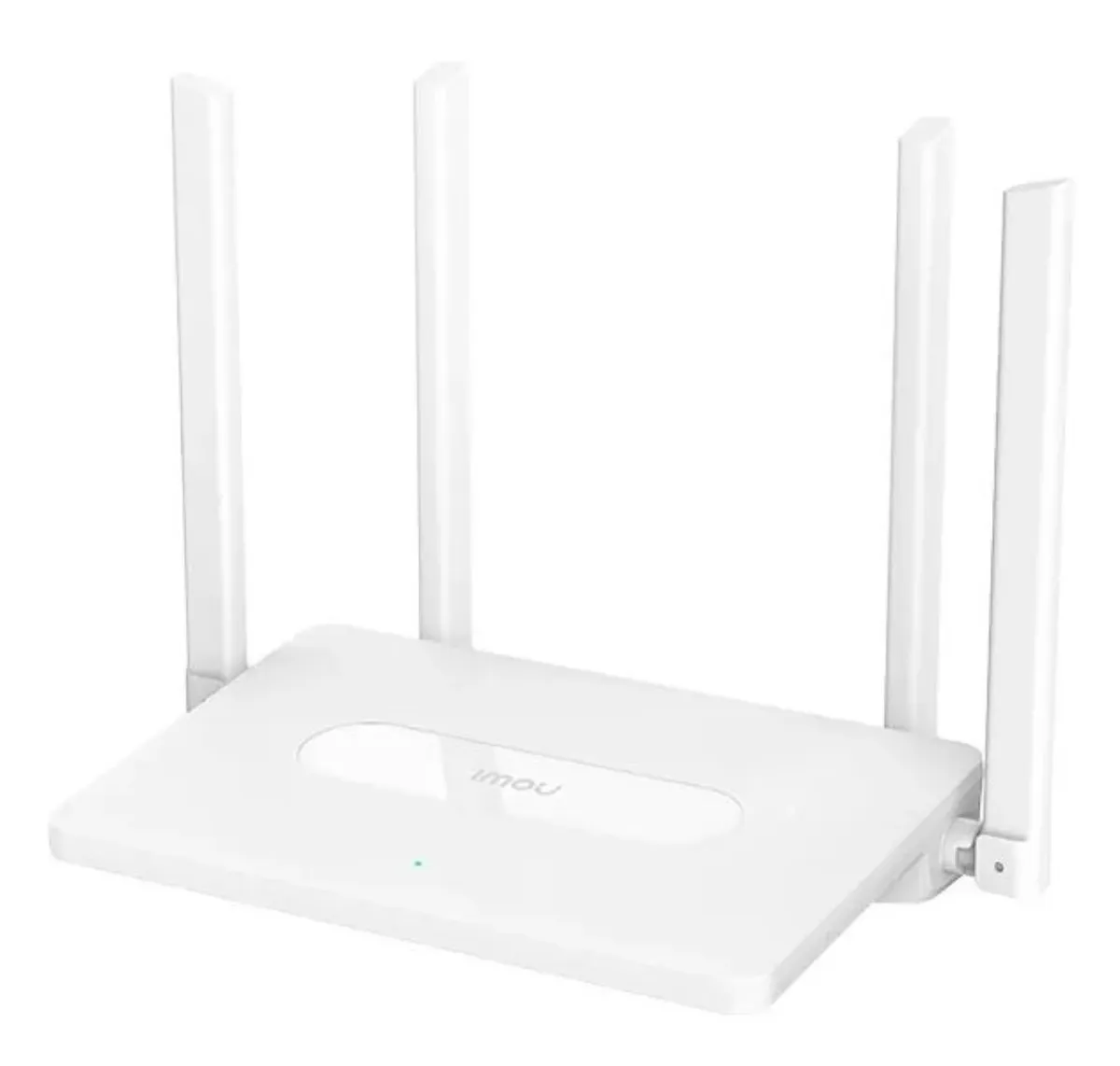

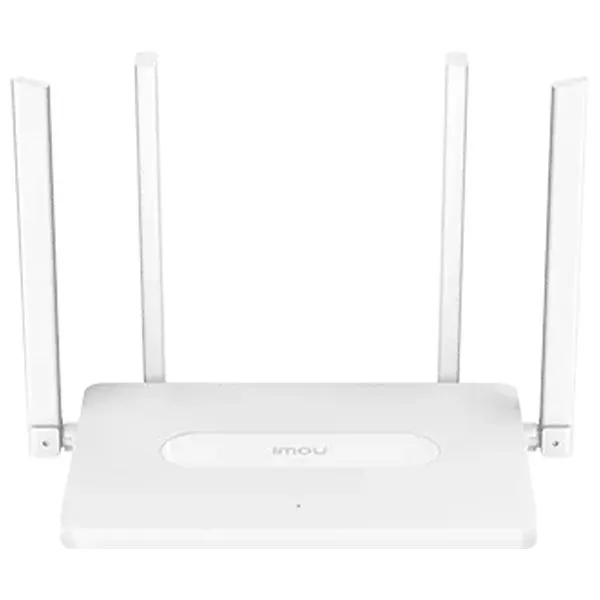

Imou HR12F-A

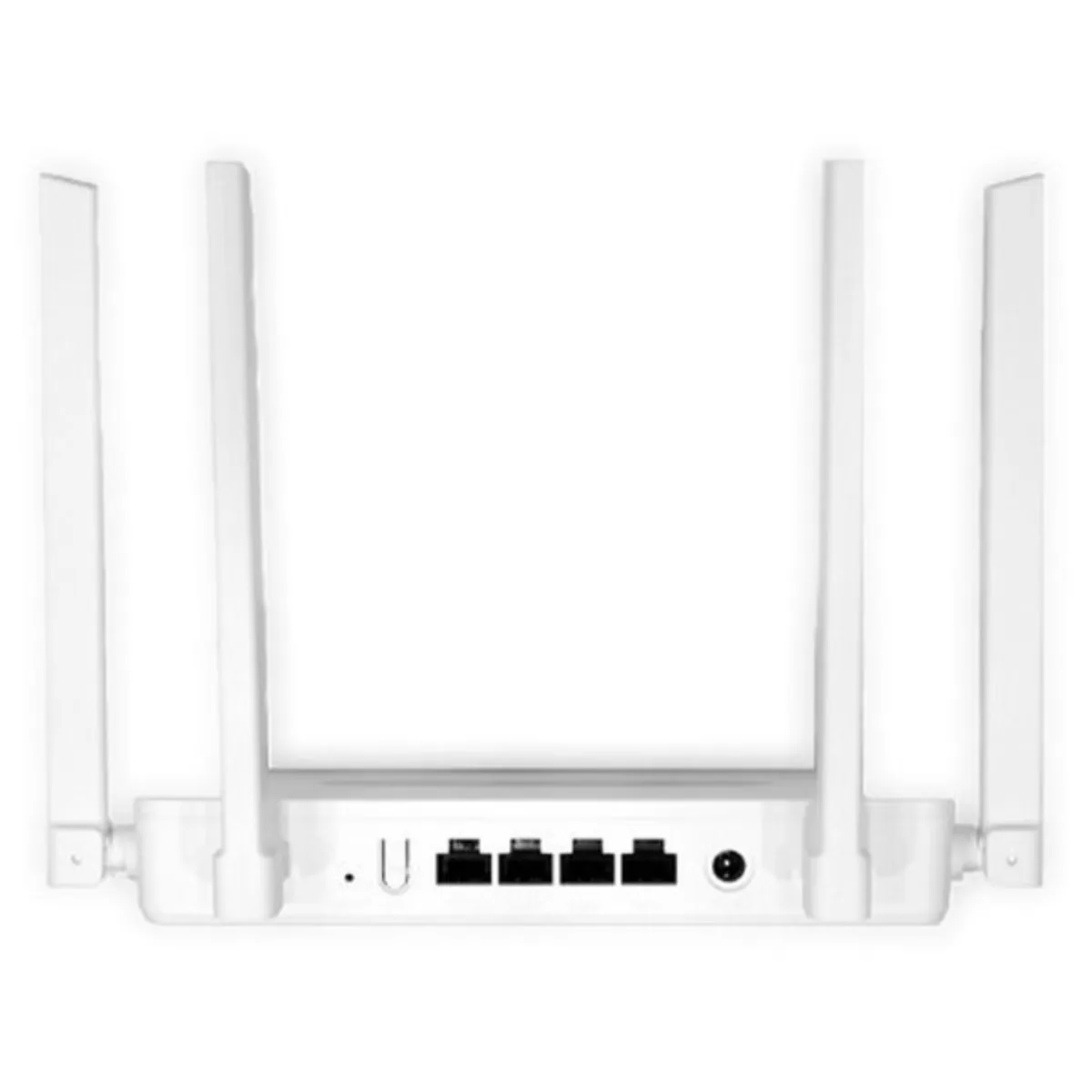

Dual-band Wi-Fi router operating at 2.4 GHz and 5 GHz frequencies of the IEEE 802.11a/b/g/n/ac standard. Four external antennas with a gain of 5 dBi provide a stable wireless connection and optimal coverage. In the 2.4 GHz band, it reaches transfer speeds of up to 300 Mbps and in the 5 GHz band up to 867 Mbps. On the back, it has three RJ-45 LAN and one RJ-45 WAN ports.

• Supports 802.11a/b/g/n/ac
• Simultaneous data transfer at 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
• Four external antennas provide stable wireless connection and optimal coverage
• Various WAN connection types - dynamic IP, static IP, PPPoE
• IPv6 compatible
• DMZ, UPnP and VPN (PP2P and L2TP) support
• Hidden SSID function prevents your SSID from being displayed in the list of available Wi-Fi
• Management via web interface or Imou Life mobile app

Automatic synchronization with Imou Wi-Fi cameras

Imou IP cameras within range of the router can connect automatically. In addition, the data transmission from the cameras uses a specific channel for smooth operation even in crowded Wi-Fi signal.

Parental Control

Set a reasonable schedule for your children's online activities, prioritize their safety, and encourage healthy online habits.

Guest Network

Create a separate guest Wi-Fi network and manage its traffic or restrictions.

Network standard: IEEE 802.11a/b/g/n/ac

Data transfer rate

• 867 Mbps (5 GHz)

• 300 Mbps (2.4 GHz)

Ports

• 3× 100 Mbps RJ-45 LAN

• 1× 100 Mbps RJ-45 WAN

Frequency band: 2.4 GHz and 5 GHz

Security

• WPA-PSK
• WPA2-PSK
• support WPS and hidden SSID

PoE support: no

Dimensions: 188 × 120 × 26 mm
