Imou by Dahua Wi-Fi router HX21 Wi-Fi IEEE 802.11b g n (2.4GHz) IEEE 802.11a n ac (5GHz) 3x LAN 1x WAN white

I have HX21

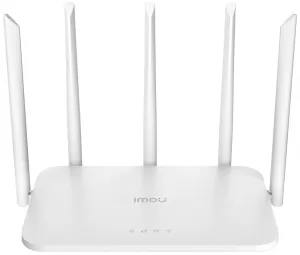

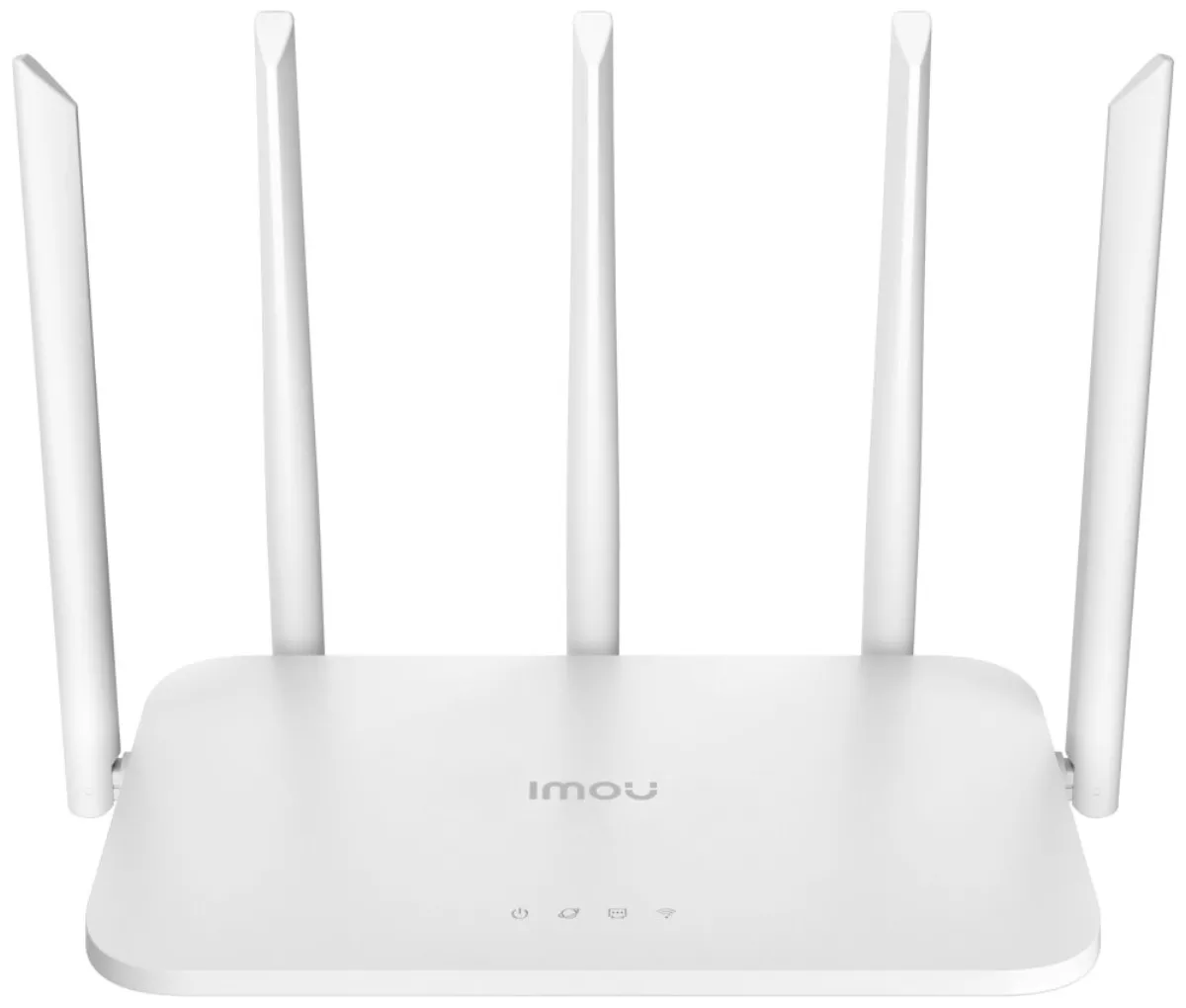

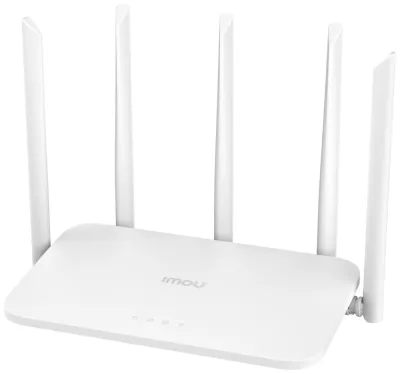

Dual-band Wi-Fi 6 router operating at 2.4 GHz and 5 GHz frequencies of the IEEE 802.11a/b/g/n/ac/ax standard. Five external antennas with a gain of 5 dBi provide a stable wireless connection and optimal coverage. In the 2.4 GHz band, it reaches transmission speeds of up to 574 Mbps and in the 5 GHz band up to 2402 Mbps. On the back, it has three GbE RJ-45 LAN and one GbE RJ-45 WAN port.

• Supports 802.11a/b/g/n/ac/ax standard
• Simultaneous data transfer at a speed of 574 Mb/s in the 2.4 GHz band and 2402 Mb/s in the 5 GHz band

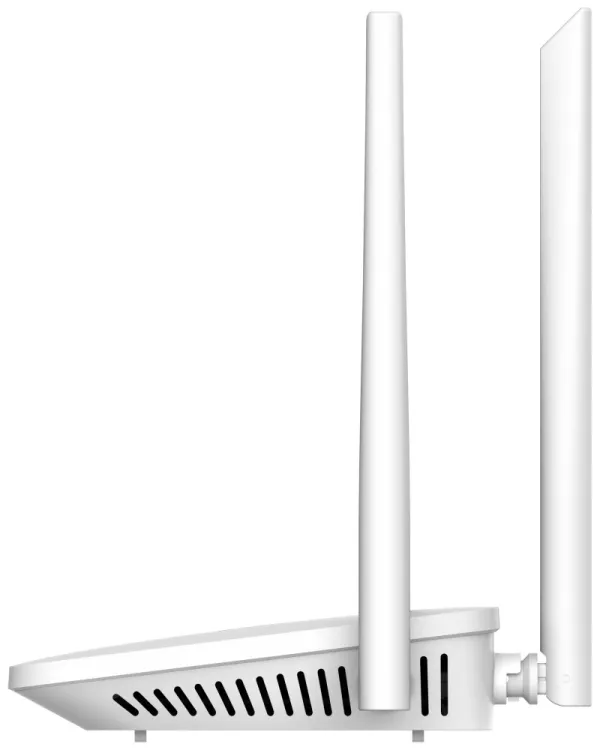

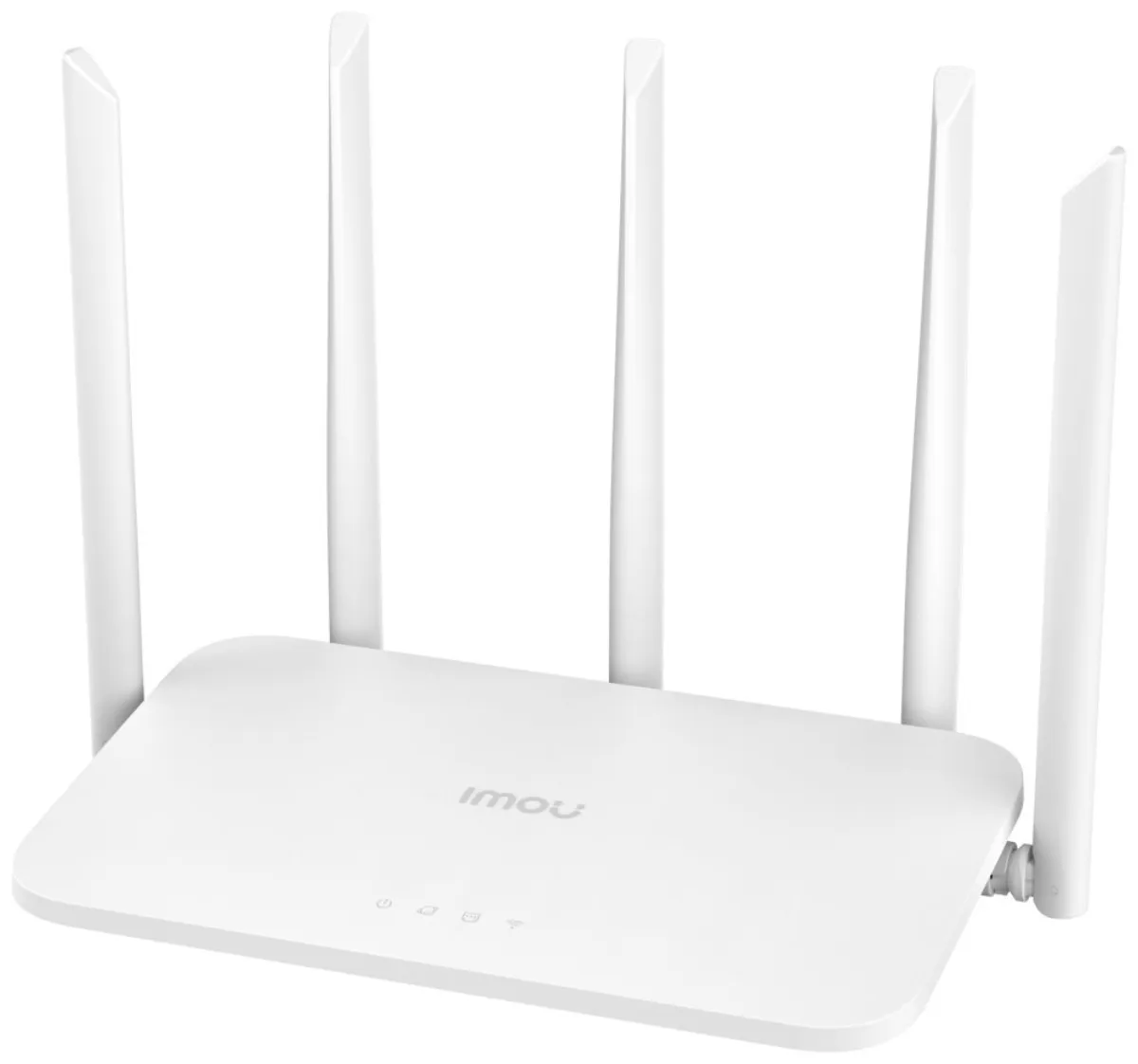

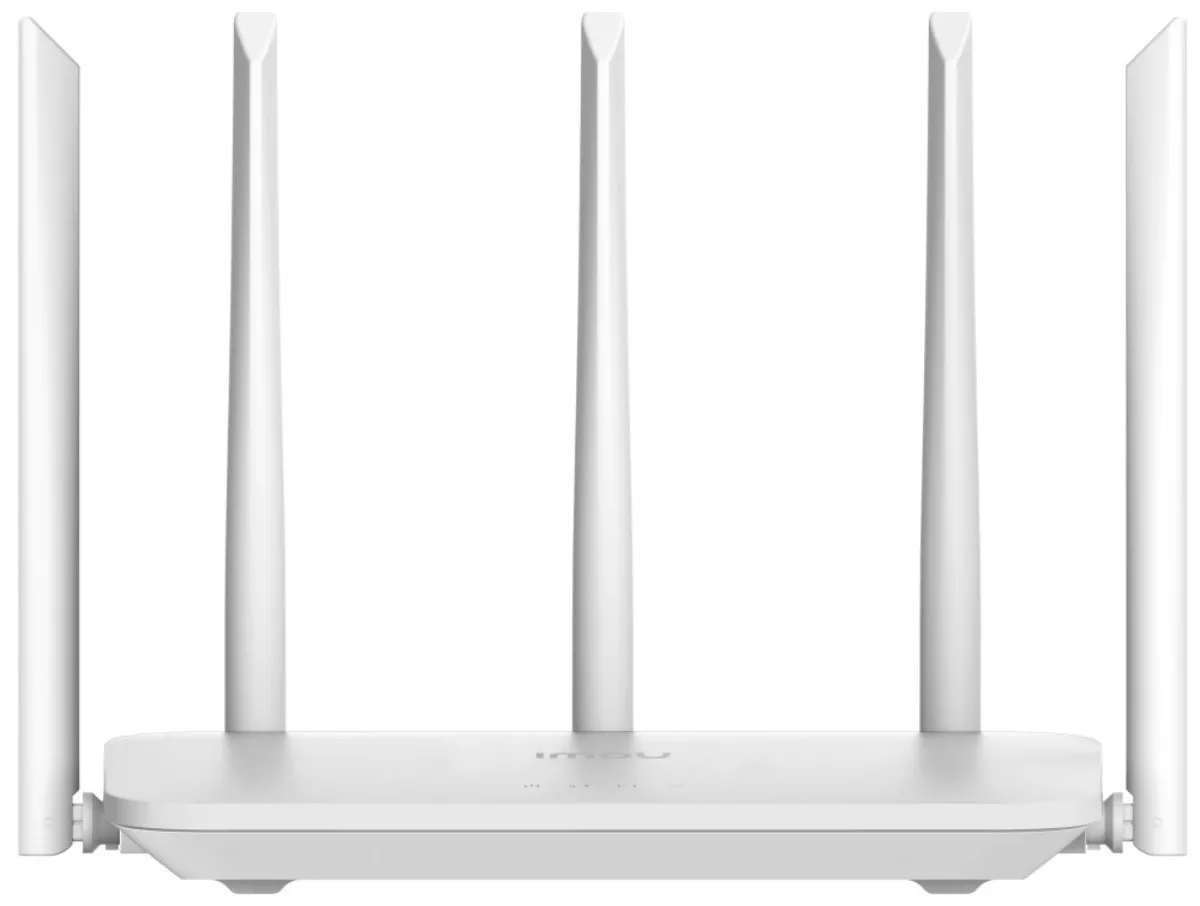

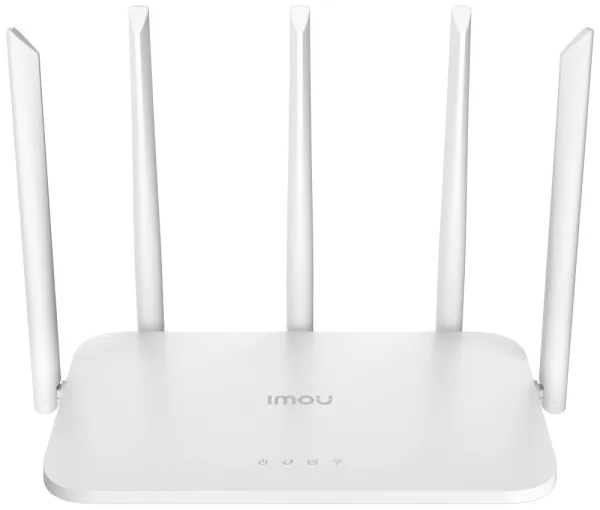

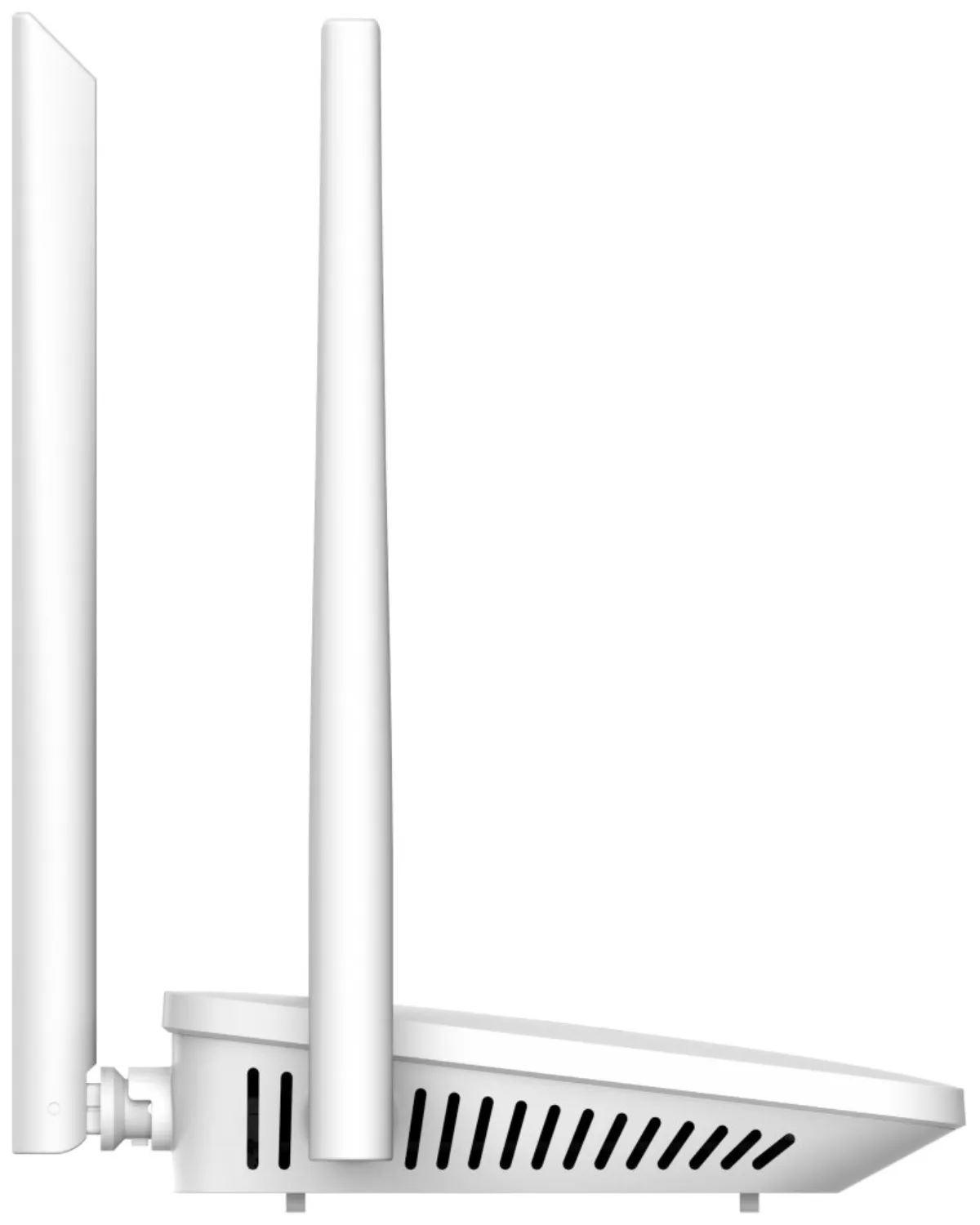

• Five external antennas provide a stable wireless connection and optimal coverage
• Different types of WAN connections - dynamic IP, static IP, PPPoE
• Compliant with IPv6 protocol
• Support for DMZ, UPnP, QoS and VPN (PP2P and L2TP)
• The Hidden SSID function prevents your SSID from appearing in the list of available Wi-Fi
• Management using the web interface or the Imou Life mobile application

Automatic synchronization with Imou Wi-Fi cameras

Imou IP cameras in range of the router can connect automatically. In addition, data transmission from the cameras uses a specific channel for smooth operation even when the Wi-Fi signal is congested.

Parental control

Set a reasonable schedule for your children's online activities, prioritize their safety and encourage healthy online habits.

Guest network

Create a separate Wi-Fi network for guests and manage its operation or restrictions.

Network Standard: IEEE 802.11a/b/g/n/ac/a

Data transfer speed

• 2402 Mbps (5 GHz)
• 574 Mbps (2.4 GHz)

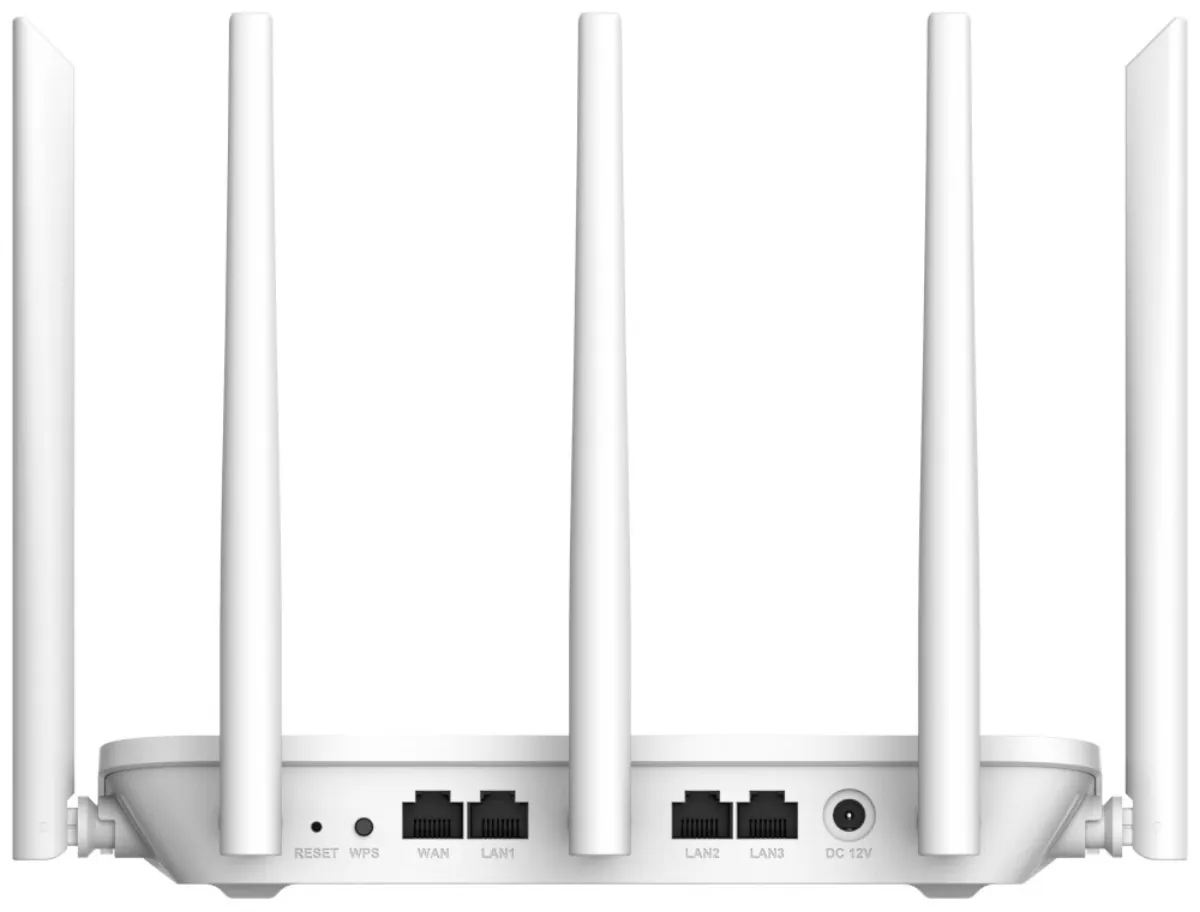

Ports

• 3x GbE RJ-45 LAN
• 1x GbE RJ-45 WAN

Frequency band: 2.4 GHz and 5 GHz

Security

• WPA-PSK
• WPA2-PSK
• WPA3-SAE
• WPS/Mesh support and hidden SSID

PoE support: no

Dimensions: 210 x 181 x 125 mm
