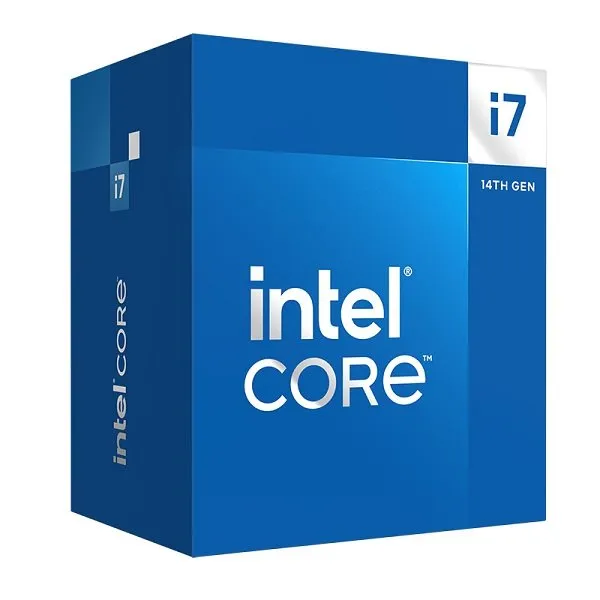

INTEL Core i7-14700 Raptor Lake R LGA1700 max. 54GHz 8P+12E 28T 33MB 65W TDP VGA BOX

Intel Core i7-14700

Processor model: i7-1470

Number of cores: 20 (8x performance + 12x effective)

Max. frequency: 5.4 GHz

Basic frequency (performance cores): 2.1 GHz

Basic frequency (effective cores): 1.5 GHz

Socket: LGA 1700

Number of Threads: 28

L2 Cache: 28MB

Cache (Intel Smart): 33 MB

TDP: 65W

Max. power (Turbo Power): 219 W

Graphics processor (integrated graphics card)

Graphics chip: Intel UHD 770

Frequency: 300 MHz to 1.6 GHz

Output

• eDP 1.4b
• DP 1.4a
• HDMI 2.1

Architecture

Manufacturing process: 7 nm (0.007 µm)

Supported technologies

• Intel Gaussian & Neural Accelerator 3.0
• Intel Thread Director
• Intel Deep Learning Boost (Intel DL Boost)
• Intel Speed Shift Technology
• Intel Turbo Boost Max Technology 3.0
• Intel Turbo Boost Technology 2.0
• Intel Hyper-Threading Technology
• Intel 64
• Instruction Set 64-bit
• Instruction Set Extensions - Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States
• Enhanced Intel SpeedStep Technology
• Thermal Monitoring Technologies
• Intel Volume Management Device (VMD)

Security and Safety

• Intel Standard Manageability (ISM)
• Intel Control-Flow Enforcement Technology
• Intel AES New Instructions
• Secure Key
• Intel OS Guard
• Execute Disable Bit
• Intel Boot Guard
• Mode-based Execute Control (MBEC)
• Intel Virtualization Technology (VT-x)
• Intel Virtualization Technology for Directed I/O (VT-d)
• Intel VT-x with Extended Page Tables (EPT)

Memory controller

Max. memory: 192 GB

Memory Channels: 2

Memory support

• up to DDR4-3200
• up to DDR5-5600

ECC memory support: yes

Max. memory bandwidth: 89.6 GB/s
