KOSUNPOWER UPS backup power supply with external battery 500W battery 12V AC230V pure sine
KOSUNPOWER | KOS500-12 | 8592457248613
On stock 3 pcs.
Price of goods is 96.29 €.
Weight of goods is 3.12 Kg.
Actual in cart 0 pcs.

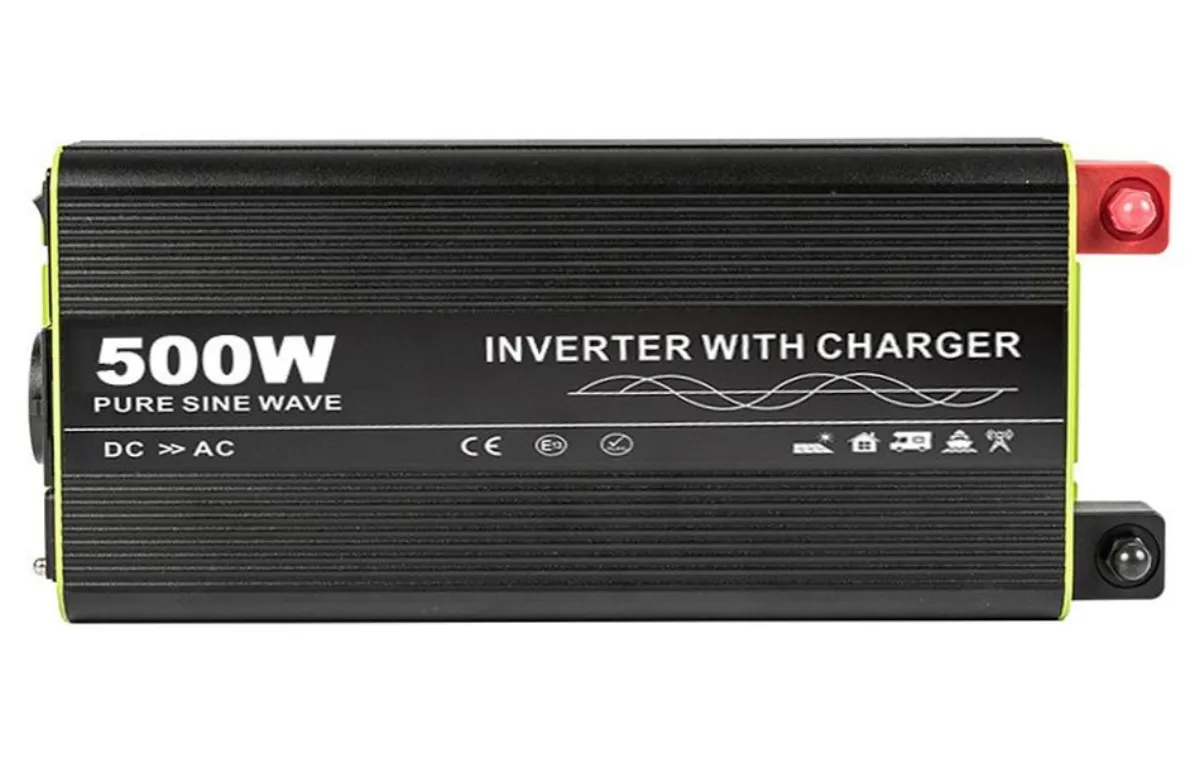

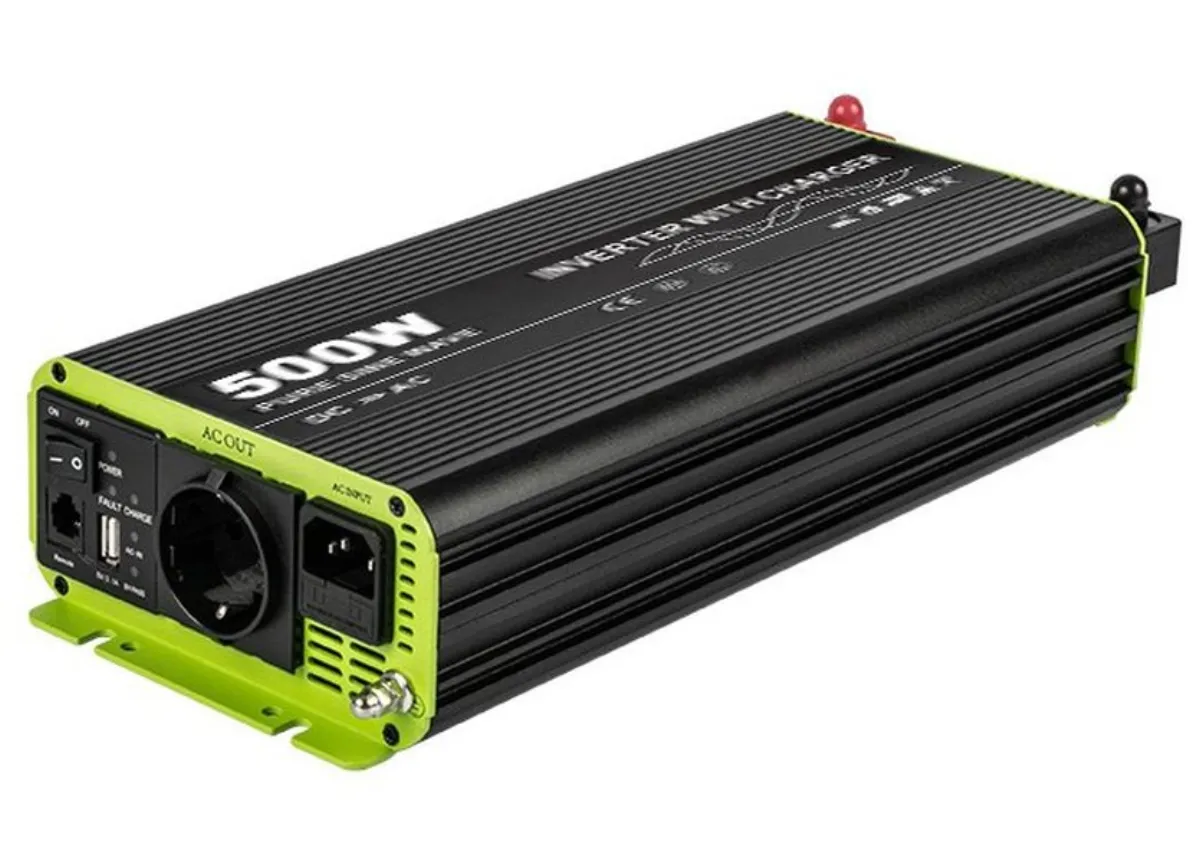

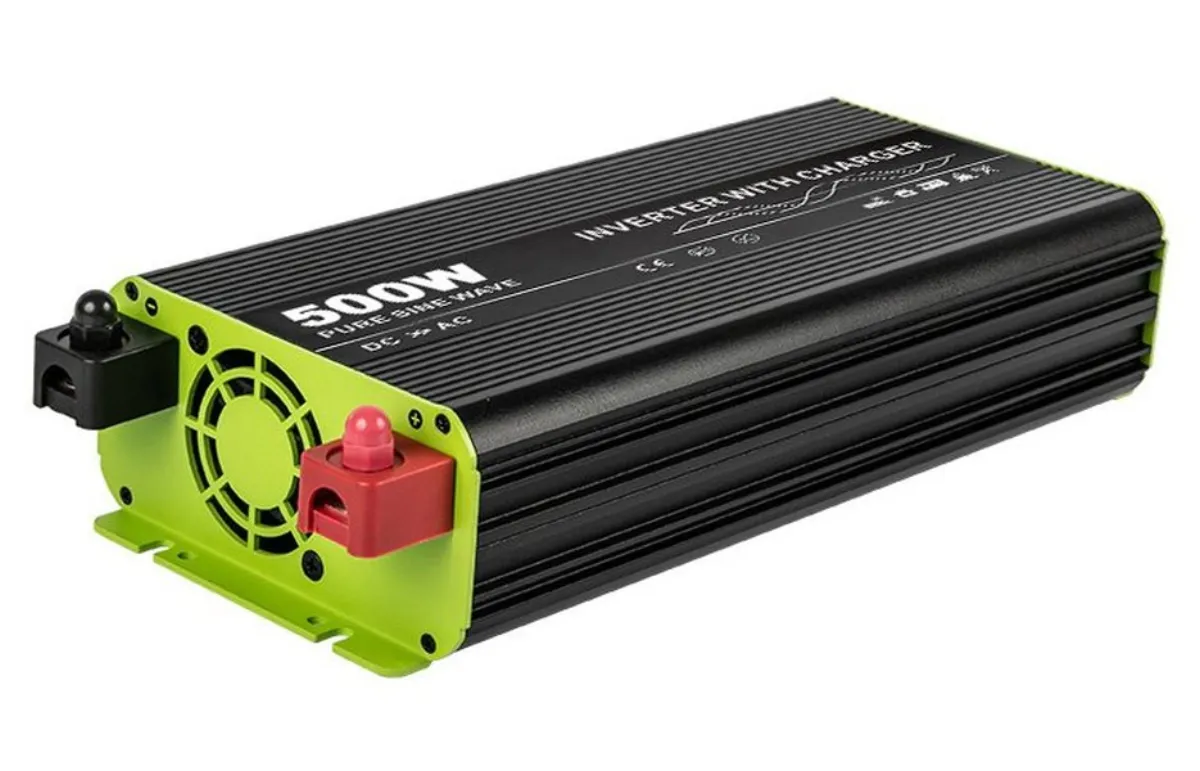

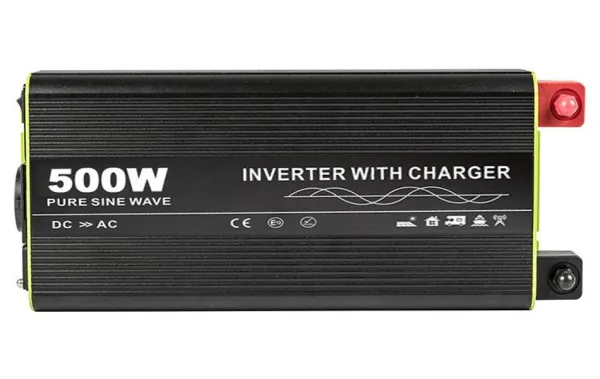

KOSUNPOWER KOS500-12 500 W
Pure sine wave voltage converter, has an integrated charger and a USB output (with a voltage of 5 V, a current of 2.1 A) for charging various devices. The device also has a UPS function (automatic switching of the mains and battery in the event of a power failure). Modern and beautiful design, quality workmanship, impact resistance and reliability of operation, these are the characteristic features of this product.
Compared to competing backup sources, it stands out with its fractional own energy consumption - consumption 4-6W measured in laboratory conditions, which significantly increases efficiency and reduces battery requirements for long-term backups. Compared to the commonly measured consumption values of comparable products, this is a saving of up to 80% of energy.
This is a device intended for the supply of alternating current in places where there is no permanent source of mains power. The inverter is intended for use especially in the wild, in a cottage or cottage, on a boat, in a caravan, in a truck, when traveling, etc. Thanks to the pure sinusoid at the output, it is possible to use it for various electrical appliances with regard to the required power (W). Integrated 3-stage charger is designed for charging lead-acid (WET-flooded), maintenance and maintenance-free, gel, AGM, EFB batteries.
ATTENTION, the charger is not intended for charging Li-ion batteries (LiFePO4, etc.)
- High quality workmanship, long service life
- Using SMT chip technology and wave soldering
- Minimal own energy consumption - 4-6W, savings compared to conventional UPS up to 80%
- Protection against overload, short circuit, reverse polarity, overheating (shuts off at 70 °C)
- Compact dimensions, low weight
- Small and silent fan, protecting against excessive heating
- Integrated 3-stage charger
- Socket / cigarette lighter like in a car
- USB port (voltage 5 V, current 2.1 A)
- UPS function (automatic switching of mains and battery in case of power failure)
Package contents
- Backup power
- Power cable with Euro-connector
- Rubber feet with the option of screwing into the mounting plate
- Connecting cables to the battery 1m with M8 eyelet
- Operating Instructions
Rated power: 50
Peak power: 1000W
Input Voltage: DC 12V
Output voltage: AC 230 V / 50 Hz
Efficiency: 88%
Quiet power consumption: 320 mA
Operating temperature: -10 to +60 °C
Dimensions: 310 x 150 x 70 mm
Weight: 3.5 kg
| Name | Value | |
|---|---|---|
| Input voltage [V] | 12 (DC) | |
| Weight, brutto [kg] | 3,5 | |
| Dimension [mm] | 310 × 150 × 70 mm | |
| Voltage frequency | 50 | |
| Output voltage [V] | 230 (AC) | |
| Maximum operating temperature [°C] | 60 | |
| Minimum operating temperature [°C] | -10 | |
| Height [mm] | 310 | |
| Output power [W] | 500 | |
| Conformity | CE, ISO9001, ATF16949, BSCI | |
| Number of phases | single phase | |
| Output voltage shape | sine | |
| Width [mm] | 150 | |
| Design | on the wall | |
| Depth [mm] | 70 | |
