MikroTik Chateau LTE18 ax 4x GLAN 1x 25 GLAN 2.4+5GHz 802.11a b g n ac ax LTE 18 USB 3.0 L4 indoor

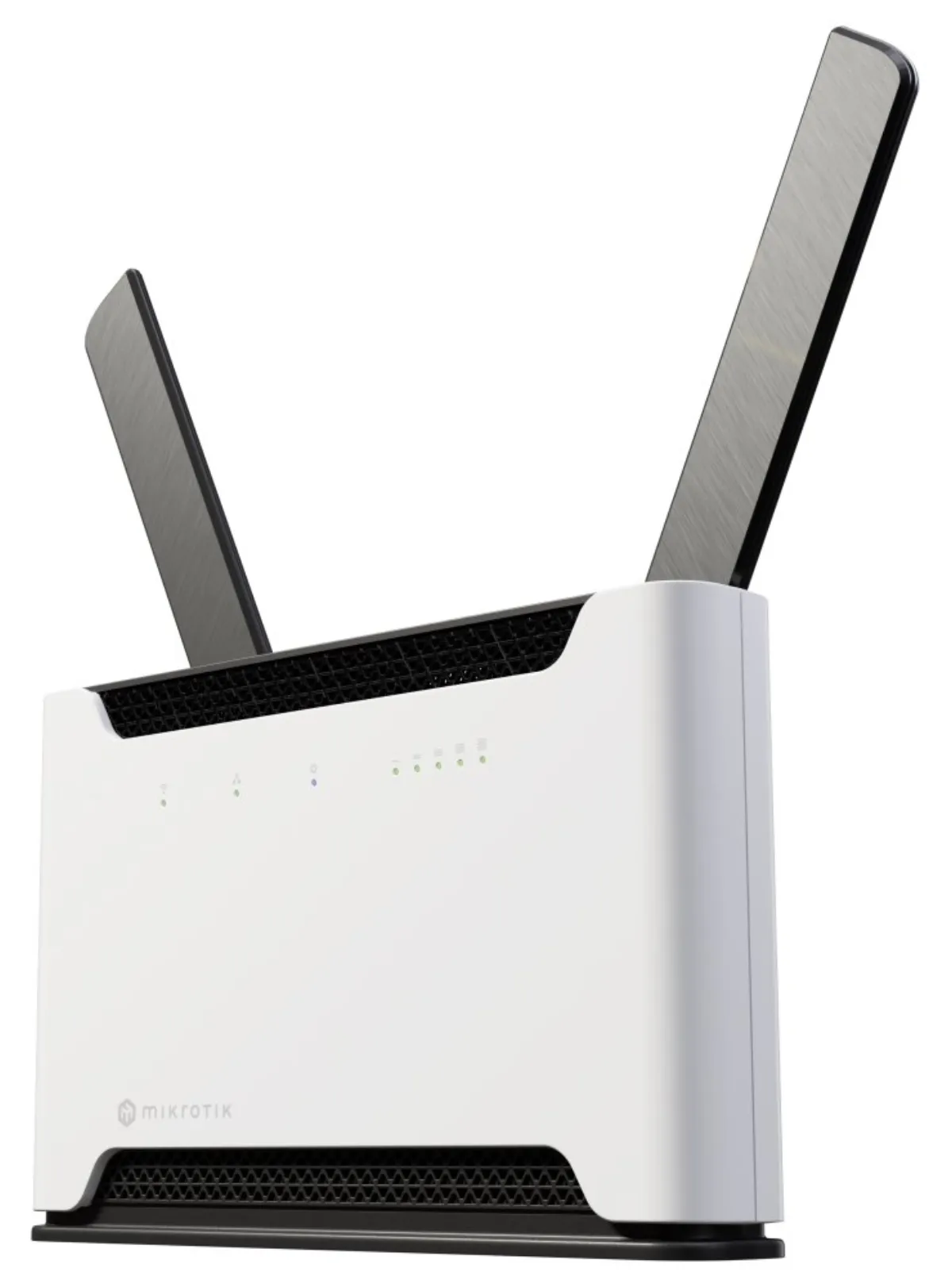

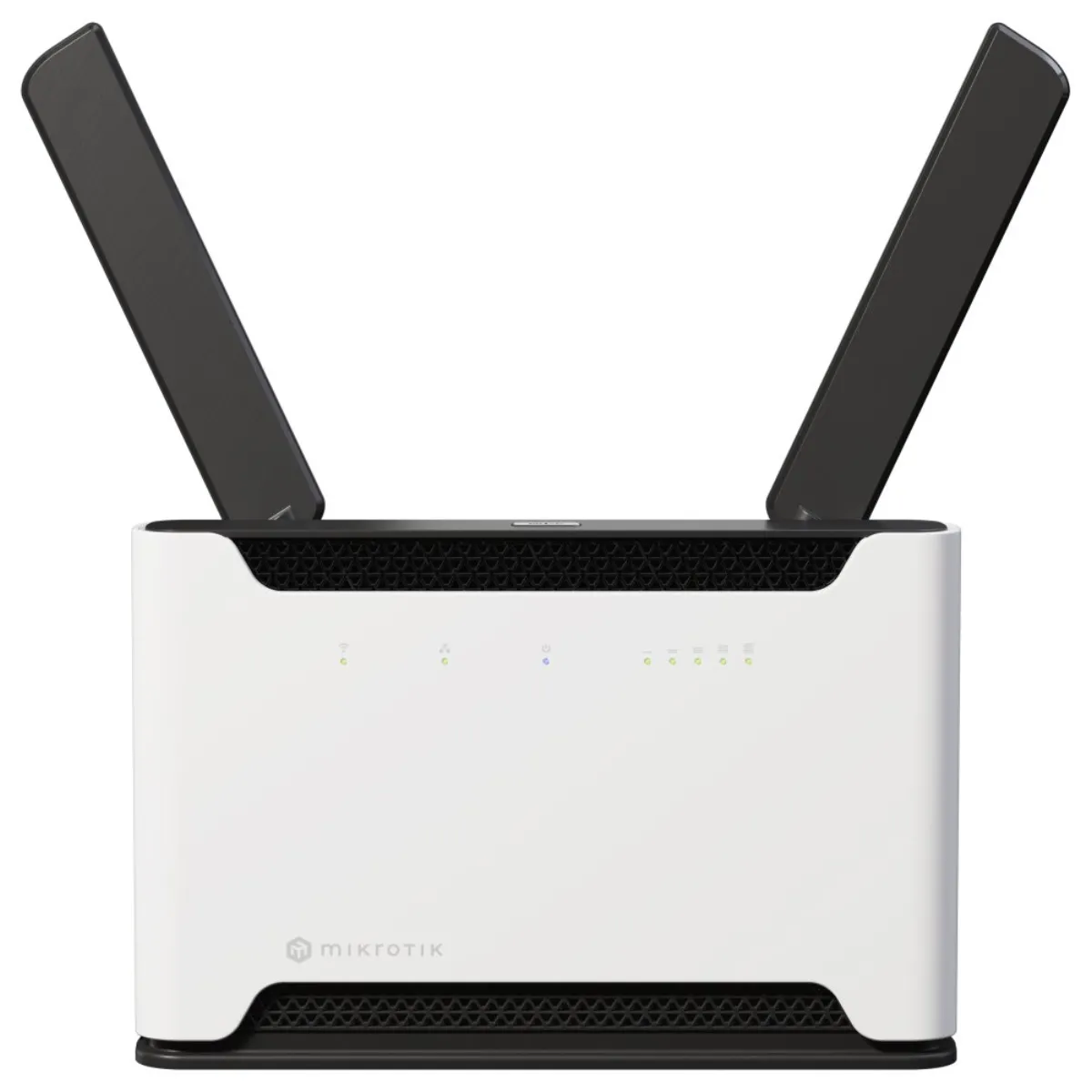

MikroTik Chateau LTE18 ax

Home high-speed LTE ax router 6. generation working in 2.4 and 5 GHz + LTE (category 18) bands. It supports the standard 802.11a/b/g/n/ac/ax + Wave 2 and TR-069 for remote management. Two external antennas with a gain of 3 and 6 dBi ensure a stable wireless connection and optimal coverage. MikroTik Chateau LTE18 ax has four GbE ports, one 2.5G port, one USB 3.0 port and microSIM slot. RouterBoard also offers high performance in the form of a 4-core ARM processor Qualcomm IPQ-6010 operating at a frequency of 1.8 GHz, 1 GB DDR3L RAM and 128 MB NAND memory. I deliver the router with RouterOS v7 L4 operating system.

• Mobile LTE internet and significantly faster wireless connection, more powerful processor and 2.5 Gigabit Ethernet.
• Wireless standard 802.11ax 6. generation and Wave 2 support.
• Compared to the previous generation, we will see up to 40% higher speed in the 5 GHz band and up to 90% higher speed in the 2.4 GHz spectrum!
• Radiant improvement of wireless technologies and antennas. 4 built-in LTE antennas with MIMO 4x4 support + 2 connectors for optional antennas and better coverage.
• USB 3.0 may come in handy for data storage purposes.
• RouterOS v7 - VPN, parental supervision/control, QoS (traffic prioritization for certain needs - e.g. streaming), firewall, HW acceleration IPsec, VLAN, e-mail or SMS notifications, automation of trigger notifications, control + management of bandwidth usage, etc. .

A modern 1.8 GHz quad-core processor combined with a solid RAM capacity represents sufficient performance when it comes to demanding operations such as complex firewall rules, IPsec hardware encryption, using multiple threads or experimenting with various advanced features of RouterOS. And with the addition of advanced WPA3 encryption, you're more secure than ever.

Created with security in mind

RouterOS not only comes with robust security options, but we also focus on manufacturing security. There is no outsourcing, each Chateau device is assembled by our contract manufacturers in the EU and all components are sourced from reputable and trusted partners - such as Qualcomm. We cooperate with European legislators and work hard to ensure full compliance with all necessary security principles. MikroTiku is primarily about smooth, long-term cooperation without any surprises.

Master of all skills... and master of everything at the same time

Chateau is an excellent choice for any mobile operator. It can be customized with different labels or printed tags. And operators can use the TR-069 technology to create their own remote client management capabilities, such as router configuration through the same web page that clients use to pay their mobile bill. Advanced users, experienced sys-admins, and networking enthusiasts can take advantage of the stunning complexity of RouterOS. And non-tech households can skip all that and use a simple, straightforward web app instead. Now is the time for great networking without compromise. The possibilities of secure remote work and lightning-fast Internet connection are no longer a luxury. They are a must. And Chateau is the solution.

Standard: IEEE 802.11a/b/g/n/ac/ax + Wav

Antenna

• 2x external antenna (6 dBi for 5 GHz
• 3 dBi for 2.4 GHz)
• 2x connector for optional antennas
• 4x internal antenna (LTE)

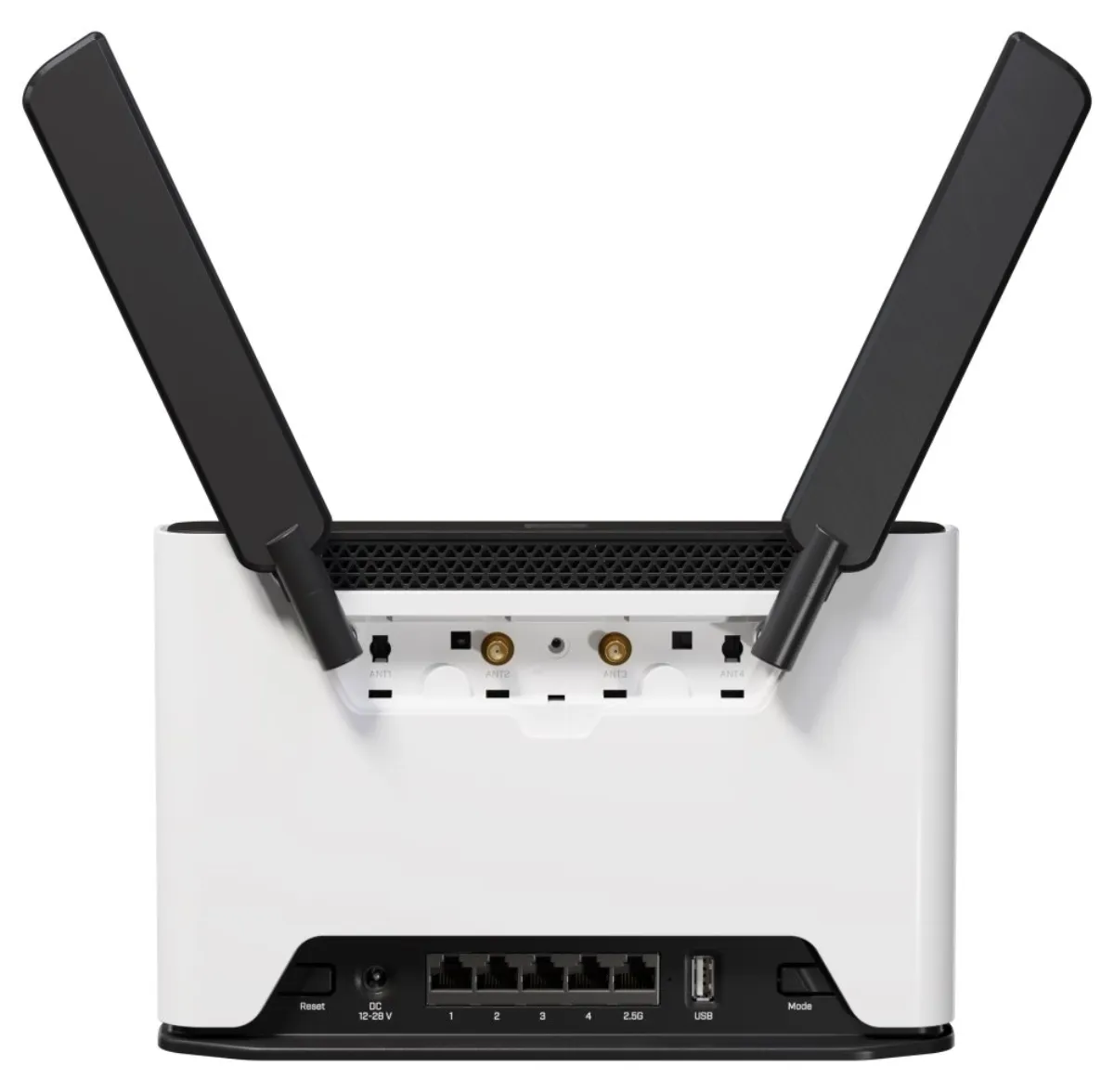

Ports

• 4x GbE RJ-45
• 1× 2.5G RJ-45
• 1x USB 3.0
• 1× SIM slot (micro SIM)

Frequency band

• 2.4 GHz
• 5 GHz
• 3G
• 4G/LTE

PoE support: no

Power supply: DC 12-28 V (external adapter)

Dimensions: 240 x 156 x 44 mm
