MikroTik Chateau LTE6 5x GLAN 2.4+5GHz 802.11a b g n ac USB 2.0 LTE 6 L4 indoor
MIKROTIK | D53G-5HacD2HnD-TC&FG621-EA | 4752224008879
On stock 8 pcs.
Price of goods is 118.64 €.
Weight of goods is 0.9 Kg.
Actual in cart 0 pcs.

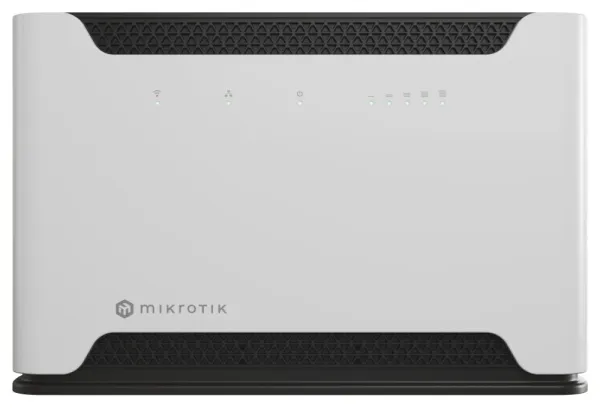

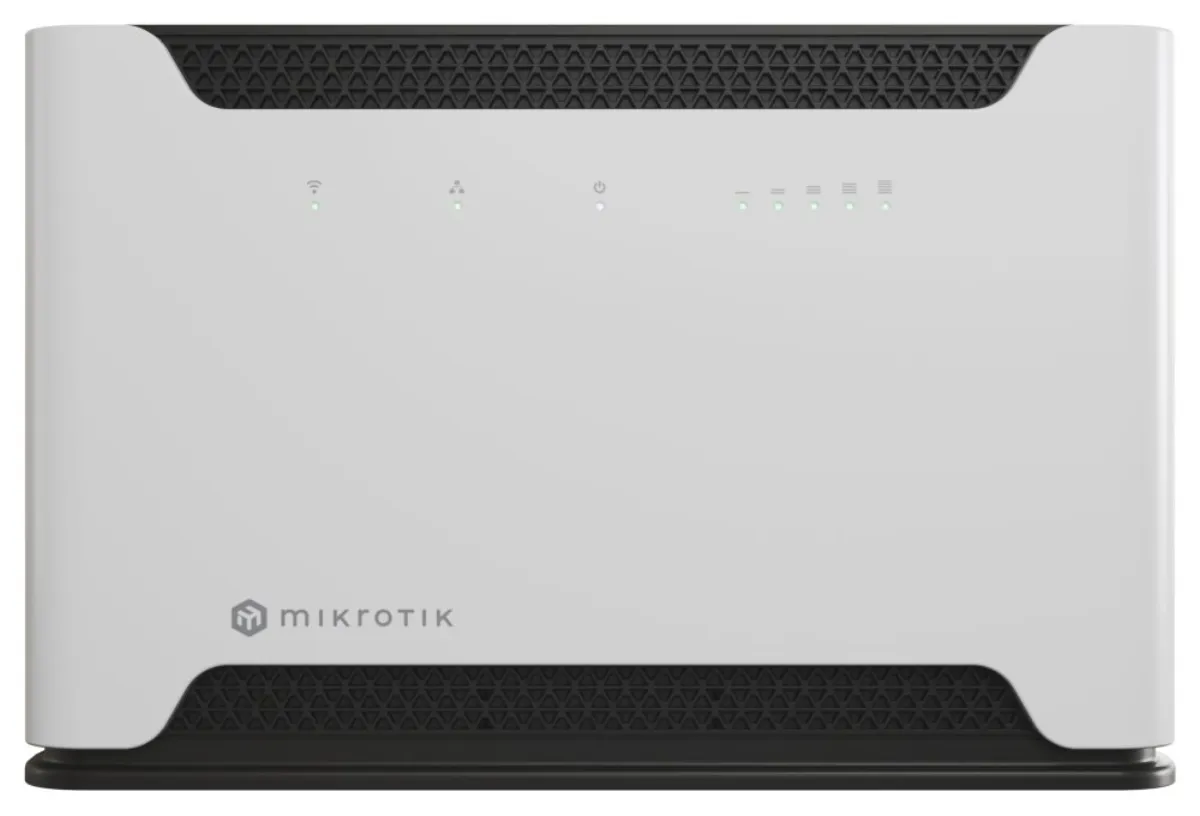

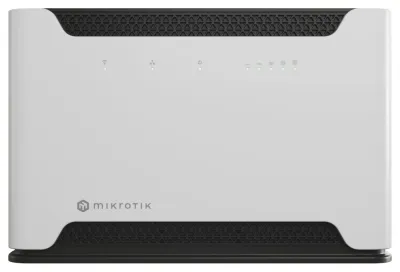

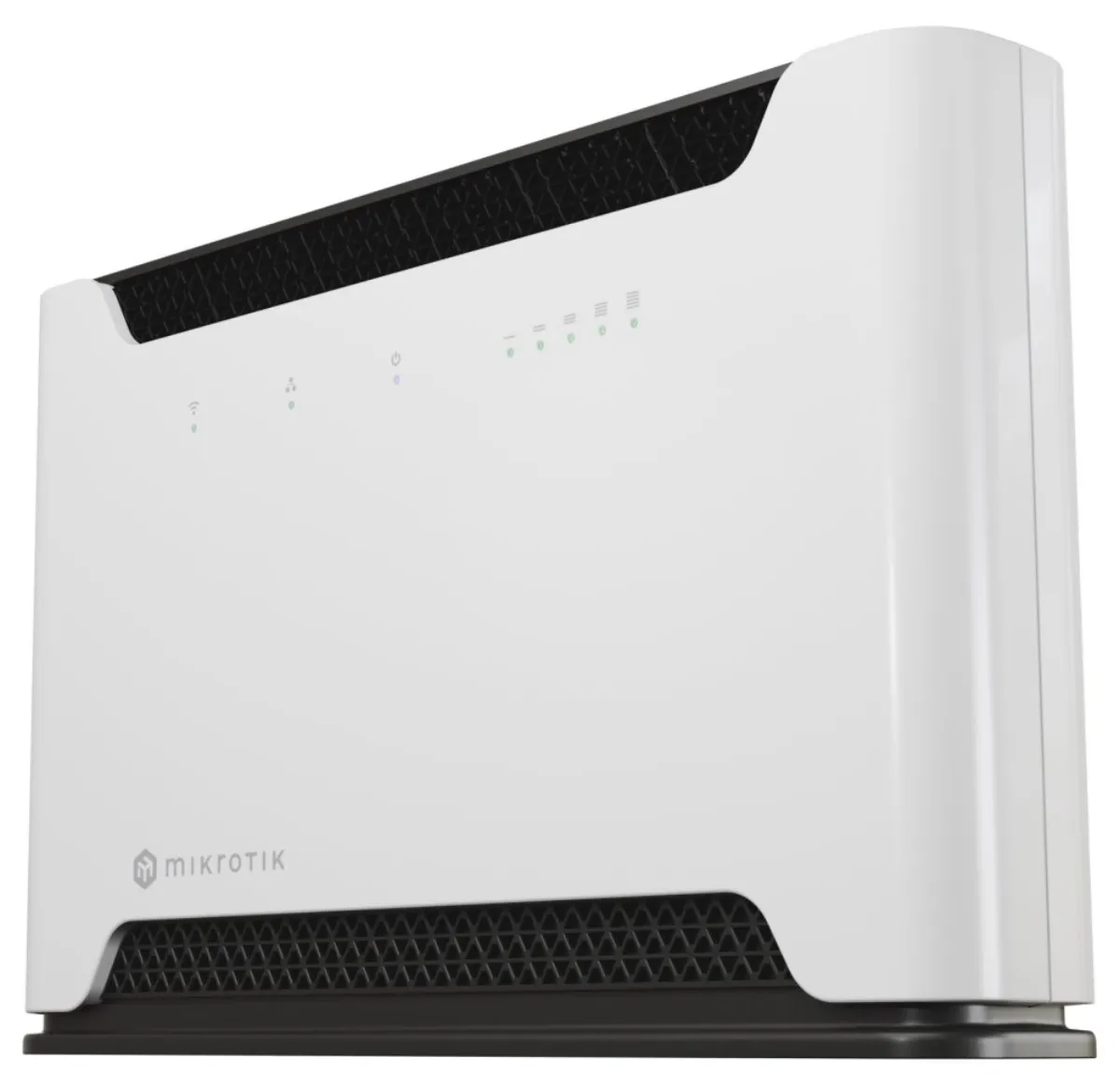

MikroTik Chateau LTE6
Home high-speed LTE router working in the 2.4 and 5 GHz + LTE (category 6) bands. It supports 802.11a/b/g/n/ac and TR-069 for remote management. Two internal antennas with a gain of 2 and 4 dBi ensure a stable wireless connection and optimal coverage. MikroTik Chateau LTE6 has five GbE ports, one USB 2.0 port and micro SIM slot. RouterBoard also offers high performance in the form of a 4-core ARM processor Qualcomm IPQ-4019 operating at a frequency of 716 MHz (448 to 896 MHz), 256 MB DDR3L RAM memory and 16 MB NAND memory. I deliver the router with RouterOS v7 operating system.
- Mobile LTE internet and faster wireless connection, ARM processor and RouterOS.
- Wireless standard 802.11ac 5. generation (Wi-Fi 5).
- 2 built-in LTE antennas with MIMO 2×2 support + 2 connectors for optional antennas and better coverage.
- USB 2.0 may be useful for data storage purposes.
- RouterOS v7 - VPN, parental supervision/control, QoS (traffic prioritization for certain needs - e.g. streaming), firewall, HW acceleration IPsec, VLAN, e-mail or SMS notifications, automation of trigger notifications, control + management of bandwidth usage, etc. .
Chateau is equipped with all the advanced features of RouterOS, so you get an enterprise-level solution at a consumer-level price. Run a secure VPN from the office right to your home, enable all kinds of parental controls, dive into specific firewall rules or IPsec hardware acceleration, configure VLANs, set up email or SMS alerts, etc. You can even automate complex startup notifications.
You can find the supported bands in the datasheet or on the manufacturer's website.
Standard: IEEE 802.11a/b/g/n/a
Antenna
- 2x internal antenna (4 dBi for 5 GHz
- 2 dBi for 2.4 GHz)
- 2x connector for LTE antennas

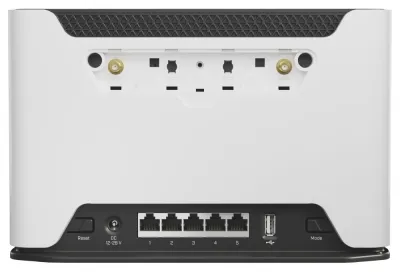

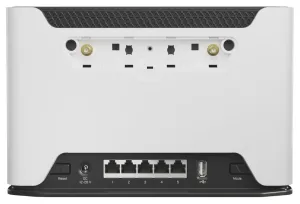

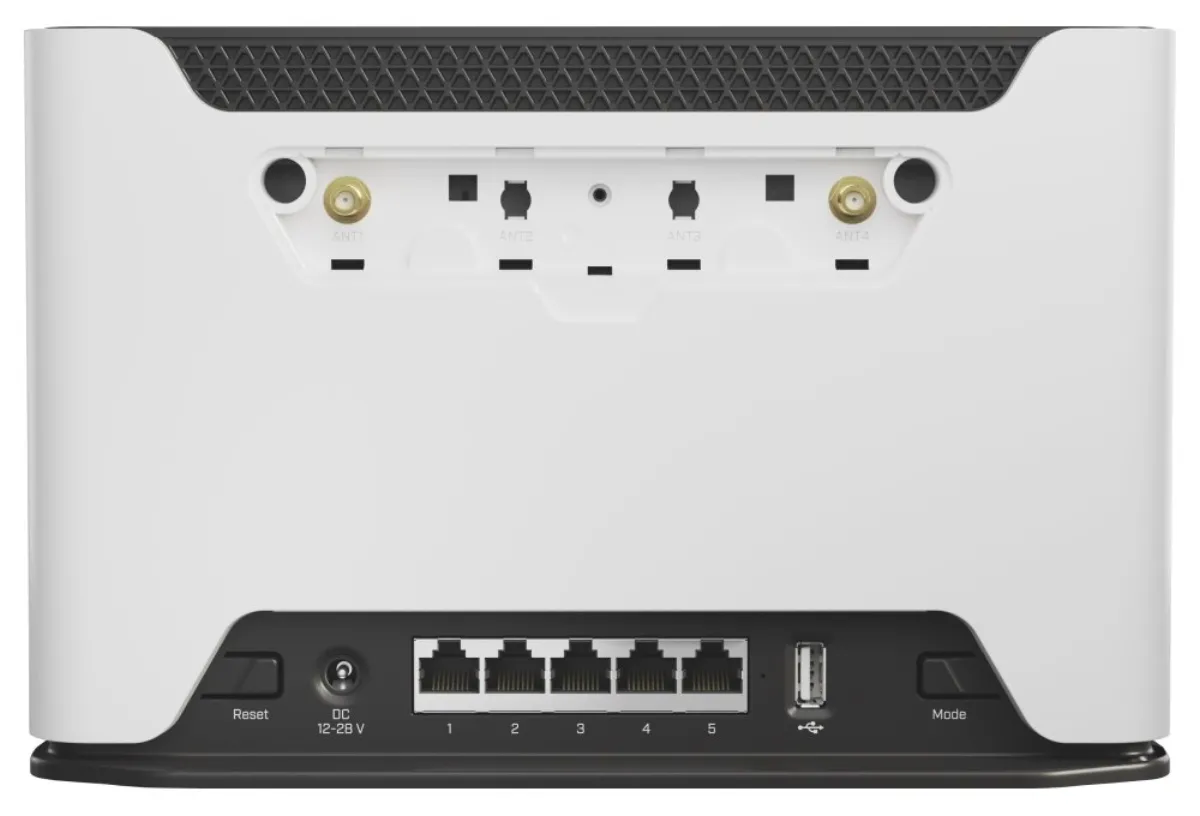

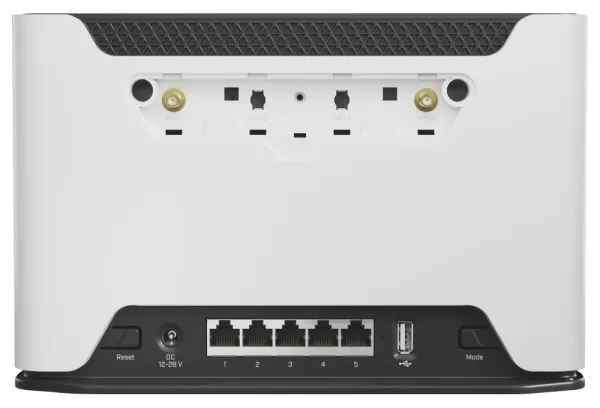

Ports
- 5x GbE RJ-45
- 1x USB 2.0
- 1× SIM slot (micro SIM)
Frequency band
- 2.4 GHz
- 5 GHz
- 3G
- 4G/LTE
PoE support: no
Power supply: DC 12-28 V (external adapter)
Dimensions: 240 x 156 x 44 mm
| Name | Value | |
|---|---|---|
| Interface | LAN, Wi-Fi, 3G, 4G/LTE | |
| Color | white - black | |
| Dimension [mm] | 240 × 156 × 44 mm | |
| Maximum operating temperature [°C] | 70 | |
| Port speed | 1 Gb/s | |
| Minimum operating temperature [°C] | -40 | |
| Display | No | |
| The number of processor cores | 4 | |
| Design | freestanding | |
| USB 2.0 count | 1 | |
| Conformity | CE, EAC, ROHS | |
| Wi-fi | Yes | |
| Consumption [W] | 21 | |
| Transmission speed [Mbps] | 300 (2,4GHz), 867 (5GHz), 300 (LTE) | |
| Number of connectable antennas | 2 | |
| Max. output power [dBm] | 26 | |
| Memory size [MB] | 256 | |
| Power supply [V] | 12 - 28 (DC) | |
| Wi-Fi standard | 802.11a/b/g/n/ac | |
| Sensitivity [dBm] | -100 (2,4 GHz, 1 Mb/s, Rx), -96 (5 GHz, 6 Mb/s, Rx) | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Antenna design | internal | |
| 5G support | No | |
| License | L4 | |
| Processor | Qualcomm IPQ-4019, 716 MHz | |
| NAND [MB] | 16 | |
| Gain [dBi] | 2 (2,4GHz), 4 (5GHz) | |
| Output to ext. the antenna | Yes | |
| LTE/4G/5G [Mbps] | 300 | |
| Power supply max. [V] | 28 | |
| Power supply min. [V] | 12 | |
| Wi-Fi 2,4 GHz [Mbps] | 300 | |
| Wi-Fi 5 GHz [Mbps] | 867 | |
| Ethernet [Mbps] | 1000 | |
