MikroTik H53UiG-5HaxQ2HaxQ Chateau PRO ax 5x GbE 5x GbE 2.4+5GHz 4x4 MIMO Wi-Fi 6 USB 3.0 PSU. L6
MIKROTIK | H53UiG-5HaxQ2HaxQ
On stock 22 pcs.
Price of goods is 169.75 €.
Weight of goods is 1.03 Kg.
Actual in cart 0 pcs.

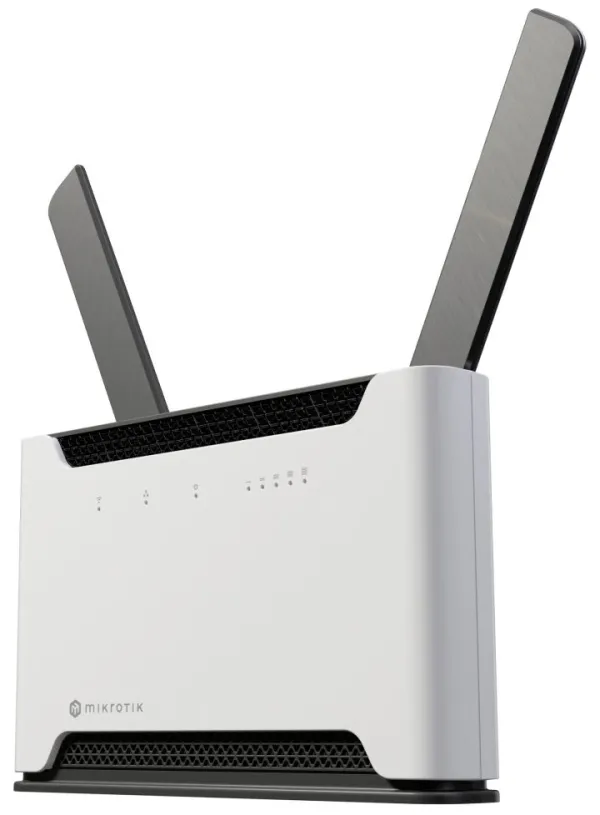

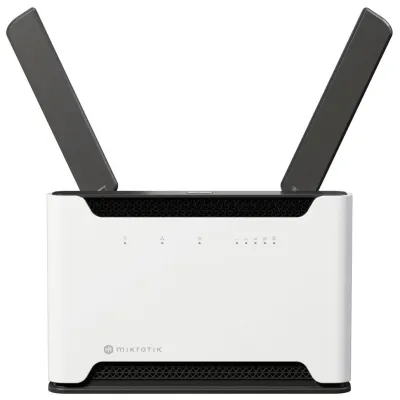

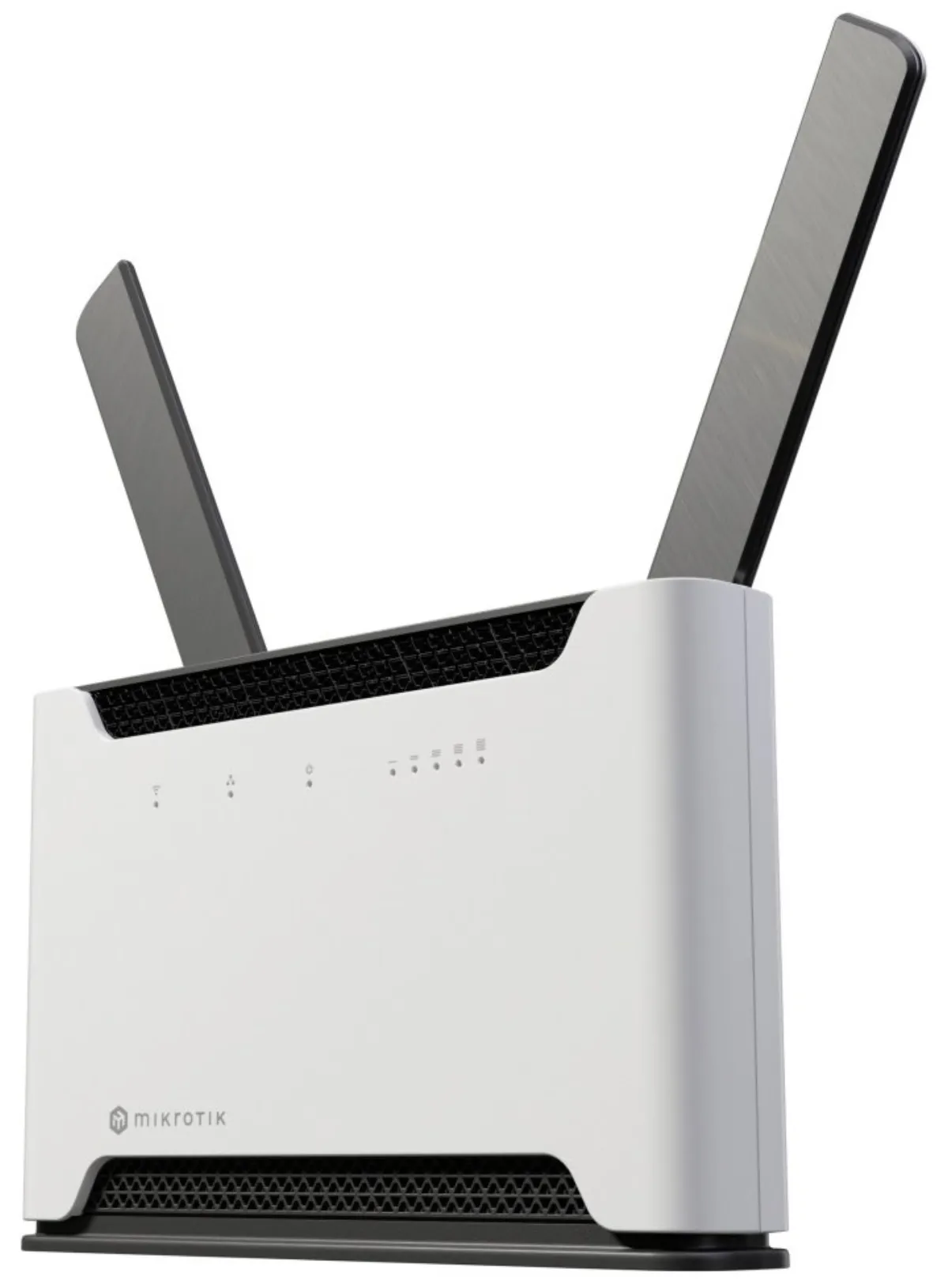

MikroTik Chateau PRO ax
Home high-speed Wi-Fi 6 router working in the 2.4 and 5 GHz bands. It supports the 802.11a/b/g/n/ac/ax standard, 4×4 MIMO technology and transmission speeds of up to 1148 Mbps (2.4 GHz) + 2400 Mbps (5 GHz). This Wi-Fi router/AP has five GbE ports. Two external antennas with a gain of 3.3 and 5.5 dBi ensure a stable wireless connection and optimal coverage. Another advantage is the possibility of connecting a USB disk or, for example, a 4G/LTE modem via a USB 3.0 connector. In addition, one port supports passive PoE output, thanks to which the router can power another external device (e.g. a wAP unit). The router comes with RouterOS v7 L6 operating system.
Chateau PRO ax Wi-Fi 6 is designed to achieve maximum performance and handle more traffic than ever before. Thanks to the quad-core ARM processor Qualcomm IPQ-8072A working at a frequency of 2.2 GHz and a high-end wireless chip, Chateau PRO ax uses four spatial data streams (spatial streams) to achieve twice the data transfer speed. All this ensures that your network will always be fast, reliable and ready to handle even the most demanding tasks.
- A new generation of the perfect home Wi-Fi 6 access point. Wireless standard 802.11ax.
- 4×4 MIMO support ensures connection speed and stability for multiple devices.
- 5x Gigabit Ethernet port, ARM processor Qualcomm IPQ-8072A (2.2 GHz), 1 GB RAM, 128 MB NAND.
- The 802.11ax standard brings up to 40% higher speed performance in the 5 GHz band and up to 90% higher speed in the 2.4 GHz band!
- USB 3.0 can be useful for data storage or backup connection using a 4G/LTE modem

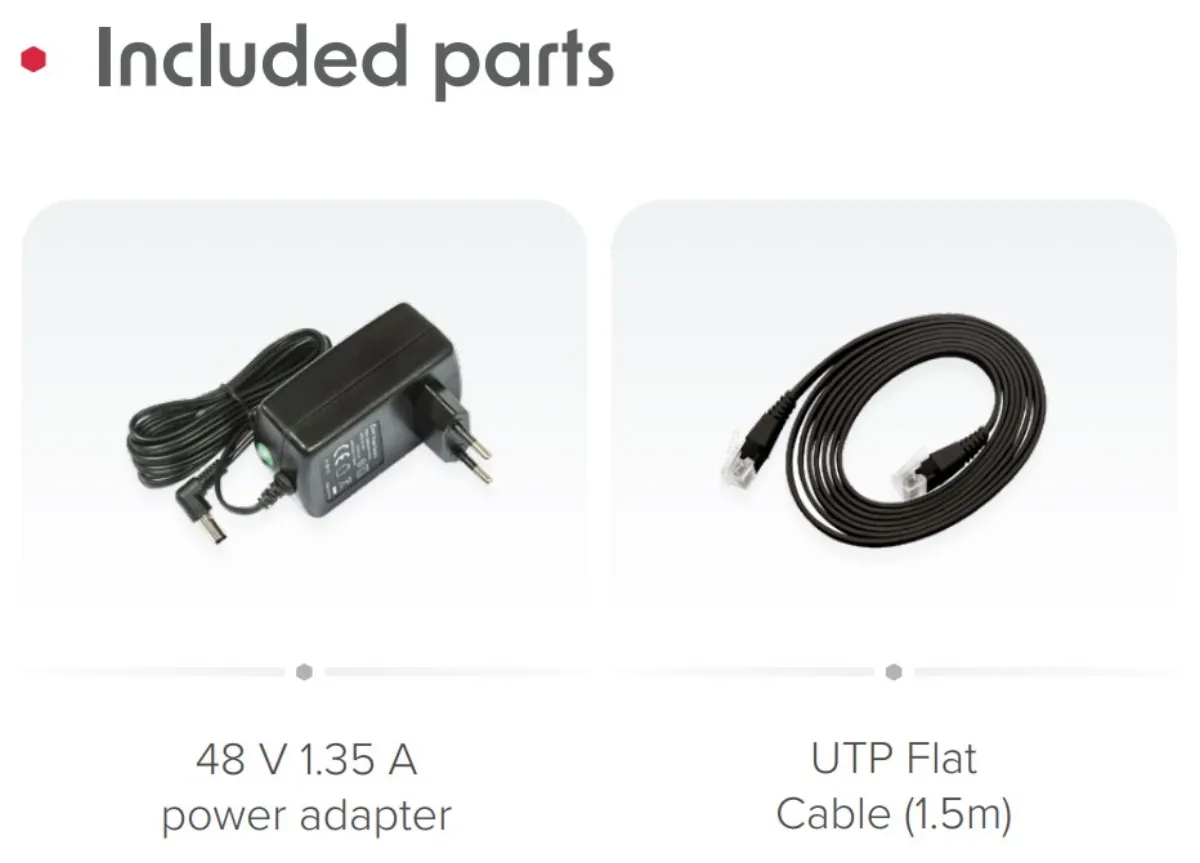

- The router/AP is delivered including a power supply.
- Comprehensive Firewall rules, WPA3, IPsec hardware encryption, Wireguard functions, ZeroTier, OpenVPN, etc.
- RouterOS v7 - VPN, parental supervision/control, QoS (traffic prioritization for certain needs - e.g. streaming), firewall, HW acceleration IPsec, VLAN, email or SMS notifications, trigger notification automation, bandwidth usage control + management and other functions.
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Standard: IEEE 802.11a/b/g/n/ac/ax
Antenna
- 2x external antenna (6 dBi for 5 GHz
- 5 dBi for 2.4 GHz)

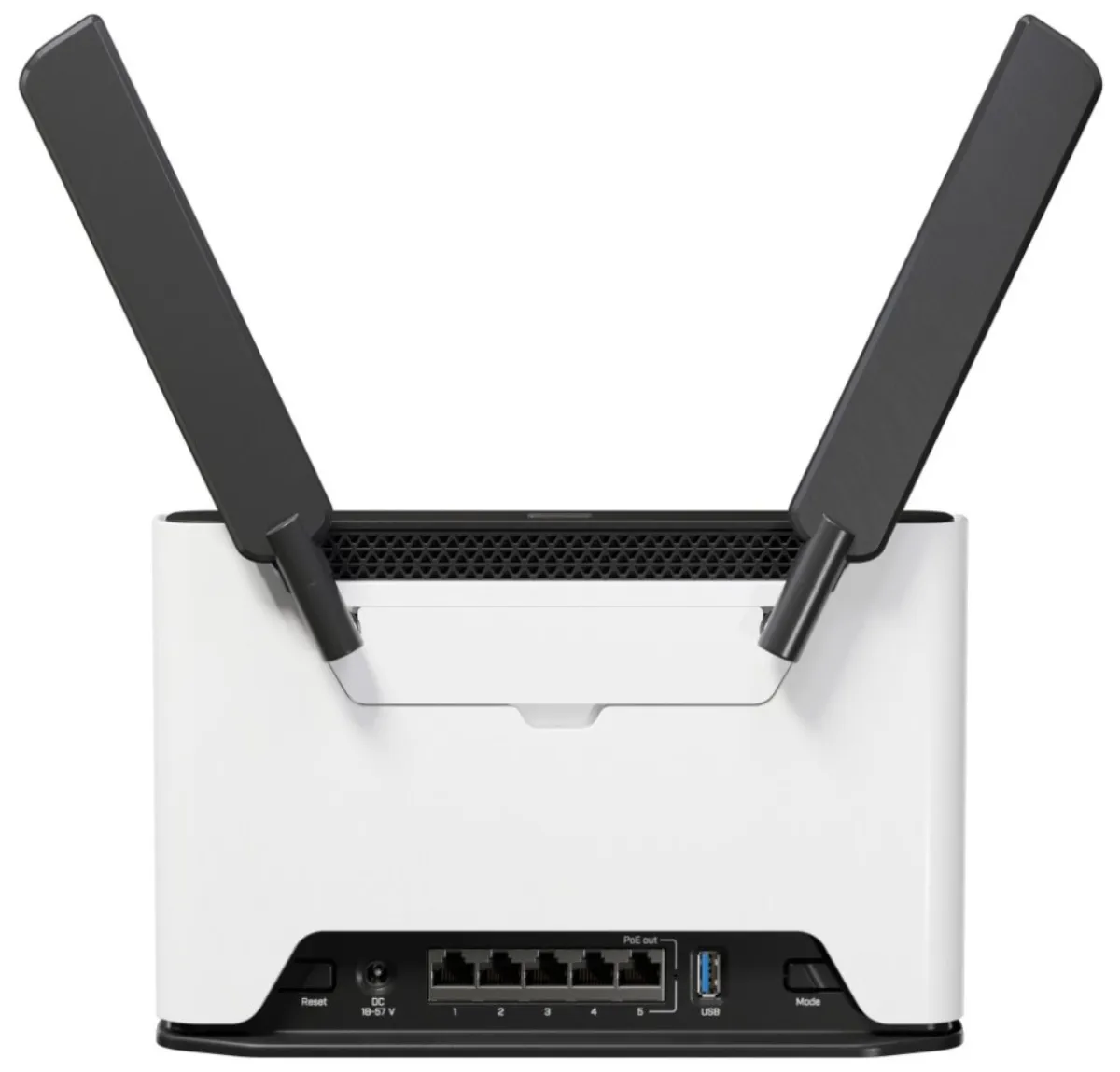

Ports
- 5x GbE RJ-45
- 1x USB 3.0
Frequency band
- 2.4 GHz
- 5 GHz
PoE support
- yes (passive PoE
- 1x output
- max. 57 V DC)
Power supply: DC 18-57 V (external adapter)
Dimensions: 240 x 156 x 44 mm
Name | Value | |
---|---|---|
Color | white - black | |
Dimension [mm] | 240 × 156 × 44 mm | |
Maximum operating temperature [°C] | 70 | |
Minimum operating temperature [°C] | -40 | |
Bridge mode | Yes | |
Memory size [MB] | 1000 | |
Chipset | Qualcomm IPQ-8072A | |
Transmission speed [Mbps] | 2400 (5GHz), 1148 (2,4GHz) | |
NAND [MB] | 128 | |
The number of processor cores | 4 | |
SIM slot | No | |
Processor | Qualcomm IPQ-8072, 2,2 GHz | |
Antenna design | removable | |
Encryption | WPA, WPA2, WPA3 | |
Consumption [W] | 18 | |
Gain [dBi] | 5 (2,4 GHz), 6 (5 GHz) | |
Conformity | CE, FCC, IC, EAC, RoHS | |
Power supply [V] | 18 - 57 | |
DHCP | Yes | |
Number of connectable antennas | 2 | |
Standards | 802.11a/b/g/n/ac/ax | |
USB 3.0 count | 1 | |
License | L6 | |
4G/LTE support | No | |
Wi-Fi frequency | 2400 MHz/5000 MHz | |
Port speed | 1 Gb/s | |
Design | freestanding | |
PoE output | pasive |
