MikroTik RouterBOARD hAP ac3 5x GLAN 2.4+5GHz 802.11a b g n ac LTE6 L4 indoor
MIKROTIK | RBD53GR-5HacD2HnD&R11e-LTE6 | 4752224005328
Price of goods is 189.52 €.
Weight of goods is 0.3 Kg.
Actual in cart 0 pcs.
MikroTik hAP ac3 LTE6 kit
MikroTik hAP ac3 LTE6 kit is a dual-band AC1200 Wi-Fi router with an integrated CAT6 LTE modem and five gigabit RJ-45 ports. The elegant black chassis and LTE support make it an excellent router for home and office use. The main advantage is support for the 2.4 GHz and 5 GHz bands, in the super-fast 802.11ac standard. Another advantage is the possibility of connecting a USB disk or a 3/4G modem via the USB connector. RouterBoard also offers high performance in the form of a 4-core processor Qualcomm IPQ-4019 operating at a frequency of 716 MHz and 256 MB of RAM memory.
The antennas are integrated directly in the unit. A dual antenna with a total output of up to 27 dBm is designed for the 2.4 GHz and 5 GHz bands. The performance is taken care of by a powerful chipset from Qualcomm, thanks to which the unit can transmit data at a speed of 867 Mbps on the 5 GHz frequency, 300 Mbps on the 2.4 GHz frequency and up to 300 Mbps in the LTE band . This is a speed that is fully enough to play video in UltraHD (4K) quality.

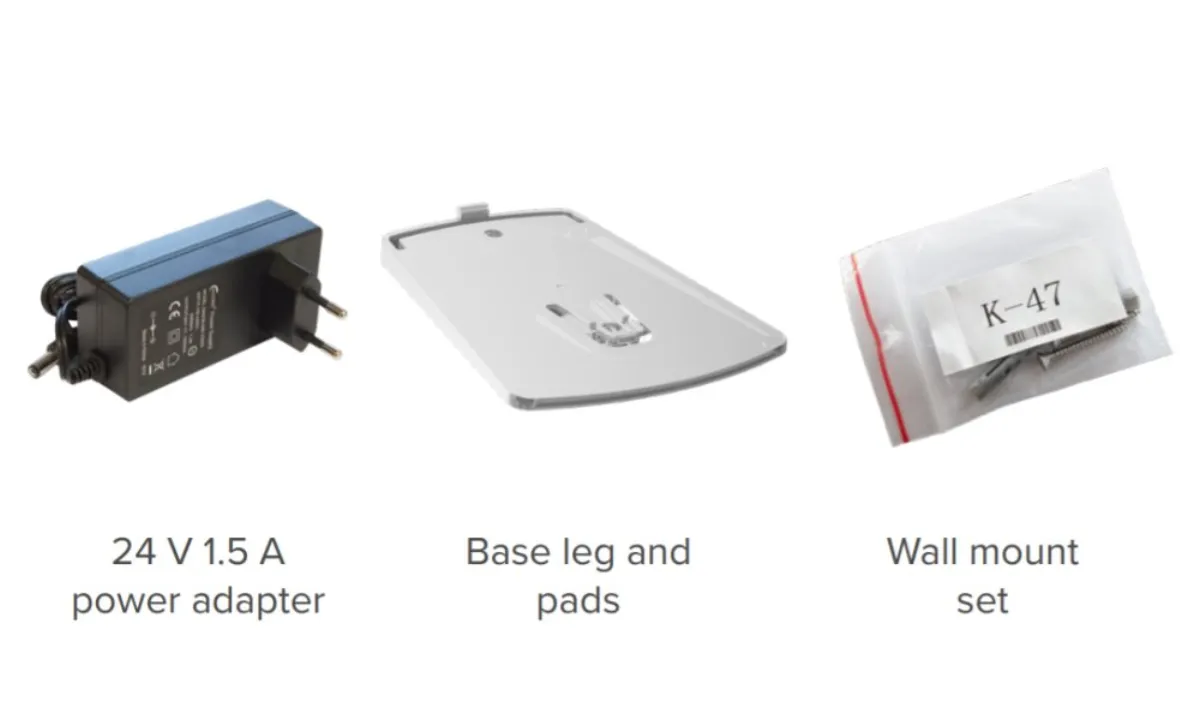

RouterBoard comes complete with power supply and bracket for wall mounting or horizontal/vertical placement.
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Frequency
- 2.4 GHz
- 5 GH
Standard: 802.11a/b/g/n/ac
LTE category
- 6 (300 Mbps Downlink
- 50 Mbps Uplink)

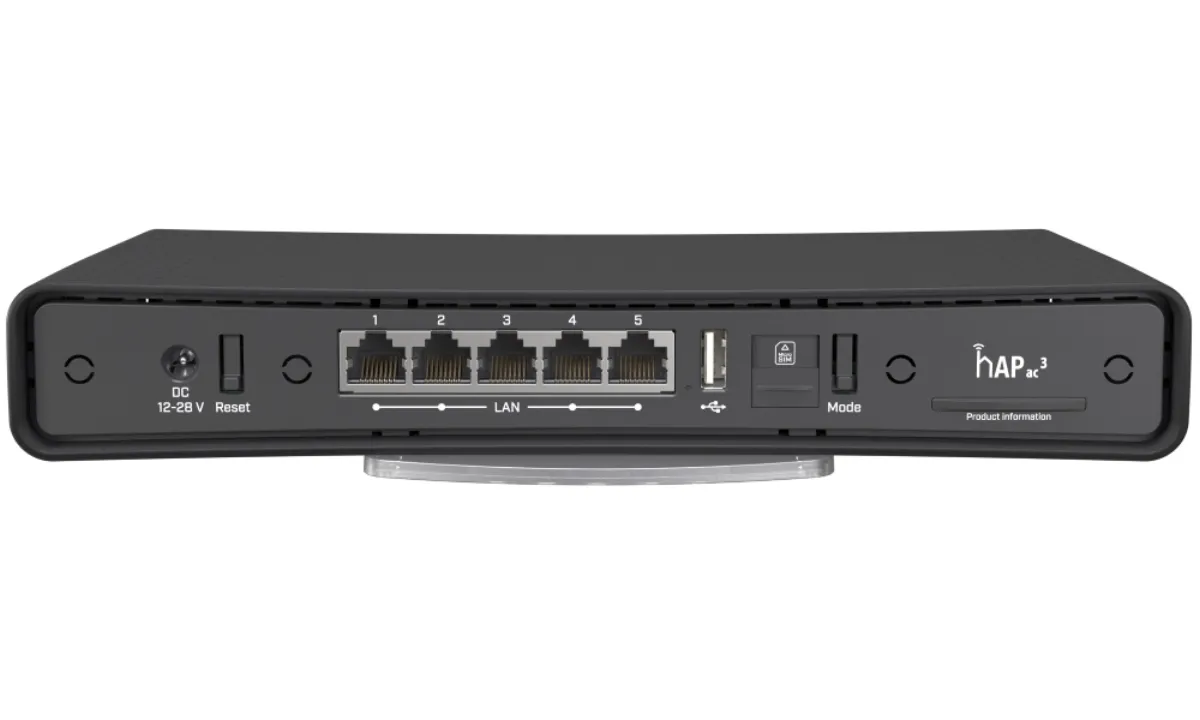

Interface
- 5x RJ-45
- 1x USB 2.0
- 1x Mini PCIe slot
- 1x SIM slot (micro SIM)
PoE support: no
Dimensions: 251 x 129 x 39 mm
| Name | Value | |
|---|---|---|
| Color | black | |
| Dimension [mm] | 251 × 129 × 39 mm | |
| Minimum operating temperature [°C] | -30 | |
| Maximum operating temperature [°C] | 60 | |
| NAND [MB] | 16 | |
| Default password | it isn't | |
| LAN | Yes | |
| Encryption | WEP, WPA, WPA2 | |
| Conformity | CE/RED, FCC, IC, EAC, ROHS | |
| License | L4 | |
| Power supply [V] | 12 - 28 | |
| Height [mm] | 251 | |
| Power supply min. [V] | 12 | |
| Antenna design | internal | |
| Gain [dBi] | 3 (2,4GHz), 5,5 (5GHz), 4 (LTE) | |
| USB 2.0 count | 1 | |
| Max. output power [dBm] | 27 | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Power supply max. [V] | 28 | |
| Consumption [W] | 20 | |
| The number of processor cores | 4 | |
| Processor | Qualcomm IPQ-4019, 716 MHz | |
| Default IP | 192.168.88.1 | |
| Standards | 802.11a/b/g/n/ac | |
| Depth [mm] | 129 | |
| Wi-Fi standard | 802.11a/b/g/n/ac | |
| Output to ext. the antenna | No | |
| The default name | admin | |
| Transmission speed [Mbps] | 867 (5GHz), 300 (2,4GHz), 300 (LTE) | |
| Chipset | Qualcomm IPQ-4019 | |
| Width [mm] | 39 | |
| Operating mode | AP, Client, WDS, Bridge, WISP, Repeater | |
| Interface | LAN, Wi-Fi, LTE | |
| Port speed | 1 Gb/s | |
| Memory size [MB] | 256 | |
| Firewall | Yes | |
| Design | freestanding | |
