MikroTik RouterBOARD LtAP LTE6 kit (2023) Wi-Fi 2.4 GHz b g n 3G 4G (LTE) modem 25 dBi 3x SIM slot GPS LAN L4
MIKROTIK | LtAP-2HnD&FG621-EA | 4752224008718
On stock 10 pcs.
Price of goods is 170.57 €.
Weight of goods is 0.98 Kg.
Actual in cart 0 pcs.
MikroTik LtAP LTE6 kit (2023)

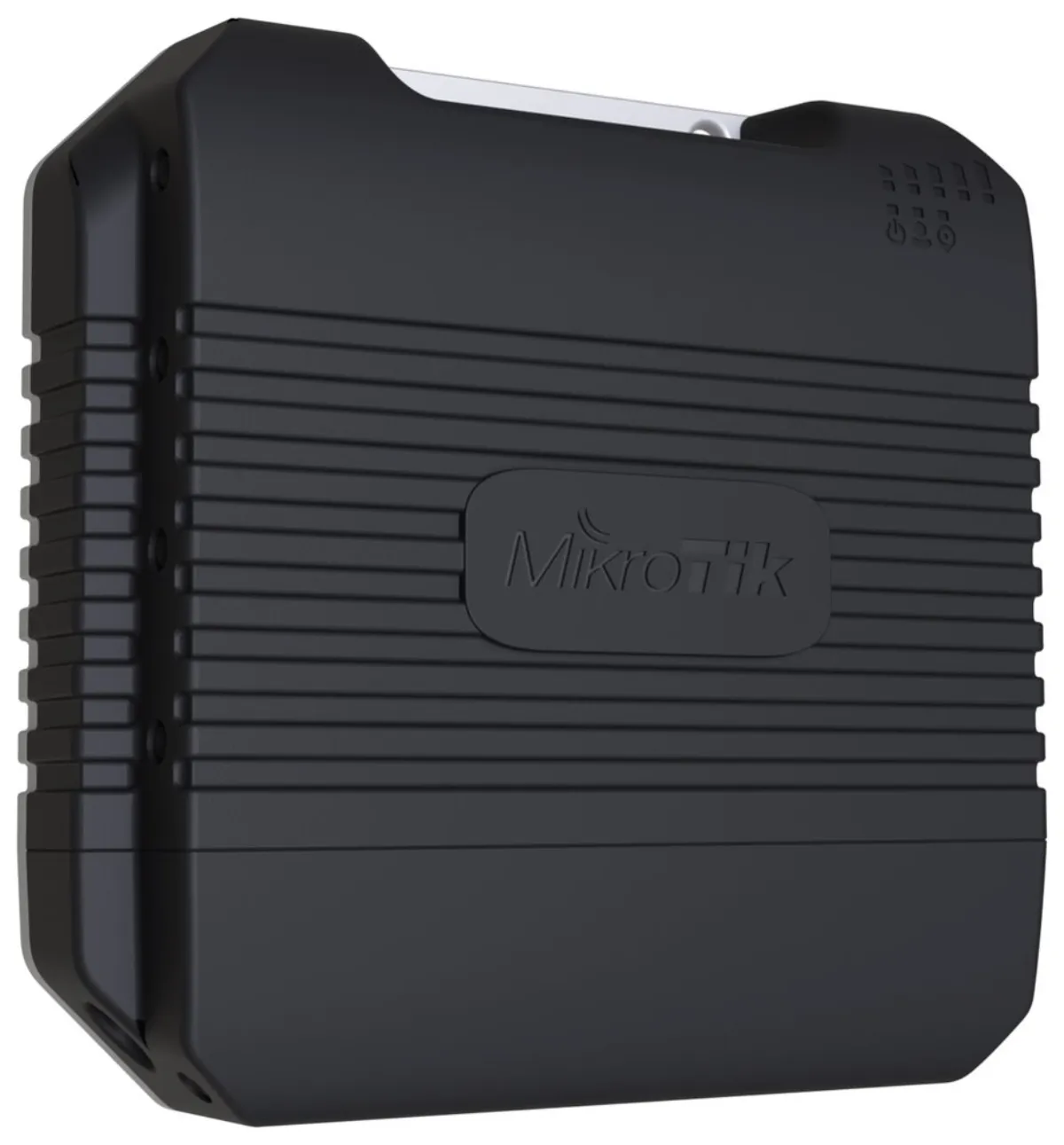

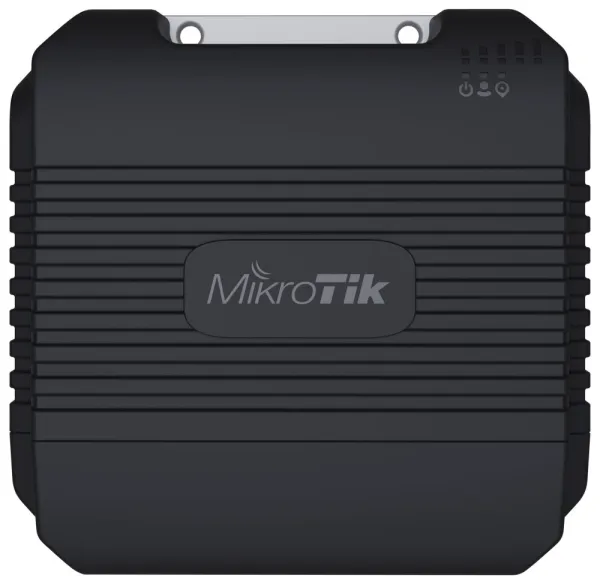

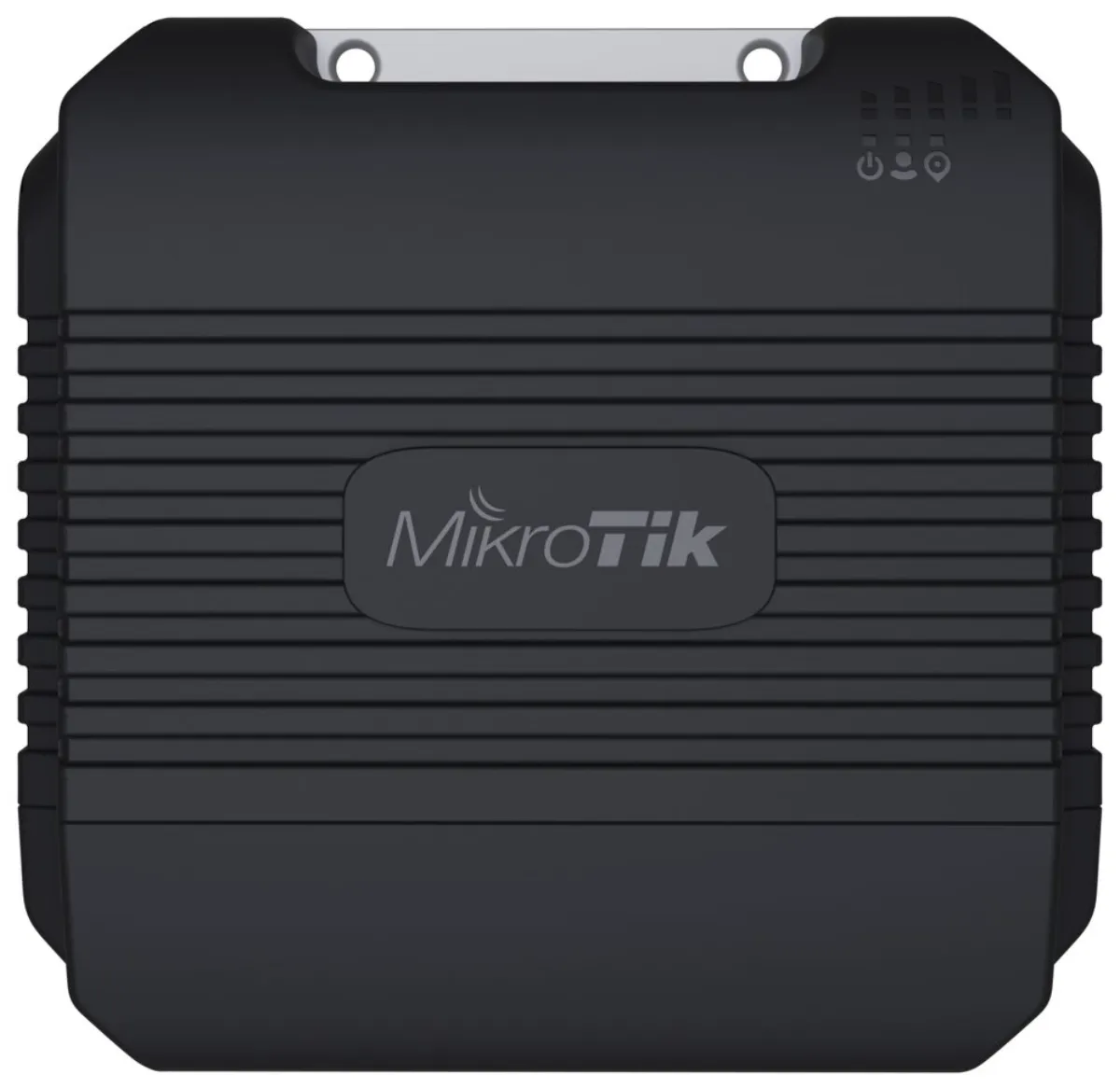

Access point in robust design, with 360° coverage, integrated LTE6 modem and GPS support. It works at 2.4 GHz frequency with support for 802.11b/g/n standards. It is suitable not only for outdoor spaces, but also for halls, vestibules or vehicles. The device is equipped with two internal LTE antennas, but with the u.FL connectors you can add external antennas of your choice for even better coverage. The antenna for 2.4 GHz has a gain of 2.5 dBi and supports 2×2 MIMO. There are three SIM slots with the possibility of configuration (automatic roaming, operator switching) and two miniPCIe slots, one of which is reserved for LTE and the other is unoccupied. This can be used as an expansion slot, e.g. for a redundant LTE modem or a 5GHz interface.

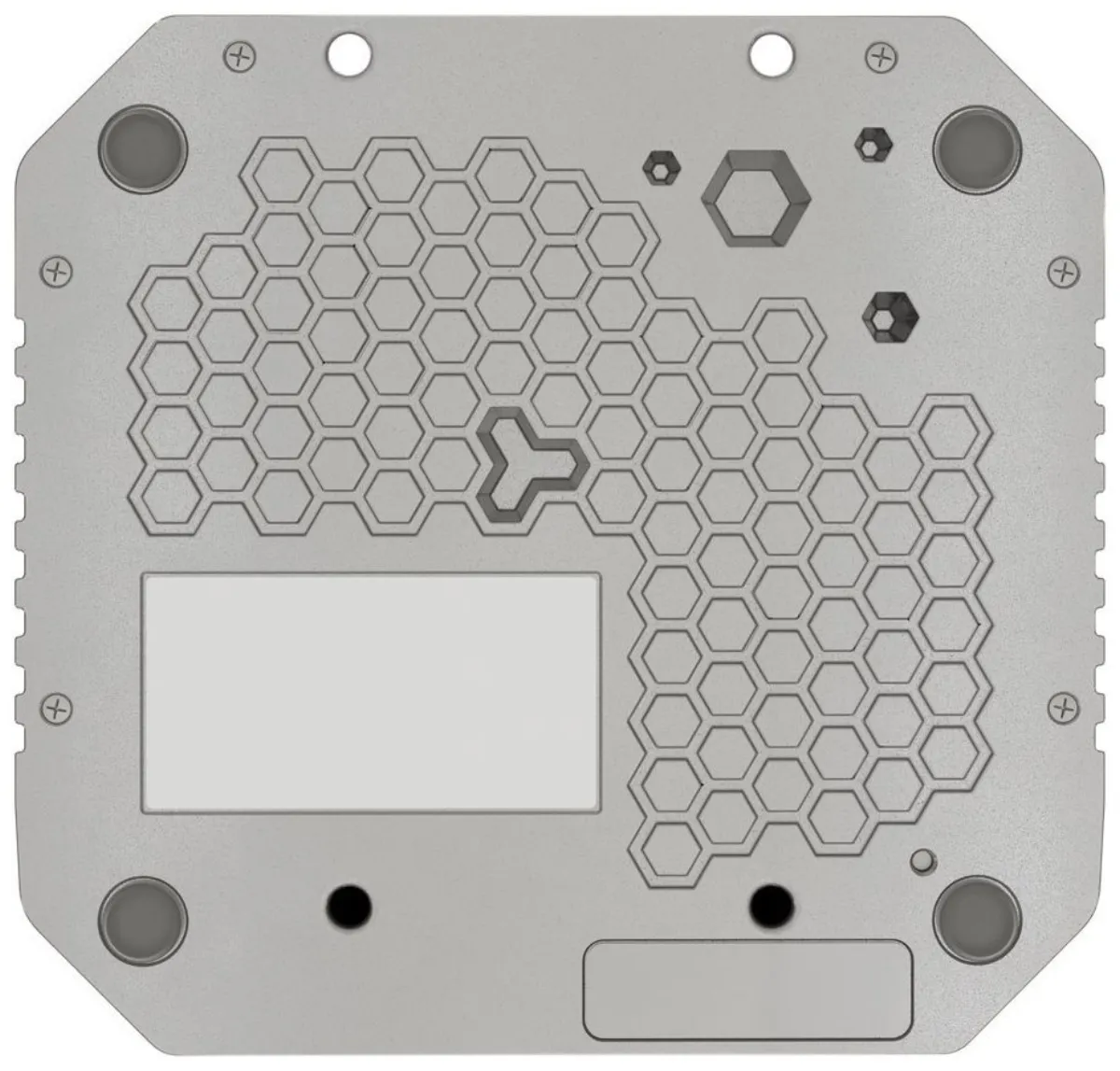

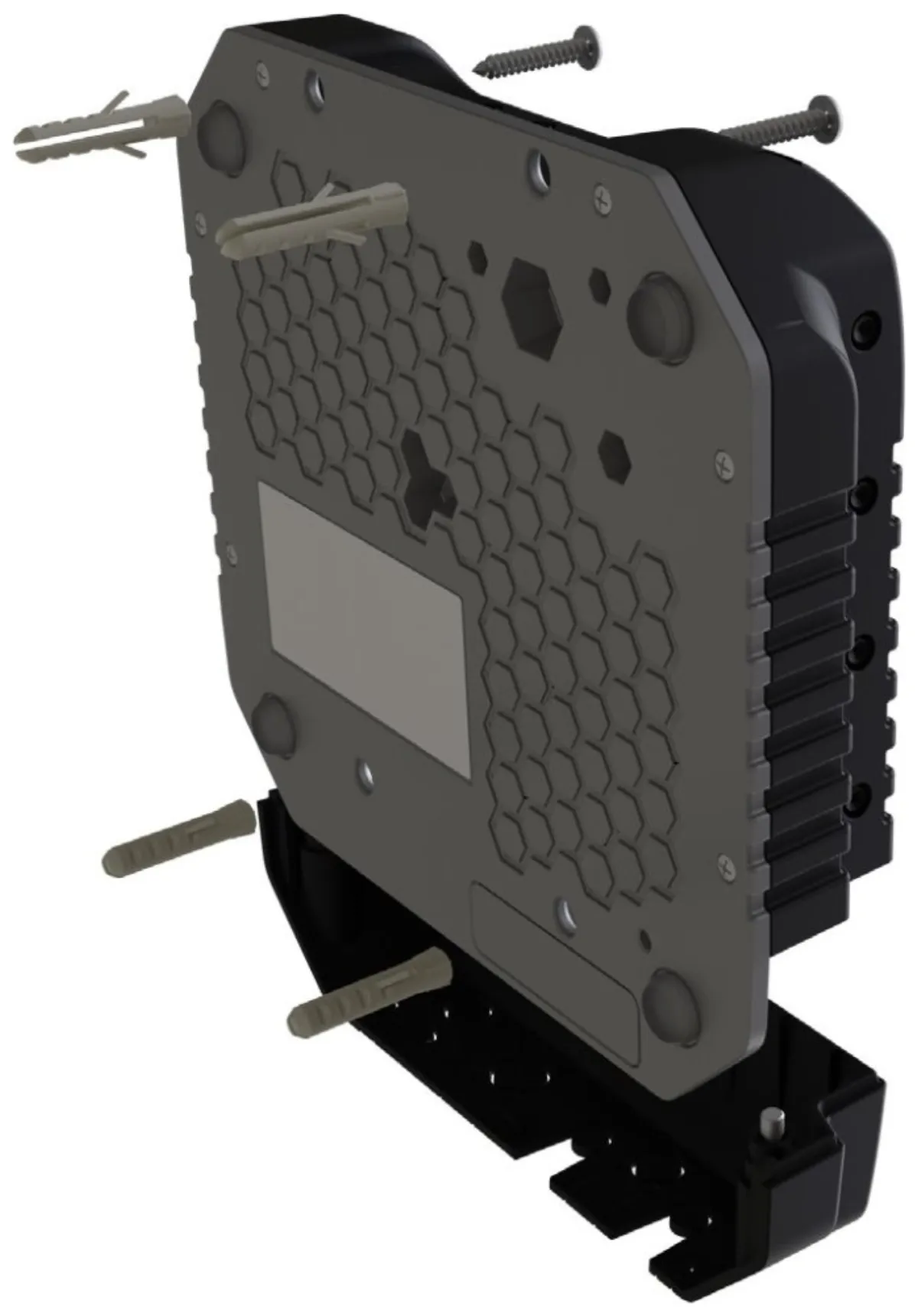

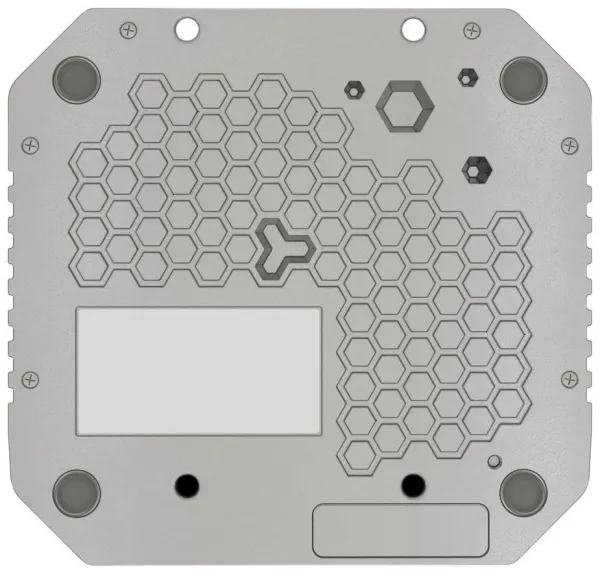

The durable rubberized body with IP54 protection, temperature resistance from -40 °C to +70 °C and a special wall mount is perfect for almost any installation. The unit includes RouterOS Mikrotik software with L4 license. The unit can thus be used as an access point. The power options are as flexible as possible - classic DC connector (12-30 V), passive PoE (12-30 V) and automotive ( automotive) connector are available .
Supported Bands:
LTE (FDD): 1/3/5/7/8/20/28 (2100/1800/850/2600/900/800/700)
LTE (TDD): 38/40/41 (2600/2300/2500)
3G: 1/3/5/8 (2100/1800/850/900)
Information about RouterOS MikroTik
RouterOS Mikrotik fully supports IPv6 networks.
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Interface
- LAN
- WiFi
- GPS
- 3G/4G/LT
Wi-Fi standard: IEEE 802.11b/g/n
Frequency band: 2.4 GHz
Antenna
- integrated 2.5 dBi (Wi-Fi)
- 2x integrated (LTE)

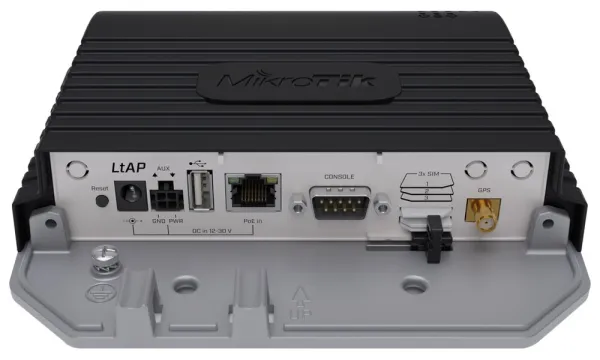

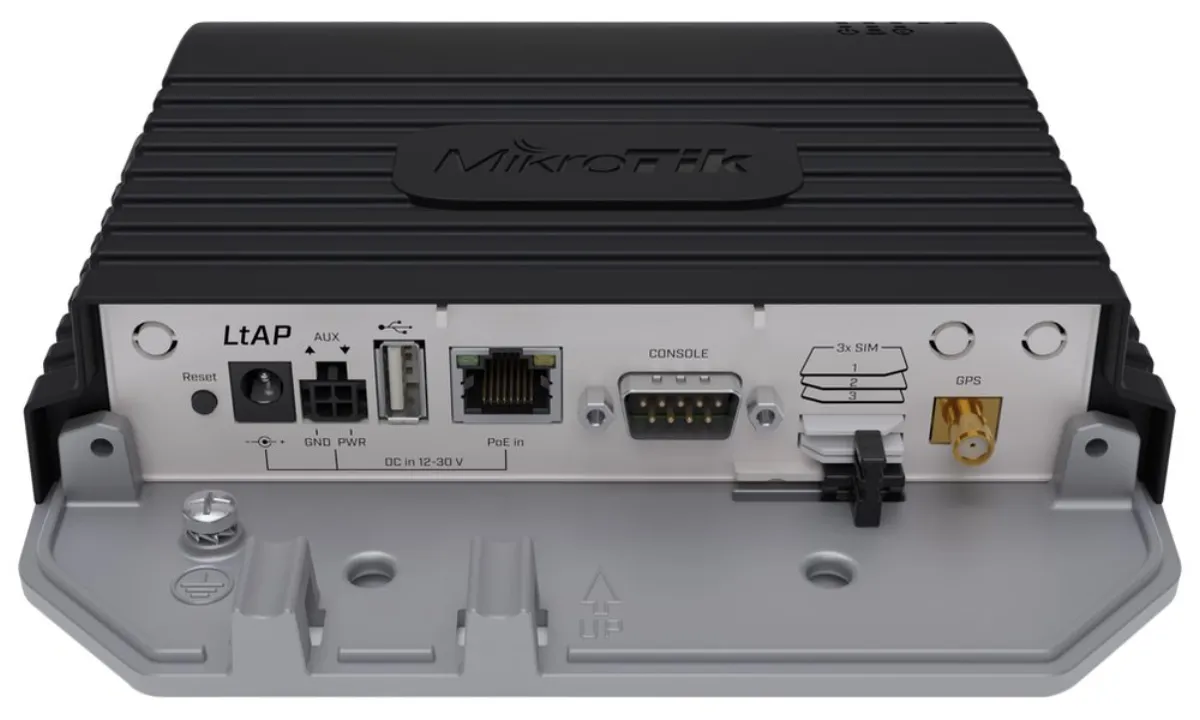

Ports
- 1x RJ-45 LAN
- 3x SIM slot (mini)
- 1× RS-232 (console)
- 1x USB 2.0
- 1× SMA (F) GPS
PoE support
- yes
- passive 12-30 V

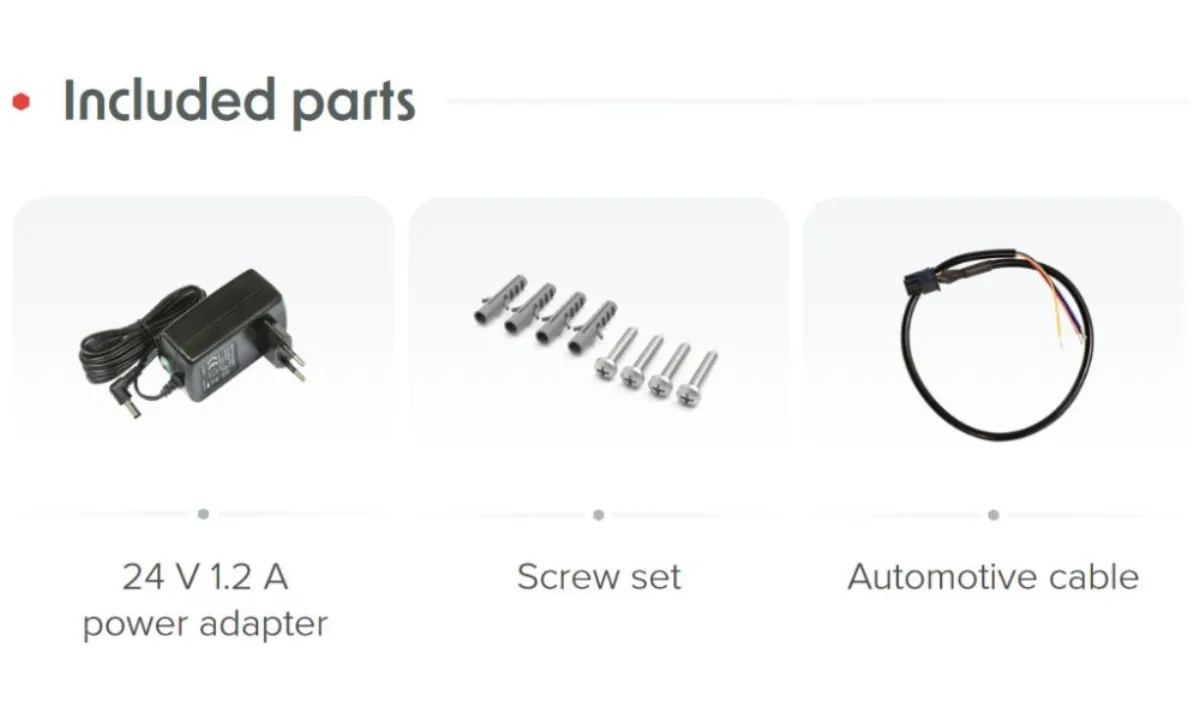

Power supply
- DC 12-30 V
- passive PoE 12-30 V
- 4pin Automotive 12-27 V
Dimensions: 170 x 162 x 40 mm
| Name | Value | |
|---|---|---|
| Color | black | |
| Dimension [mm] | 170 × 162 × 40 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 70 | |
| NAND [MB] | 16 | |
| LAN | Yes | |
| Horizontal beam angle [°] | 360 | |
| Conformity | CE, FCC, IC, E-MARK, EAC, ROHS | |
| License | L4 | |
| Power supply [V] | 12 - 30 (DC) | |
| Height [mm] | 170 | |
| Power supply min. [V] | 12 | |
| 5G support | No | |
| Antenna design | internal | |
| Gain [dBi] | 2,5 | |
| Extension | 1x miniPCI-e | |
| Max. output power [dBm] | 26 | |
| Wi-Fi frequency | 2400 MHz | |
| Power supply max. [V] | 30 | |
| Consumption [W] | 24 | |
| The number of processor cores | 2 | |
| Processor | MediaTek MT7621, 880 MHz | |
| Wi-Fi 2,4 GHz [Mbps] | 300 | |
| Ethernet [Mbps] | 1000 | |
| Standards | 802.11b/g/n | |
| Slots | 1× LAN, 3× SIM slot, 1× USB, 1× RS232, 1× SMA (F) | |
| Depth [mm] | 40 | |
| Number of connectable antennas | 1 | |
| Output to ext. the antenna | Yes | |
| eSIM support | No | |
| Degree of coverage | IP54 | |
| Width [mm] | 162 | |
| Operating mode | AP | |
| Interface | LAN, Wi-Fi, 3G, 4G/LTE, GPS, USB, RS-232 | |
| Port speed | 1 Gb/s | |
| Memory size [MB] | 128 | |
| PoE input | pasive | |
| Design | on the wall | |
| IPv6 support | yes, full | |
