MikroTik RouterBOARD RB1100AHx4 Dude 64 GB SSD 4x 14 GHz 13x Gigabit LAN Dual PSU incl. L6
MIKROTIK | RB1100Dx4 | 8592457160014
Price of goods is 350.66 €.
Weight of goods is 2.14 Kg.
Actual in cart 0 pcs.

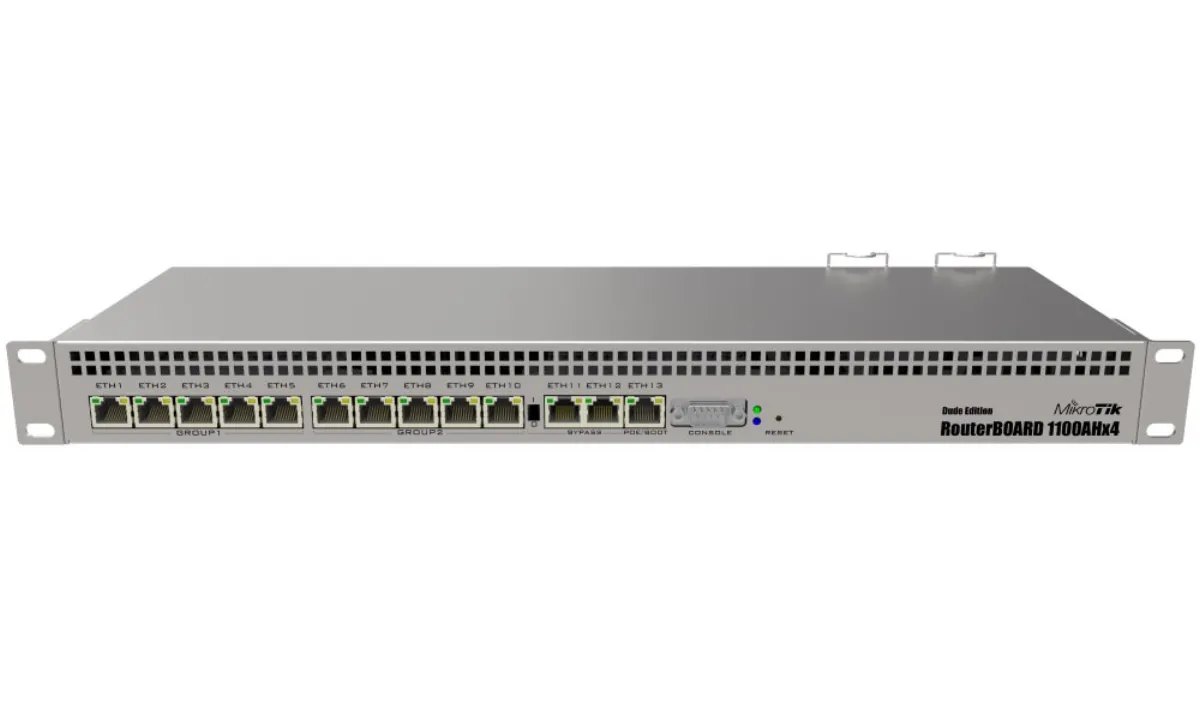

MikroTik RB1100AHx4 Dude Edition
Redesigned RouterBoard RB1100AHx4 with four cores at a frequency of 1400 MHz. It can process up to 5.5 million packets per second, which is a 5-fold increase in performance compared to the original model, plus it has an integrated 64 GB SSD drive. This model has a redundant source. In addition to dual power supply, it also has a DC input and supports both passive and active PoE power supply in the 802.3at standard. The RouterBoard has two M2 slots for SSD drives. One is already fitted with a 60 GB SSD. The RouterBoard can be further expanded with a microSD card. Thanks to the integrated hardware accelerator, it is ideal for IPsec tunnels. The DUDE package is part of the basic installation, which is ideal for monitoring the entire network. In addition to online monitoring, it can also perform remote upgrades of all MikroTiks in the network, for example.
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Processor
- AL21400
- 1.4 GHz
- 4 core
RAM memory: 1 GB
Ports
- 13x Gbit RJ-45
- 1x microSD slot
- 1x RS-232 (console)
PoE support
- yes
- 802.3af/at
Max. power consumption: 25 W
Dimensions: 443 x 148 x 44 mm
| Name | Value | |
|---|---|---|
| Color | silver | |
| Weight, brutto [kg] | 1,18 | |
| Dimension [mm] | 443 × 148 × 44 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 70 | |
| NAND [MB] | 128 | |
| SIM slot | No | |
| License | L6 | |
| Height [mm] | 44 | |
| Power supply min. [V] | 20 | |
| Power supply max. [V] | 57 | |
| RS-232 port | Yes | |
| Consumption [W] | 25 | |
| The number of processor cores | 4 | |
| Processor | Alpine AL21400, 1,4 GHz | |
| Slots | 2x SATA 3 | |
| Depth [mm] | 148 | |
| 3G support | No | |
| The default name | admin | |
| Width [mm] | 443 | |
| Interface | LAN | |
| IPSec | Yes | |
| Port speed | 1 Gb/s | |
| Memory size [MB] | 1000 | |
| PoE input | 802.3af/at | |
| IPv6 support | yes, full | |
